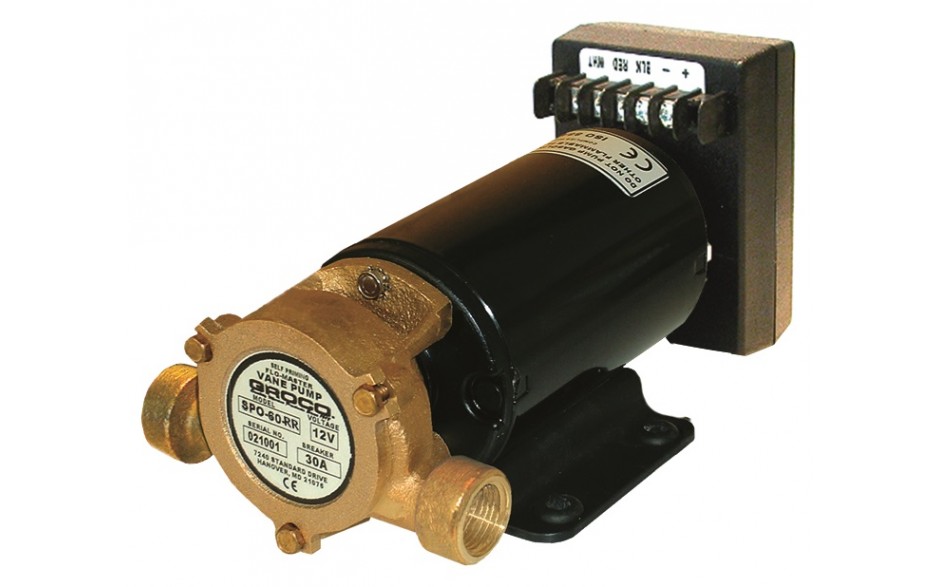

SPO-60-RR 24V

Positive Displacement Reversing Vane Pump

The Concept:

    GROCO  Vane Pumps are self-priming, are instantly reversible, and are capable of operation in either direction. Relatively high flow (more than gear pumps) makes them suitable for general purpose duties such as deck-wash, bilge pumping (filtered inlet),  fuel transfer, ballast transfer, and oil change.  All models have an ignition protected motor, #316 stainless steel shaft, and are available in models that provide reversing (R), remote reversing (RR), and  reversing with touchpad (RT) control options. SPO-80 Series Vane Pumps have a more powerful motor and are better suited for long run-time or head pressure greater than 20 PSI.

Additional Information
Self Priming Yes
Thread NPT 1/2" + Garden Hose Adaptor
Control Type Remote Momentary Reversing Switch
Max GPM 6.5
Breaker DC 15 amp

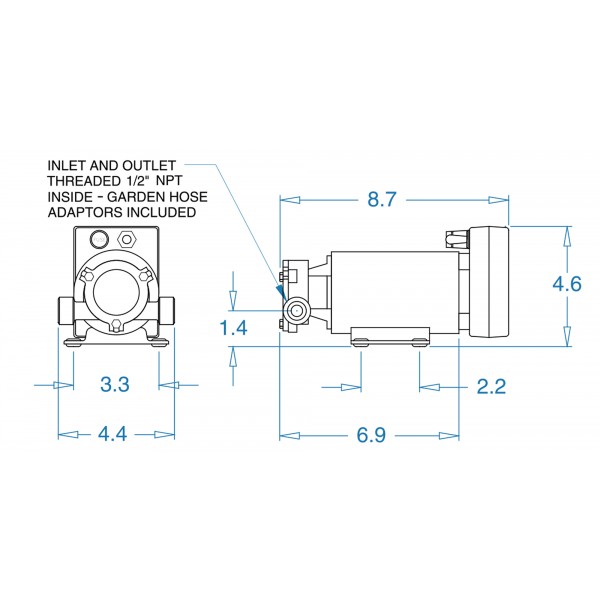

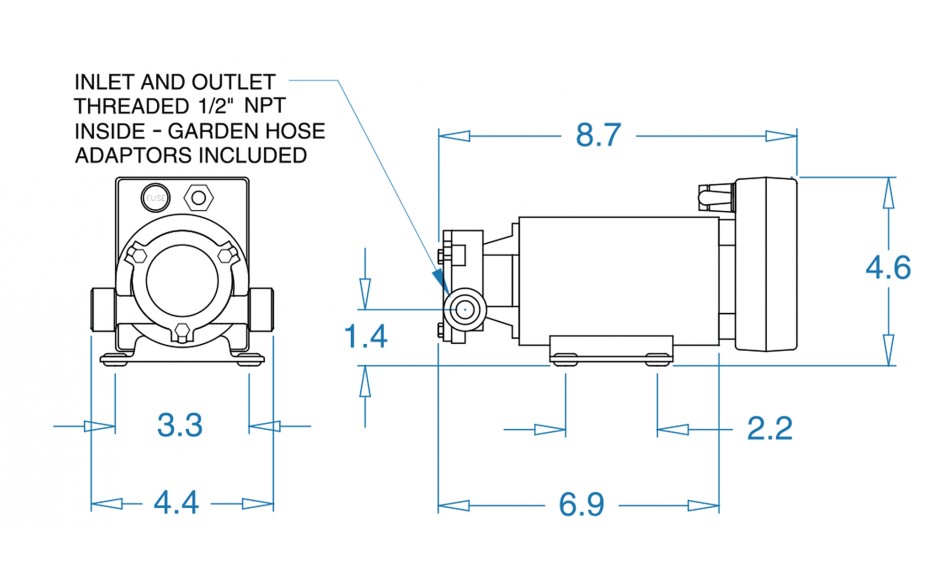

Dimensions
Self PrimingYes
Thread NPT1/2" + Garden Hose Adaptor
Control TypeRemote Momentary Reversing Switch
Max GPM6.5
Breaker DC15 amp

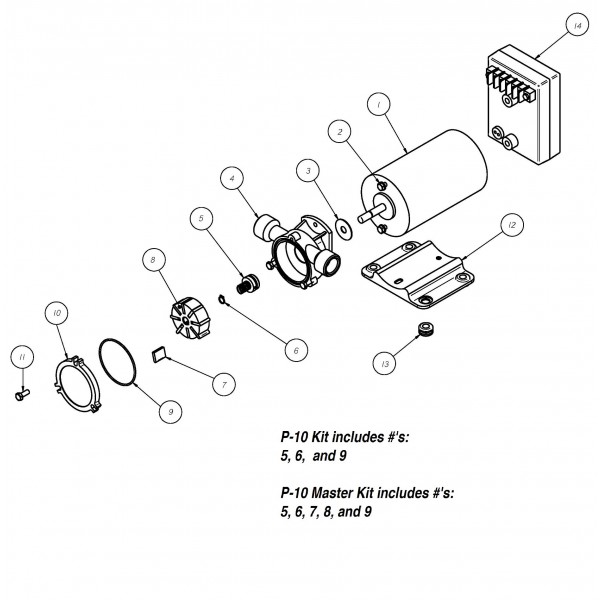

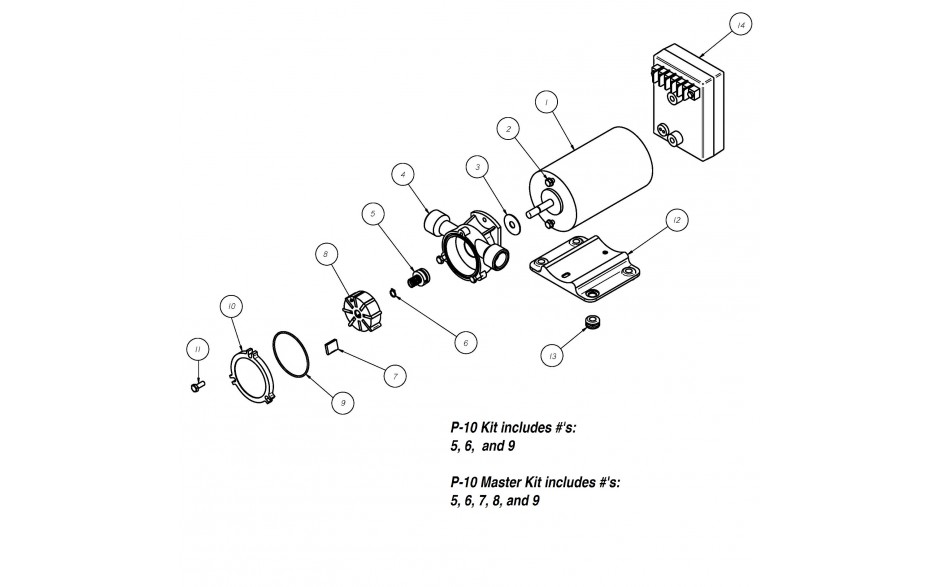

Individual Parts
  • 1
    24V-F
    $711.00
    Qty Per Unit: 1
  • 2
    1032X12HS
    $1.00
    Qty Per Unit: 2
  • 3
    SP-95
    $1.00
    Qty Per Unit: 1
  • 4
    SP-49-C
    $192.00
    Qty Per Unit: 1
  • 5
    69089
    $999,999.00
    Qty Per Unit: 1
  • 6
    SNAP RING-1
    $3.00
    Qty Per Unit: 1
  • 7
    SP-98
    $18.00
    Qty Per Unit: 1
  • 8
    SP-99-A
    $47.00
    Qty Per Unit: 1
  • 9
    2-034
    $1.00
    Qty Per Unit: 1
  • 10
    SP-91
    $38.00
    Qty Per Unit: 1
  • 11
    1024X12HB
    $2.00
    Qty Per Unit: 3
  • 12
    B-200-P
    $7.00
    Qty Per Unit: 1
  • 13
    06-0001-00
    $2.00
    Qty Per Unit: 1
  • 14
    REV-E ASSY 24V
    $442.00
    Qty Per Unit: 1
  • 15
    P-10
    $96.00
    Qty Per Unit: 1
  • 16
    P-10 MASTER
    $174.00
    Qty Per Unit: 1
