THE CONCEPT
As raw water strainers do their job, filter baskets become clogged with debris and flow to the connected device is reduced, resulting in the need for system shut-down for cleaning and maintenance. HYDROMATICTM strainers eliminate untimely shut-downs and maintenance by conducting a periodic self-cleaning cycle (the user selects the interval) with its powerful internal macerator. Debris is pumped overboard without shutting down the connected device.
911-1000 povides filtered water to a single device and has 1" NPT ports for Water In, Water Out and Debris Out.
FEATURES
- A 30-second cleaning cycle is automatically performed at user-selected intervals.
- Optional interface with SSA system initiates cleaning cycle when flow is reduced, independent of the pre-set cleaning interval.
- The "Purge" option over-rides the selected cleaning interval and performs a one-time 30-second cleaning cycle.
- Powerful macerator grinds debris and discharges overboard below the waterline.
- "Ignition Protected" motors for DC models.970 models function as a sea chest to provide filtered water to multiple devices.
- Installation can be horizontal or vertical (flooded inlet required)
- C84400 bronze construction.
- Made in the USA

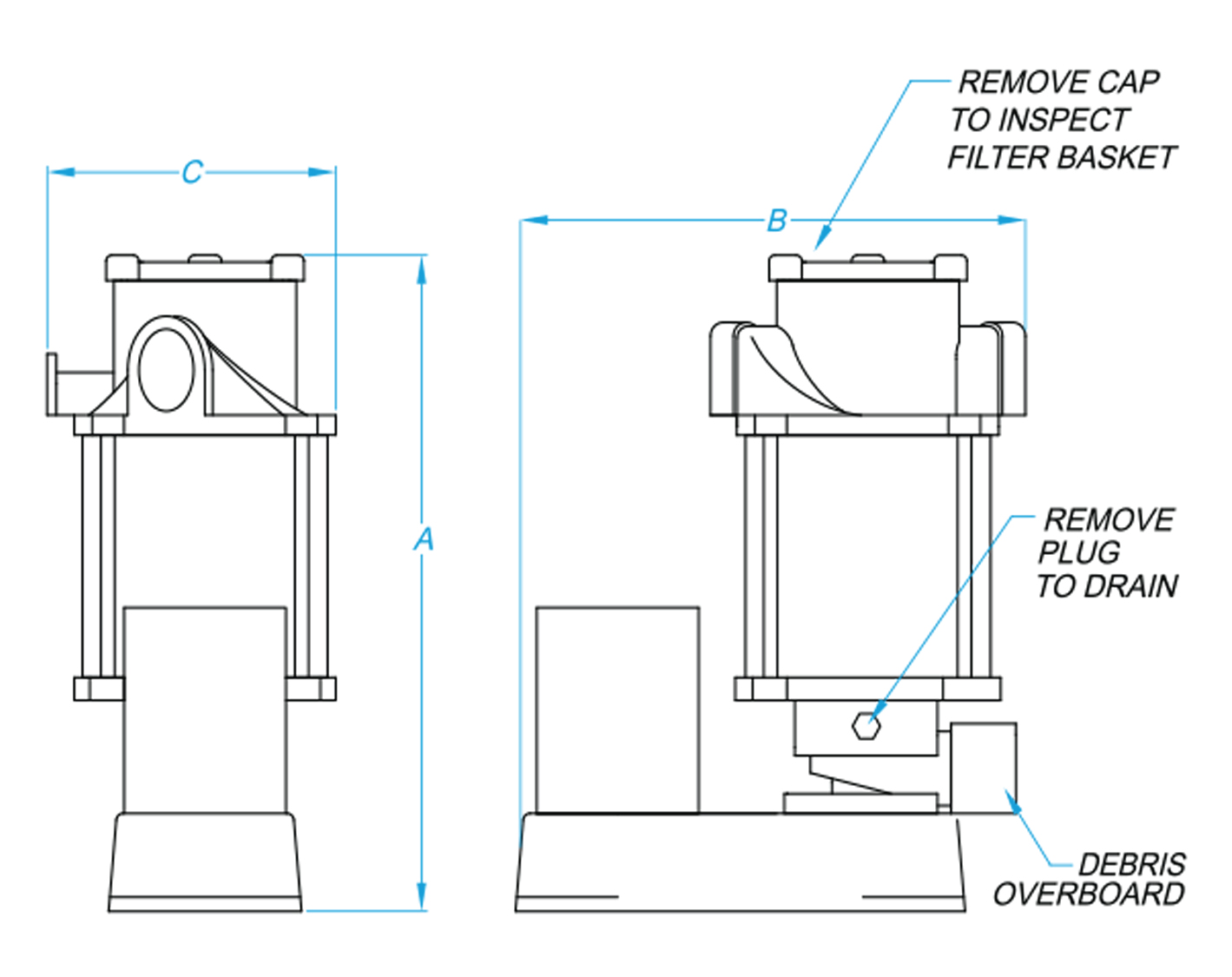

Product Name | Inlet | Outlet | Debris Discharge | A | B | C | Open Area Ratio |
---|---|---|---|---|---|---|---|
911-1000-12 |
1" NPT | 1" NPT | 1" NPT | 11.5 | 9.2 | 5.3 | 21.1 |
911-1000-24 |
1" NPT | 1" NPT | 1" NPT | 11.5 | 9.2 | 5.3 | 21.1 |
