THE CONCEPT

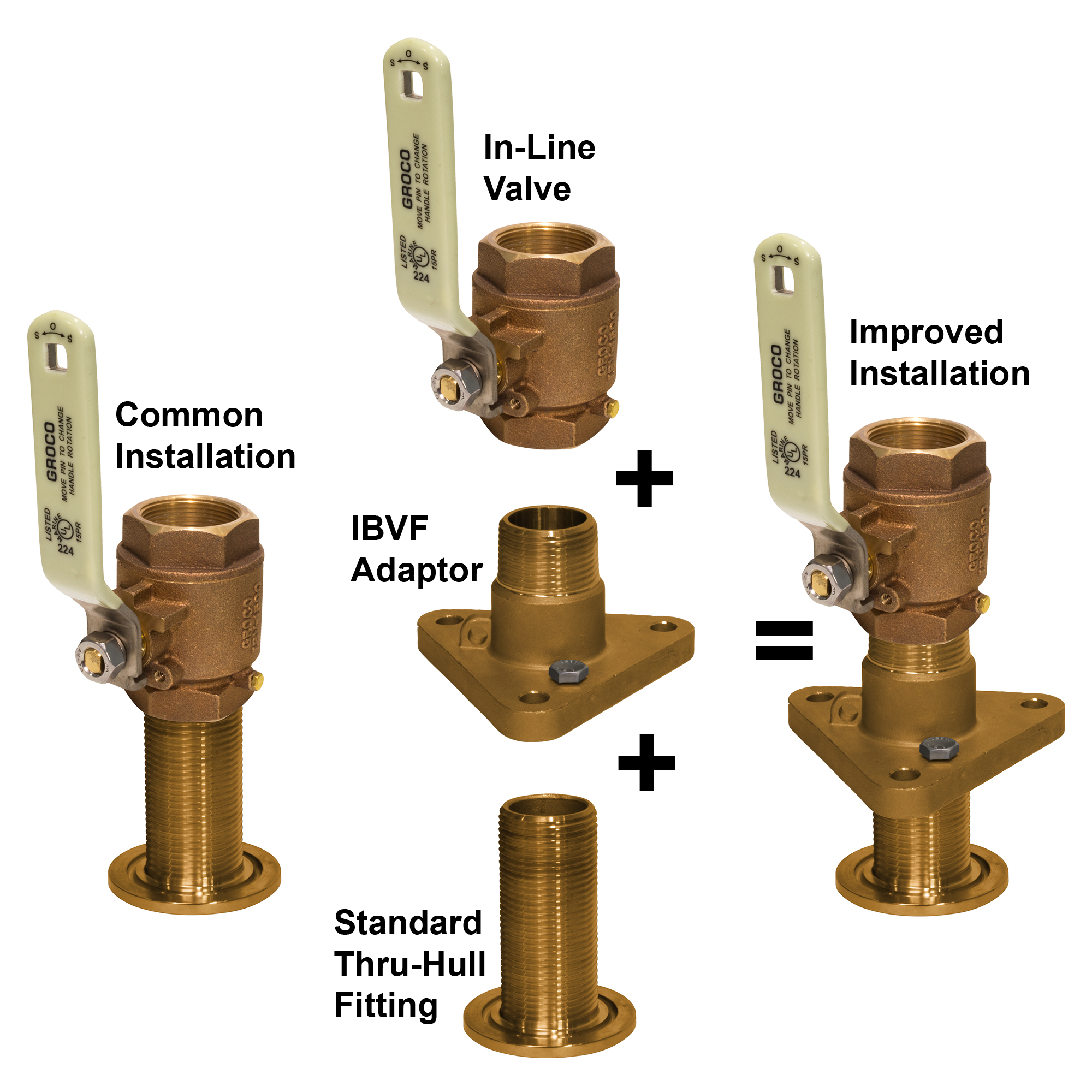

Patented IBVF Flanged Adaptors have been developed to address several common problems in the marine industry.  Here’s what they do:

            • British Standard Pipe Parallel (BSPP) Thread
            • Eliminate dangerous thread miss-match when in-line valves are screwed onto thru hulls.
            • Accept standard thru-hulls into the base and standard in-line valves on top.
            • Provide a safe and sturdy assembly when in-line valves are used as seacocks.
            • For OEMs, prevent valve damage during engine or generator installation - the valve can be installed later.
            • Simplifies future valve replacement.
            • C83600 Bronze

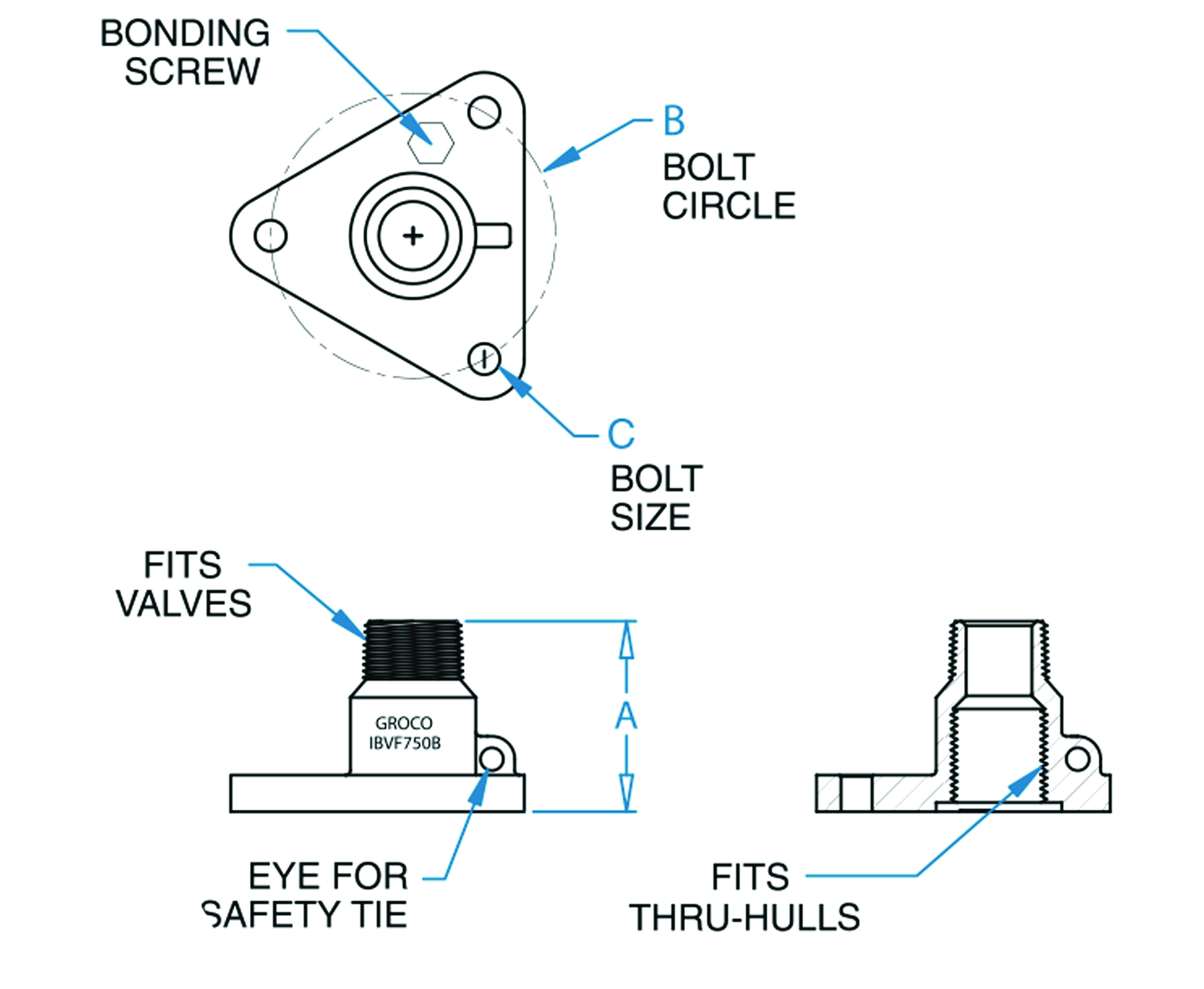

Product Name Thread BSPPThread Top NPTABC

IBVF-750 BSPP

3/4"3/4"2.093.125/16"

IBVF-1000 BSPP

1"1"2.183.385/16"

IBVF-1250 BSPP

1-1/4"1-1/4"2.183.625/16"

IBVF-1500 BSPP

1-1/2"1-1/2"2.184.55/16"

IBVF-2000 BSPP

2"2"2.1855/16"

IBVF-2500 BSPP

2.5"2.5"3.25.883/8"

IBVF-3000 BSPP

3"3"3.5173/8"
