PTHC-S Series Stainless NPT Standard Flow
FEATURES
- Standard flow - the hose ID that fits is the same as the pipe size (ie: PTHC-750-S has 3/4" NPT threads and accepts 3/4" ID hose)
- #316 Stainless Steel -NSF-61 compliant and suitable for use in potable water systems
- Sizes from 1/2" to 3"
- UL Listed 647B

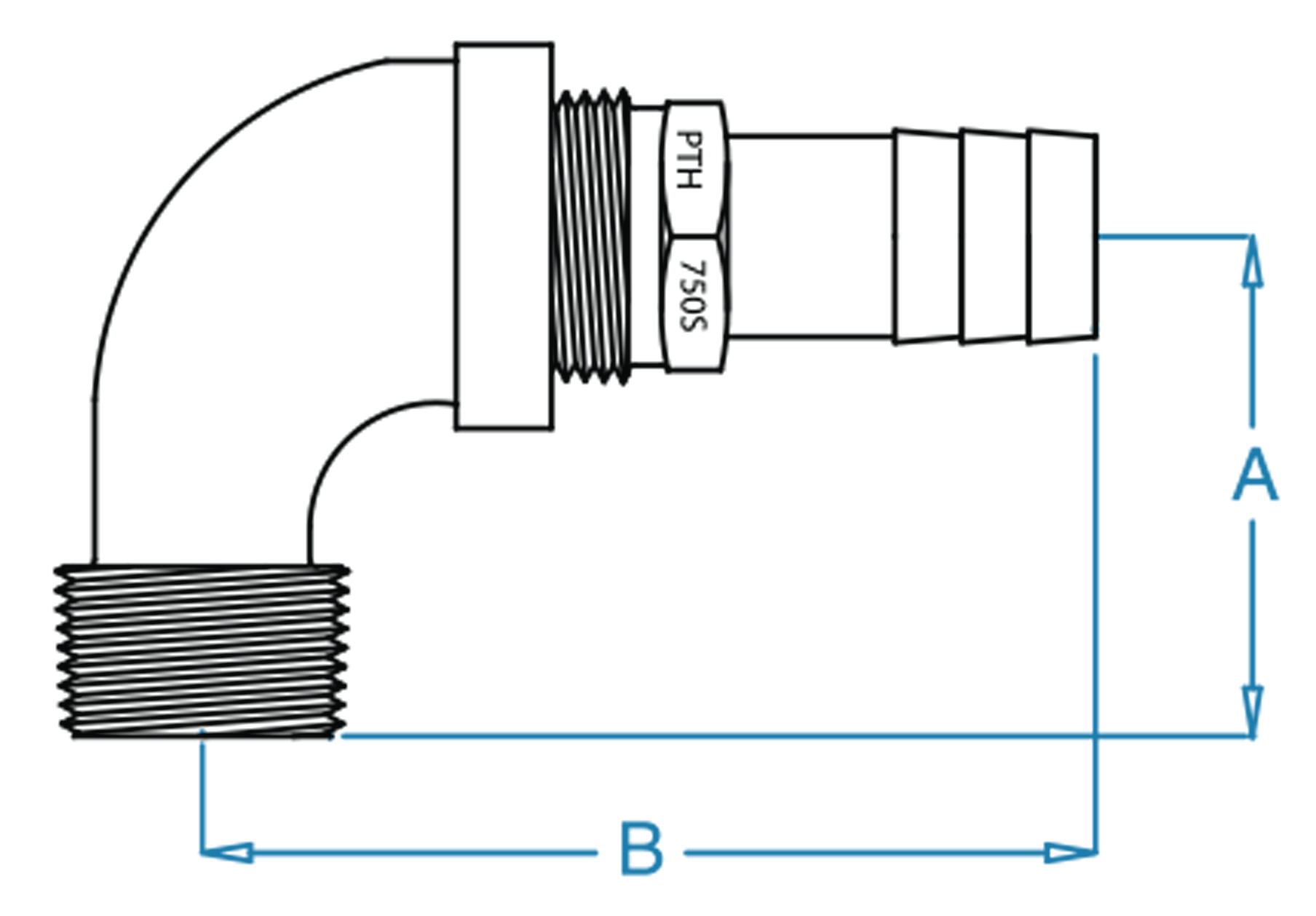

| Product Name | Thread NPT | Hose ID (in) | A | B | C |
|---|---|---|---|---|---|
PTHC-750-S |
3/4" | 3/4" | 1.31 | 2.97 | - |
PTHC-1000-S |
1" | 1" | 1.5 | 3.4 | - |
PTHC-1250-S |
1-1/4" | 1-1/4" | 1.75 | 4 | - |
PTHC-1500-S |
1-1/2" | 1-1/2" | 1.93 | 4.4 | - |
PTHC-2000-S |
2" | 2" | 2.25 | 5 | - |
PTHC-2500-S |
2-1/2" | 2-1/2" | 2.68 | 6.25 | - |
PTHC-3000-S |
3" | 3" | 3.06 | 7 | - |
