FV 6 Port Series

FV 6 Port Series

THE CONCEPT

Six-port fuel valves are used where 2 tanks supply a single engine, and a return to each supply tank is required.

ABYC H33.9.2 states that fuel system valves must have an independent means of support, so in-line valves are not suitable for fuel system applications.

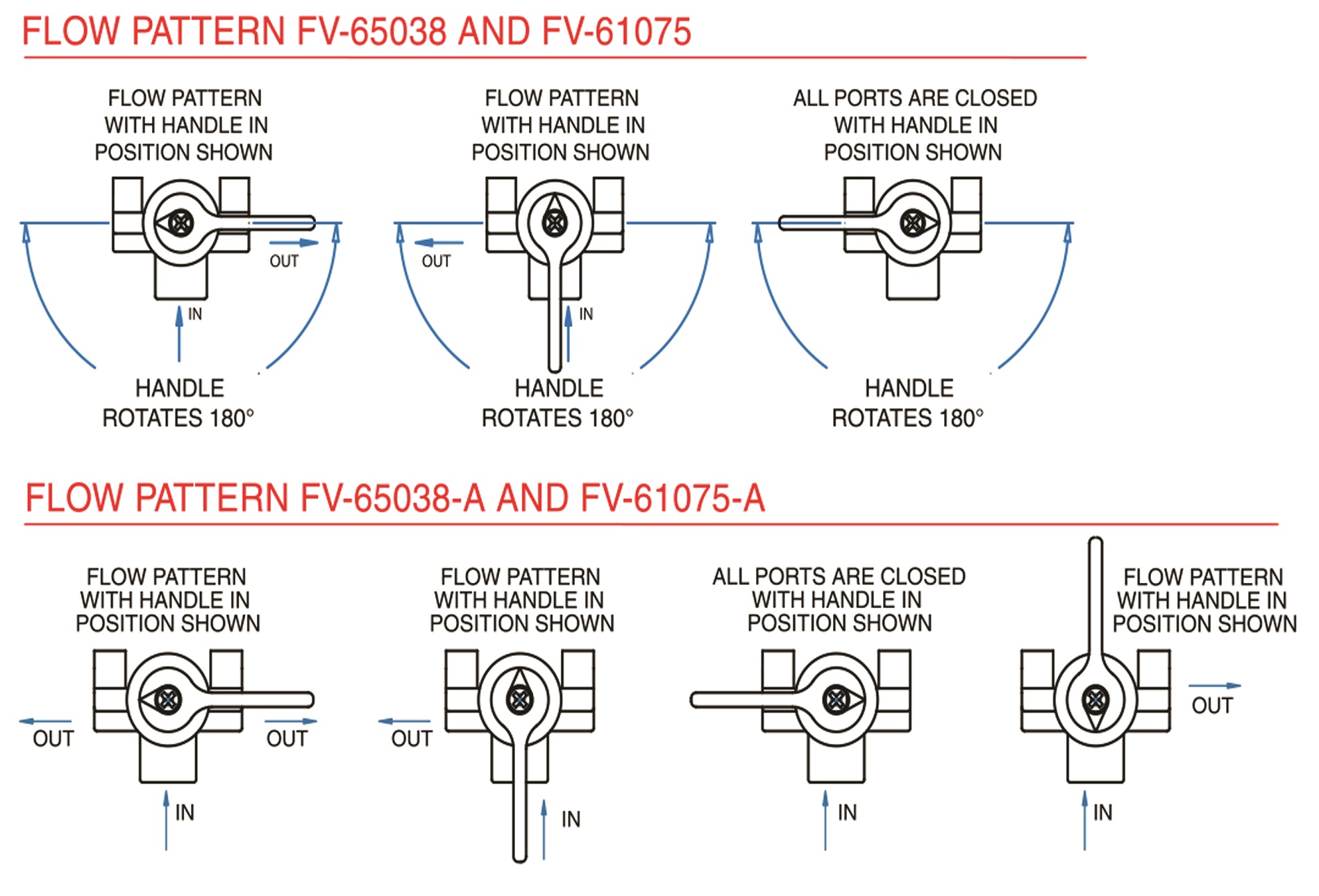

FV-65038 and FV-61075 have an "L" shaped flow pattern and 180 degree handle swing; FV-65038-A and FV-61075-A have a "T" shaped flow pattern and 360 degree handle actuation.



FEATURES

            • Mount feet included.
            • C84400 bronze construction.
            • "L" flow pattern is standard (FV-65038 and FV-61075)
            • "T" flow pattern is optional (FV-65038-A and FV-61075-A)
            • FV-65038 has 1/2" NPT primary and 3/8" NPT return ports
            • FV-61075 has 1" NPT primary and 3/4" NPT return ports









Product Name Main NPTReturn NPTABCDEF

FV-61075

1"3/4"8.423.473.344.173.091.88

FV-61075-A

1"3/4"8.423.473.344.173.091.88

FV-65038

1/2"3/8"5.622.312.232.782.061.25

FV-65038-A

1/2"3/8"5.622.312.232.782.061.25
