PNC Series

PNC Series



THE CONCEPT

PNC series is a simple design comprised of a bronze nipple with an internal check valve.  Almost zero flow restriction is imposed, and the check requires less than 1/2 PSI to open.  Colored bands indicate flow direction (green to red), confirmed by the permanent laminated tag.  Do not use in diesel fuel or gasoline applications.



 FEATURES

            • C83600 cast bronze construction.
            • Male NPT threads.
            • 1/2" - 2" sizes.
            • Not suitable for use with diesel fuel or gasoline
            • Maximum recommended temperature = 176-F (80-C)

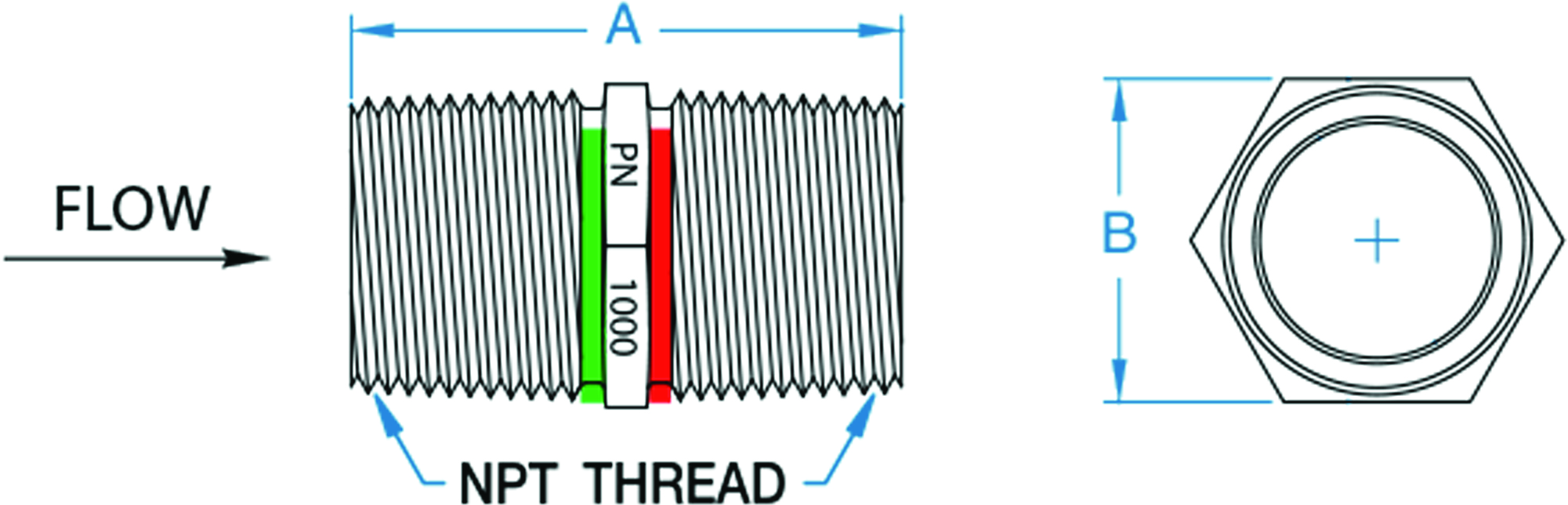

Product Name Thread NPTABCPSI to Open

PNC-500

1/2"1.770.88 -0.45

PNC-750

3/4"1.771.06 -0.45

PNC-1000

1"2.341.38 -0.45

PNC-1250

1-1/4"2.511.75 -0.45

PNC-1500

1-1/2"2.492 -0.45

PNC-2000

2"2.372.5 -0.45
