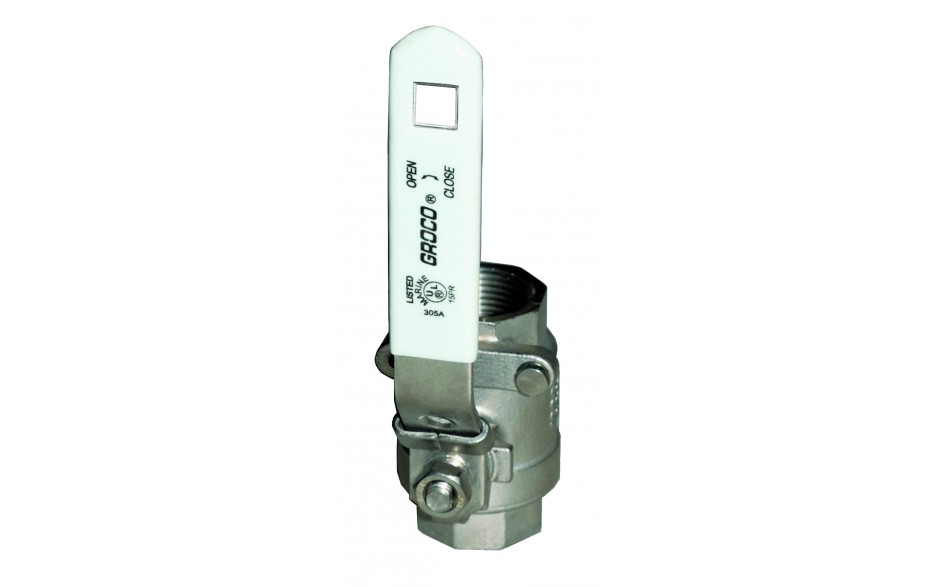

IBV-500-S

1/2" #316 Stainless Steel Inline Valve

Features:

  • 1-1/4" sizes and larger include a grease zerk fitting for lubrication (use only with the valve in the open position) or for draining.
  • Handle has square hole to accept standard ratchet (helps you to reach hard-to-reach valves and eases actuation of hard to operate valves).
  • Thumb-release locking mechanism assures the valve remains in the position selected.
  • 1000 WOG rated.
  • #316 SS body. #304 SS handle and trim.
  • Bonding attachment.
  • PTFE seats and seals.
  • UL listed for fuel or water. Full flow.

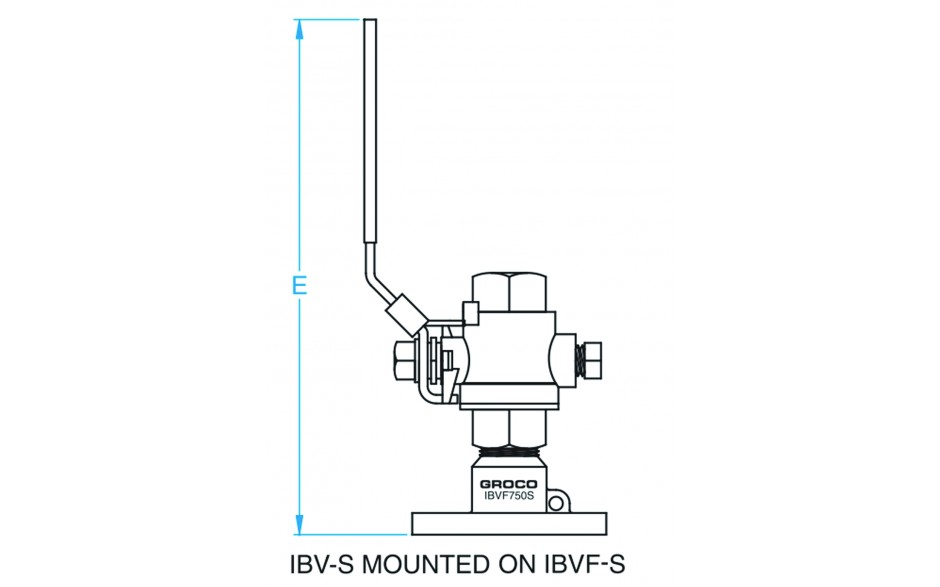

  • Fits IBVF-S for Seacock Application.

Additional Information
Thread NPT 1/2"

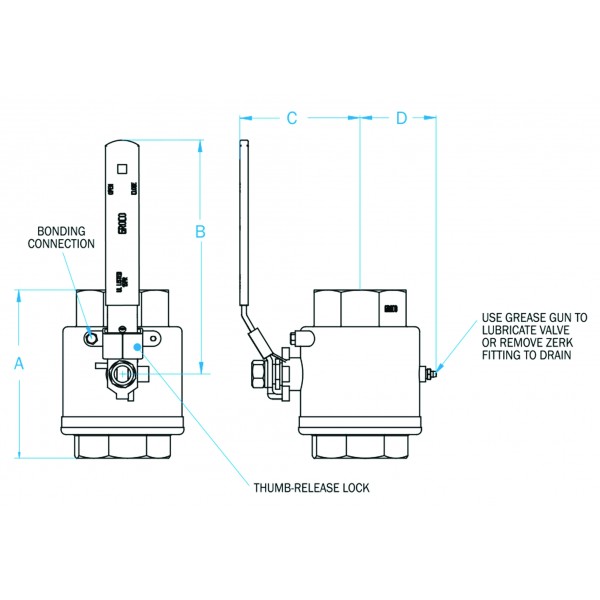

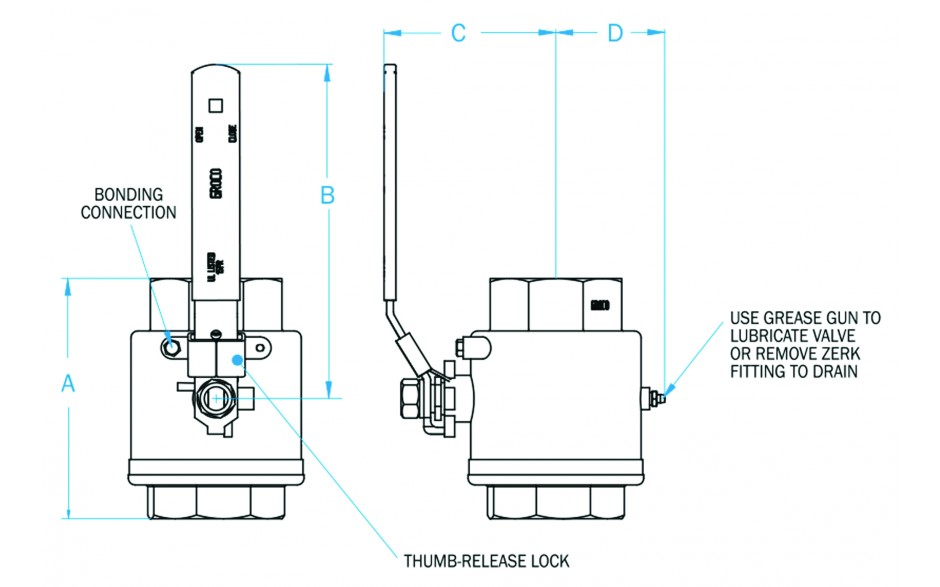

Dimensions
Thread NPT1/2"
A2.48
B3.92
C1.9
D1.28
E -
