HSSLTH Series
FEATURES
- NPSM / NPT combination thread
- C83600 Bronze (
- Sizes from 1" to 2"
- Available with or without nut
*** -W suffix means "With Nut" and -L means "Without Nut"

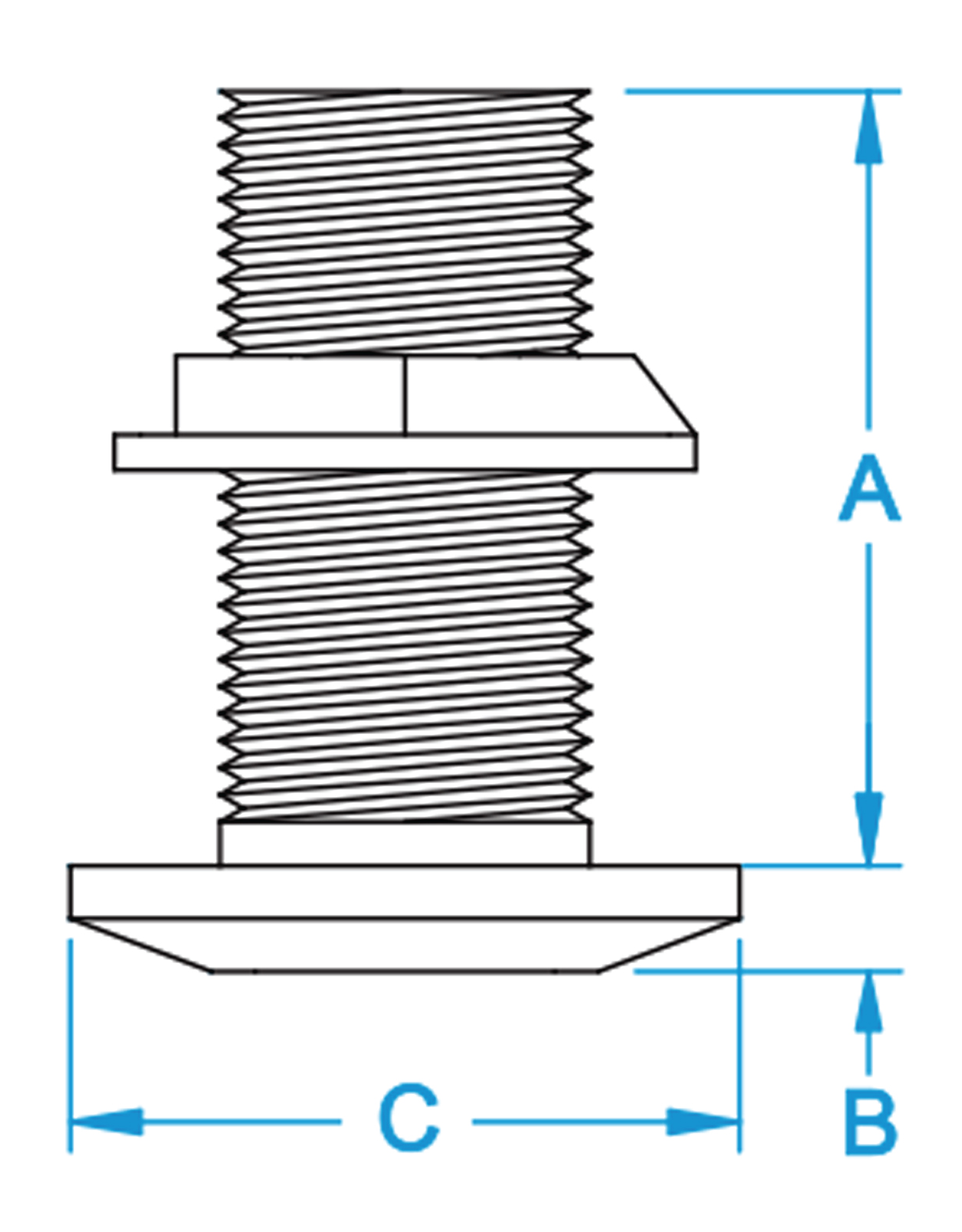

| Product Name | Thread NPS | A | B | C | D |
|---|---|---|---|---|---|
HSSLTH-1000-W |
1" | 2.85 | 0.3 | 2.32 | - |
HSSLTH-1250-W |
1-1/4" | 2.9 | 0.3 | 2.62 | - |
HSSLTH-1500-W |
1-1/2" | 3.15 | 0.3 | 2.89 | - |
HSSLTH-2000-W |
2" | 3.9 | 0.3 | 3.33 | - |
