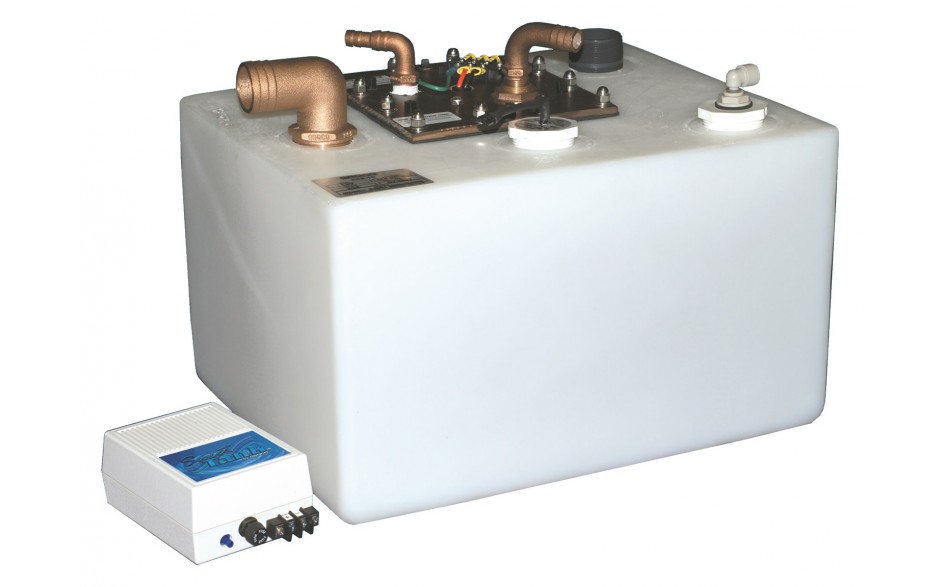

ZDS-30 12V

Waste Holding System

THE CONCEPT

A Type-III MSD may be used aboard any vessel regardless of size or geographic location. The system receives waste from one or more toilets and retains it for disposal at a dockside or marina pump-out facility, or the contents may be pumped directly overboard where legal to do so.

Available in many sizes and shapes, but stocked in four standard GROCO Type-III MSD systems come complete with a TLM series level monitor and a powerful (17 GPM) macerator/discharge pump located inside the tank.

ZDS Models include SWEETTANK which keeps the holding tank odor-free at all times, without the use of chemicals or filters. SWEETTANK can be added to older ZDS models.

All tanks include an oversized vent to aid with high capacity dockside pumpout.



IMPORTANT NOTE

It is illegal to discharge untreated waste directly overboard in most places.  Consult local regulations before doing so. Discharge restrictions change with geographic location.

Additional Information
Holding Tank Capacity 30
Breaker AC -
Breaker DC 15 amp
Toilet In 1-1/2" ID hose
Plumbing Pump Out 3/4" ID hose
Vent 1/2" or 5/8" ID hose

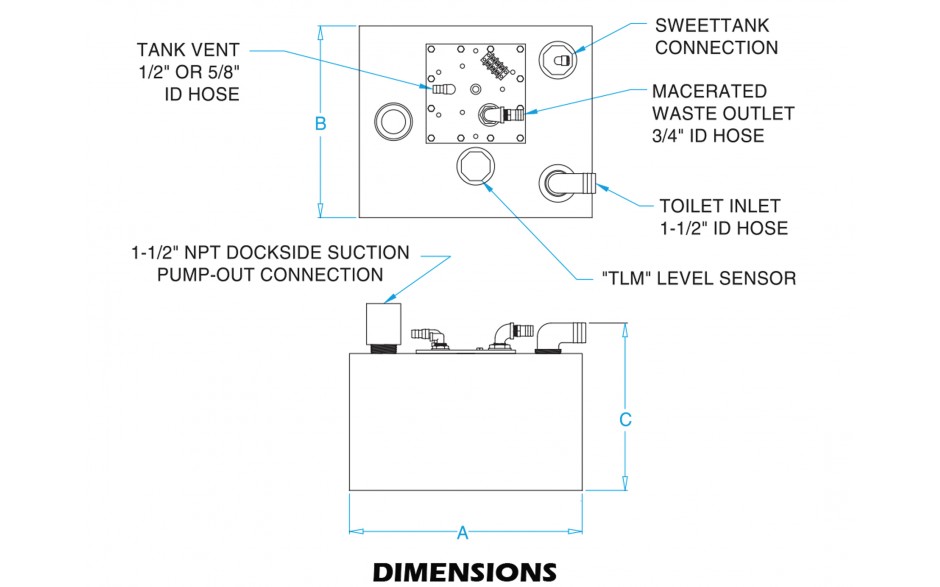

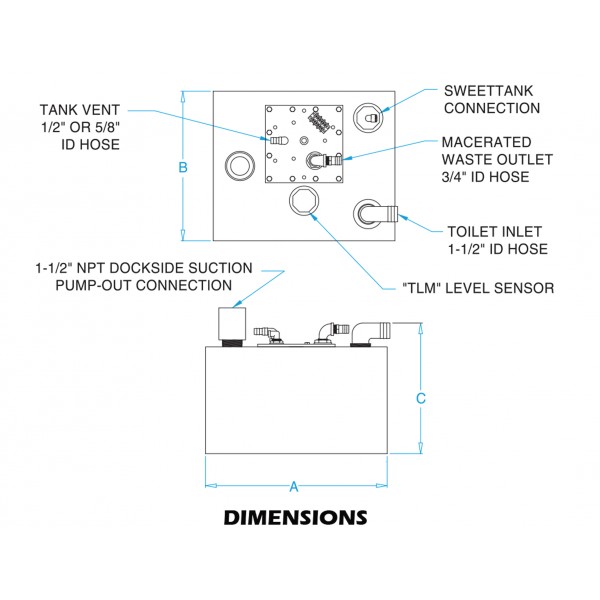

Dimensions
Holding Tank Capacity30
Breaker AC -
Breaker DC15 amp
A28
B23
C15
Toilet In1-1/2" ID hose
Plumbing Pump Out3/4" ID hose
Vent1/2" or 5/8" ID hose
Individual Parts
  • 1
    ZD-30
    $908.00
    Qty Per Unit: 1
  • 2
    MP-611
    $0.00
    Qty Per Unit: 1
  • 3
    BUBBLER-2
    $173.00
    Qty Per Unit: 1
  • 4
    99-0044-03
    $6.00
    Qty Per Unit: 1
  • 5
    STAP 12V
    $392.00
    Qty Per Unit: 1
  • 6
    027-0015-00
    $420.00
    Qty Per Unit: 1
  • 7
    08-0004-02
    $333.00
    Qty Per Unit: 1
  • 8
    01-0001-50
    $44.00
    Qty Per Unit: 2
  • 10
    MPS-602 ASSY
    $215.00
    Qty Per Unit: 1
  • 12
    CLAMP-14
    $2.00
    Qty Per Unit: 1
  • 13
    SBP-204
    $128.00
    Qty Per Unit: 1
  • 14
    CLAMP-6
    $11.00
    Qty Per Unit: 1
  • 15
    12V-C-MPS
    $495.00
    Qty Per Unit: 1
  • 16
    ALL THREAD-1
    $8.00
    Qty Per Unit: 3
  • 17
    MPS-600
    $178.00
    Qty Per Unit: 1
  • 18
    009-0375-00
    $64.00
    Qty Per Unit: 1
  • 19
    037-075-8
    $5.00
    Qty Per Unit: 1
  • 20
    SNAP RING-2
    $2.00
    Qty Per Unit: 1
  • 21
    500-K
    $1.00
    Qty Per Unit: 1
  • 22
    MP-603
    $23.00
    Qty Per Unit: 1
  • 23
    MP-601
    $29.00
    Qty Per Unit: 1
  • 24
    MP-727
    $30.00
    Qty Per Unit: 1
