ZDS-20 12V
Waste Holding System
THE CONCEPT

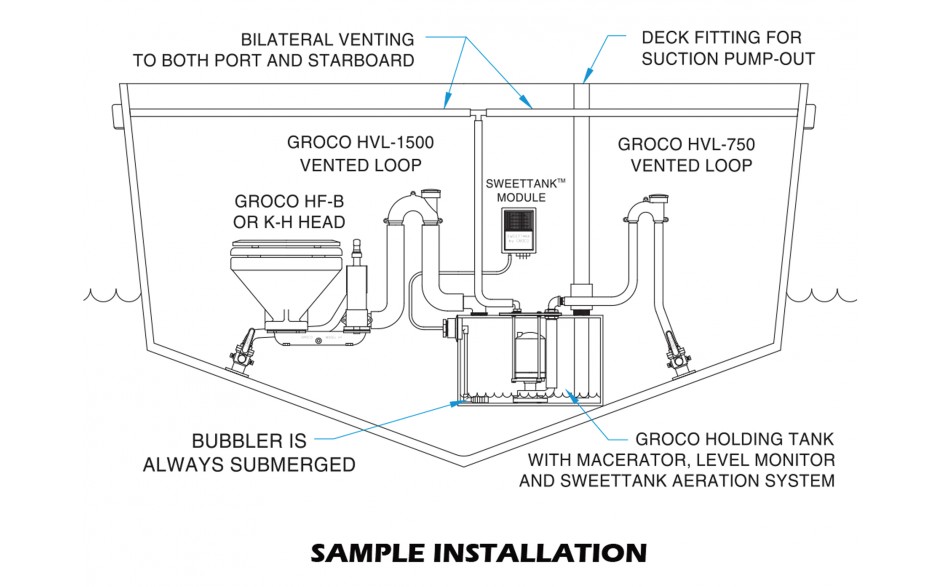

A Type-III MSD may be used aboard any vessel regardless of size or geographic location. The system receives waste from one or more toilets and retains it for disposal at a dockside or marina pump-out facility, or the contents may be pumped directly overboard where legal to do so.
Available in many sizes and shapes, but stocked in four standard GROCO Type-III MSD systems come complete with a TLM series level monitor and a powerful (17 GPM) macerator/discharge pump located inside the tank.
ZDS Models include SWEETTANK which keeps the holding tank odor-free at all times, without the use of chemicals or filters. SWEETTANK can be added to older ZDS models.
All tanks include an oversized vent to aid with high capacity dockside pumpout.
IMPORTANT NOTE
It is illegal to discharge untreated waste directly overboard in most places. Consult local regulations before doing so. Discharge restrictions change with geographic location.
Holding Tank Capacity | 20 |
---|---|
Breaker AC | - |
Breaker DC | 25 amp |
Toilet In | 1-1/2" ID hose |
Plumbing Pump Out | 3/4" ID hose |
Vent | 1/2" or 5/8" ID hose |
Holding Tank Capacity | 20 |
Breaker AC | - |
Breaker DC | 25 amp |

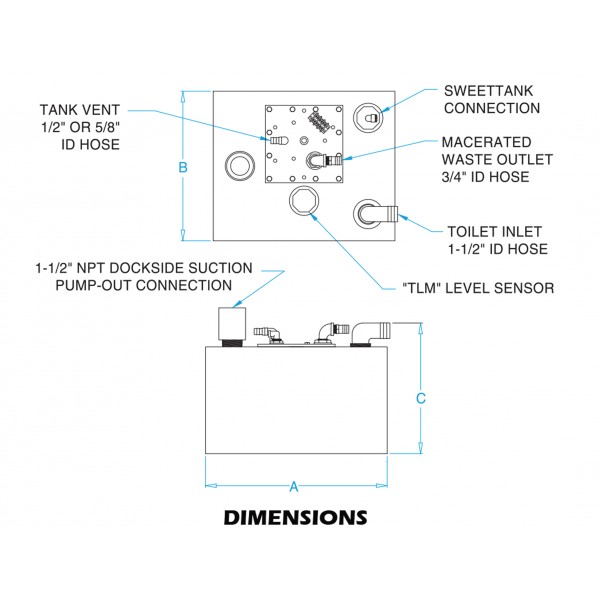

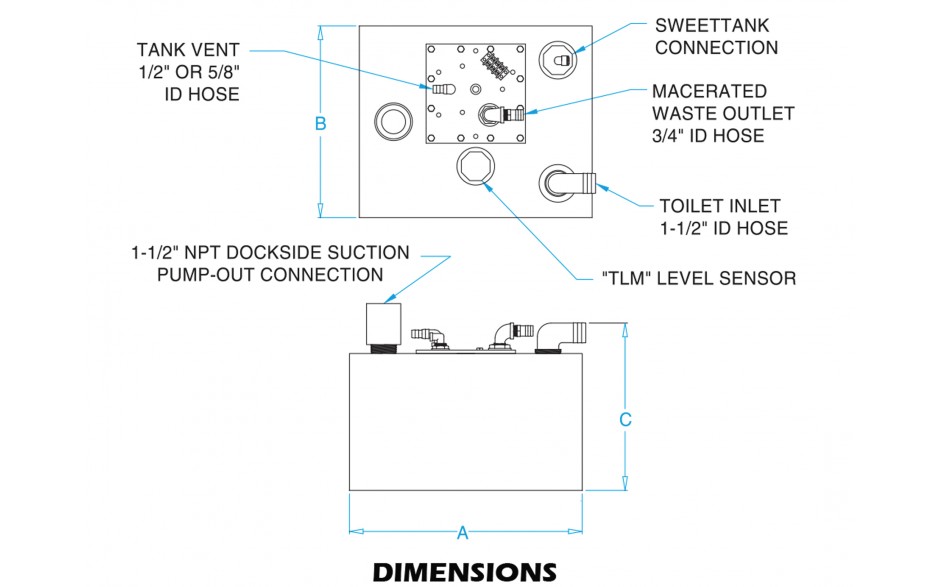

A | 28.3 |
B | 14.5 |
C | 15 |
Toilet In | 1-1/2" ID hose |
Plumbing Pump Out | 3/4" ID hose |
Vent | 1/2" or 5/8" ID hose |
-

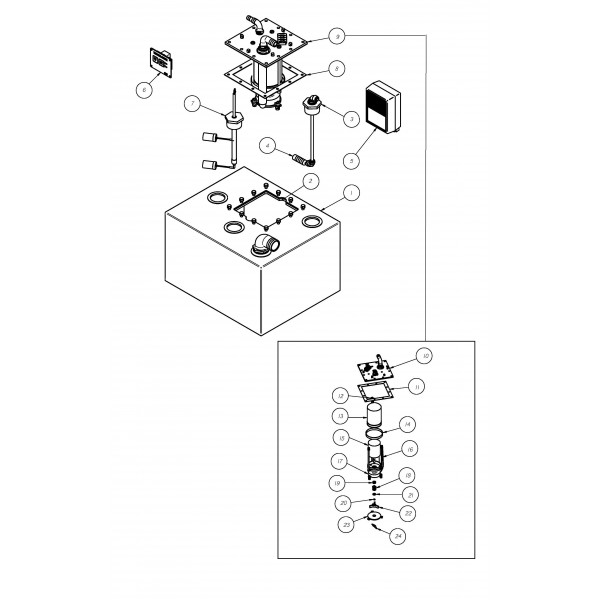

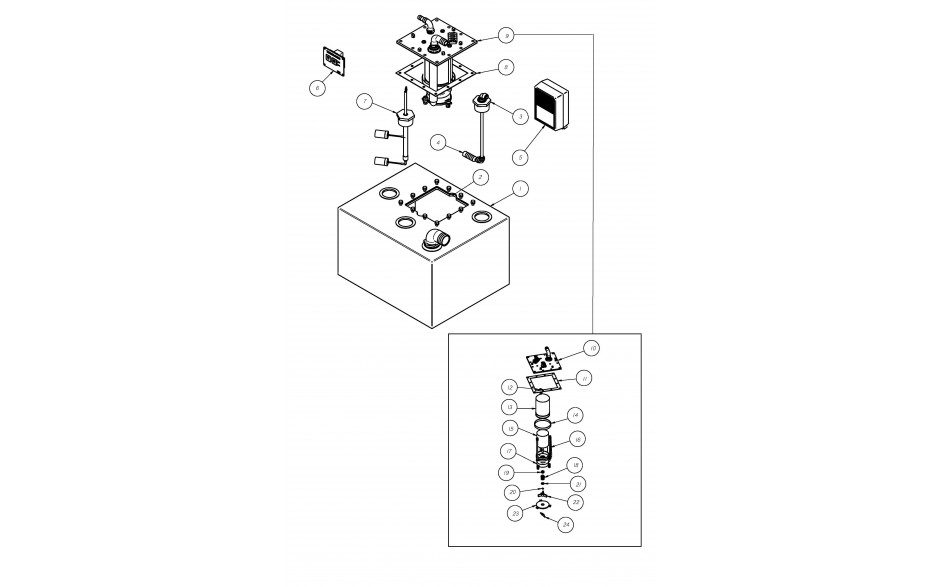

1ZD-20$1,169.00Qty Per Unit: 1
-
2MP-611$288.00Qty Per Unit: 1
-
3BUBBLER-2$209.00Qty Per Unit: 1
-
499-0044-03$7.00Qty Per Unit: 1
-
5STAP 12V$480.00Qty Per Unit: 1
-
6027-0015-00$661.00Qty Per Unit: 1
-
708-0004-02$520.00Qty Per Unit: 1
-
801-0001-50$31.00Qty Per Unit: 2
-
10MPS-602 ASSY$327.00Qty Per Unit: 1
-
12CLAMP-14$3.00Qty Per Unit: 1
-
13SBP-204$168.00Qty Per Unit: 1
-
14CLAMP-6$21.00Qty Per Unit: 1
-
1512V-C-MPS$720.00Qty Per Unit: 1
-
16ALL THREAD-1$13.00Qty Per Unit: 3
-
17MPS-600$258.00Qty Per Unit: 1
-
18009-0375-00$85.00Qty Per Unit: 1
-
19037-075-8$6.00Qty Per Unit: 1
-
20SNAP RING-2$3.00Qty Per Unit: 1
-
21500-K$1.00Qty Per Unit: 1
-
22MP-603$32.00Qty Per Unit: 1
-
23MP-601$41.00Qty Per Unit: 1
-
24MP-727$45.00Qty Per Unit: 1
