WSB-1250 Series

1-1/4" Fresh Water Strainer

 FEATURES

  • Protect fresh water pumps from debris.

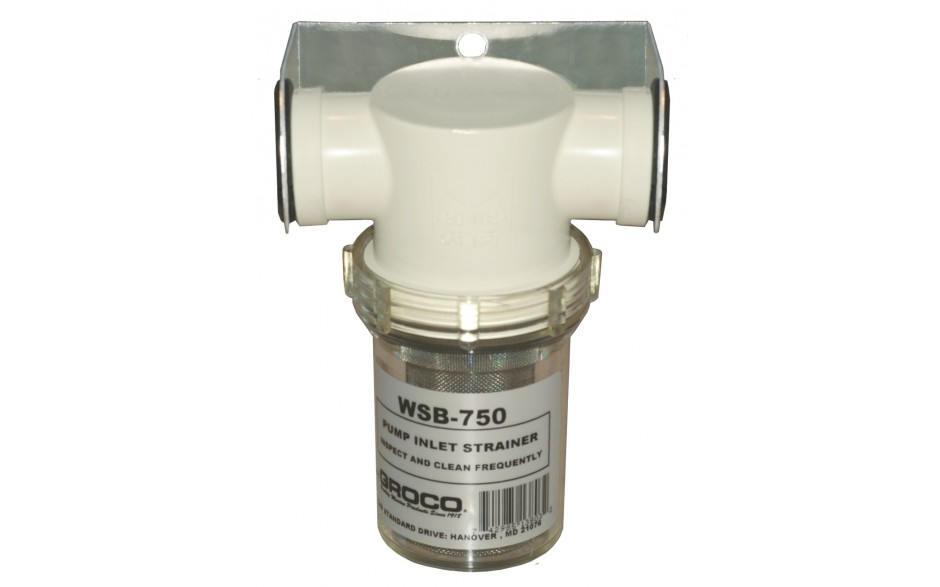

  • White nylon strainer head and clear plastic sight glass.  Glass unscrews for filter basket cleaning.
  • Mount bracket included.
  • Use WSB for fresh-water systems   (#304 SS basket).
  • Use WSB-P for salt-water or continuous duty AC or genset.

Additional Information
Spec Sheet No
Thread NPT 1-1/4"
Open Area Ratio -

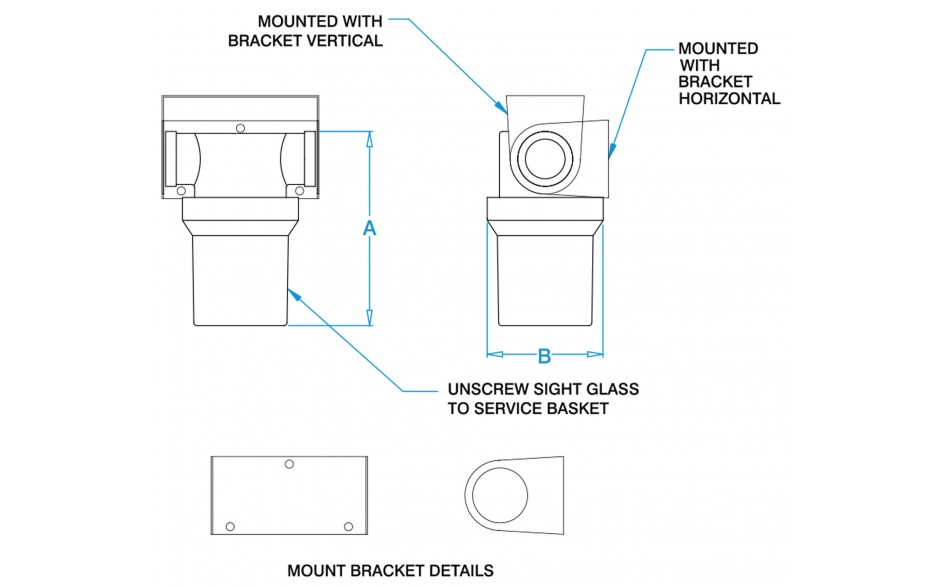

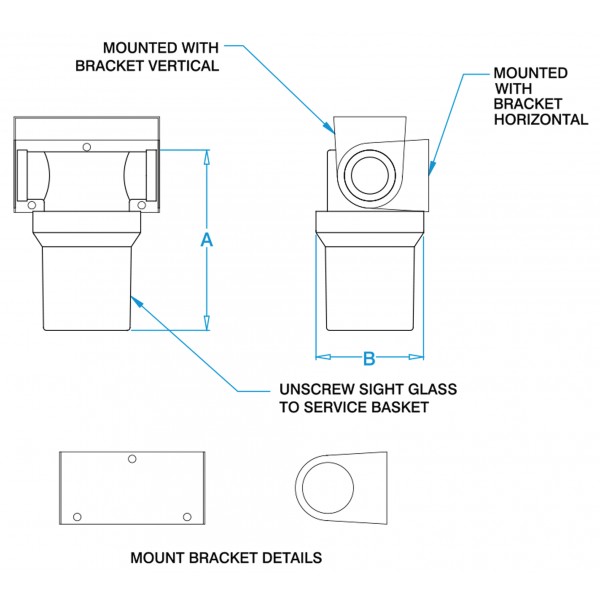

Dimensions
Thread NPT1-1/4"
A7
B4
C -
D -
E -
Open Area Ratio -

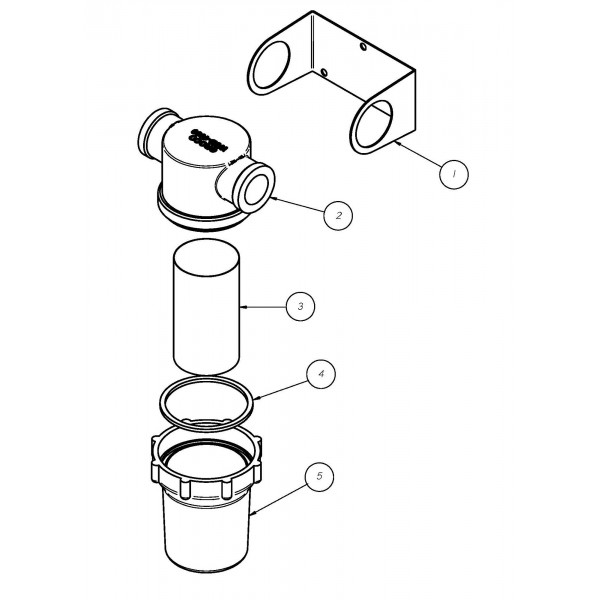

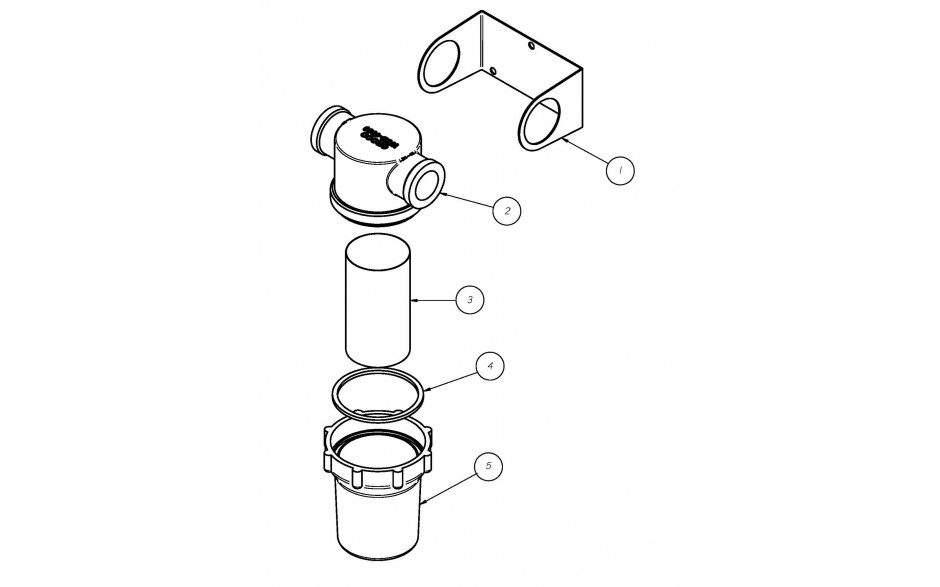

Individual Parts
  • 1
    WSA-1005
    $11.00
    Qty Per Unit: 1
  • 3
    WSA-1251
    $10.00
    Qty Per Unit: 1
  • 3
    PWSA-1251
    $10.00
    Qty Per Unit: 1
  • 4
    WSA-1002
    $2.00
    Qty Per Unit: 1
  • 5
    WSA-1003
    $51.00
    Qty Per Unit: 1
