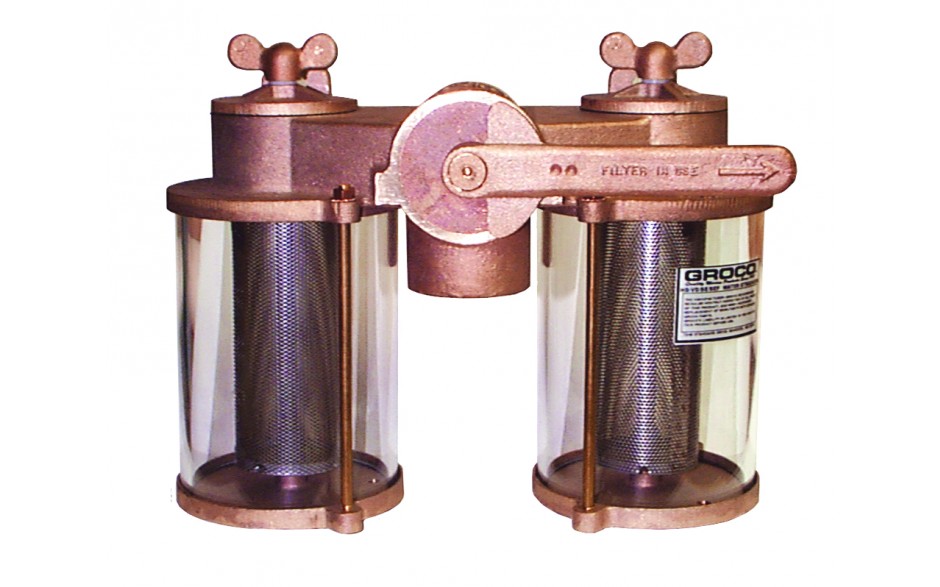

VD-2500 Series

2-1/2" Duplex Strainer

 FEATURES

  • Standard with #304 stainless steel filter basket. (Monel is optional)
  • Monel inside tie rod.
  • Easy service with spin-off-wingnut.
  • C84400 bronze construction.
  • Crystal Clear Cast Acrylic Cylinder
  • Fine mesh filter basket is also available.

Additional Information
Spec Sheet No
Thread NPT 2-1/2"
Open Area Ratio 11
Dimensions
Thread NPT2-1/2"
A17.5
B17.5
C8
D7.8
E7.8
Open Area Ratio11
dimensions image
 Download Image  Open in New Window
Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    S-75
    $39.00
    Qty Per Unit: 2
  • 2
    504-F
    $1.00
    Qty Per Unit: 2
  • 3
    S-86
    $116.00
    Qty Per Unit: 2
  • 4
    S-86-A
    $3.00
    Qty Per Unit: 2
  • 5
    BS-18
    $101.00
    Qty Per Unit: 1
  • 5
    BM-18
    $340.00
    Qty Per Unit: 1
  • 5
    BP-18
    $88.00
    Qty Per Unit: 1
  • 6
    51618HS
    $1.00
    Qty Per Unit: 4
  • 7
    S-88-B
    $402.00
    Qty Per Unit: 1
  • 8
    S-82-D
    $17.00
    Qty Per Unit: 4
  • 9
    S-82-G
    $383.00
    Qty Per Unit: 2
  • 10
    #10R SET
    $18.00
    Qty Per Unit: 2
  • 11
    S-82-AB
    $338.00
    Qty Per Unit: 2
  • 12
    1827HB
    $3.00
    Qty Per Unit: 2
  • 13
    516SS
    $1.00
    Qty Per Unit: 4
  • 14
    VD-2500 BPA
    $3,981.00
    Qty Per Unit: 1
  • 15
    5818HB
    $8.00
    Qty Per Unit: 1
  • 16
    VD-B
    $10.00
    Qty Per Unit: 1
  • 17
    2-229
    $2.00
    Qty Per Unit: 1
  • 18
    2-231
    $2.00
    Qty Per Unit: 1
  • 19
    2-234
    $2.00
    Qty Per Unit: 1
  • 21
    VD-2502-A
    $194.00
    Qty Per Unit: 1
  • 22
    51618X34HB
    $3.00
    Qty Per Unit: 1
  • 23
    24L
    $3.00
    Qty Per Unit: 1
  • 24
    VD-3
    $63.00
    Qty Per Unit: 1
