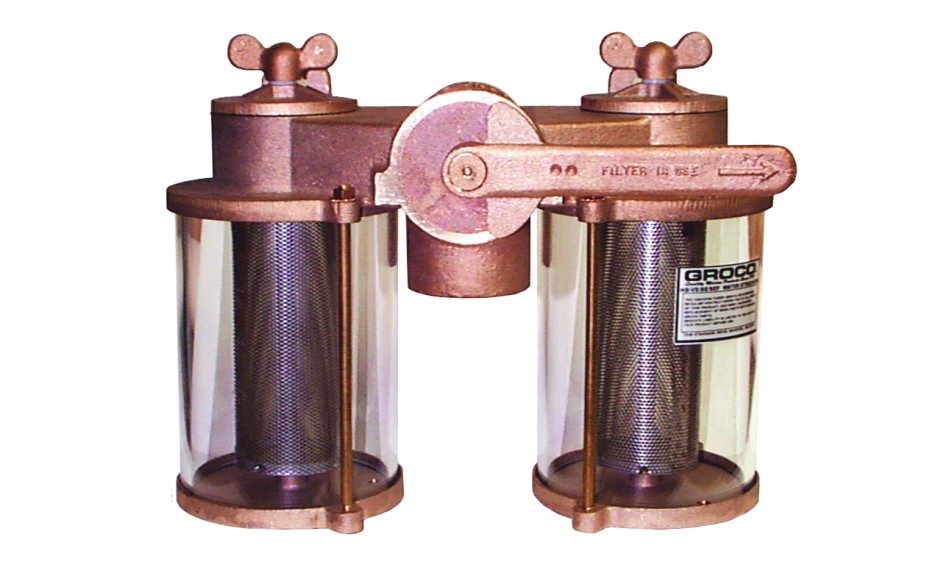

VD-2000 Series

2" Duplex Strainer

 FEATURES

  • Standard with #304 stainless steel filter basket. (Monel is optional)
  • Monel inside tie rod.
  • Easy service with spin-off-wingnut.
  • C84400 bronze construction.
  • Crystal Clear Cast Acrylic Cylinder
  • Fine mesh filter basket is also available.

Additional Information
Spec Sheet No
Thread NPT 2"
Open Area Ratio 14

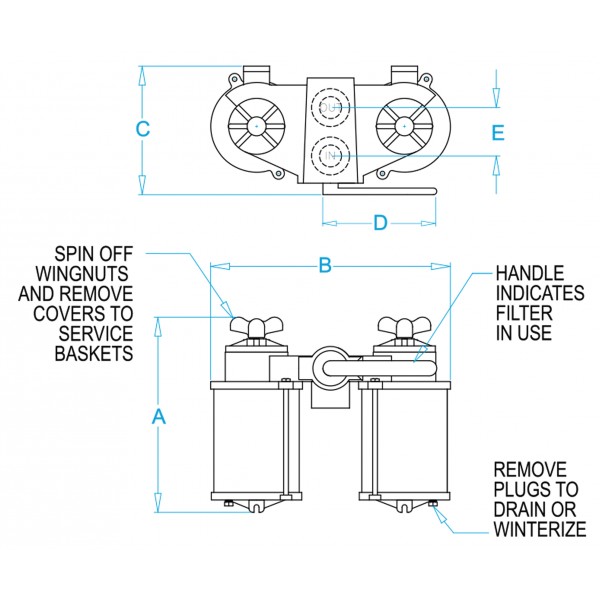

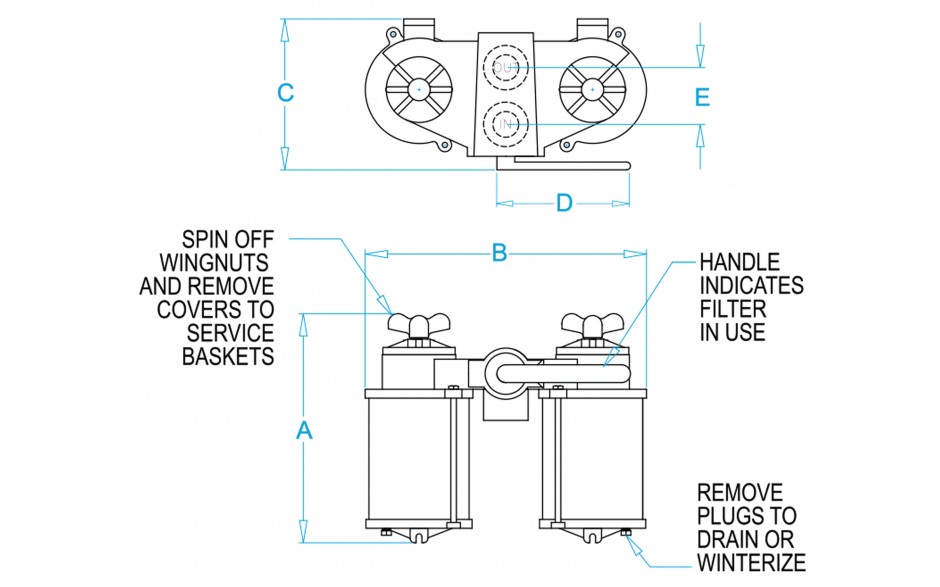

Dimensions
Thread NPT2"
A16.5
B16
C8
D6.5
E6.5
Open Area Ratio14
dimensions image
 Download Image  Open in New Window

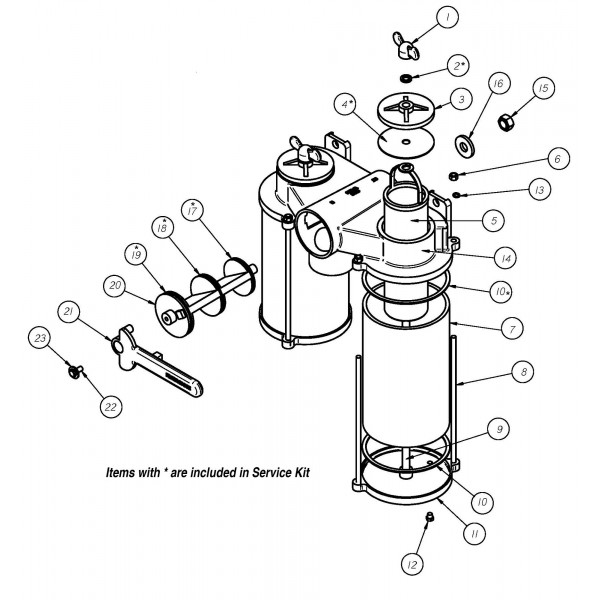

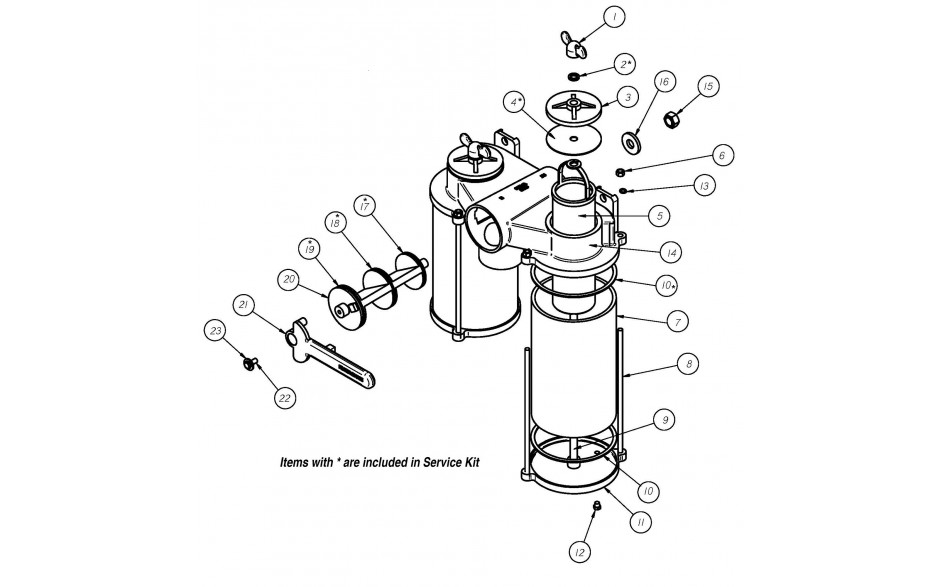

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    S-75
    $39.00
    Qty Per Unit: 2
  • 2
    504-F
    $1.00
    Qty Per Unit: 2
  • 3
    S-86
    $116.00
    Qty Per Unit: 2
  • 4
    S-86-A
    $3.00
    Qty Per Unit: 2
  • 5
    BS-16
    $97.00
    Qty Per Unit: 1
  • 5
    BM-16
    $286.00
    Qty Per Unit: 1
  • 5
    BP-16
    $112.00
    Qty Per Unit: 1
  • 6
    51618HS
    $1.00
    Qty Per Unit: 4
  • 7
    S-88-A
    $287.00
    Qty Per Unit: 1
  • 8
    S-82-C
    $15.00
    Qty Per Unit: 4
  • 9
    S-82-F
    $327.00
    Qty Per Unit: 2
  • 10
    #10R SET
    $18.00
    Qty Per Unit: 2
  • 11
    S-82-AB
    $338.00
    Qty Per Unit: 2
  • 12
    1827HB
    $3.00
    Qty Per Unit: 2
  • 13
    516SS
    $1.00
    Qty Per Unit: 4
  • 14
    VD-2000 BPA
    $3,284.00
    Qty Per Unit: 1
  • 15
    5818HB
    $8.00
    Qty Per Unit: 1
  • 16
    VD-B
    $10.00
    Qty Per Unit: 1
  • 17
    2-229
    $2.00
    Qty Per Unit: 1
  • 18
    2-231
    $2.00
    Qty Per Unit: 1
  • 19
    2-234
    $2.00
    Qty Per Unit: 1
  • 21
    VD-2502
    $187.00
    Qty Per Unit: 1
  • 22
    51618X34HB
    $3.00
    Qty Per Unit: 1
  • 23
    24L
    $3.00
    Qty Per Unit: 1
  • 24
    VD-2
    $62.00
    Qty Per Unit: 1
