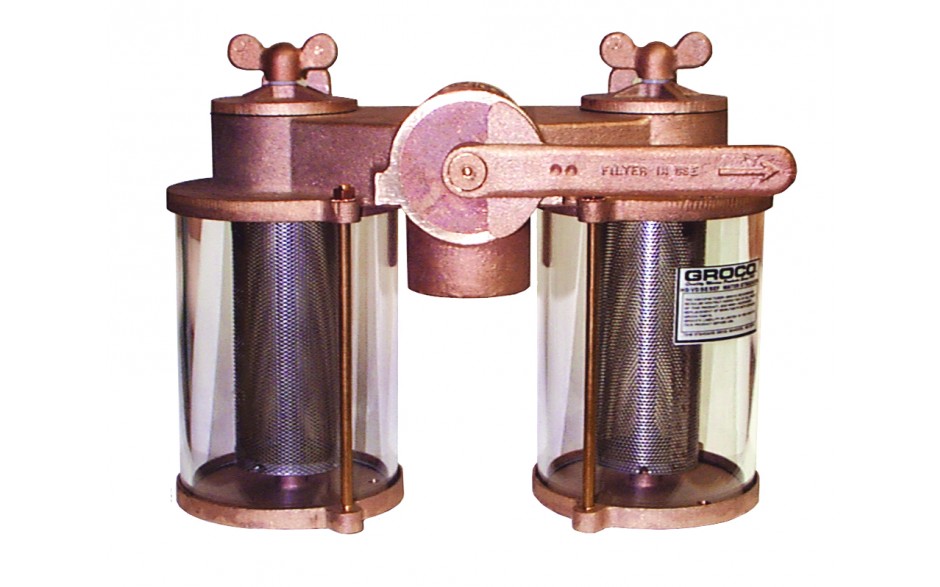

VD-1000 Series

1" Duplex Strainer

 FEATURES

  • Standard with #304 stainless steel filter basket. (Monel is optional)
  • Monel inside tie rod.
  • Easy service with spin-off-wingnut.
  • C84400 bronze construction.
  • Crystal Clear Cast Acrylic Cylinder
  • Fine mesh filter basket is also available.

Additional Information
Spec Sheet No
Thread NPT 1"
Open Area Ratio 30
Dimensions
Thread NPT1"
A10
B13
C6.8
D3.5
E3.3
Open Area Ratio30
dimensions image
 Download Image  Open in New Window
Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    SVS-5
    $30.00
    Qty Per Unit: 2
  • 2
    500-K
    $1.00
    Qty Per Unit: 2
  • 3
    S-751
    $104.00
    Qty Per Unit: 2
  • 4
    S-751-A
    $4.00
    Qty Per Unit: 2
  • 5
    BP-3
    $76.00
    Qty Per Unit: 1
  • 5
    BS-3
    $77.00
    Qty Per Unit: 1
  • 5
    BM-3
    $207.00
    Qty Per Unit: 1
  • 6
    1420HS
    $1.00
    Qty Per Unit: 4
  • 7
    S-77
    $210.00
    Qty Per Unit: 1
  • 8
    S-73-X
    $15.00
    Qty Per Unit: 4
  • 9
    S-73-D
    $125.00
    Qty Per Unit: 2
  • 10
    #8R SET
    $20.00
    Qty Per Unit: 2
  • 11
    S-73-A
    $183.00
    Qty Per Unit: 2
  • 12
    1827HB
    $3.00
    Qty Per Unit: 2
  • 13
    14SS
    $1.00
    Qty Per Unit: 4
  • 14
    VD-1000 BPA
    $1,635.00
    Qty Per Unit: 1
  • 15
    1220HB
    $5.00
    Qty Per Unit: 1
  • 16
    VD-A
    $9.00
    Qty Per Unit: 1
  • 17
    2-218
    $1.00
    Qty Per Unit: 1
  • 19
    2-222
    $1.00
    Qty Per Unit: 1
  • 24
    VD-1
    $52.00
    Qty Per Unit: 1
