Waste Treatment System
THERMOPURE-2 is a USCG Certified (Certification #159.015/983/0) Type-I MSD for use aboard non-commercial uninspected vessels less than 65-feet in length. Treatment is accomplished by pumping macerated waste through a chamber where low-level heat is introduced to eliminate bacteria. No chemicals or additives are required, treatment is equally efficient in fresh, brackish or salt-water, and thanks to SWEETTANK the system is completely odor-free.

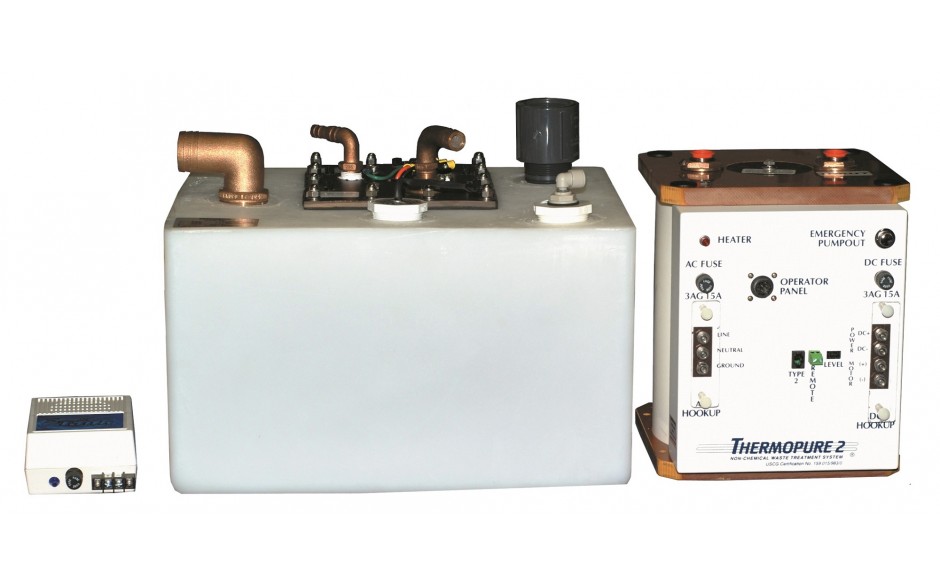

THERMOPURE-2 is compact and modular, so installation is simplified. The system works with all toilet systems, with multiple toilets flushing simultaneously, and with remote holding tanks. Treatment capacity is 15-gallons per 8-hour day (45 gallons in 24 hours).

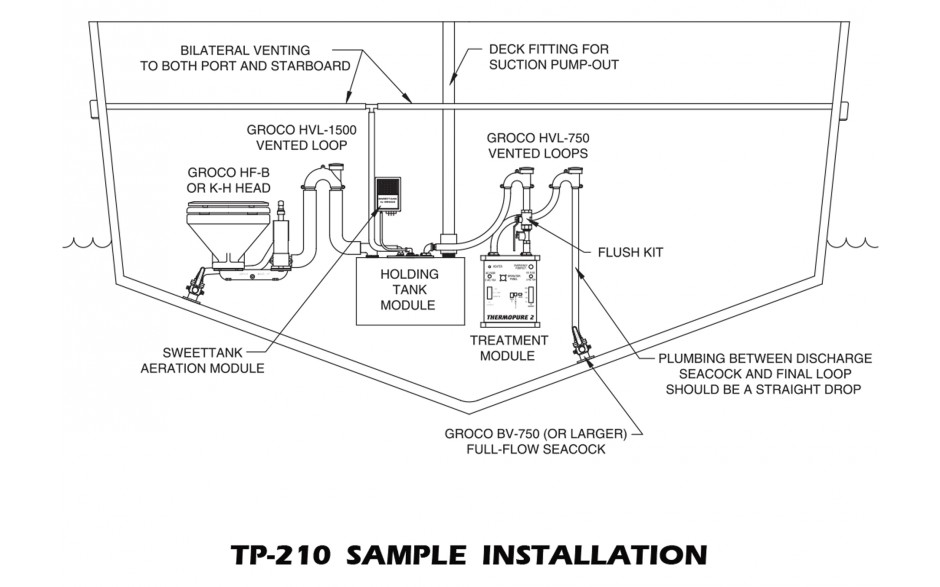

- Holding tank
- Macerator Pump
- Sweet Tank Odor Prevention System
- THERMOPURE-2 Waste Treatment System
TO CONVERT EXISTING HOLDING TANKS
Existing holding tank systems can be upgraded to USCG Certification compliance by adding a THERMOPURE-2 Conversion Kit, which includes the macerator pump, SWEETTANK Odor Neutralizer, level monitor, and the treatment chamber.
To order a THERMOPURE-2 Conversion Kit, specify the depth (top outside to bottom inside) of your holding tank, plus AC and DC voltages required.

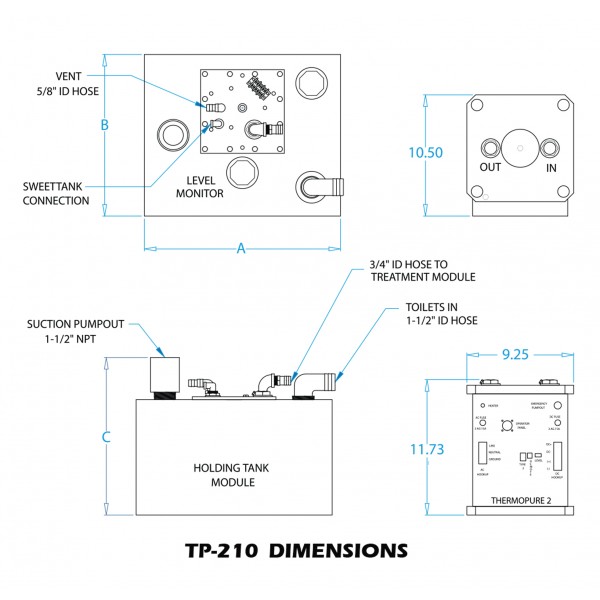

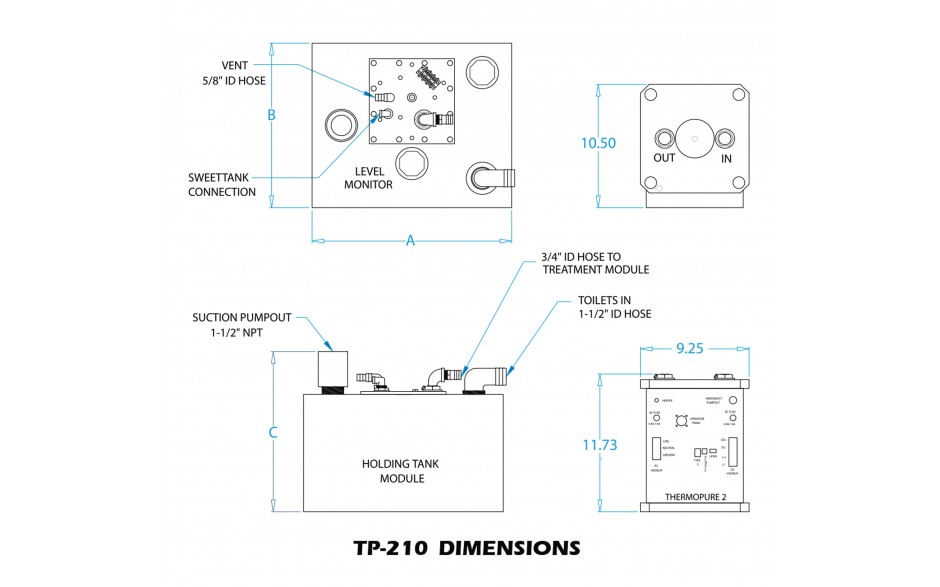

|Holding Tank Capacity||20|
|Breaker AC||15 amp|
|Breaker DC||15 amp|
|Toilet In||1-1/2" ID hose|
|Plumbing Pump Out||3/4" ID hose|
|Vent||1/2" or 5/8" ID hose|
