TP-220 12V/115V

Waste Treatment System

THE CONCEPT

THERMOPURE-2 is a USCG Certified (Certification #159.015/983/0) Type-I MSD for use aboard non-commercial uninspected vessels less than 65-feet in length. Treatment is accomplished by pumping macerated waste through a chamber where low-level heat is introduced to eliminate bacteria. No chemicals or additives are required, treatment is equally efficient in fresh, brackish or salt-water, and thanks to SWEETTANK the system is completely odor-free.

THERMOPURE-2 is compact and modular, so installation is simplified. The system works with all toilet systems, with multiple toilets flushing simultaneously, and with remote holding tanks. Treatment capacity is 15-gallons per 8-hour day (45 gallons in 24 hours).



WHAT'S INCLUDED

  • Holding tank
  • Macerator Pump
  • Sweet Tank Odor Prevention System

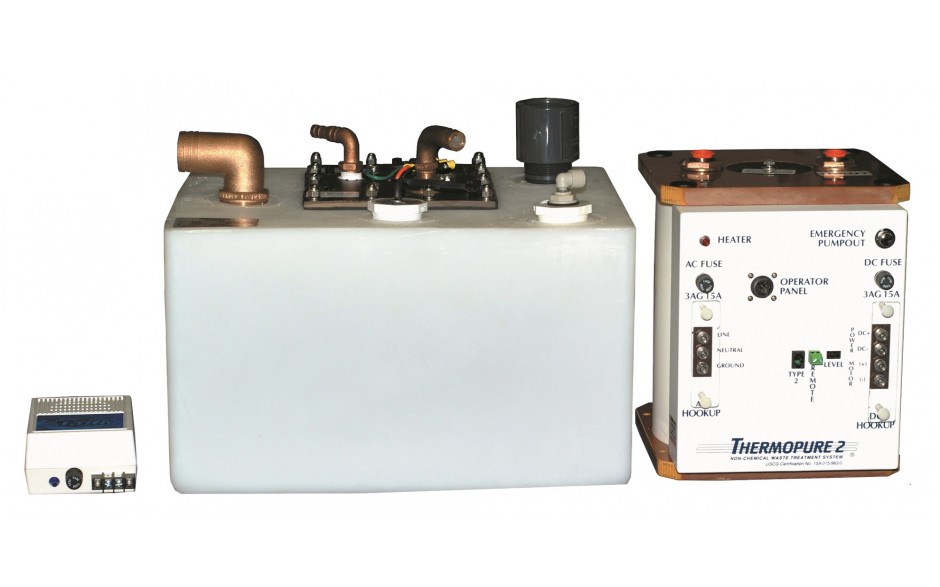

  • THERMOPURE-2 Waste Treatment System





TO CONVERT EXISTING HOLDING TANKS

Existing holding tank systems can be upgraded to USCG Certification compliance by adding a THERMOPURE-2 Conversion Kit, which includes the macerator pump, SWEETTANK Odor Neutralizer, level monitor, and the treatment chamber.

To order a THERMOPURE-2 Conversion Kit, specify the depth (top outside to bottom inside) of your holding tank, plus AC and DC voltages required.

Additional Information
Holding Tank Capacity 20
Breaker AC 15 amp
Breaker DC 25 amp
Toilet In 1-1/2" ID hose
Plumbing Pump Out 3/4" ID hose
Vent 1/2" or 5/8" ID hose

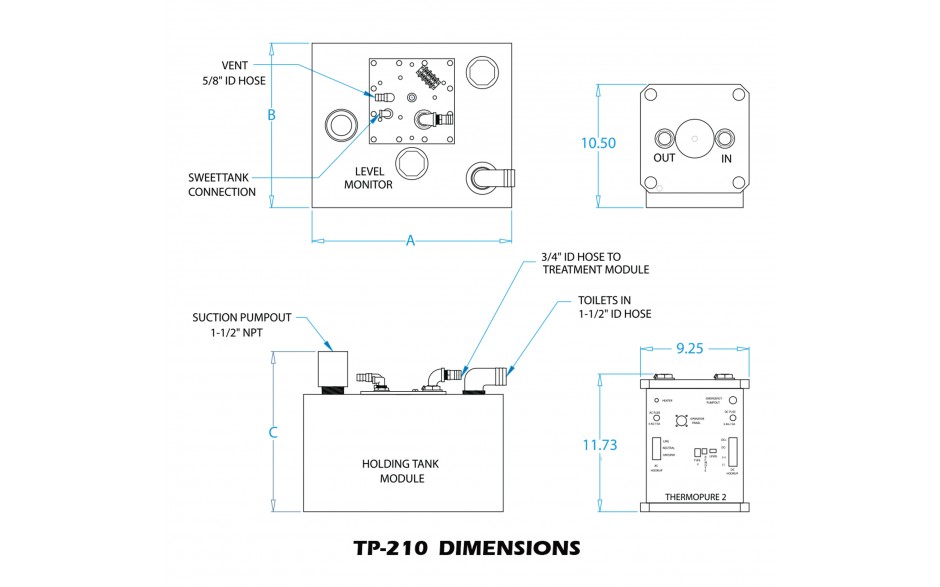

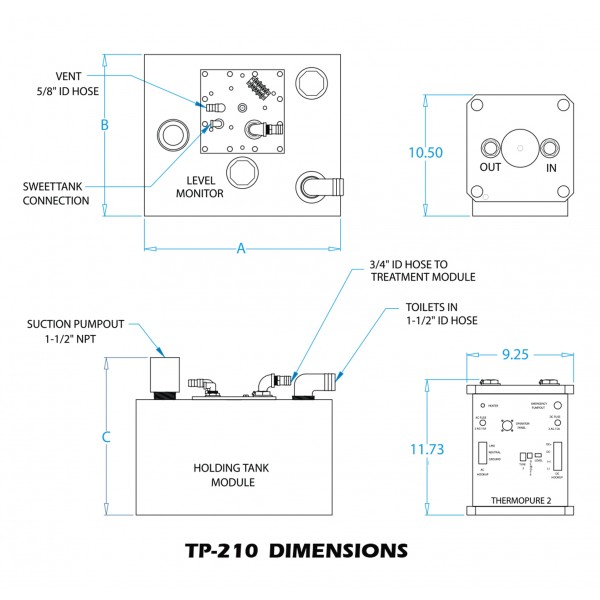

Dimensions
Holding Tank Capacity20
Breaker AC15 amp
Breaker DC25 amp
A28.3
B14
C15
Toilet In1-1/2" ID hose
Plumbing Pump Out3/4" ID hose
Vent1/2" or 5/8" ID hose
