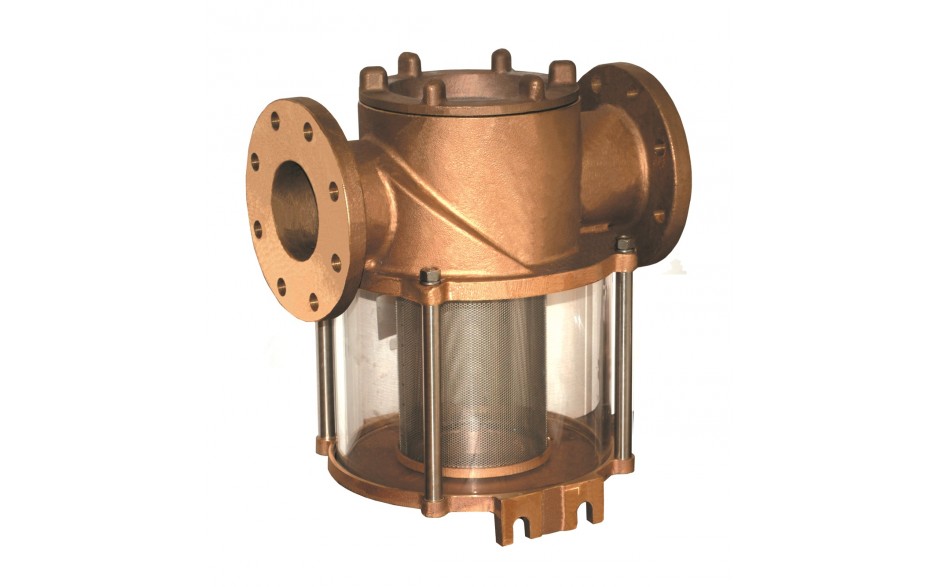

SEF-5000-M
5" FLANGE Large Engine Strainer with Monel Basket
FEATURES
- For high-powered engines with 4"", 5"" or 6"" intake.
- Crystal clear cast acrylic sight glass.
- Cap and basket have replaceable zinc anode protection.
- Low restriction for maximum cooling water flow.
- No inside tie rods. Cover unscrews for easy filter basket cleaning.
- O-rings seal all mating surfaces.
- All models can be converted to HYDROMATIC (self-cleaning) operation.
- Improved cylindrical filter basket.
- #304-SS basket is standard with .077” holes (.125” and .188” hole sizes are optional).
- Monel basket is optional.
- Bronze flange adaptors are available for connecting pipe or hose to flanged strainers
- C84400 bronze construction.
Additional Information
Spec Sheet | No |
---|---|
Basket Type | Monel |
Thread NPT | 5" FLANGE |
Open Area Ratio | 8.1 |

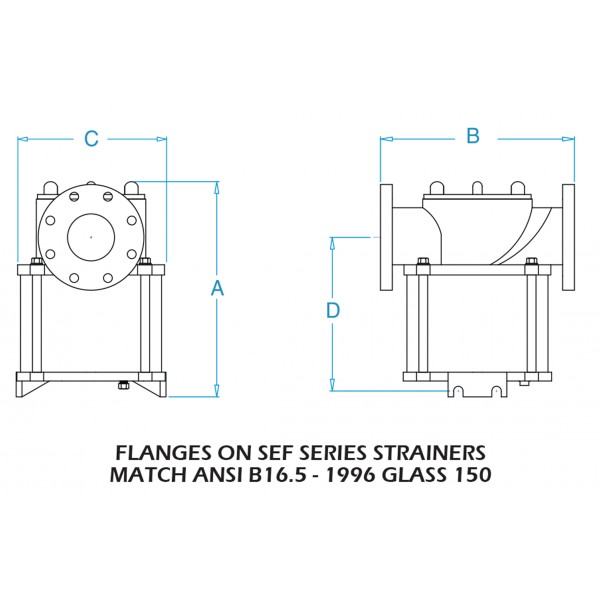

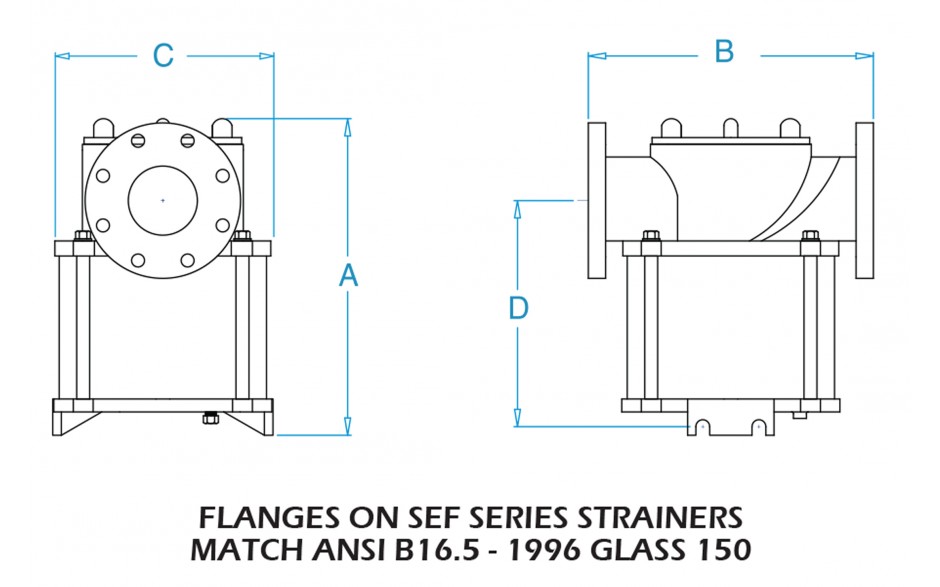

Dimensions
Thread NPT | 5" FLANGE |
A | 18.4 |
B | 16.5 |
C | 12.5 |
D | 13.5 |
E | - |
Open Area Ratio | 8.1 |

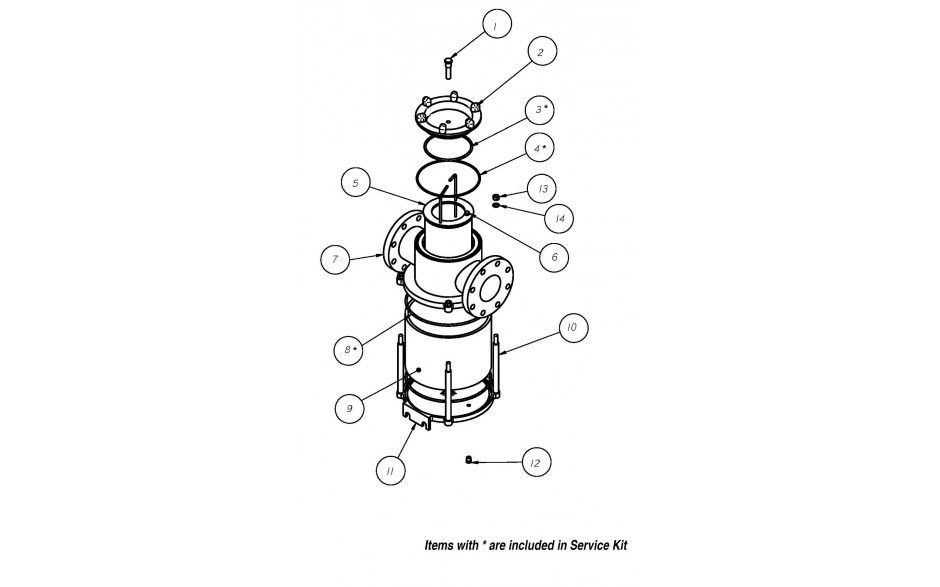

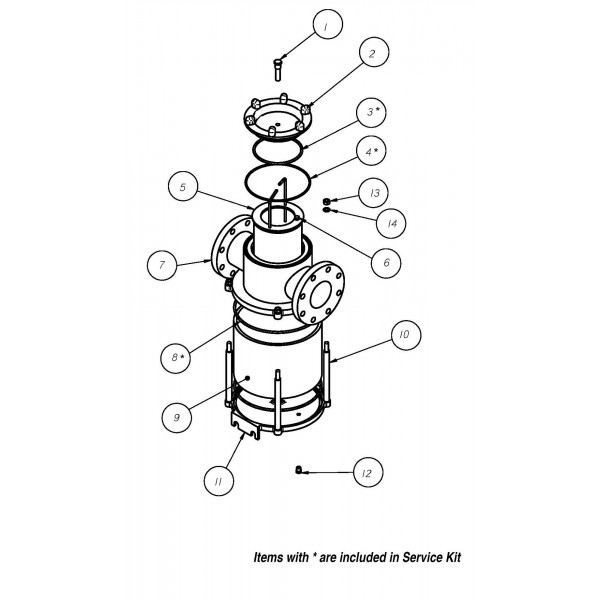

Individual Parts
-
1ZA-2$55.00Qty Per Unit: 1
-
2SE-4001-A$1,316.00Qty Per Unit: 1
-
32-438$9.00Qty Per Unit: 1
-
42-371$9.00Qty Per Unit: 1
-
5SE-4003-1$1,572.00Qty Per Unit: 1
-
6ZA-1$34.00Qty Per Unit: 1
-
7SEF-5010-H$11,805.00Qty Per Unit: 1
-
82-452$16.00Qty Per Unit: 2
-
9SE-4004$3,497.00Qty Per Unit: 1
-
10SE-4005-1$179.00Qty Per Unit: 4
-
11SE-4002$1,842.00Qty Per Unit: 1
-
121418HB$7.00Qty Per Unit: 1
-
131213HS$2.00Qty Per Unit: 2
-
1412SS$2.00Qty Per Unit: 2
-
15SE$66.00Qty Per Unit: 1
