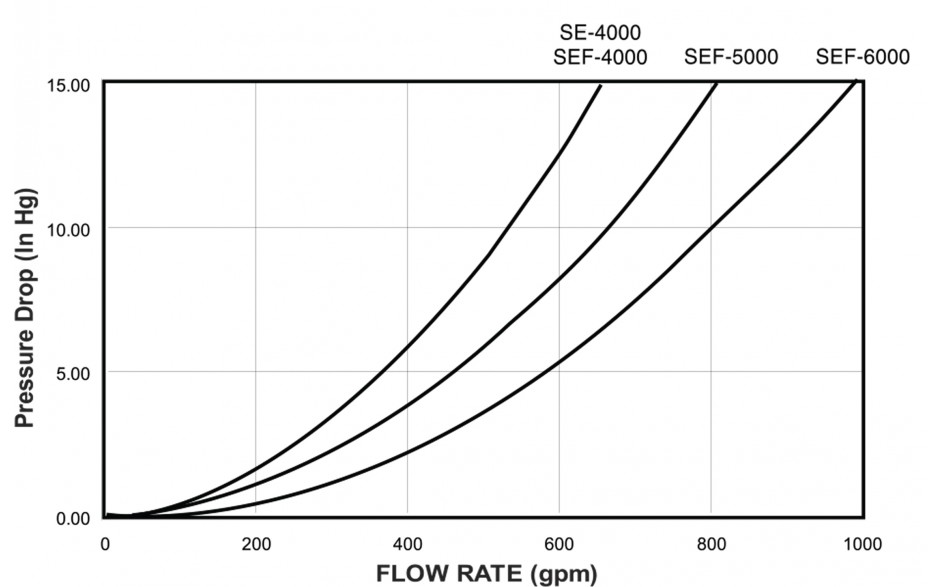

  • flow-chart

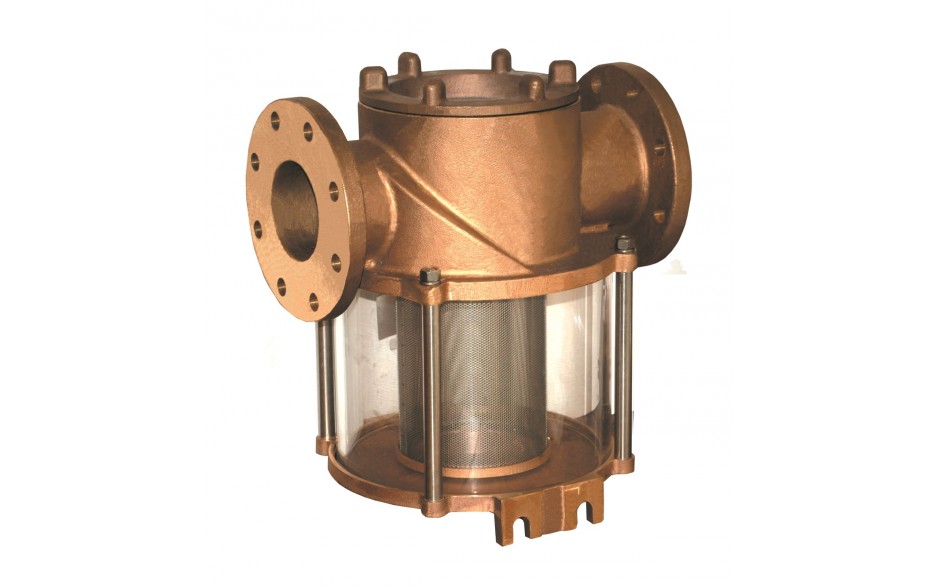

SEF-4000-M

4" FLANGE Large Engine Strainer with Monel Basket

FEATURES

  • For high-powered engines with  4"", 5"" or 6"" intake.
  • Crystal clear cast acrylic sight glass.
  • Cap and basket have replaceable zinc anode protection.
  • Low restriction for maximum cooling water flow.
  • No inside tie rods.  Cover unscrews for easy filter basket cleaning.
  • O-rings seal all mating surfaces.
  • All models can be converted to HYDROMATIC (self-cleaning) operation.
  • Improved cylindrical filter basket.
  • #304-SS basket is standard with .077” holes  (.125” and .188” hole sizes are optional).
  • Monel basket is optional.
  • Bronze flange adaptors are available for connecting pipe or hose to flanged strainers
  • C84400 bronze construction.

Additional Information
Spec Sheet No
Basket Type Monel
Thread NPT 4" FLANGE
Open Area Ratio 10

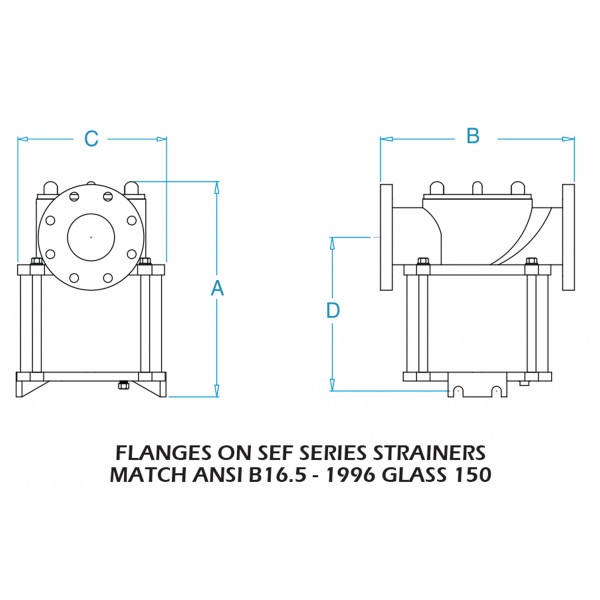

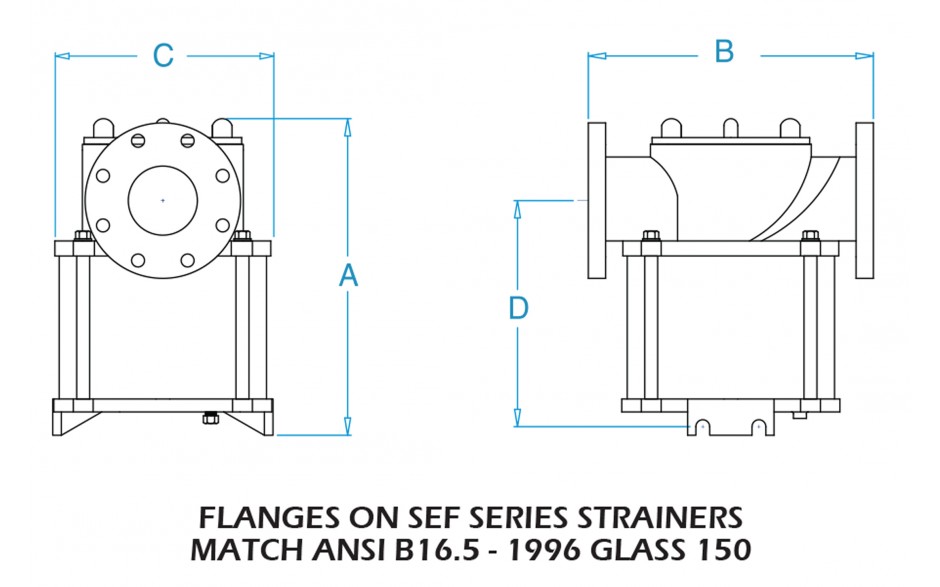

Dimensions
Thread NPT4" FLANGE
A18.4
B16.5
C12.5
D13.1
E -
Open Area Ratio10

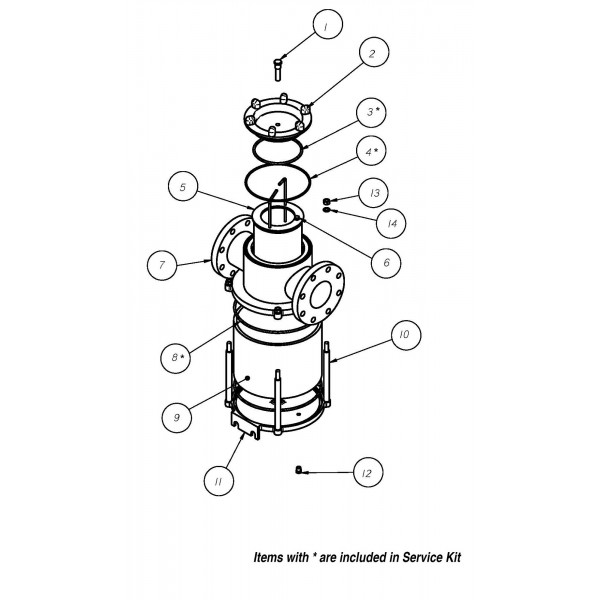

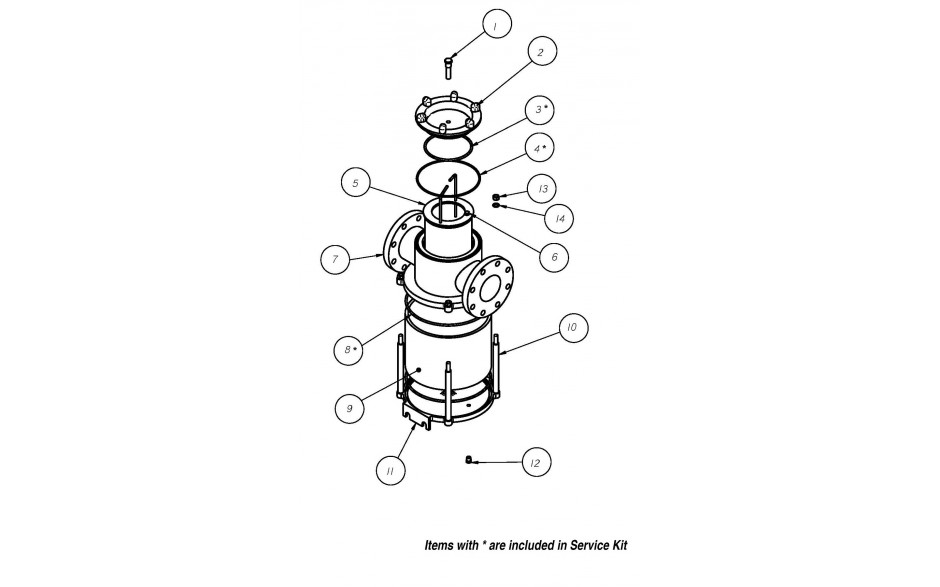

Individual Parts
  • 1
    ZA-2
    $40.00
    Qty Per Unit: 1
  • 2
    SE-4001-A
    $771.00
    Qty Per Unit: 1
  • 3
    2-438
    $8.00
    Qty Per Unit: 1
  • 4
    2-371
    $7.00
    Qty Per Unit: 1
  • 5
    SE-4003-1
    $729.00
    Qty Per Unit: 1
  • 6
    ZA-1
    $25.00
    Qty Per Unit: 1
  • 7
    SEF-4010-H
    $5,827.00
    Qty Per Unit: 1
  • 8
    2-452
    $11.00
    Qty Per Unit: 2
  • 9
    SE-4004
    $1,443.00
    Qty Per Unit: 1
  • 10
    SE-4005-1
    $114.00
    Qty Per Unit: 4
  • 11
    SE-4002
    $1,068.00
    Qty Per Unit: 1
  • 12
    1418HB
    $4.00
    Qty Per Unit: 1
  • 13
    1213HS
    $2.00
    Qty Per Unit: 2
  • 14
    12SS
    $1.00
    Qty Per Unit: 2
  • 15
    SE
    $55.00
    Qty Per Unit: 1
