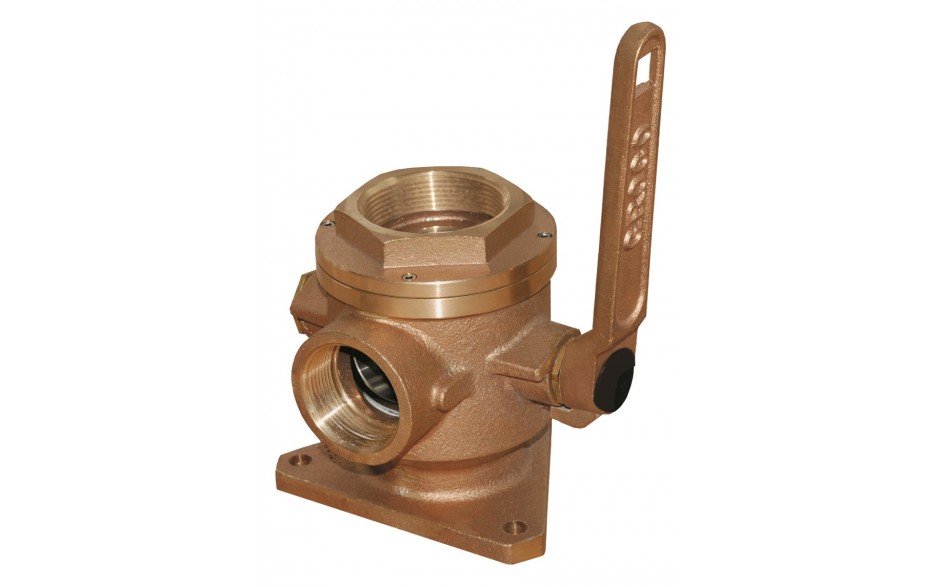

SBV-3000-P

3"Bronze Flanged Seacock with Side Port

Features:

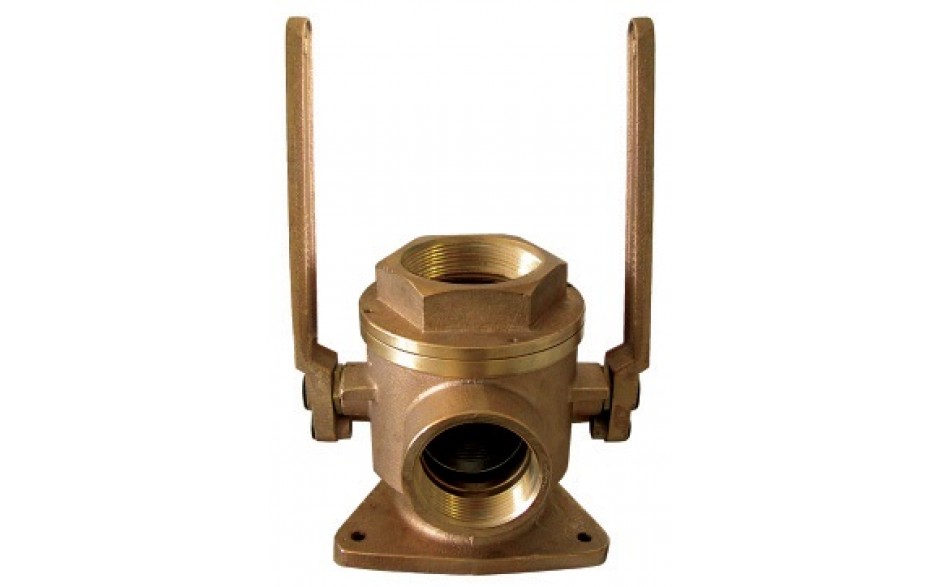

  • Two driver ports permit handle relocation.
  • NPT threaded side port accepts SSCV or any NPT threaded accessory.
  • Handle has square hole that accepts standard ratchet; helps access hard-to-reach valves, or ease actuation of hard-to-operate valves.
  • Full flow.
  • Serviceable while installed.
  • C84400 bronze construction.
  • Stainless steel ball and stem.
  • Base has bonding attachment.
  • PTFE seats and seals.

  ***Add a GROCO Bilge Strainer to pump out remote bilge locations.

Additional Information
Thread Bottom NPS 3"
Thread Top NPT 3"
Side Port 2-1/2" NPT

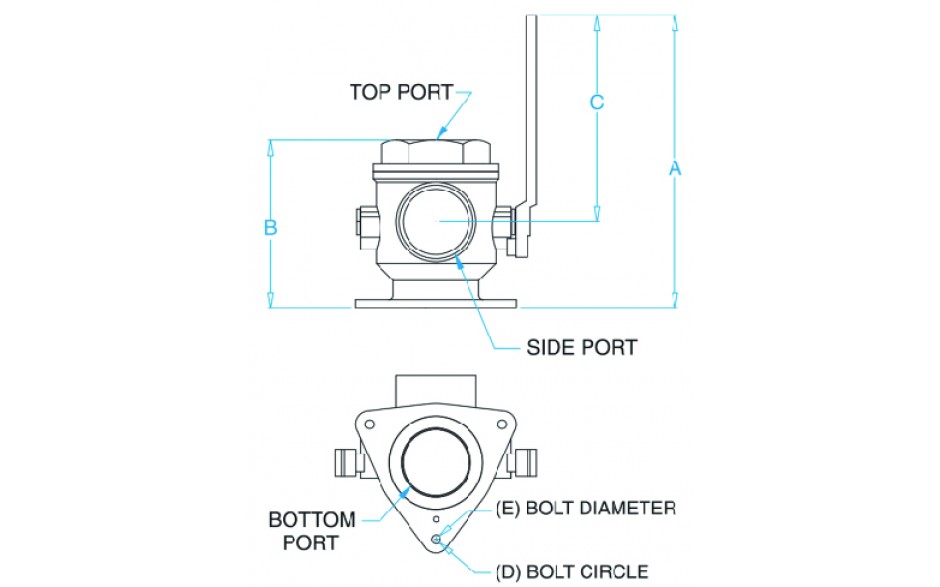

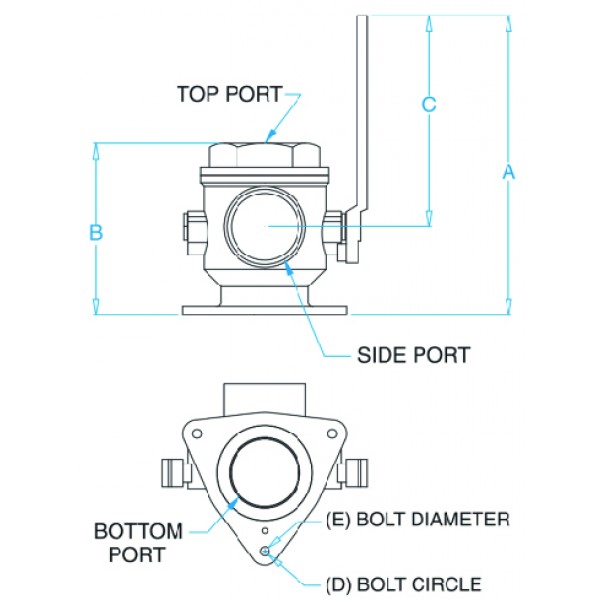

Dimensions
Thread Bottom NPS3"
Thread Top NPT3"
Side Port2-1/2" NPT
A13.5
B7.75
C6.81
D7
E3/8"

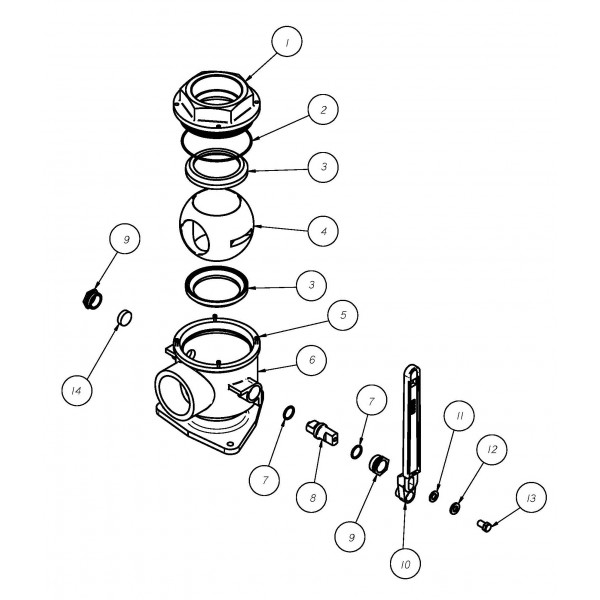

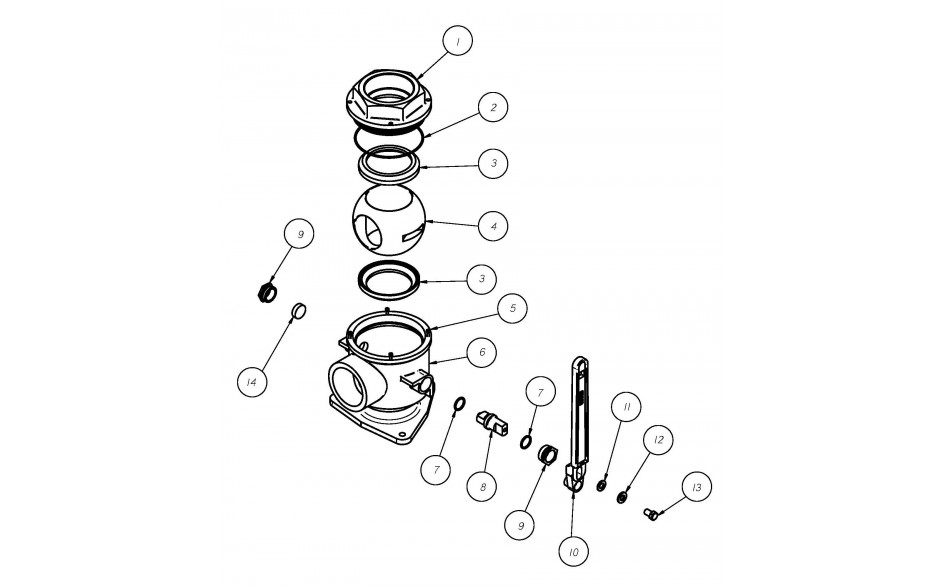

Individual Parts
  • 1
    BV-3002
    $383.00
    Qty Per Unit: 1
  • 2
    2-157
    $2.00
    Qty Per Unit: 1
  • 3
    BV-3006-1
    $68.00
    Qty Per Unit: 2
  • 4
    SBV-3004
    $696.00
    Qty Per Unit: 1
  • 5
    632X38SOC
    $1.00
    Qty Per Unit: 1
  • 6
    SBVP-3000-BT
    $1,046.00
    Qty Per Unit: 1
  • 7
    1-118
    $12.00
    Qty Per Unit: 2
  • 8
    BV-2501-B
    $85.00
    Qty Per Unit: 1
  • 9
    BV-2503-A
    $15.00
    Qty Per Unit: 2
  • 10
    SBV-3008-A
    $109.00
    Qty Per Unit: 1
  • 11
    38FS
    $1.00
    Qty Per Unit: 1
  • 12
    38SS
    $1.00
    Qty Per Unit: 1
  • 13
    3816X58HS
    $2.00
    Qty Per Unit: 1
  • 14
    SBV-3000 PLUG
    $4.00
    Qty Per Unit: 1
