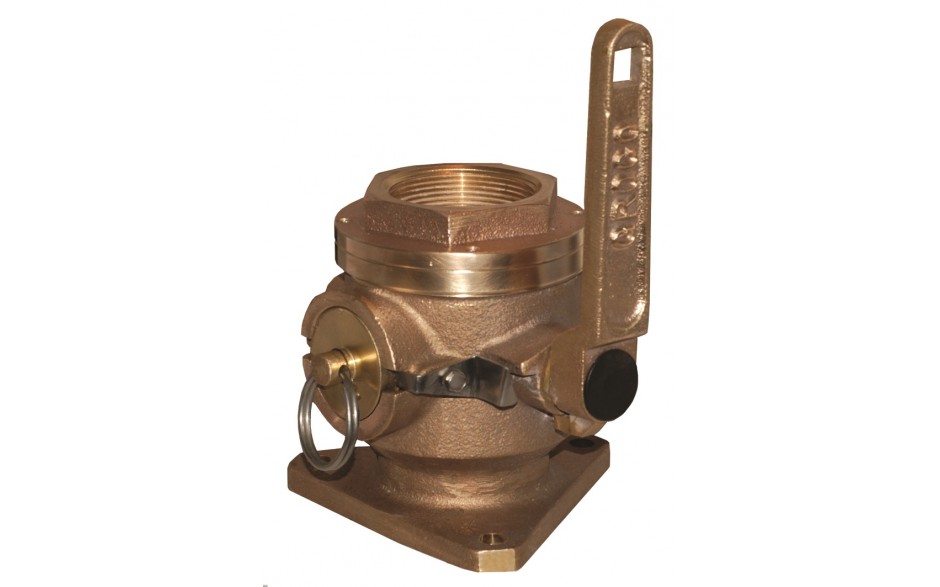

SBV-3000

3"Bronze Safety Seacock

Features:

  • Handle has square hole that accepts standard ratchet; helps access hard-to-reach valves, or ease actuation of hard-to-operate valves.

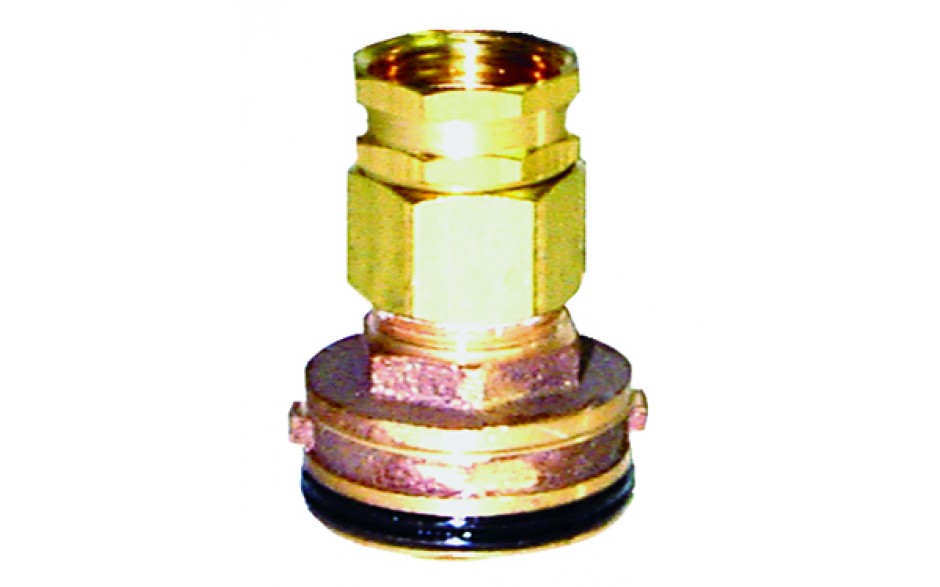

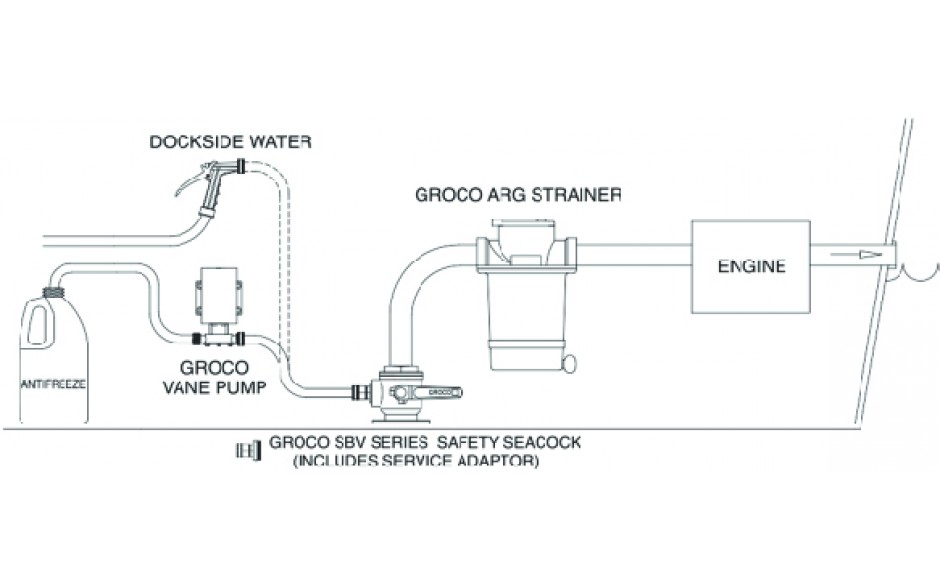

  • Side port has a Quick-Release Plug for emergency bilge pumping, and a Service Adaptor for routine winterization and maintenance.
  • Full flow.
  • Serviceable while installed.
  • C84400 bronze construction.
  • Stainless steel ball and stem.
  • Base has bonding attachment.
  • PTFE seats and seals.
  • Two driver ports permit handle relocation.
  • Service adaptor included.
  • UL Listed 647B

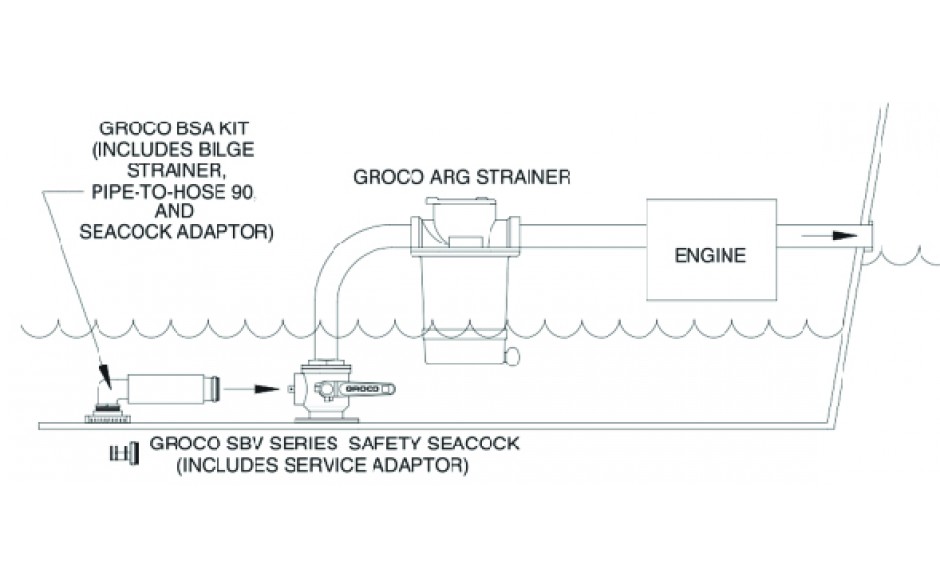

 ***Add a GROCO Bilge Strainer to pump out remote bilge locations.

Additional Information
Thread Bottom NPS 3"
Thread Top NPT 3"
Side Port SBVSA-3005

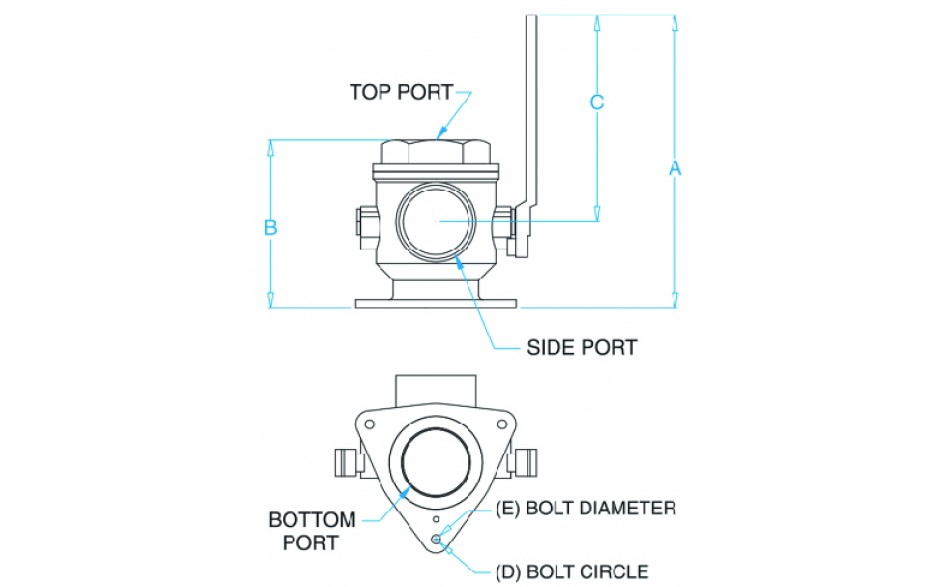

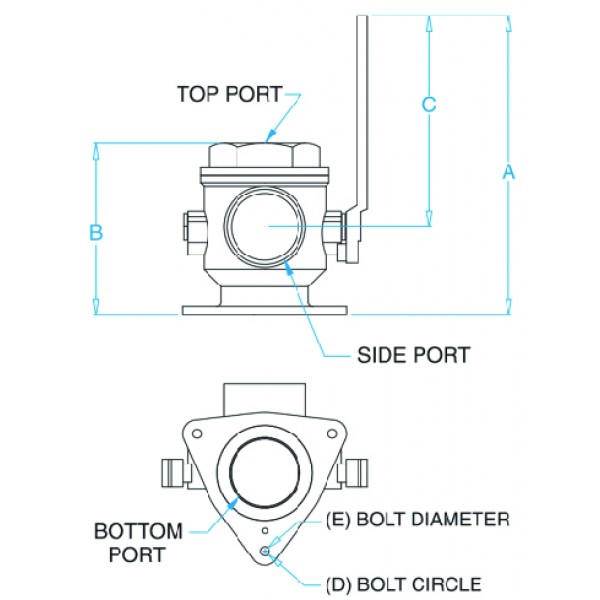

Dimensions
Thread Bottom NPS3"
Thread Top NPT3"
Side PortSBVSA-3005
A13.5
B7.75
C6.81
D7
E3/8"

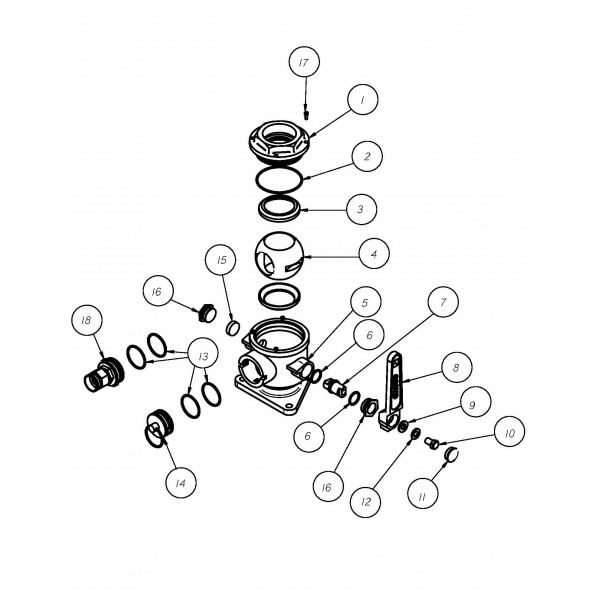

Individual Parts
  • 1
    BV-3002
    $383.00
    Qty Per Unit: 1
  • 2
    2-157
    $2.00
    Qty Per Unit: 2
  • 3
    BV-3006-1
    $68.00
    Qty Per Unit: 2
  • 4
    SBV-3004
    $696.00
    Qty Per Unit: 1
  • 5
    SBV-3000-BT
    $856.00
    Qty Per Unit: 1
  • 6
    1-118
    $12.00
    Qty Per Unit: 2
  • 7
    BV-2501-B
    $85.00
    Qty Per Unit: 1
  • 8
    SBV-3008-A
    $109.00
    Qty Per Unit: 1
  • 9
    38FS
    $1.00
    Qty Per Unit: 1
  • 10
    3816X58HS
    $2.00
    Qty Per Unit: 1
  • 11
    PFW-10
    $1.00
    Qty Per Unit: 1
  • 12
    38SS
    $1.00
    Qty Per Unit: 1
  • 13
    2-144
    $1.00
    Qty Per Unit: 2
  • 14
    SBV-3005
    $87.00
    Qty Per Unit: 1
  • 15
    SBV-3000 PLUG
    $4.00
    Qty Per Unit: 1
  • 16
    BV-2503-A
    $15.00
    Qty Per Unit: 2
  • 17
    632X38SOC
    $1.00
    Qty Per Unit: 3
  • 18
    SBVSA-3005
    $99.00
    Qty Per Unit: 1
