SBV-2500

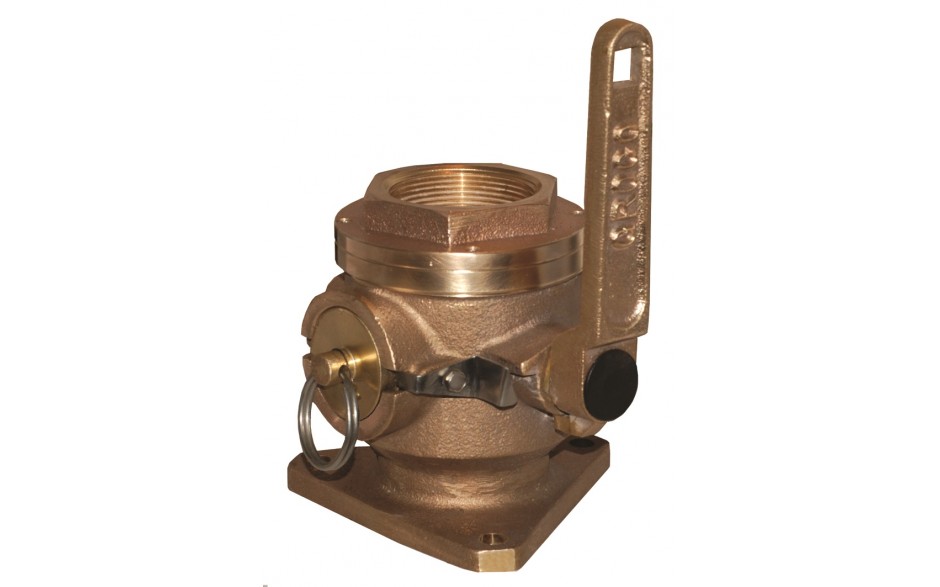

2-1/2"Bronze Safety Seacock

Features:

  • Handle has square hole that accepts standard ratchet; helps access hard-to-reach valves, or ease actuation of hard-to-operate valves.

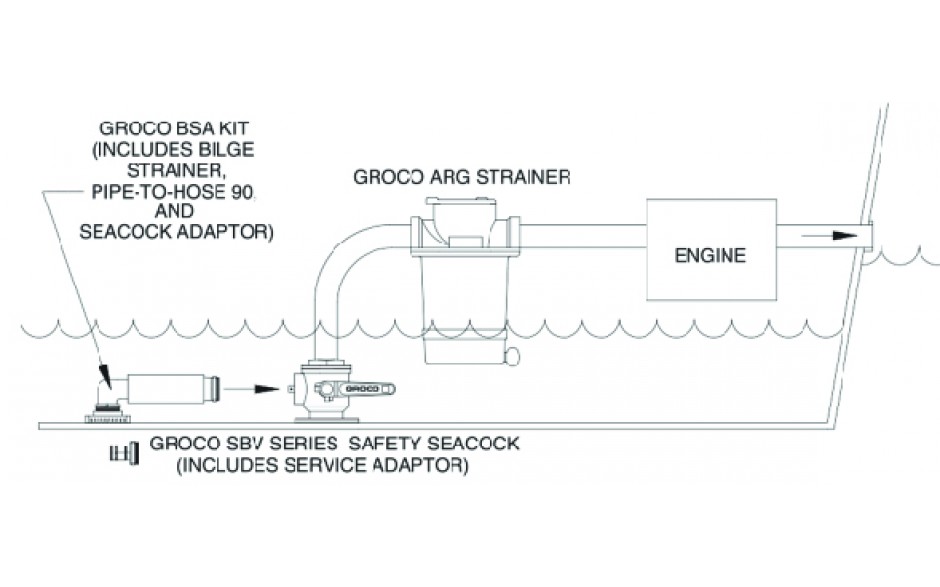

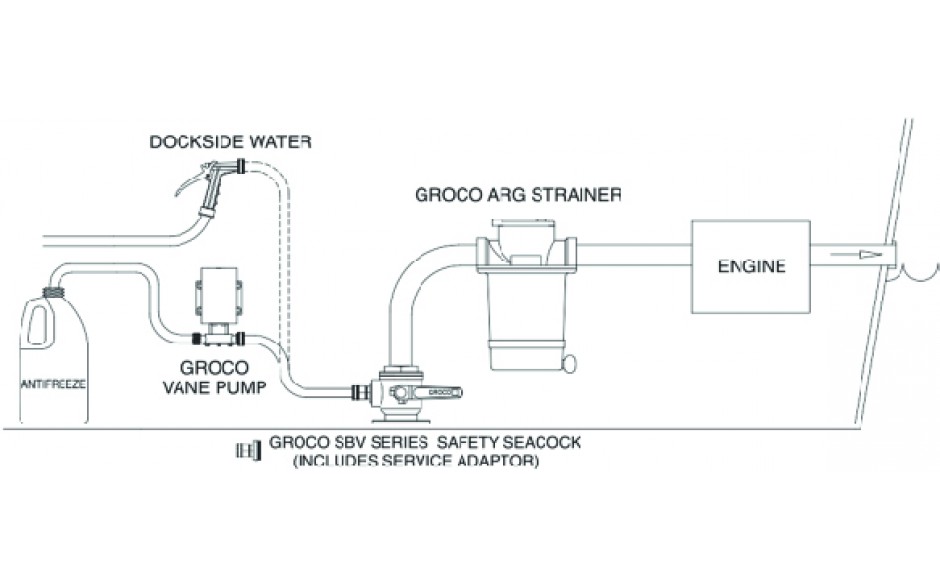

  • Side port has a Quick-Release Plug for emergency bilge pumping, and a Service Adaptor for routine winterization and maintenance.
  • Full flow.
  • Serviceable while installed.
  • C84400 bronze construction.
  • Stainless steel ball and stem.
  • Base has bonding attachment.
  • PTFE seats and seals.
  • Two driver ports permit handle relocation.

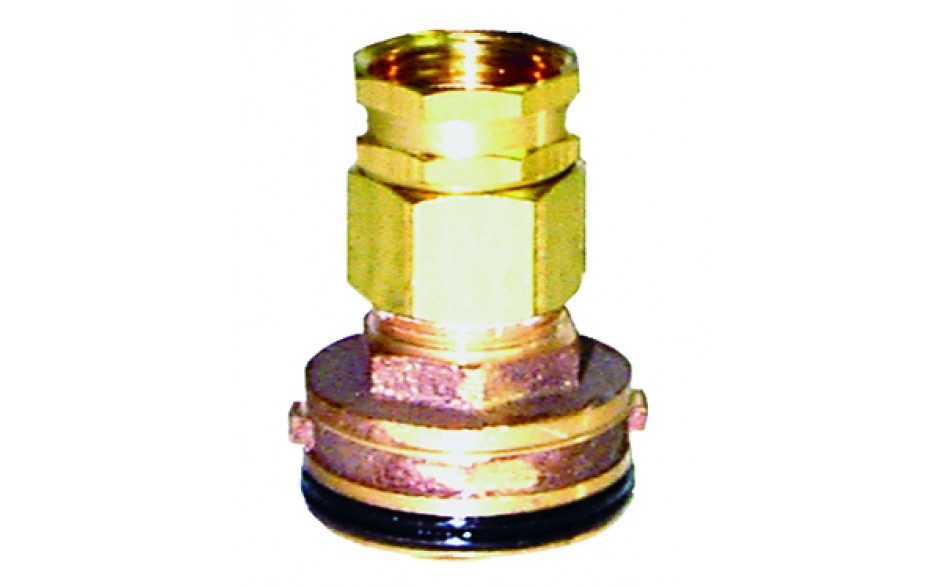

  • Service adaptor included.
  • UL Listed 647B

 ***Add a GROCO Bilge Strainer to pump out remote bilge locations.

Additional Information
Thread Bottom NPS 2-1/2"
Thread Top NPT 2-1/2"
Side Port SBVSA-2505

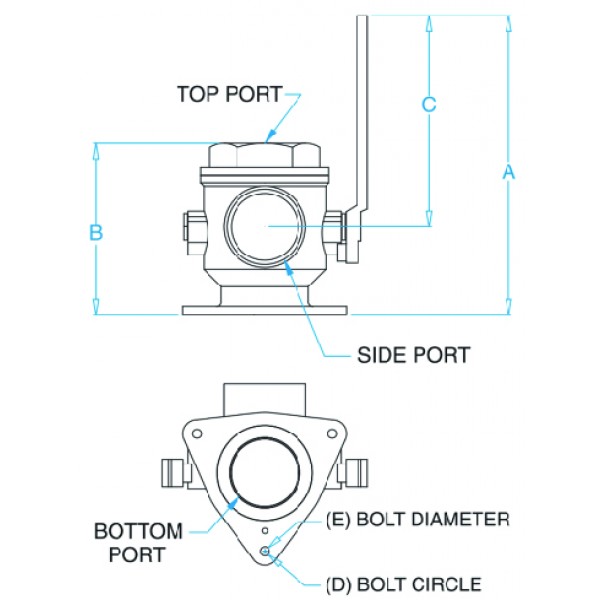

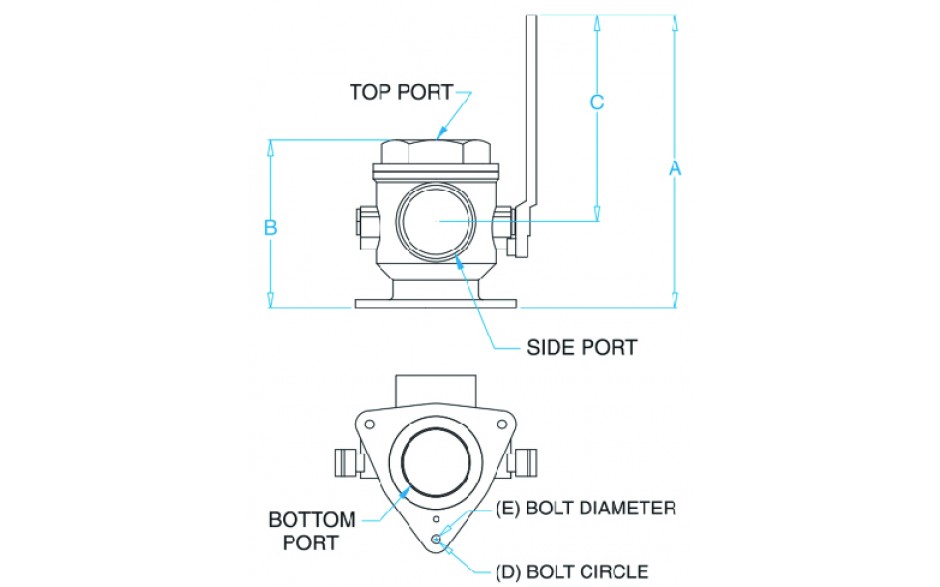

Dimensions
Thread Bottom NPS2-1/2"
Thread Top NPT2-1/2"
Side PortSBVSA-2505
A10.31
B6.75
C5.88
D5.88
E3/8"
dimensions image
 Download Image  Open in New Window

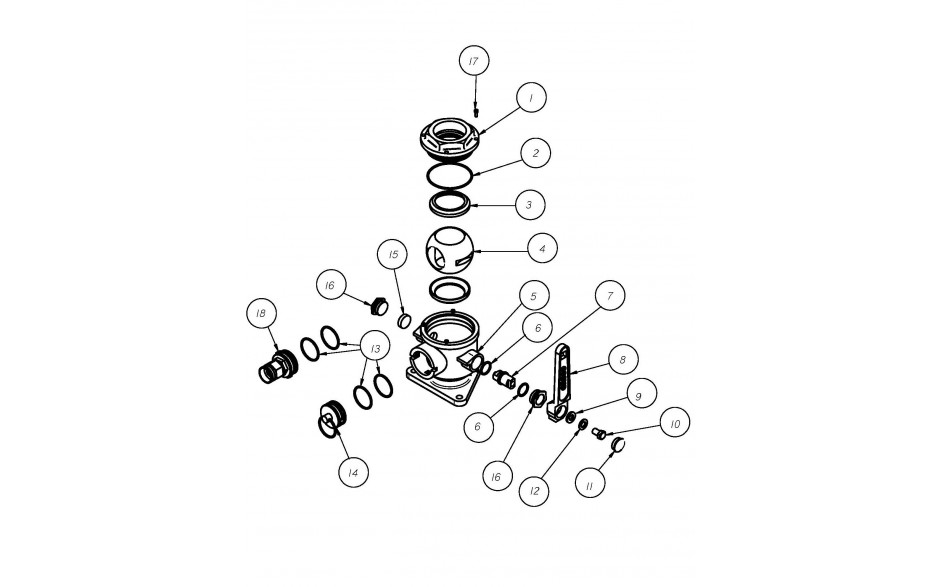

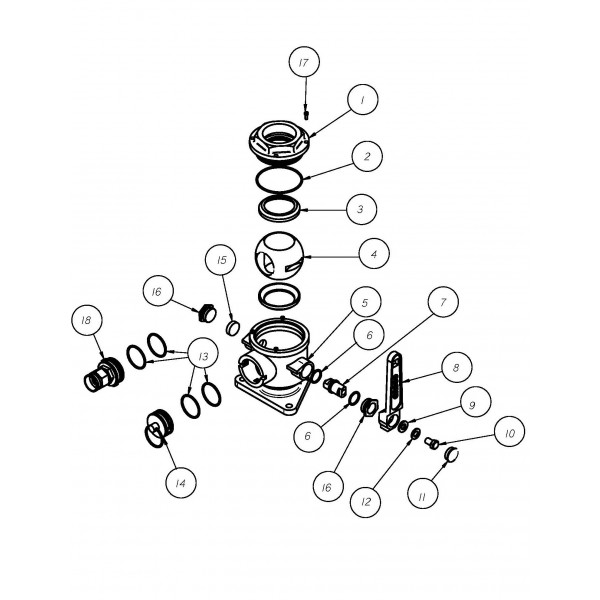

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    BV-2502
    $368.00
    Qty Per Unit: 1
  • 2
    2-154
    $3.00
    Qty Per Unit: 2
  • 3
    BV-2506-1
    $54.00
    Qty Per Unit: 2
  • 4
    SBV-2504
    $755.00
    Qty Per Unit: 1
  • 5
    SBV-2500-BT
    $1,008.00
    Qty Per Unit: 1
  • 6
    1-118
    $5.00
    Qty Per Unit: 2
  • 7
    BV-2501-B
    $113.00
    Qty Per Unit: 1
  • 8
    BV-2508-A
    $112.00
    Qty Per Unit: 1
  • 9
    38FS
    $2.00
    Qty Per Unit: 1
  • 10
    3816X58HS
    $3.00
    Qty Per Unit: 1
  • 11
    PFW-10
    $1.00
    Qty Per Unit: 1
  • 12
    38SS
    $1.00
    Qty Per Unit: 1
  • 13
    2-136
    $2.00
    Qty Per Unit: 2
  • 14
    SBV-2505
    $101.00
    Qty Per Unit: 1
  • 15
    SBV-3000 PLUG
    $6.00
    Qty Per Unit: 1
  • 16
    BV-2503-A
    $64.00
    Qty Per Unit: 2
  • 17
    632X38SOC
    $1.00
    Qty Per Unit: 3
  • 18
    SBVSA-2505
    $127.00
    Qty Per Unit: 1
