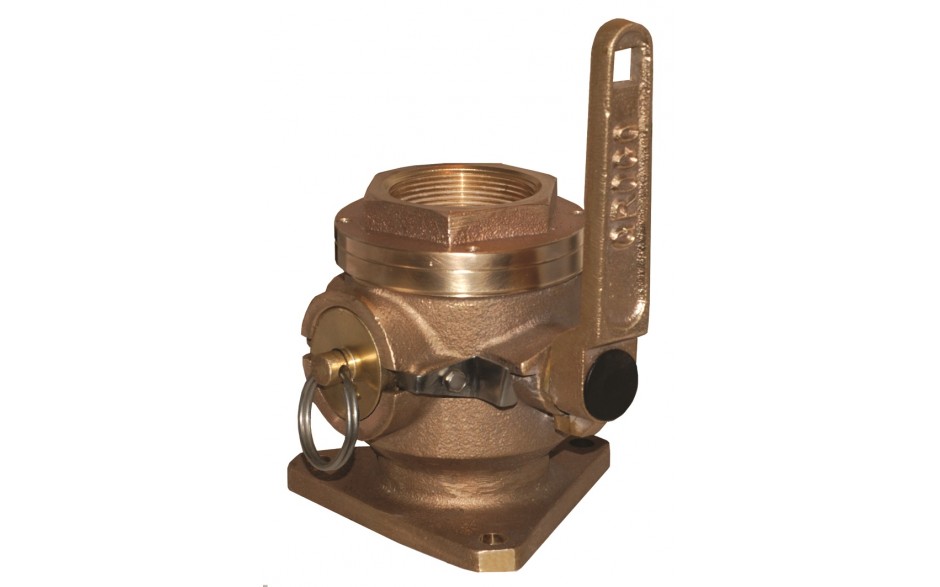

SBV-2000

2"Bronze Safety Seacock

Features:

  • Handle has square hole that accepts standard ratchet; helps access hard-to-reach valves, or ease actuation of hard-to-operate valves.

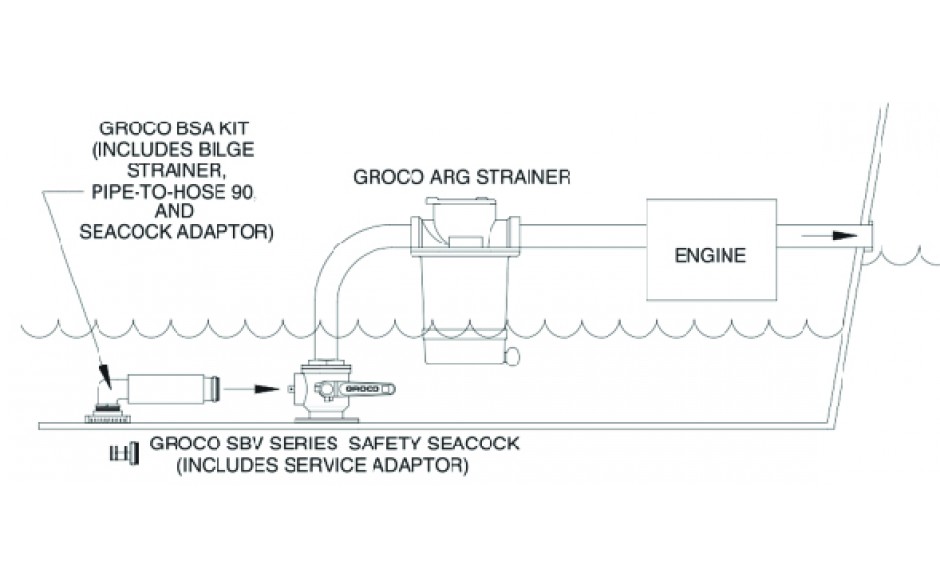

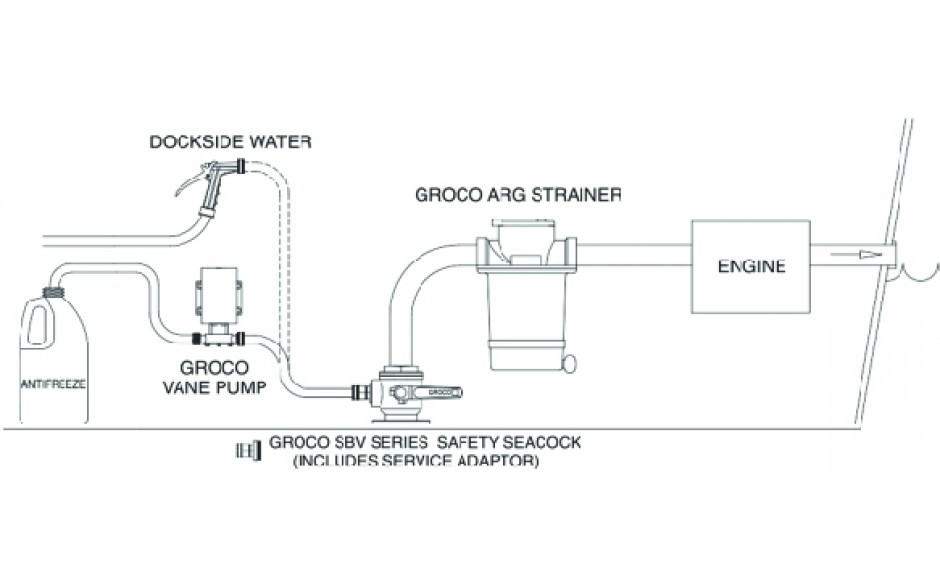

  • Side port has a Quick-Release Plug for emergency bilge pumping, and a Service Adaptor for routine winterization and maintenance.
  • Full flow.
  • Serviceable while installed.
  • C84400 bronze construction.
  • Stainless steel ball and stem.
  • Base has bonding attachment.
  • PTFE seats and seals.
  • Two driver ports permit handle relocation.

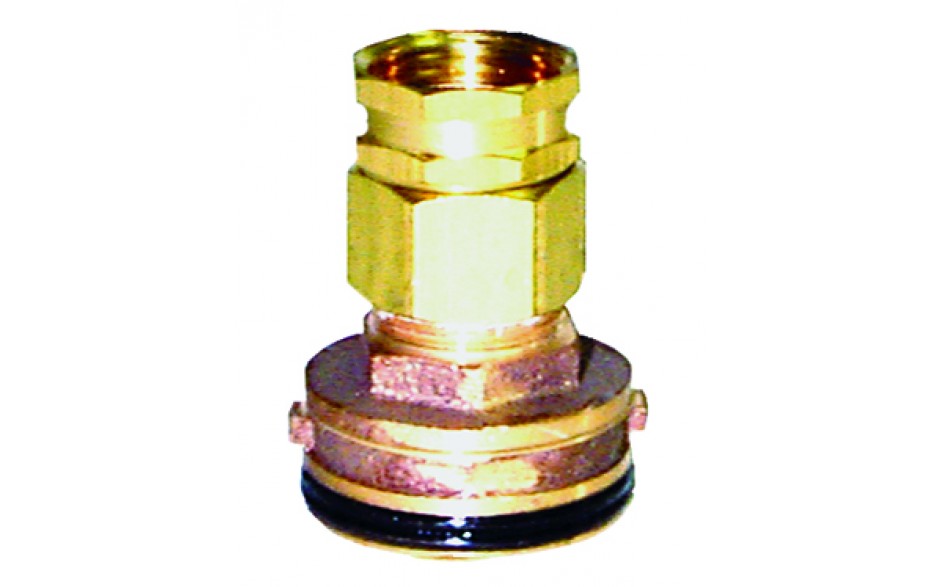

  • Service adaptor included.
  • UL Listed 647B

(NO LONGER AVAILABLE FOR PURCHASE.  PARTS ONLY)

 ***Add a GROCO Bilge Strainer to pump out remote bilge locations.

Additional Information
Thread Bottom NPS 2"
Thread Top NPT 2"
Side Port SBVSA-2005

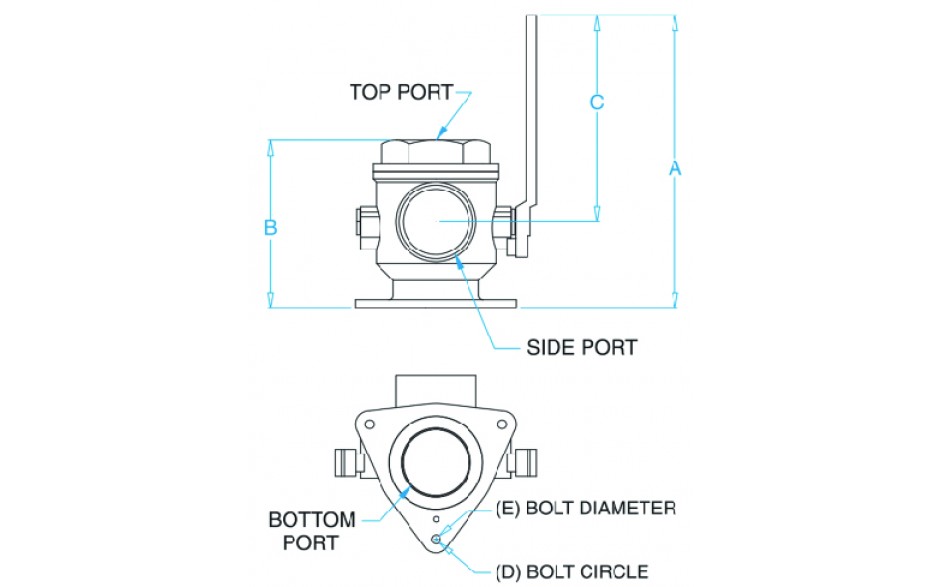

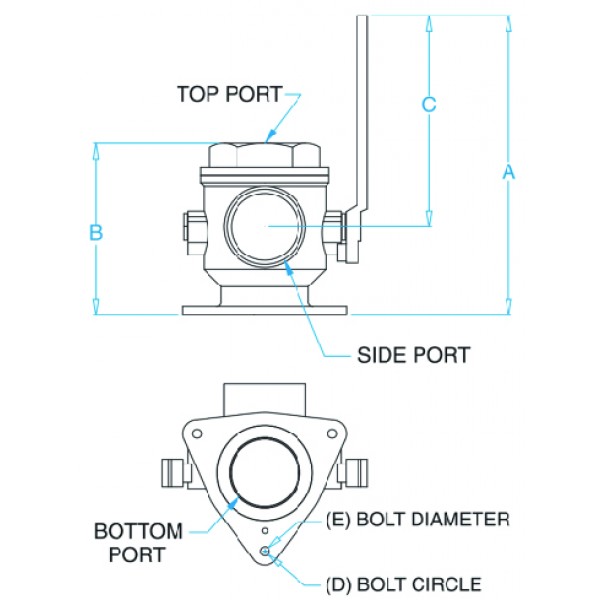

Dimensions
Thread Bottom NPS2"
Thread Top NPT2"
Side PortSBVSA-2005
A8.38
B5.25
C5.13
D5
E3/8"
dimensions image
 Download Image  Open in New Window

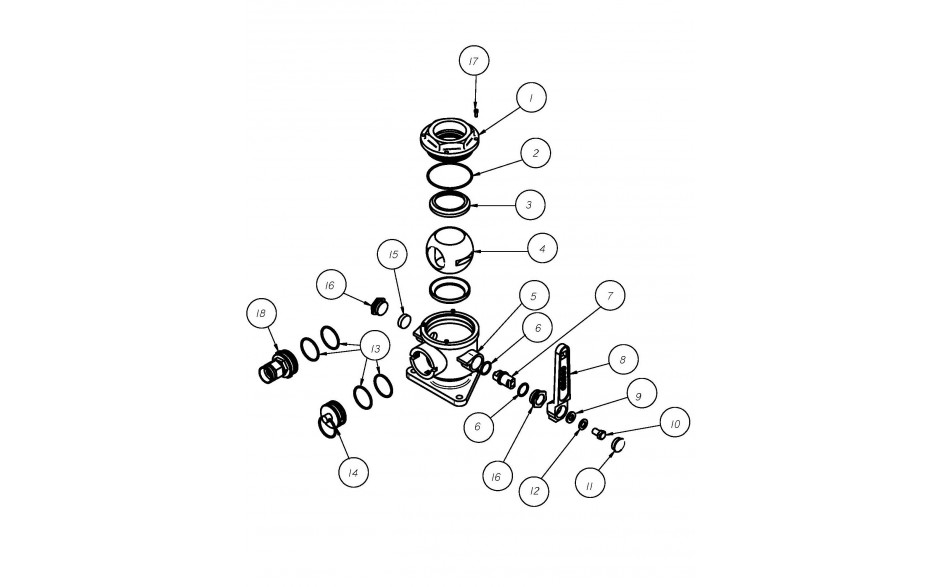

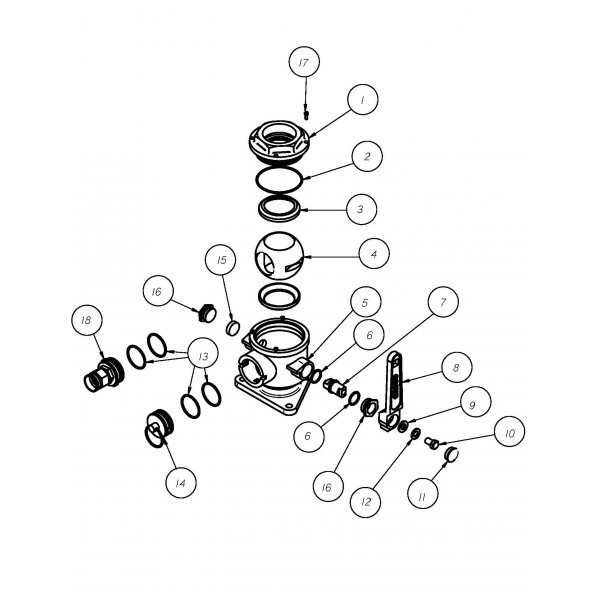

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    BV-2002
    $272.00
    Qty Per Unit: 1
  • 2
    2-150
    $2.00
    Qty Per Unit: 2
  • 3
    BV-2006-1
    $32.00
    Qty Per Unit: 2
  • 4
    SBV-2004
    $499.00
    Qty Per Unit: 1
  • 5
    SBV-2000-BT
    $699.00
    Qty Per Unit: 1
  • 6
    1-116
    $4.00
    Qty Per Unit: 2
  • 7
    BV-1501-A
    $87.00
    Qty Per Unit: 1
  • 8
    BV-1508
    $77.00
    Qty Per Unit: 1
  • 9
    38FS
    $2.00
    Qty Per Unit: 1
  • 10
    3816X58HS
    $3.00
    Qty Per Unit: 1
  • 11
    PFW-10
    $1.00
    Qty Per Unit: 1
  • 12
    38SS
    $1.00
    Qty Per Unit: 1
  • 13
    2-128
    $1.00
    Qty Per Unit: 2
  • 14
    SBV-2005
    $87.00
    Qty Per Unit: 1
  • 15
    SBV-2000 PLUG
    $5.00
    Qty Per Unit: 1
  • 16
    BV-2003-A
    $54.00
    Qty Per Unit: 2
  • 17
    632X38SOC
    $1.00
    Qty Per Unit: 3
  • 18
    SBVSA-2005
    $122.00
    Qty Per Unit: 1
