SBV-1500-P

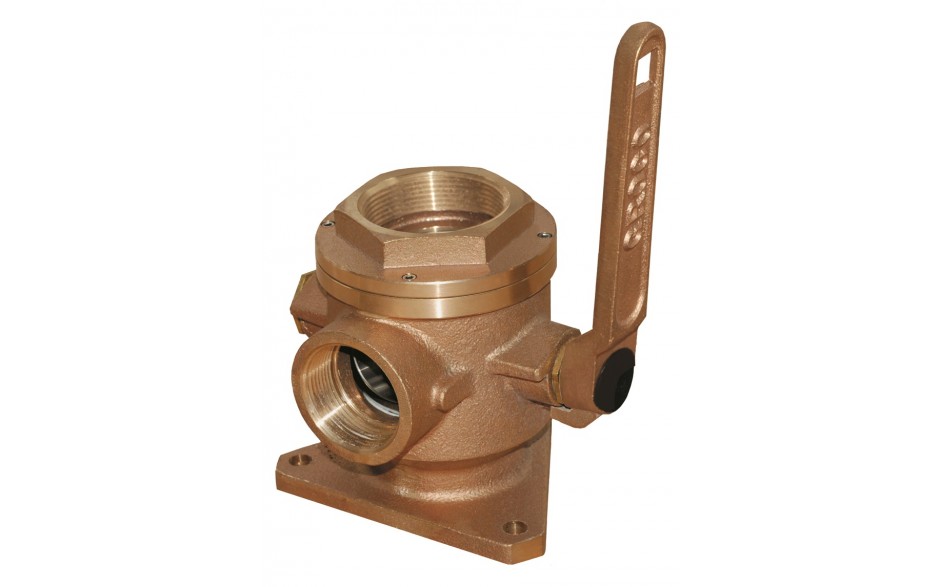

1-1/2"Bronze Flanged Seacock with Side Port

Features:

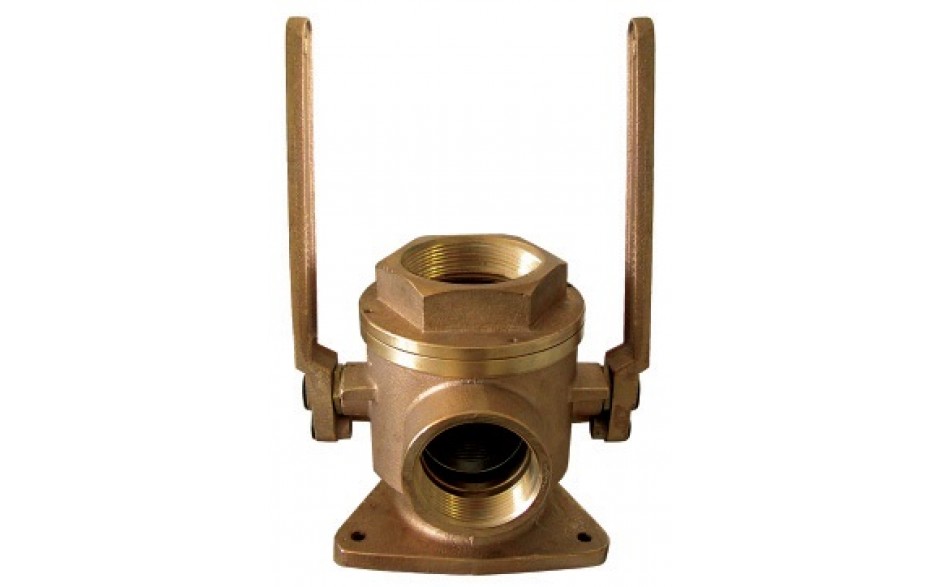

  • Two driver ports permit handle relocation.
  • NPT threaded side port accepts SSCV or any NPT threaded accessory.
  • Handle has square hole that accepts standard ratchet; helps access hard-to-reach valves, or ease actuation of hard-to-operate valves.
  • Full flow.
  • Serviceable while installed.
  • C84400 bronze construction.
  • Stainless steel ball and stem.
  • Base has bonding attachment.
  • PTFE seats and seals.

  ***Add a GROCO Bilge Strainer to pump out remote bilge locations.

Additional Information
Thread Bottom NPS 1-1/2"
Thread Top NPT 1-1/2"
Side Port 1-1/4" NPT

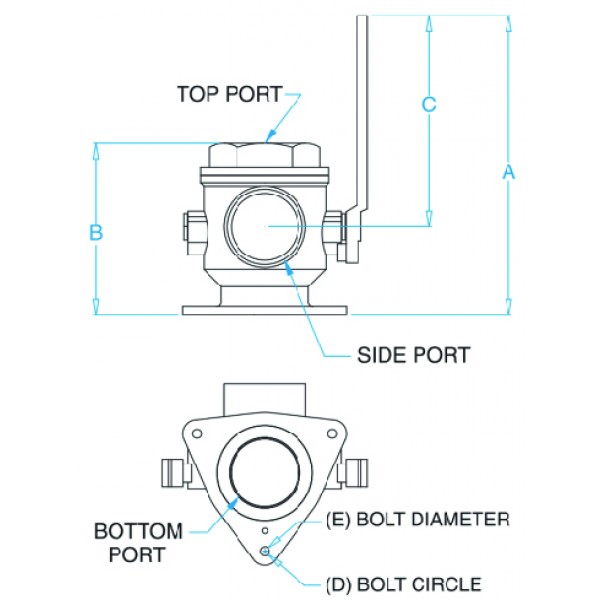

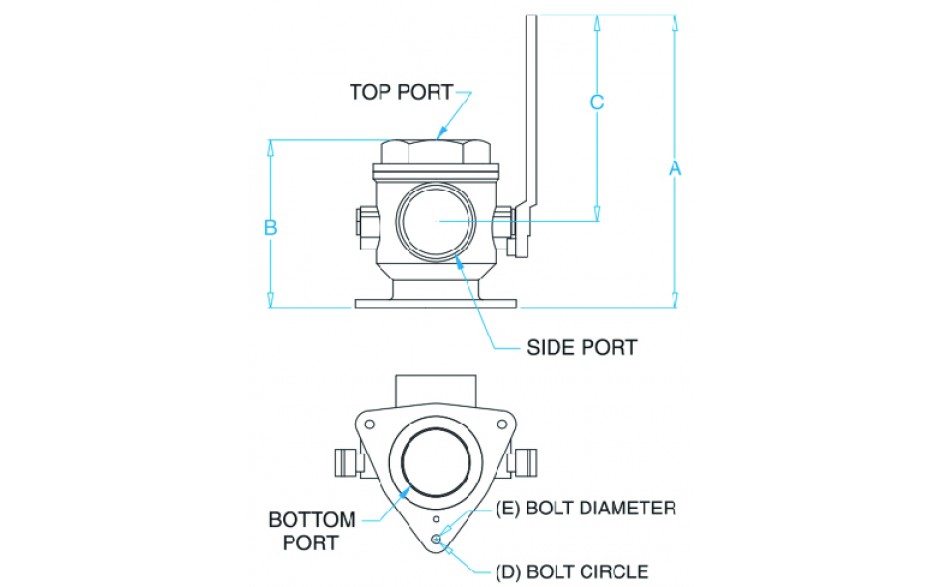

Dimensions
Thread Bottom NPS1-1/2"
Thread Top NPT1-1/2"
Side Port1-1/4" NPT
A8
B4.63
C4.13
D4.5
E5/16"

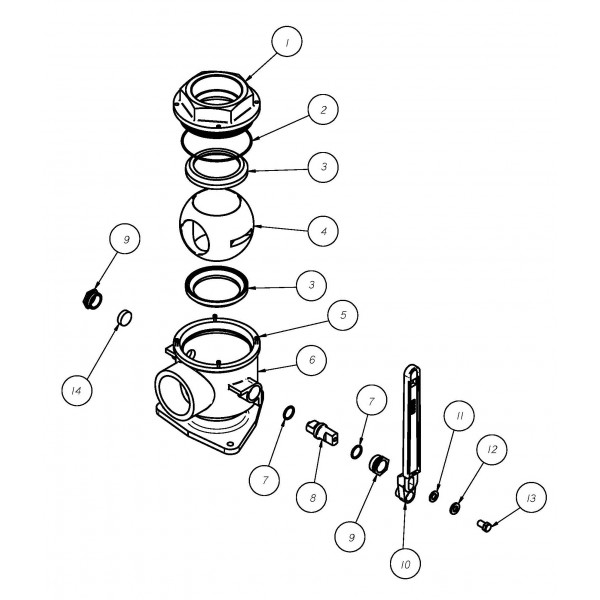

Individual Parts
  • 1
    BV-1502
    $107.00
    Qty Per Unit: 1
  • 2
    2-140
    $1.00
    Qty Per Unit: 1
  • 3
    BV-1506
    $14.00
    Qty Per Unit: 2
  • 4
    SBV-1504
    $158.00
    Qty Per Unit: 1
  • 5
    632X38SOC
    $1.00
    Qty Per Unit: 4
  • 6
    SBVP-1500-BT
    $429.00
    Qty Per Unit: 1
  • 7
    1-116
    $9.00
    Qty Per Unit: 2
  • 8
    BV-1501-A
    $65.00
    Qty Per Unit: 1
  • 9
    BV-2003-A
    $39.00
    Qty Per Unit: 2
  • 10
    BV-1508
    $48.00
    Qty Per Unit: 1
  • 11
    38FS
    $1.00
    Qty Per Unit: 1
  • 12
    38SS
    $1.00
    Qty Per Unit: 1
  • 13
    3816X58HS
    $2.00
    Qty Per Unit: 1
  • 14
    SBV-2000 PLUG
    $4.00
    Qty Per Unit: 1
