SBV-1250-P

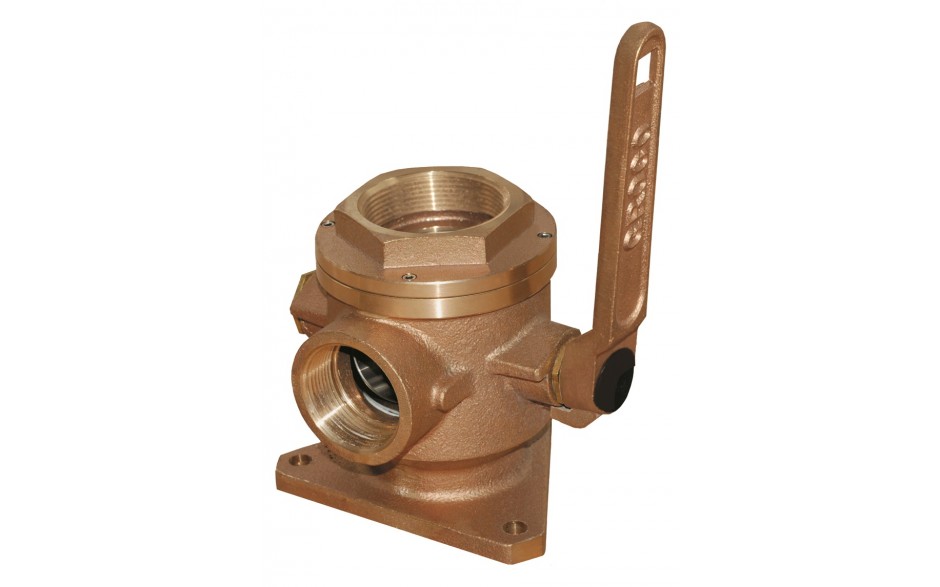

1-1/4"Bronze Flanged Seacock with Side Port

Features:

  • Two driver ports permit handle relocation.
  • NPT threaded side port accepts SSCV or any NPT threaded accessory.
  • Handle has square hole that accepts standard ratchet; helps access hard-to-reach valves, or ease actuation of hard-to-operate valves.
  • Full flow.
  • Serviceable while installed.
  • C84400 bronze construction.
  • Stainless steel ball and stem.
  • Base has bonding attachment.
  • PTFE seats and seals.

  ***Add a GROCO Bilge Strainer to pump out remote bilge locations.

Additional Information
Thread Bottom NPS 1-1/4"
Thread Top NPT 1-1/4"
Side Port 1" NPT

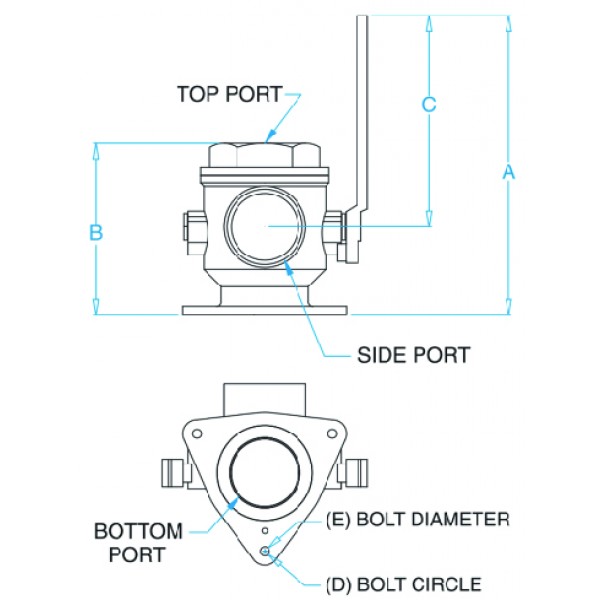

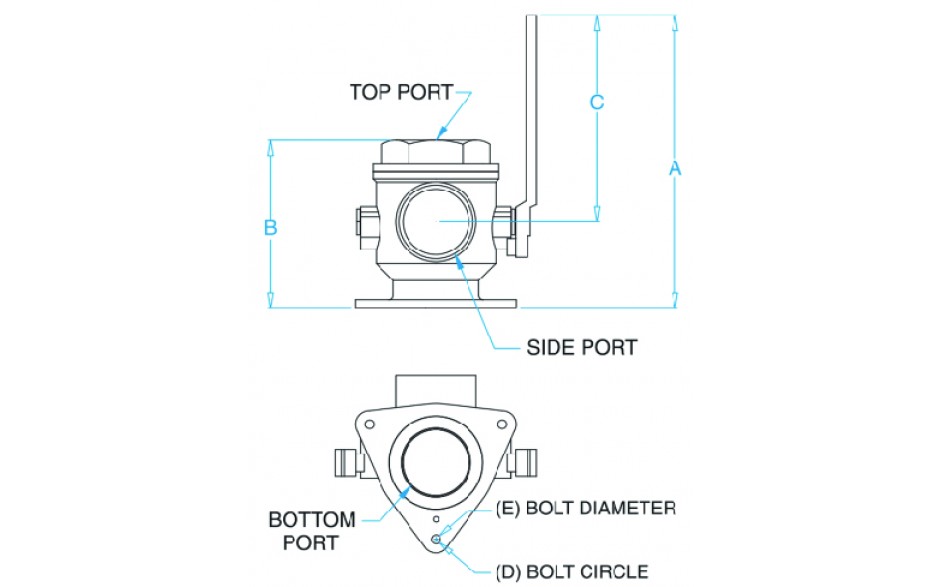

Dimensions
Thread Bottom NPS1-1/4"
Thread Top NPT1-1/4"
Side Port1" NPT
A7
B4.5
C3.5
D3.62
E5/16"

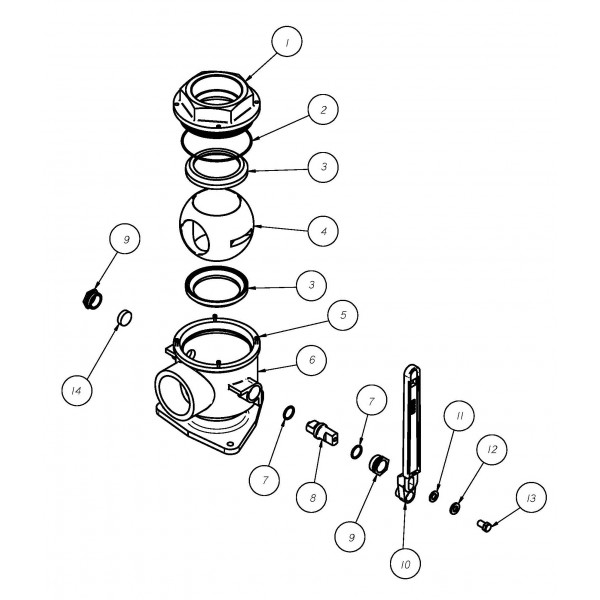

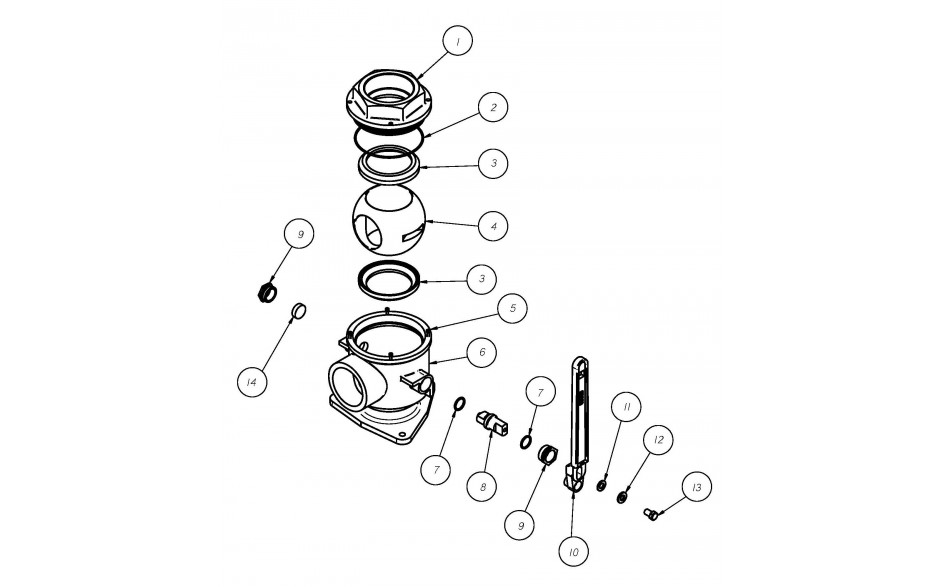

Individual Parts
  • 1
    BV-1252
    $87.00
    Qty Per Unit: 1
  • 2
    2-135
    $1.00
    Qty Per Unit: 1
  • 3
    BV-1256
    $13.00
    Qty Per Unit: 2
  • 4
    SBV-1254
    $106.00
    Qty Per Unit: 1
  • 5
    632X38SOC
    $1.00
    Qty Per Unit: 4
  • 6
    SBVP-1250-BT
    $300.00
    Qty Per Unit: 1
  • 7
    1-017
    $7.00
    Qty Per Unit: 2
  • 8
    BV-1001-A
    $50.00
    Qty Per Unit: 1
  • 9
    BV-1003-A
    $42.00
    Qty Per Unit: 2
  • 10
    SBV-1008
    $53.00
    Qty Per Unit: 1
  • 11
    14FS
    $1.00
    Qty Per Unit: 1
  • 12
    14SS
    $1.00
    Qty Per Unit: 1
  • 13
    1420X12HS
    $1.00
    Qty Per Unit: 1
  • 14
    SBV-1250 PLUG
    $14.00
    Qty Per Unit: 1
