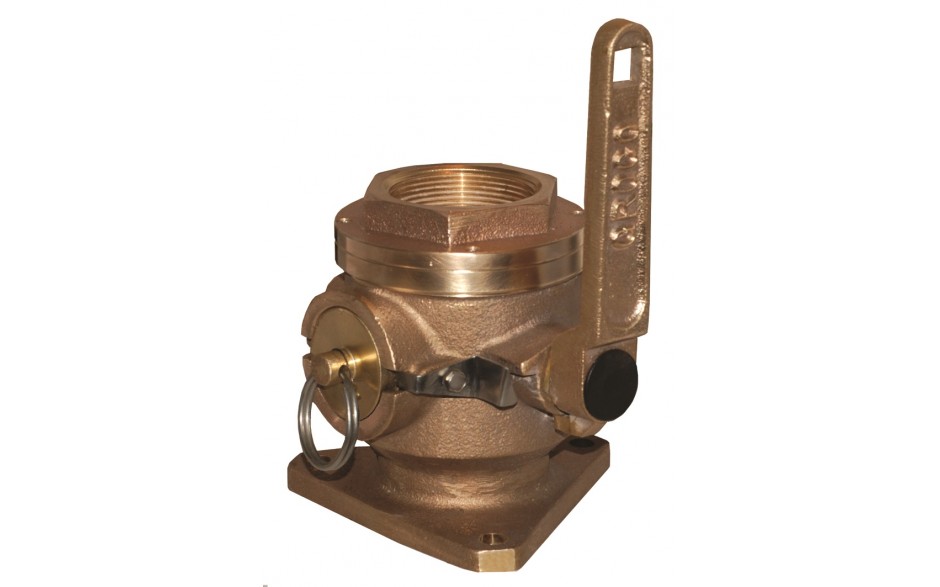

SBV-1250

1-1/4"Bronze Safety Seacock

Features:

  • Handle has square hole that accepts standard ratchet; helps access hard-to-reach valves, or ease actuation of hard-to-operate valves.

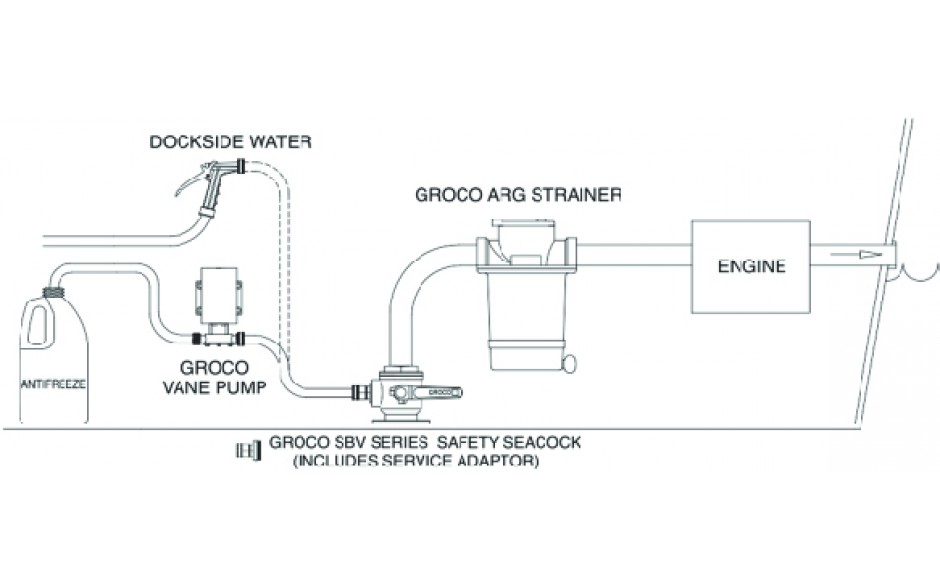

  • Side port has a Quick-Release Plug for emergency bilge pumping, and a Service Adaptor for routine winterization and maintenance.
  • Full flow.
  • Serviceable while installed.
  • C84400 bronze construction.
  • Stainless steel ball and stem.
  • Base has bonding attachment.
  • PTFE seats and seals.
  • Two driver ports permit handle relocation.

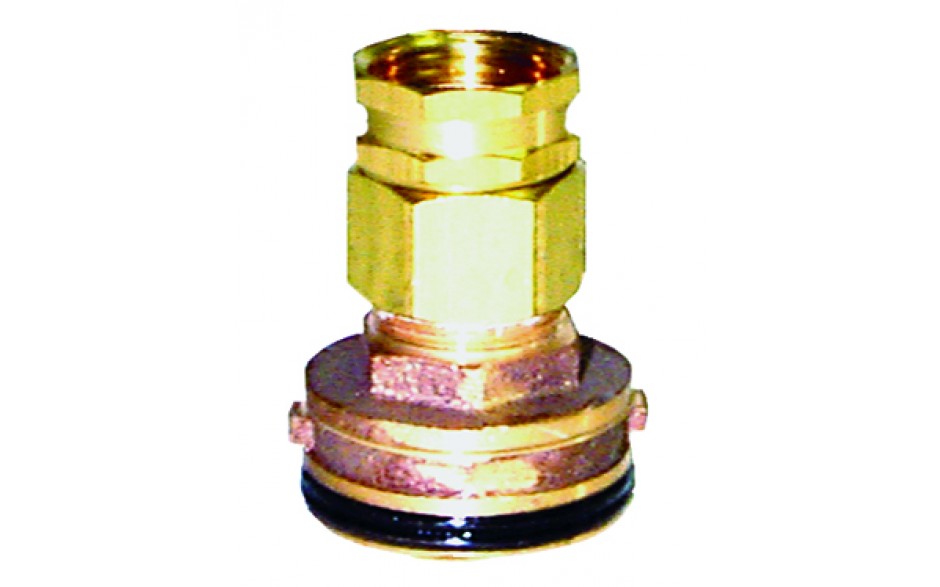

  • Service adaptor included.
  • UL Listed 647B

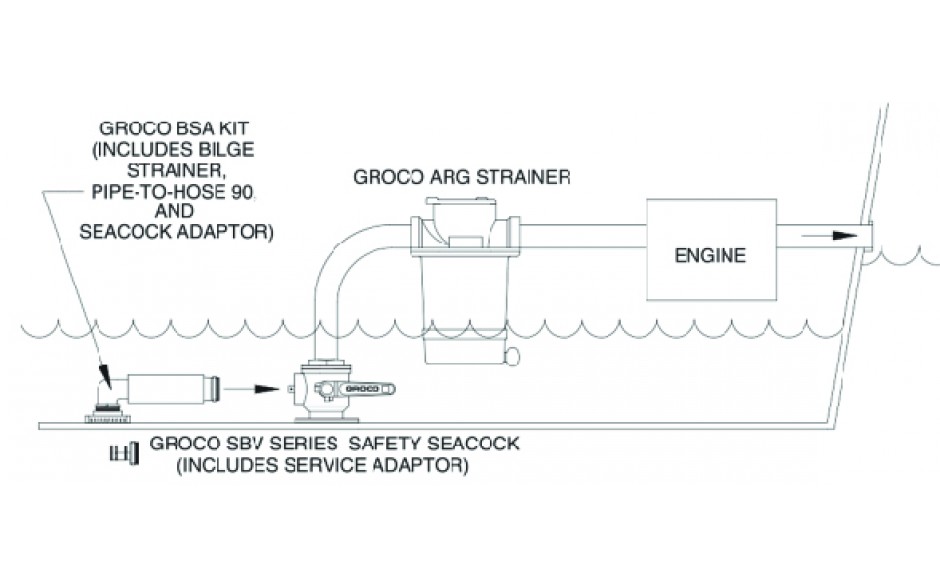

 ***Add a GROCO Bilge Strainer to pump out remote bilge locations.

Additional Information
Thread Bottom NPS 1-1/4"
Thread Top NPT 1-1/4"
Side Port SBVSA-1255

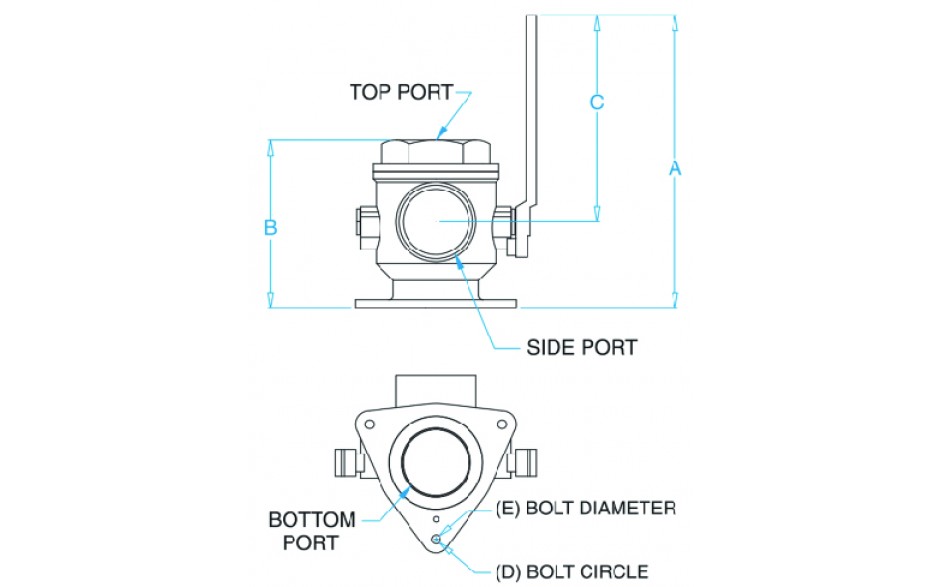

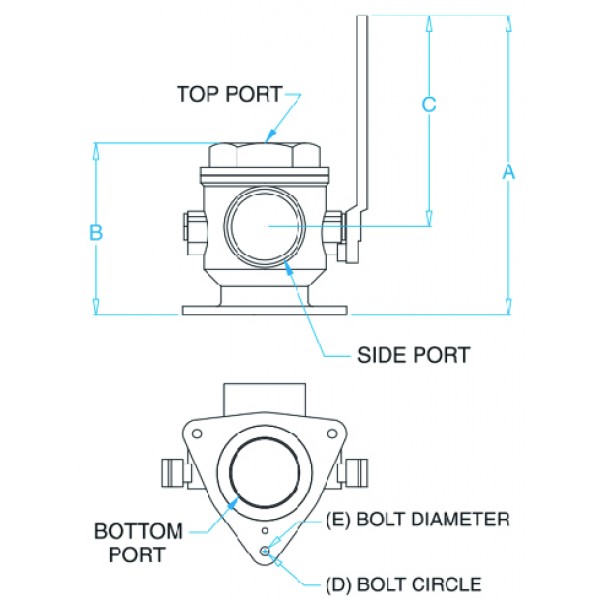

Dimensions
Thread Bottom NPS1-1/4"
Thread Top NPT1-1/4"
Side PortSBVSA-1255
A7
B4.5
C3.5
D3.62
E5/16"

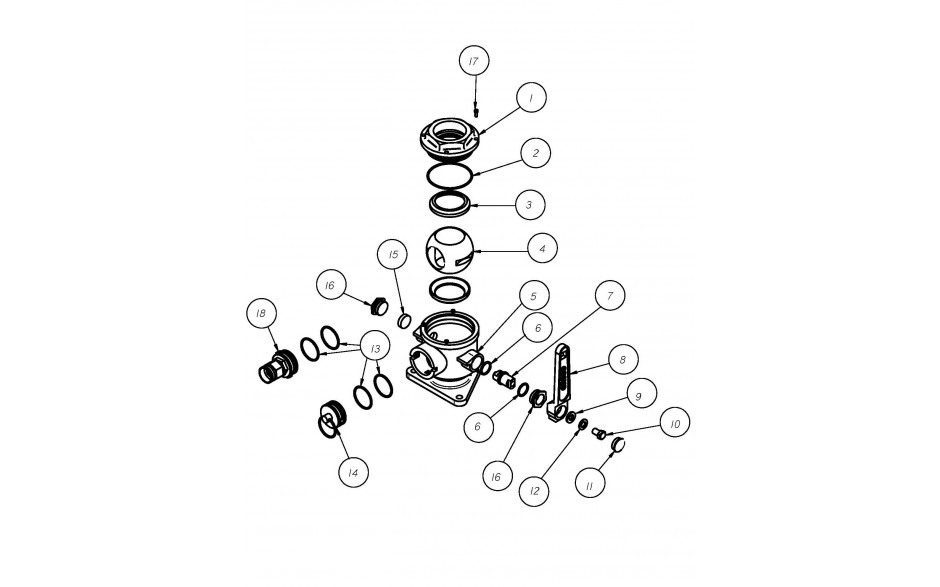

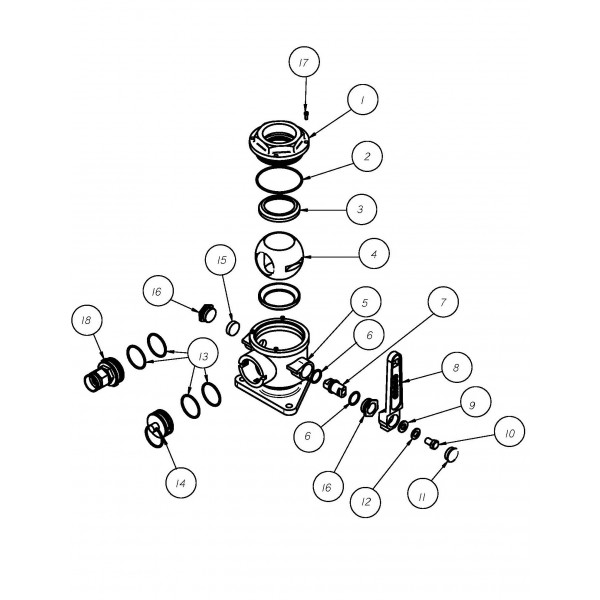

Individual Parts
  • 1
    BV-1252
    $130.00
    Qty Per Unit: 1
  • 2
    2-135
    $1.00
    Qty Per Unit: 2
  • 3
    BV-1256
    $16.00
    Qty Per Unit: 2
  • 4
    SBV-1254
    $150.00
    Qty Per Unit: 1
  • 5
    SBV-1250-BT
    $355.00
    Qty Per Unit: 1
  • 6
    1-017
    $3.00
    Qty Per Unit: 2
  • 7
    BV-1001-A
    $67.00
    Qty Per Unit: 1
  • 8
    SBV-1008
    $78.00
    Qty Per Unit: 1
  • 9
    14FS
    $1.00
    Qty Per Unit: 1
  • 10
    1420X12HS
    $1.00
    Qty Per Unit: 1
  • 11
    PFW-10
    $1.00
    Qty Per Unit: 1
  • 12
    14SS
    $1.00
    Qty Per Unit: 1
  • 13
    2-118
    $1.00
    Qty Per Unit: 2
  • 14
    SBV-1255
    $57.00
    Qty Per Unit: 1
  • 15
    SBV-1250 PLUG
    $21.00
    Qty Per Unit: 1
  • 16
    BV-1003-A
    $55.00
    Qty Per Unit: 2
  • 17
    632X38SOC
    $1.00
    Qty Per Unit: 3
  • 18
    SBVSA-1255
    $92.00
    Qty Per Unit: 1
