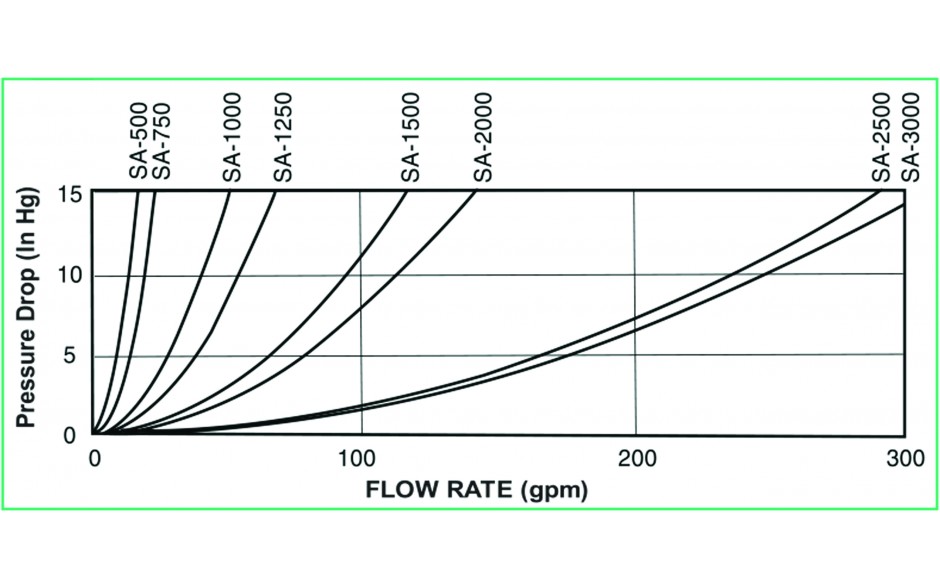

  • flow-chart

SA-750

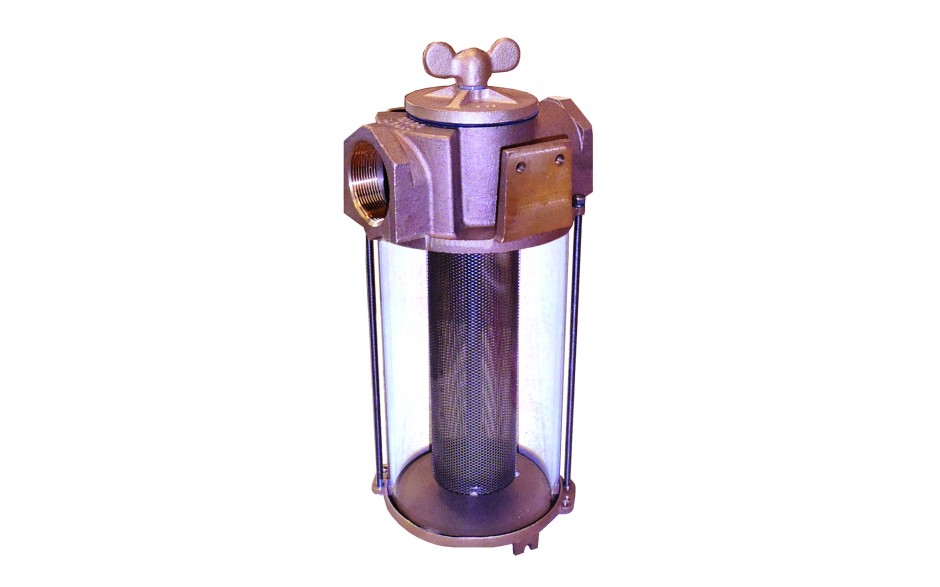

3/4" Raw Water Strainer with Monel Basket

FEATURES

  • Standard with #304 stainless steel filter basket. (Monel is optional)
  • Monel inside tie rod and #316 Stainless Steel outer tie rods.
  • Easy service with spin-off-wingnut.
  • Crystal Clear Cast Acrylic Cylinder
  • Fine mesh filter baskets are also available.
  • C84400 bronze construction.

Additional Information
Spec Sheet No
Basket Type Monel
Thread NPT 3/4"
Open Area Ratio 36
Dimensions
Thread NPT3/4"
A10
B4.5
C4
D2.3
E -
Open Area Ratio36

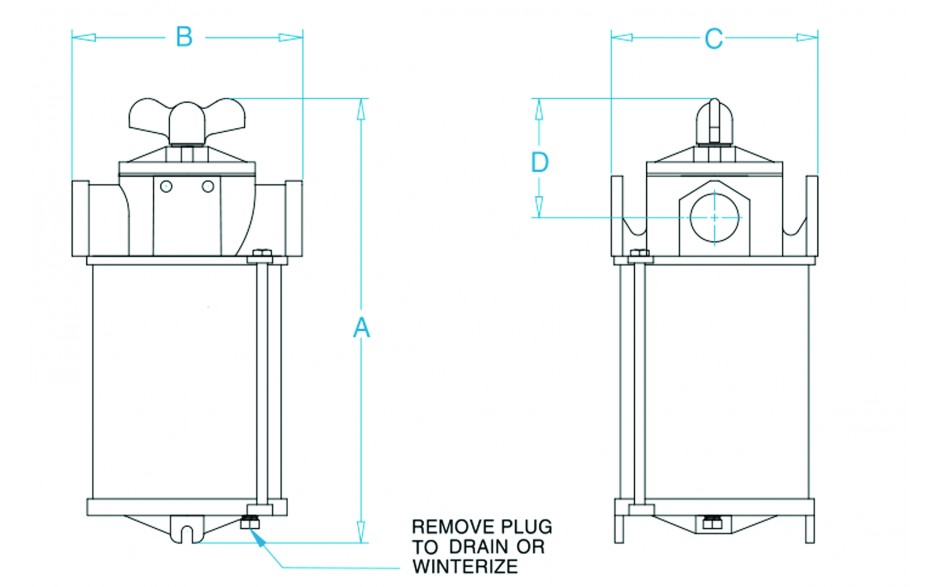

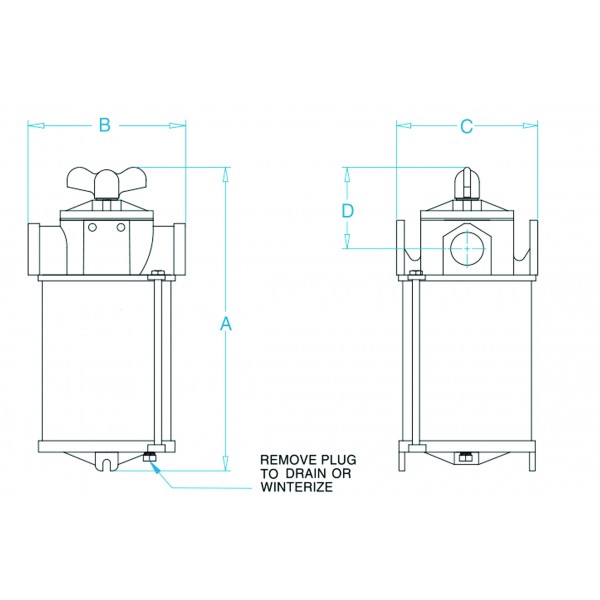

dimensions image
 Download Image  Open in New Window
Individual Parts

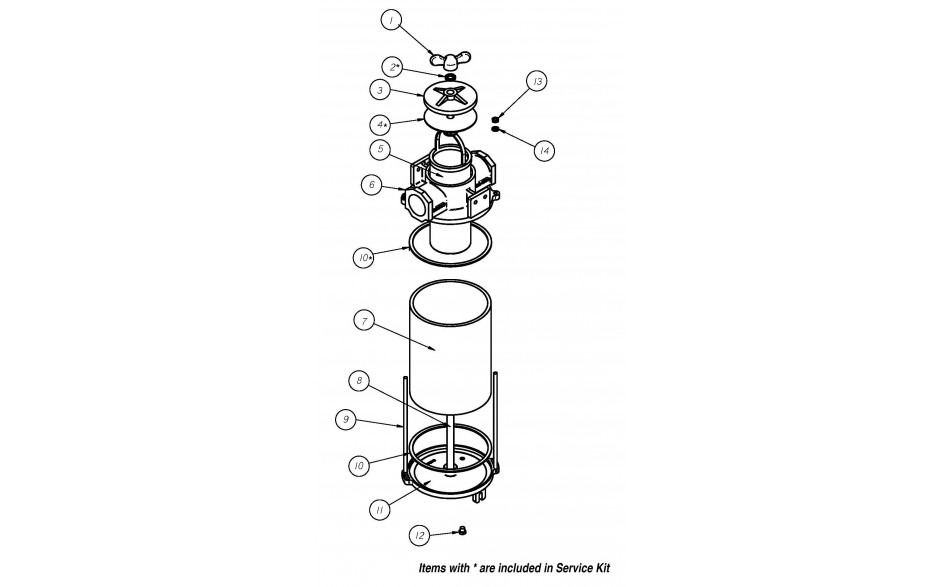

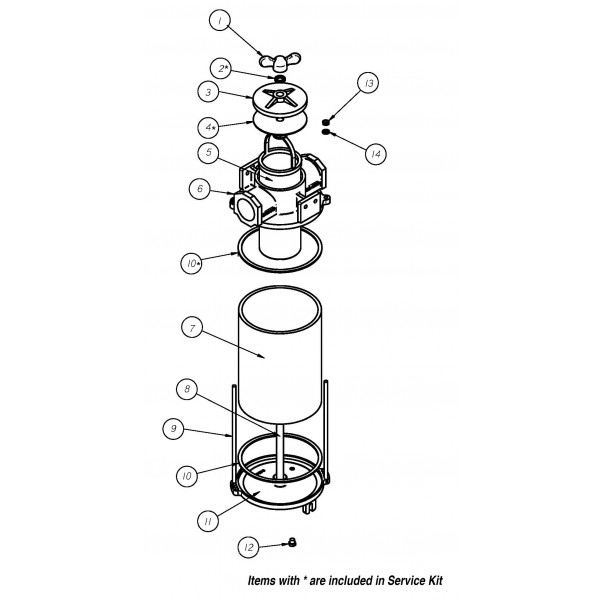

exploded image
 Download Image  Open in New Window
  • 1
    SVS-5
    $30.00
    Qty Per Unit: 1
  • 2
    500-K
    $1.00
    Qty Per Unit: 1
  • 3
    S-64
    $51.00
    Qty Per Unit: 1
  • 4
    S-64-A
    $3.00
    Qty Per Unit: 1
  • 5
    BM-2
    $170.00
    Qty Per Unit: 1
  • 6
    S-750-A
    $262.00
    Qty Per Unit: 1
  • 7
    S-70-A
    $188.00
    Qty Per Unit: 1
  • 8
    S-65-A
    $118.00
    Qty Per Unit: 1
  • 9
    S-73-X
    $15.00
    Qty Per Unit: 2
  • 10
    #9R SET
    $18.00
    Qty Per Unit: 2
  • 11
    S-63-A
    $112.00
    Qty Per Unit: 1
  • 12
    1827HB
    $3.00
    Qty Per Unit: 1
  • 13
    1420HS
    $1.00
    Qty Per Unit: 2
  • 14
    14SS
    $1.00
    Qty Per Unit: 2
  • 15
    SA-1
    $34.00
    Qty Per Unit: 1
