PWR 12V

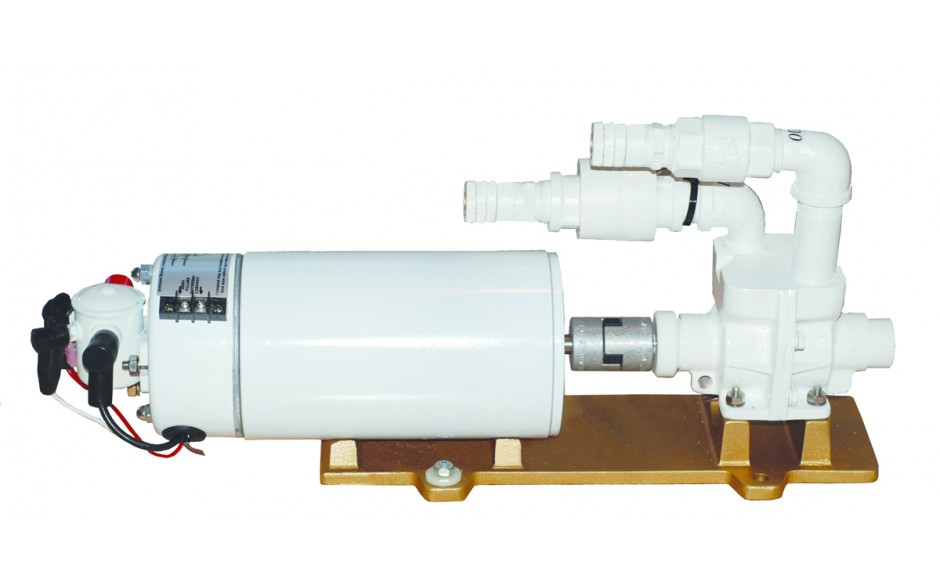

Water Pressure System for Yachts over 50ft

Features:

  • Max 11 GPM.
  • Operating pressure range 30-50 PSI.
  • Intended for yachts over 50ft in length.
  • Complies with NSF-61 low-lead standard.
  • Powerful 2-stage rotary pump.
  • DC and AC models available.
  • Pressure gauge and 1" strainer included.
  • Patented NOFLO Dry-run protection.
  • Order PST-2, 3, 4 or 5 tank separately.

Additional Information
Yacht Size Over 50’
Pressure Range 30-50
Max GPM 11
Pressure Storage Tank Included Order Separately
Self Priming Yes
Breaker DC 50 amp
Dimensions
Yacht SizeOver 50’
Pressure Range30-50
Max GPM11
Pressure Storage Tank IncludedOrder Separately
Self PrimingYes
Breaker DC50 amp

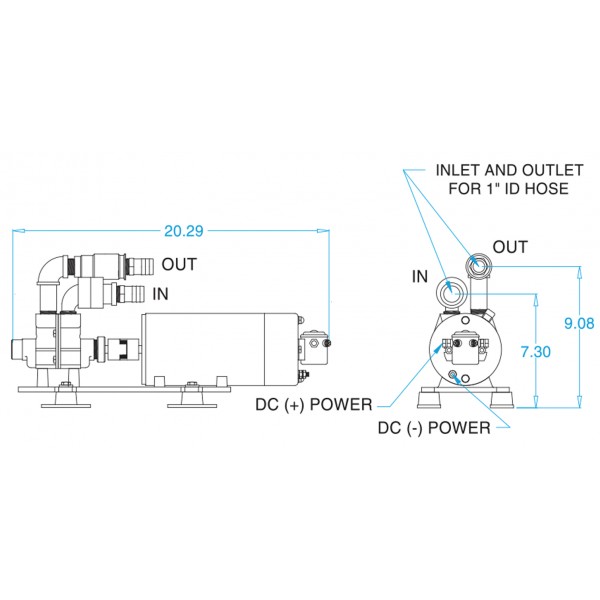

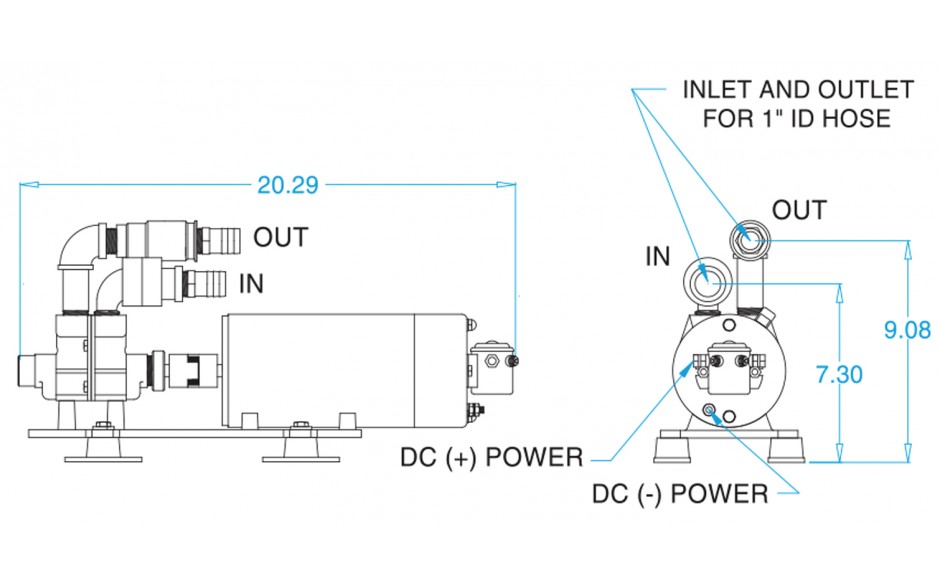

dimensions image
 Download Image  Open in New Window
Individual Parts

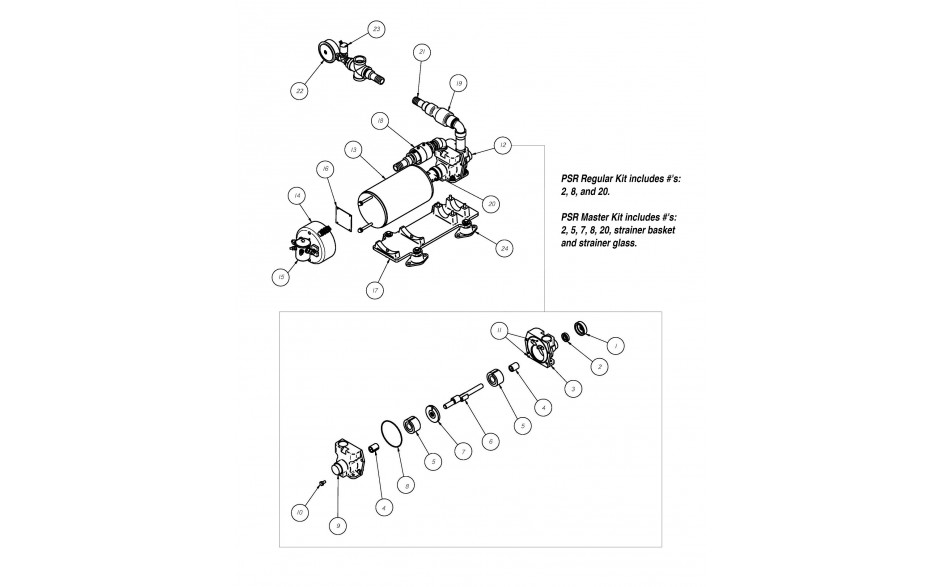

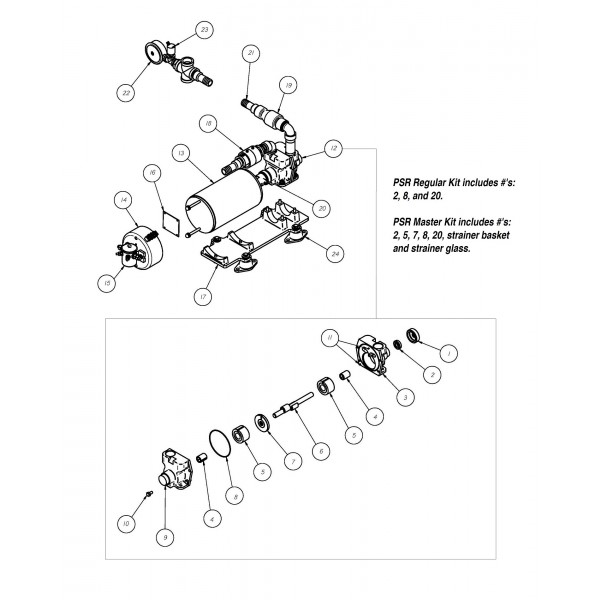

exploded image
 Download Image  Open in New Window
  • 1
    P-9020-A (2003 & before)
    $999,999.00
    Qty Per Unit: 1
  • 1
    P-9020-C
    $46.00
    Qty Per Unit: 1
  • 2
    P-9015
    $8.00
    Qty Per Unit: 2
  • 3
    P-9001-B
    $711.00
    Qty Per Unit: 1
  • 4
    P-9009-A
    $80.00
    Qty Per Unit: 2
  • 5
    P-9014 set
    $255.00
    Qty Per Unit: 1
  • 6
    P-9003/4 ASSY
    $247.00
    Qty Per Unit: 1
  • 7
    P-9006
    $73.00
    Qty Per Unit: 1
  • 8
    2-042
    $2.00
    Qty Per Unit: 1
  • 9
    P-9002
    $711.00
    Qty Per Unit: 1
  • 10
    1428X12HS
    $2.00
    Qty Per Unit: 4
  • 11
    PIN-21
    $1.00
    Qty Per Unit: 2
  • 12
    P-9000
    $1,652.00
    Qty Per Unit: 1
  • 13
    12V-W
    $999,999.00
    Qty Per Unit: 1
  • 14
    P-6001-W 12V
    $999,999.00
    Qty Per Unit: 1
  • 15
    P-6003 12V
    $347.00
    Qty Per Unit: 1
  • 16
    012-0022-01
    $478.00
    Qty Per Unit: 1
  • 17
    P-7004-D
    $244.00
    Qty Per Unit: 1
  • 18
    NOFLO7500
    $185.00
    Qty Per Unit: 1
  • 19
    CV-75-P
    $66.00
    Qty Per Unit: 1
  • 20
    P-7005
    $277.00
    Qty Per Unit: 1
  • 20
    P-7006
    $46.00
    Qty Per Unit: 1
  • 21
    PTH-750-P
    $8.00
    Qty Per Unit: 3
  • 22
    P-8005-B
    $63.00
    Qty Per Unit: 1
  • 23
    IPS-51
    $132.00
    Qty Per Unit: 1
  • 24
    R-1
    $112.00
    Qty Per Unit: 4
  • 25
    PSR MASTER
    $500.00
    Qty Per Unit: 1
  • 26
    PSR REGULAR
    $109.00
    Qty Per Unit: 1
