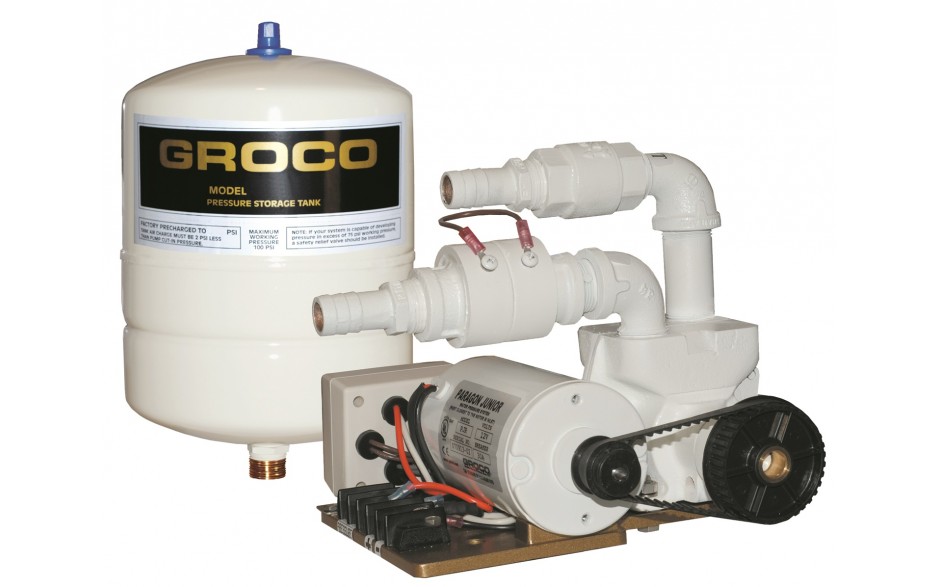

PJR-A 24V

Water Pressure System for Yachts under 50ft

Features:

  • Max 7 GPM.
  • Operating pressure range 20-40 PSI.
  • Intended for yachts 50ft and smaller.
  • Complies with NSF-61 low-lead standard.
  • Compact and powerful 2-stage rotary pump.
  • Pressure gauge and 3/4" strainer included.
  • Patented NOFLO;Dry-run protection.
  • NOTE : Pressure storage tank is required for water pressure system application.

Additional Information
Yacht Size Up to 50’
Pressure Range 20-40
Max GPM 7
Pressure Storage Tank Included 1-Gallon
Self Priming Yes
Breaker DC 20 amp

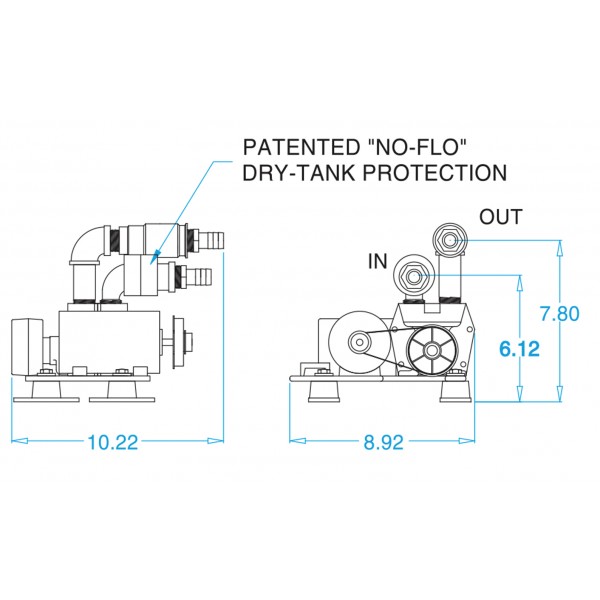

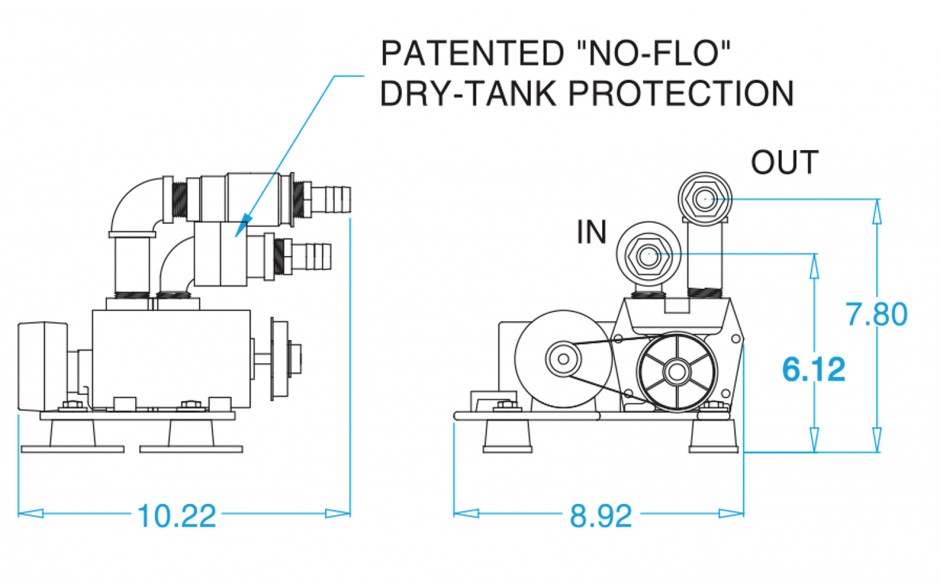

Dimensions
Yacht SizeUp to 50’
Pressure Range20-40
Max GPM7
Pressure Storage Tank Included1-Gallon
Self PrimingYes
Breaker DC20 amp

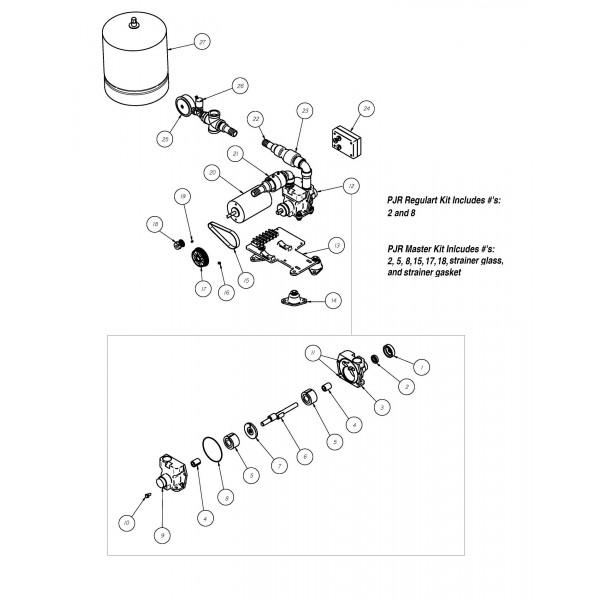

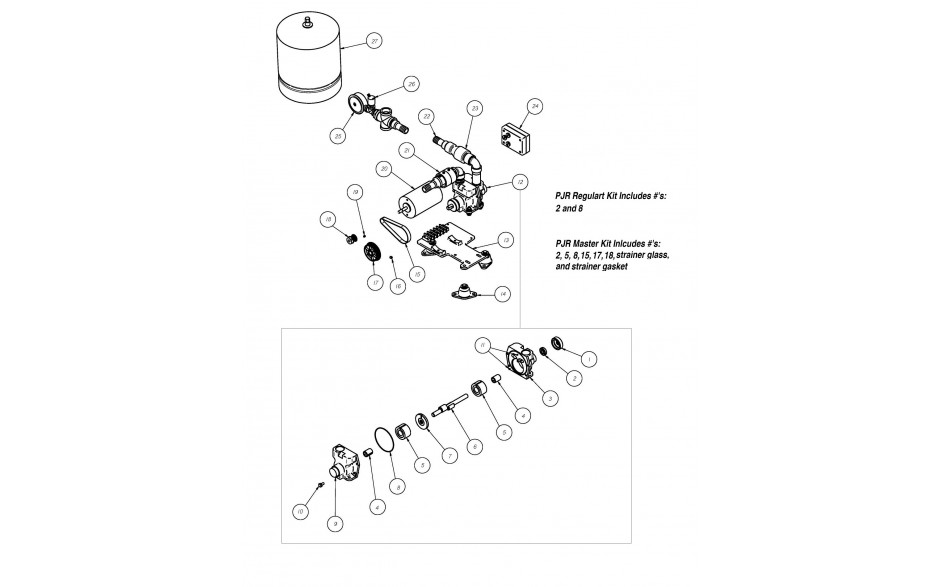

Individual Parts
  • 1
    P-9020-C
    $32.00
    Qty Per Unit: 1
  • 1
    P-9020-A (2003 & before)
    $0.00
    Qty Per Unit: 1
  • 2
    P-9015
    $7.00
    Qty Per Unit: 2
  • 3
    P-9001-B
    $467.00
    Qty Per Unit: 1
  • 4
    P-9009-A
    $57.00
    Qty Per Unit: 2
  • 5
    P-9014 set
    $225.00
    Qty Per Unit: 1
  • 6
    P-9003/4 ASSY
    $166.00
    Qty Per Unit: 1
  • 7
    P-9006
    $49.00
    Qty Per Unit: 1
  • 8
    2-042
    $2.00
    Qty Per Unit: 1
  • 9
    P-9002
    $0.00
    Qty Per Unit: 1
  • 10
    1428X12HS
    $1.00
    Qty Per Unit: 4
  • 11
    PIN-21
    $2.00
    Qty Per Unit: 2
  • 12
    P-9000
    $1,248.00
    Qty Per Unit: 1
  • 13
    P-8004-A
    $178.00
    Qty Per Unit: 1
  • 14
    R-1
    $72.00
    Qty Per Unit: 3
  • 15
    P-8003
    $39.00
    Qty Per Unit: 1
  • 16
    14X14SET
    $2.00
    Qty Per Unit: 2
  • 17
    P-8002
    $63.00
    Qty Per Unit: 1
  • 18
    P-8001
    $57.00
    Qty Per Unit: 1
  • 19
    1032X316SET
    $2.00
    Qty Per Unit: 1
  • 20
    24V-F
    $546.00
    Qty Per Unit: 1
  • 21
    NOFLO7500
    $167.00
    Qty Per Unit: 1
  • 22
    PTH-750-P
    $8.00
    Qty Per Unit: 3
  • 23
    CV-75-P
    $53.00
    Qty Per Unit: 1
  • 24
    ETM-D
    $431.00
    Qty Per Unit: 1
  • 25
    P-8005-B
    $60.00
    Qty Per Unit: 1
  • 26
    IPS-38
    $133.00
    Qty Per Unit: 1
  • 27
    PST-1
    $204.00
    Qty Per Unit: 1
  • 27
    PJR MASTER
    $543.00
    Qty Per Unit: 1
  • 28
    PJR REGULAR
    $47.00
    Qty Per Unit: 1
