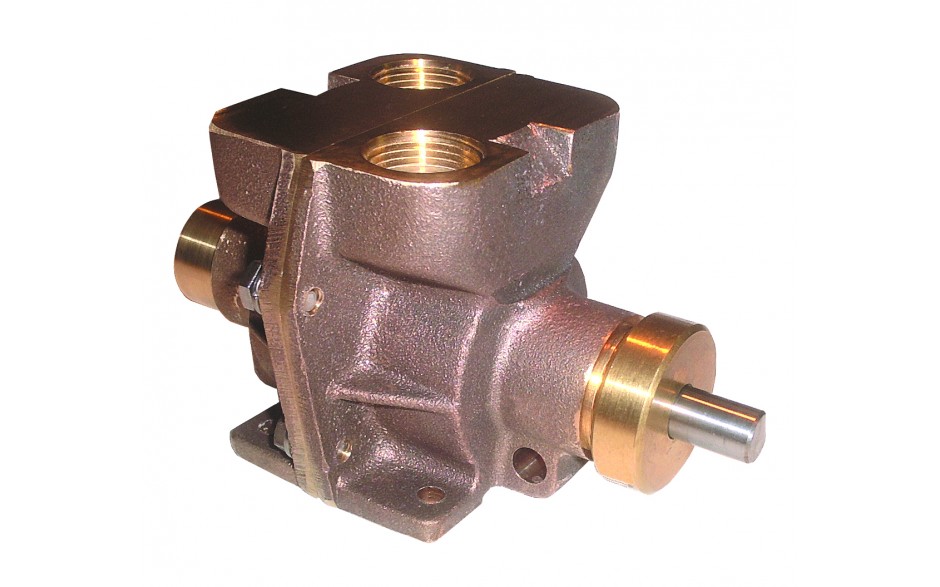

• main

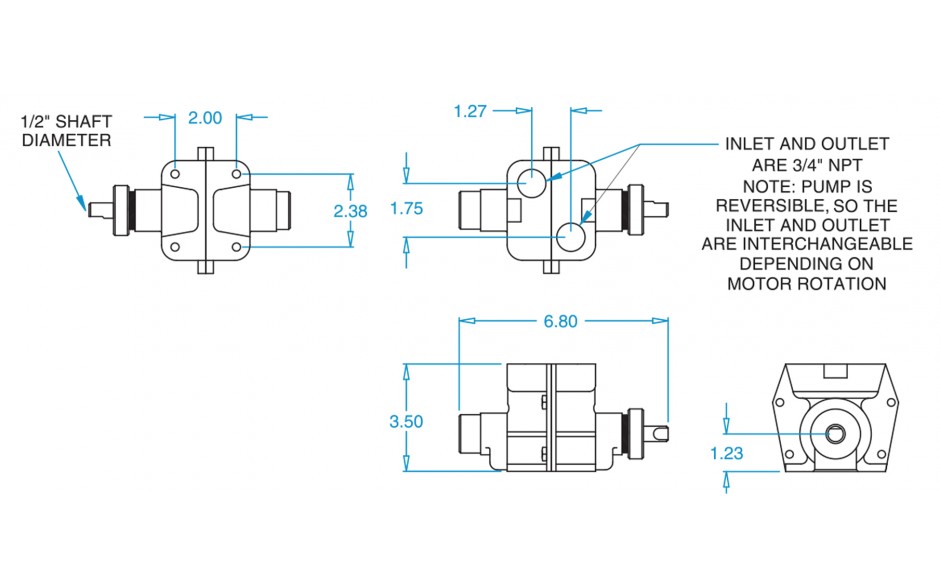

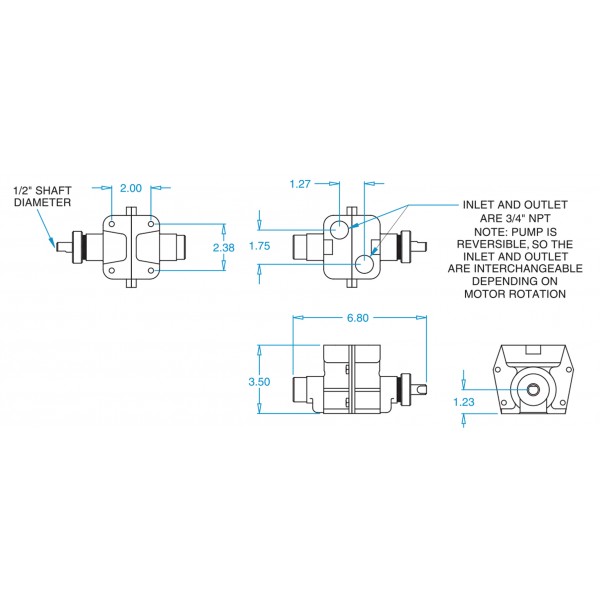

  • dimensions
  • exploded

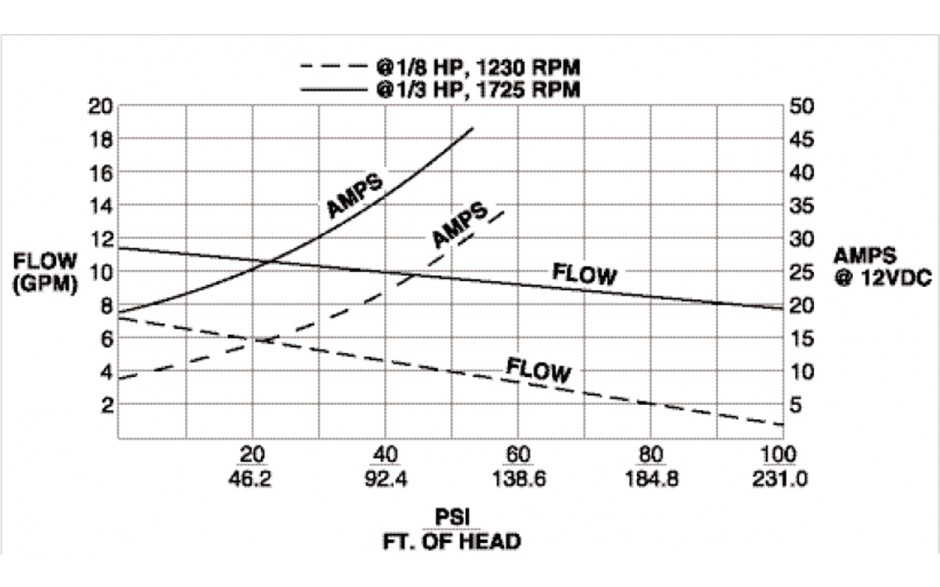

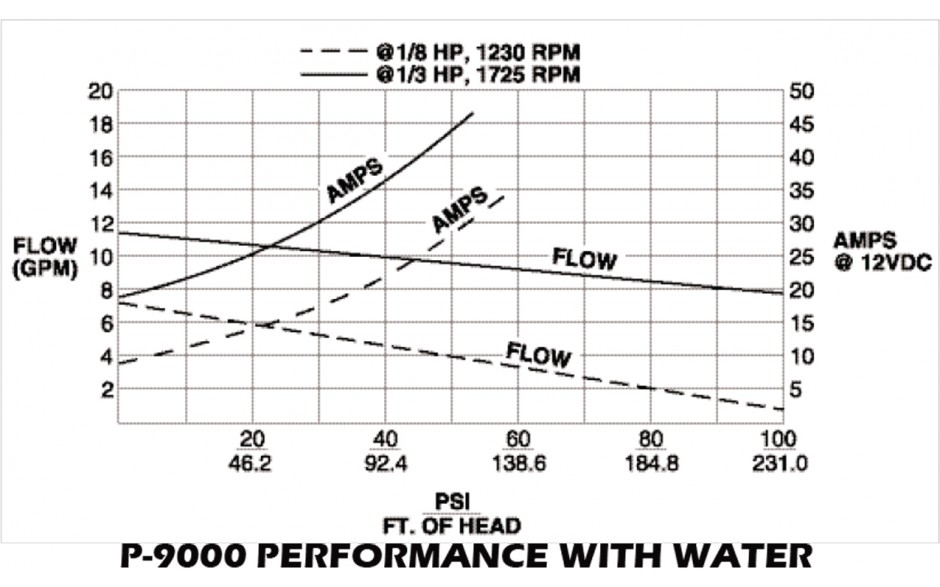

  • flow-chart
  • flow-chart

P-9000

THE CONCEPT

Improved pump design has screw-on seal end cap. P-9000 is two-stage self-priming positive displacement pumps. Its construction (bronze, stainless steel, Teflon and Delrin) makes them suitable for pumping nearly any non-flammable and non-explosive fluid with low solids content. (Use a GROCO WSB series strainer if solids are likely to be encountered in the fluid being pumped). External drive is required (1750 RPM max) either direct or with pulley and belt.

***  Complies with NSF-61 low-lead standard.

Individual Parts

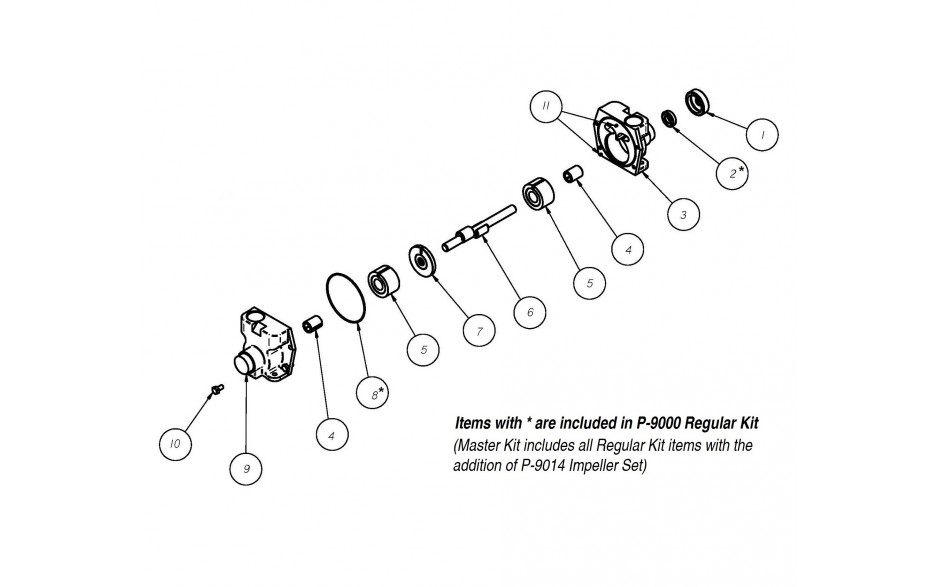

exploded image
 Download Image  Open in New Window
  • 1
    P-9020-A (2003 & before)
    $999,999.00
    Qty Per Unit: 1
  • 1
    P-9020-C
    $37.00
    Qty Per Unit: 1
  • 2
    P-9015
    $8.00
    Qty Per Unit: 2
  • 3
    P-9001-B
    $636.00
    Qty Per Unit: 1
  • 4
    P-9009-A
    $77.00
    Qty Per Unit: 2
  • 5
    P-9014 set
    $251.00
    Qty Per Unit: 1
  • 6
    P-9003/4 ASSY
    $205.00
    Qty Per Unit: 1
  • 7
    P-9006
    $67.00
    Qty Per Unit: 1
  • 8
    2-042
    $2.00
    Qty Per Unit: 1
  • 9
    P-9002
    $999,999.00
    Qty Per Unit: 1
  • 10
    1428X12HS
    $1.00
    Qty Per Unit: 4
  • 11
    PIN-21
    $2.00
    Qty Per Unit: 2
  • 12
    P-9000 REGULAR
    $45.00
    Qty Per Unit: 1
  • 13
    P-9000 MASTER
    $342.00
    Qty Per Unit: 1
