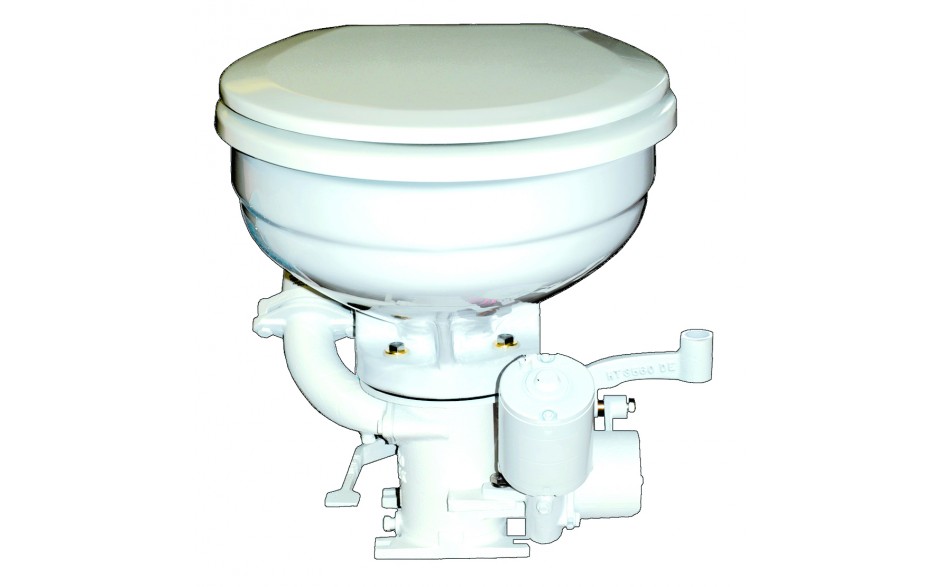

K-H 24V

Electric Marine Toilet

Features:

  • House-size bowl.
  • 3" piston pump mechanism.
  • Adjustable flow up to 4 GPM.
  • All bronze pump.
  • Electric or hand operated models are available.
  • Electric models operate by touch of a button and are quickly converted to hand operation by removing one easily accessible bolt.
  • For installation above or below the waterline; foot pedal water control allows the desired amount of flush water to be used and automatically shuts the water inlet off when the foot pedal is released. No valves to close or hand wheels to turn.

Additional Information
Operation Electric
Assembly Required No

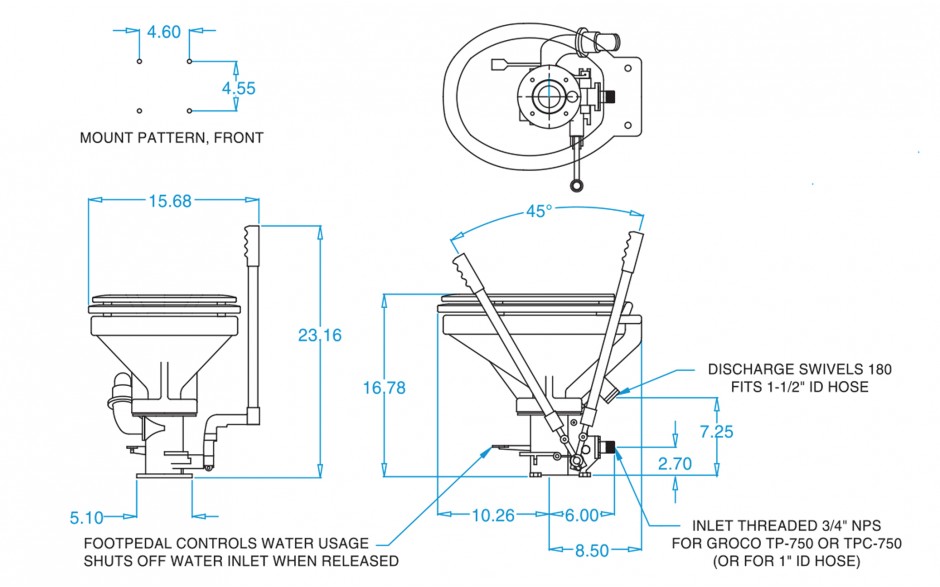

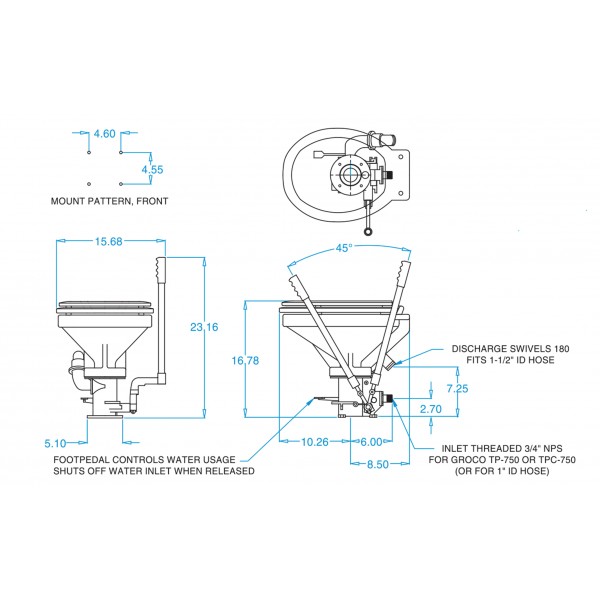

Dimensions
OperationElectric
Assembly RequiredNo

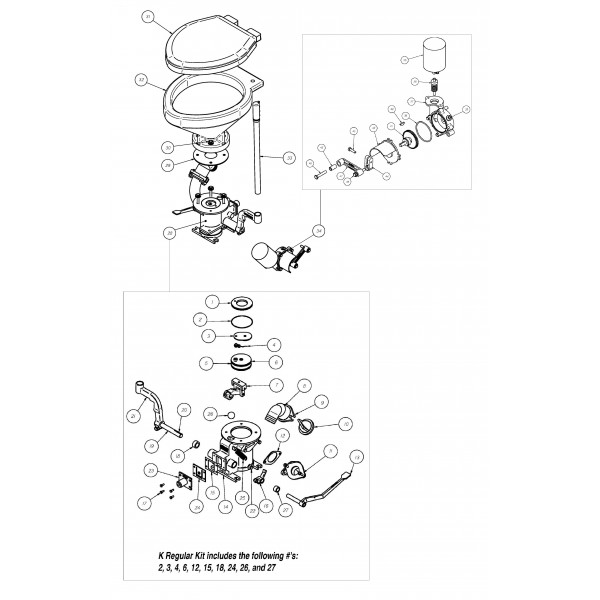

Individual Parts
  • 1
    K-4-B
    $64.00
    Qty Per Unit: 1
  • 2
    2-041
    $2.00
    Qty Per Unit: 1
  • 3
    HT-26-A
    $16.00
    Qty Per Unit: 1
  • 4
    K-4
    $118.00
    Qty Per Unit: 1
  • 4
    HT-84-A
    $35.00
    Qty Per Unit: 1
  • 5
    K-3-A
    $112.00
    Qty Per Unit: 1
  • 6
    K-3-R
    $11.00
    Qty Per Unit: 1
  • 7
    K-2
    $209.00
    Qty Per Unit: 1
  • 8
    HA-13
    $97.00
    Qty Per Unit: 1
  • 8
    HA-1
    $31.00
    Qty Per Unit: 1
  • 9
    HA-11
    $44.00
    Qty Per Unit: 1
  • 10
    H-27-A
    $10.00
    Qty Per Unit: 1
  • 11
    K-8
    $193.00
    Qty Per Unit: 1
  • 12
    K-7-A
    $5.00
    Qty Per Unit: 1
  • 13
    HT-3570-A
    $86.00
    Qty Per Unit: 1
  • 14
    K-B
    $1,294.00
    Qty Per Unit: 1
  • 15
    HT-3557-A
    $12.00
    Qty Per Unit: 1
  • 16
    K-1A
    $69.00
    Qty Per Unit: 1
  • 17
    1024X12HB
    $2.00
    Qty Per Unit: 4
  • 18
    WS-2422
    $14.00
    Qty Per Unit: 1
  • 19
    HT-6566-K SHAFT
    $84.00
    Qty Per Unit: 1
  • 20
    1/8" SQUARE KEY
    $4.00
    Qty Per Unit: 1
  • 21
    HT-3560-D
    $178.00
    Qty Per Unit: 1
  • 22
    1827HB
    $3.00
    Qty Per Unit: 3
  • 23
    HT-3556
    $61.00
    Qty Per Unit: 1
  • 24
    HT-3557
    $19.00
    Qty Per Unit: 1
  • 25
    S-72587
    $33.00
    Qty Per Unit: 1
  • 26
    HT-56
    $15.00
    Qty Per Unit: 1
  • 27
    HT-3564
    $9.00
    Qty Per Unit: 1
  • 28
    K PUMP ASSY
    $2,691.00
    Qty Per Unit: 1
  • 29
    HT-52-A
    $17.00
    Qty Per Unit: 1
  • 30
    20L
    $1.00
    Qty Per Unit: 4
  • 30
    51618X134HS
    $3.00
    Qty Per Unit: 4
  • 30
    20LP
    $2.00
    Qty Per Unit: 4
  • 31
    500-D-0
    $103.00
    Qty Per Unit: 1
  • 32
    4985-0
    $258.00
    Qty Per Unit: 1
  • 33
    HT-3560-C
    $32.00
    Qty Per Unit: 1
  • 34
    EB/K CON 24V
    $1,695.00
    Qty Per Unit: 1
  • 35
    24V-C
    $865.00
    Qty Per Unit: 1
  • 36
    RG-3038
    $196.00
    Qty Per Unit: 1
  • 37
    RG-3041
    $325.00
    Qty Per Unit: 1
  • 38
    2-232
    $2.00
    Qty Per Unit: 1
  • 40
    #5 KEY
    $12.00
    Qty Per Unit: 1
  • 41
    RG-3037
    $195.00
    Qty Per Unit: 1
  • 42
    RG-3042-A
    $144.00
    Qty Per Unit: 1
  • 43
    1420X1HB
    $1.00
    Qty Per Unit: 1
  • 44
    RG-3048
    $53.00
    Qty Per Unit: 1
  • 45
    AA-520-2
    $25.00
    Qty Per Unit: 2
  • 46
    51618X112HB
    $6.00
    Qty Per Unit: 1
  • 47
    RG-3049-R
    $56.00
    Qty Per Unit: 1
  • 48
    51618X2HB
    $999,999.00
    Qty Per Unit: 1
  • 49
    RG-3049-A
    $144.00
    Qty Per Unit: 1
  • 50
    K REGULAR
    $223.00
    Qty Per Unit: 1
