IBVF-750

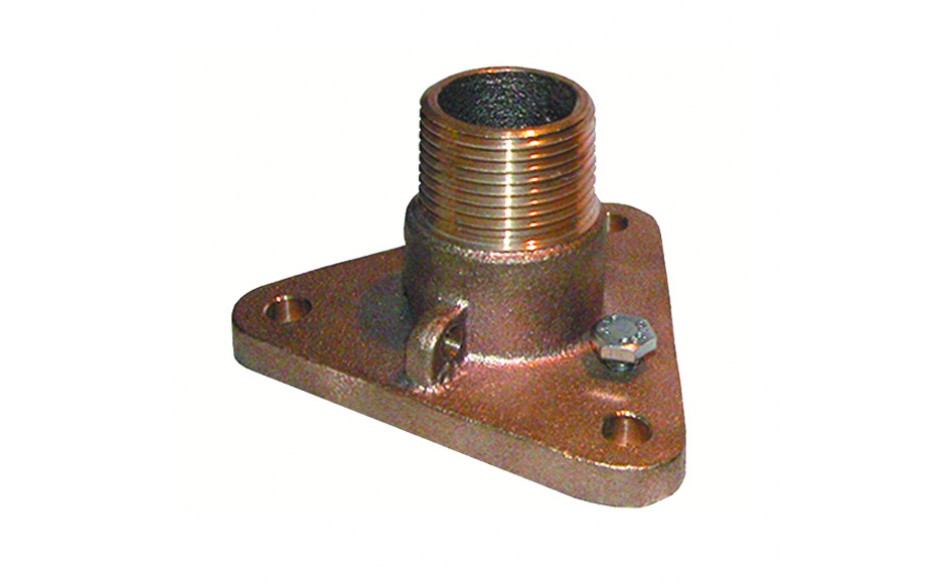

Bronze NPS to NPT Flange Adaptor

The Concept:

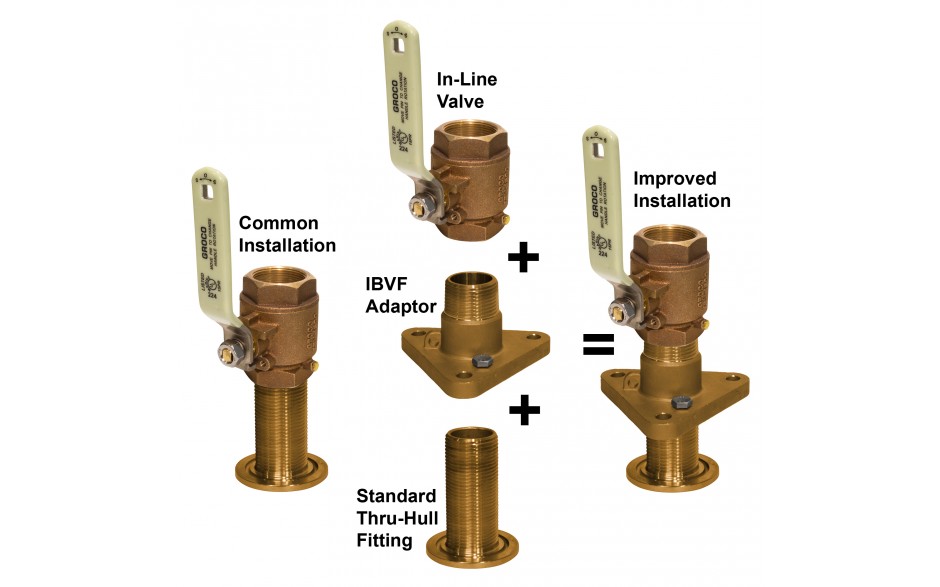

Patented IBVF Flanged Adaptors have been developed to address several common problems in the marine industry.  Here’s what they do:

  • Eliminate dangerous thread miss-match when in-line valves are screwed onto thru hulls.
  • Accept standard thru-hulls into the base and standard in-line valves on top.
  • Provide a safe and sturdy assembly when in-line valves are used as seacocks.
  • For OEMs, prevent valve damage during engine or generator installation - the valve can be installed later.
  • Simplifies future valve replacement.
  • C83600 Bronze and #316 SS models

Additional Information
Thread Bottom NPS 3/4"
Thread Top NPT 3/4"

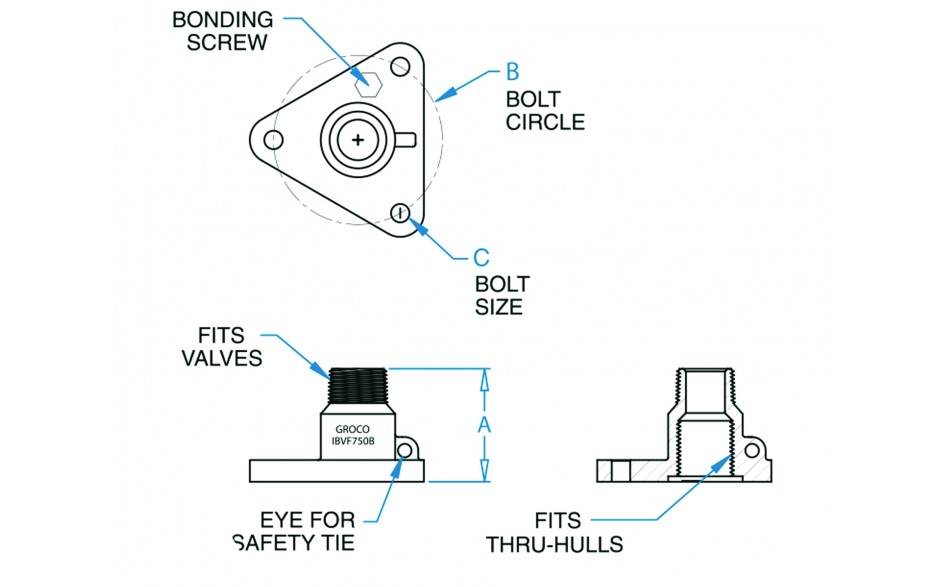

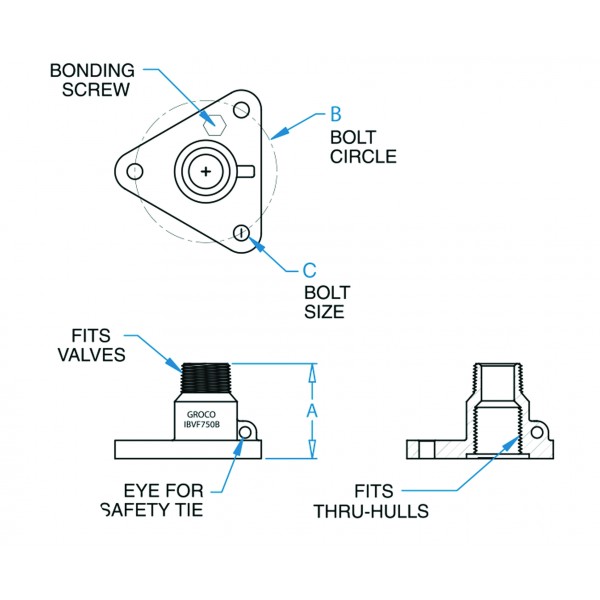

Dimensions
Thread Bottom NPS3/4"
Thread Top NPT3/4"
A2.09
B3.12
C5/16"
