HSE-4000 115VAC

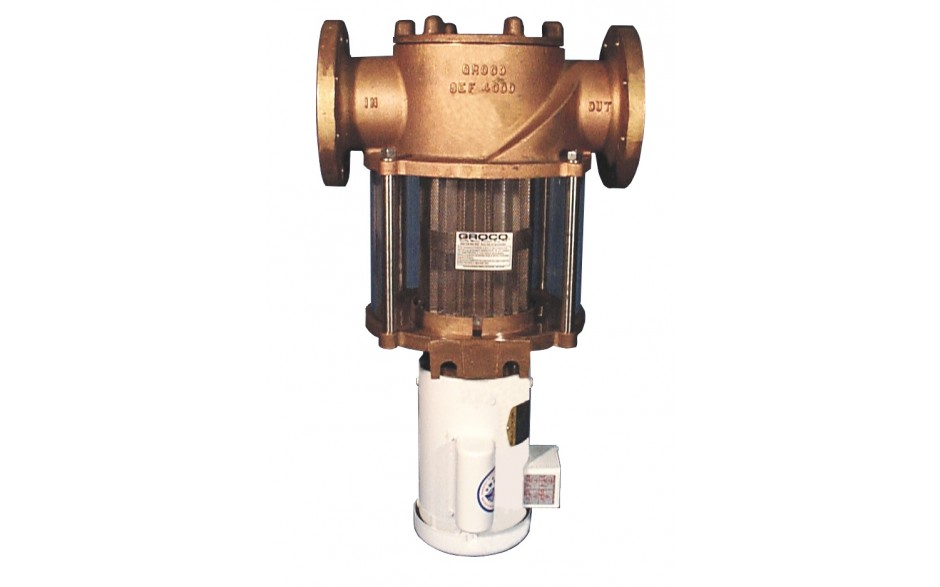

Large Engine Hydromatic Self Cleaning Strainer

FEATURES

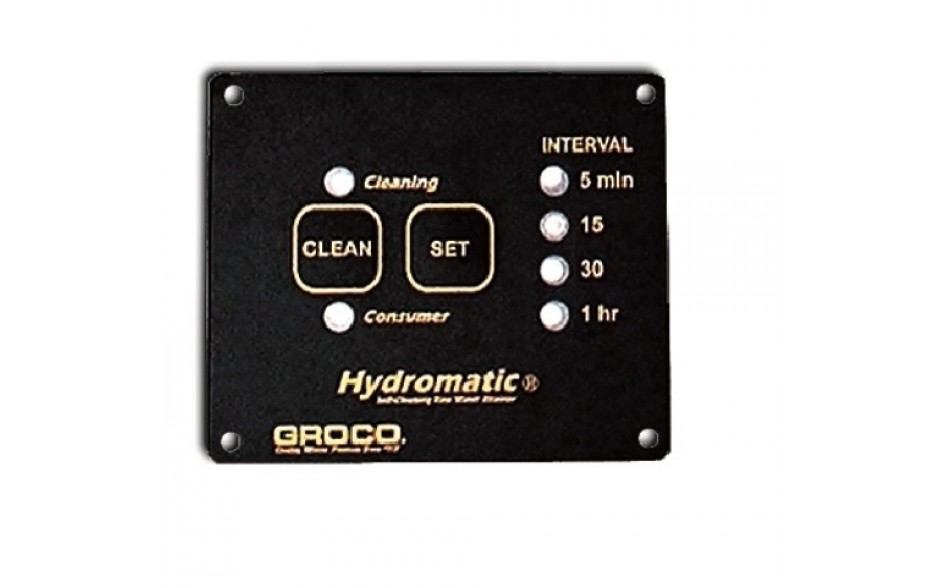

  • A 30-second cleaning cycle is automatically performed at user-selected intervals.
  • Optional interface with SSA system initiates cleaning cycle when flow is reduced, independent of the pre-set cleaning interval.
  • The "Purge" option over-rides the selected cleaning interval and performs a one-time 30-second cleaning cycle.
  • Powerful macerator grinds debris and discharges overboard below the waterline.
  • "Ignition Protected" motors for DC models.970 models function as a sea chest to provide filtered water to multiple devices.

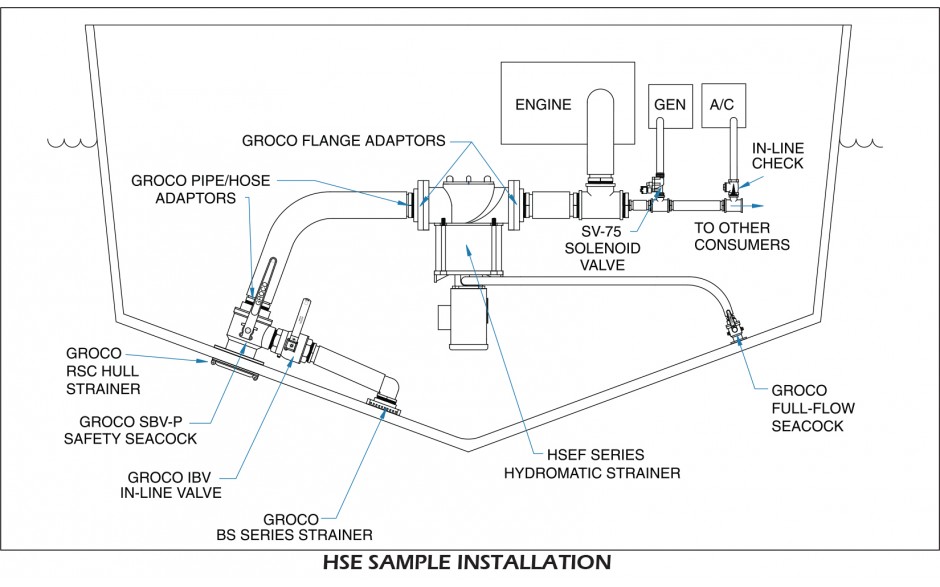

  • Installation can be horizontal or vertical (flooded inlet required)
  • C84400 bronze construction.

Additional Information
Inlet 4" NPT
Outlet 4" NPT
Debris Discharge 1" NPT
Open Area Ratio 10:01

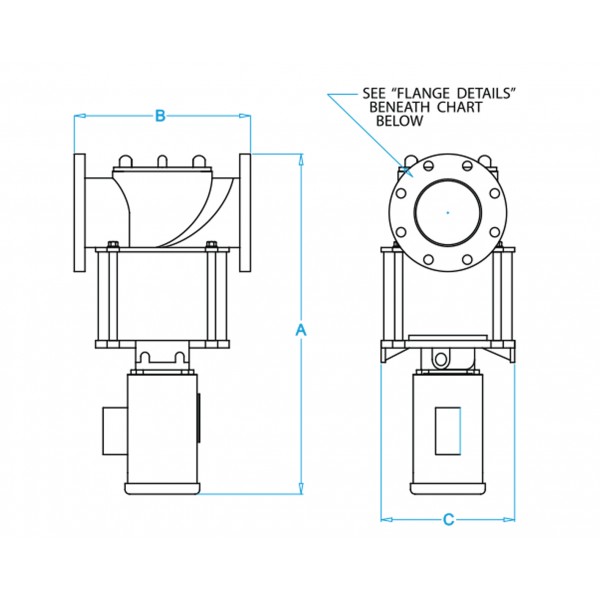

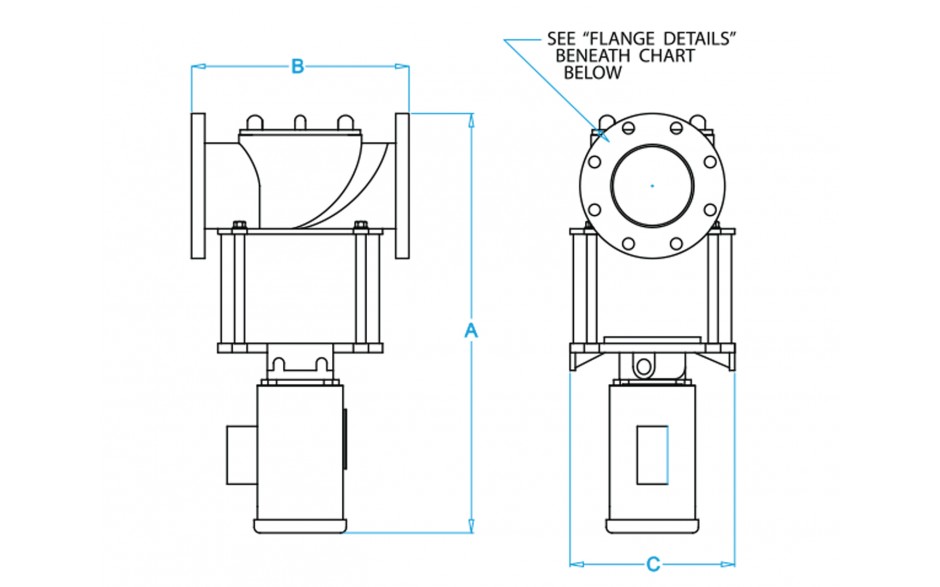

Dimensions
Inlet4" NPT
Outlet4" NPT
Debris Discharge1" NPT
A31.7
B13
C13
Open Area Ratio10:01

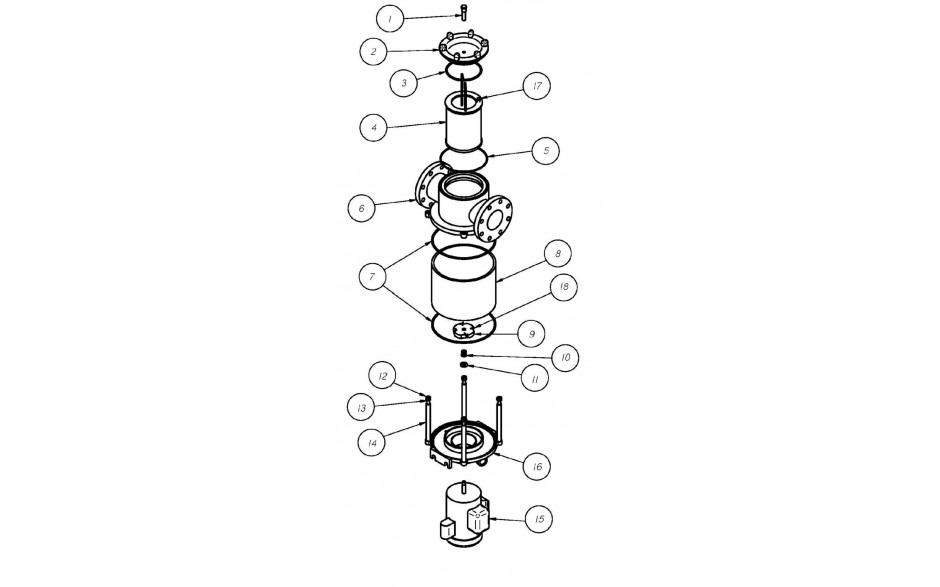

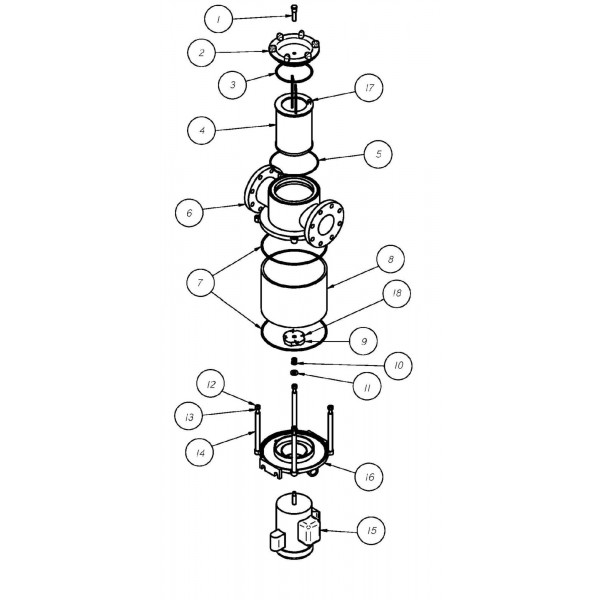

Individual Parts
  • 1
    ZA-2
    $55.00
    Qty Per Unit: 1
  • 2
    SE-4001-A
    $1,316.00
    Qty Per Unit: 1
  • 3
    2-438
    $9.00
    Qty Per Unit: 1
  • 4
    HSE-4003-1
    $1,075.00
    Qty Per Unit: 1
  • 5
    2-371
    $9.00
    Qty Per Unit: 1
  • 6
    SE-4010-H
    $7,569.00
    Qty Per Unit: 1
  • 7
    2-452
    $16.00
    Qty Per Unit: 2
  • 8
    SE-4004
    $3,497.00
    Qty Per Unit: 1
  • 9
    053-0007-01
    $573.00
    Qty Per Unit: 1
  • 10
    009-0002-00
    $235.00
    Qty Per Unit: 1
  • 11
    063-125-8
    $76.00
    Qty Per Unit: 1
  • 12
    1213HS
    $2.00
    Qty Per Unit: 4
  • 13
    12SS
    $2.00
    Qty Per Unit: 4
  • 14
    SE-4005-1
    $179.00
    Qty Per Unit: 4
  • 15
    012-0015-11
    $1,533.00
    Qty Per Unit: 1
  • 15
    115VAC11-H1
    $9,991.00
    Qty Per Unit: 1
  • 15
    027-0016-00
    $932.00
    Qty Per Unit: 1
  • 16
    053-0456-00
    $3,210.00
    Qty Per Unit: 1
  • 17
    ZA-1
    $34.00
    Qty Per Unit: 1
  • 18
    99-0036-00
    $9.00
    Qty Per Unit: 4
