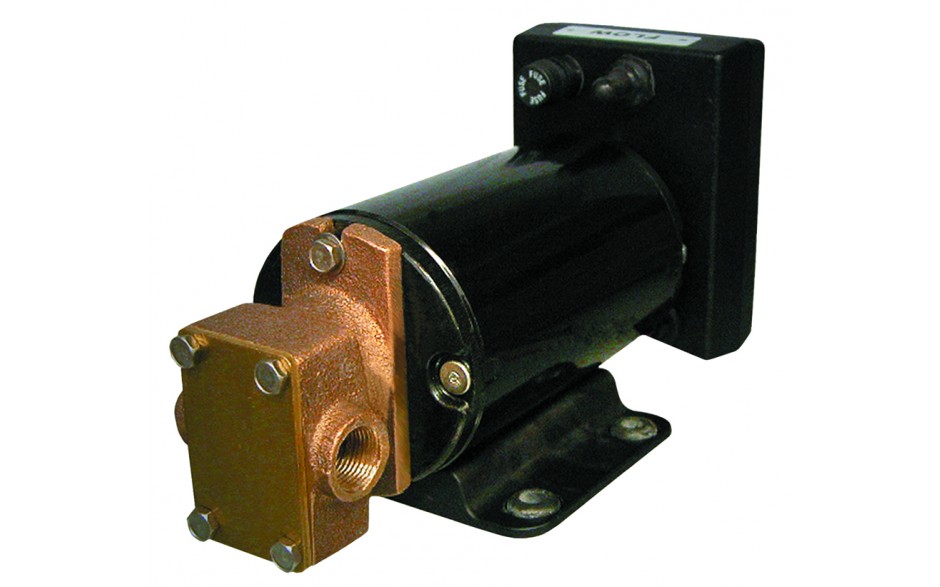

GPBR-1 12V

Positive Displacement Reversing Gear Pump

The Concept:

    Made in the USA GROCO Gear Pumps are self-priming, instantly reversible, and are capable of operation in either direction.  Relatively low flow (less than vane pumps) makes them suitable for duties such as deck-wash, fuel transfer, ballast transfer, and oil change. All models have an ignition protected motor, #316 stainless steel shaft, and are available in models that provide reversing (R), remote reversing (RR), and reversing with touchpad (RT) control options.

Additional Information
Self Priming Yes
Thread NPT 3/8"
Control Type Pump Mounted Reversing Switch

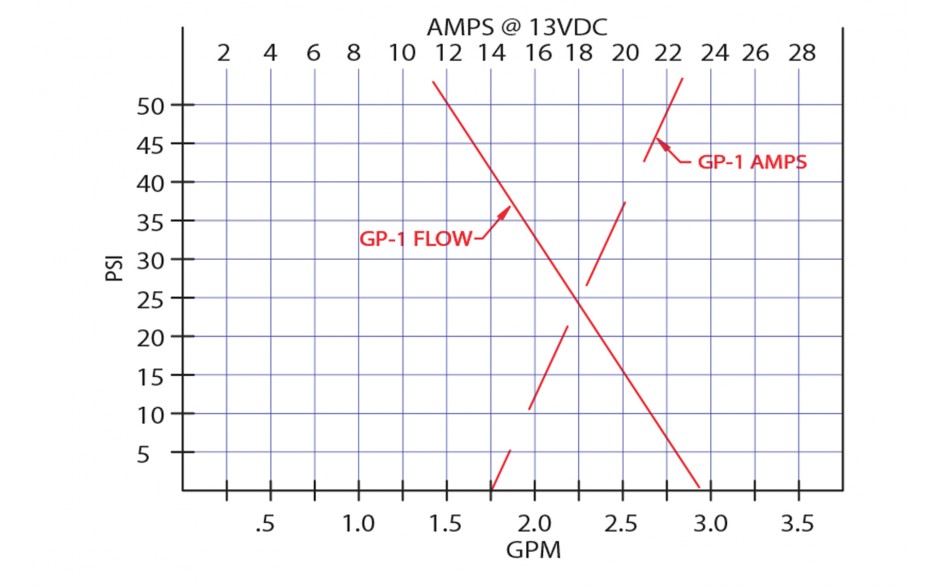

Max GPM 3
Breaker DC 25 amp

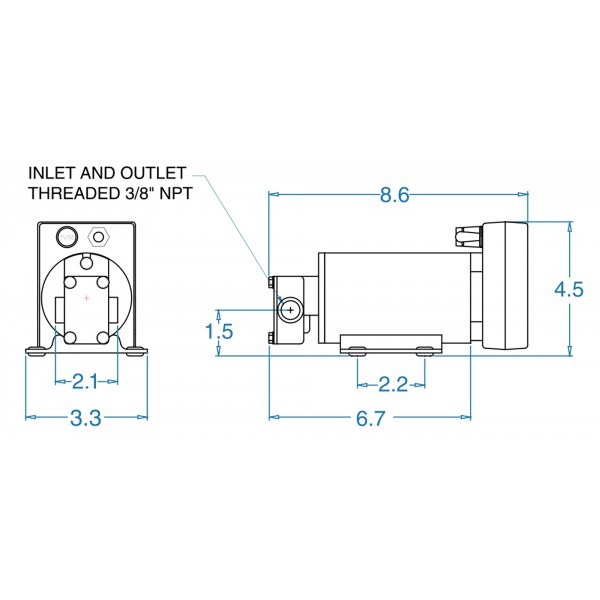

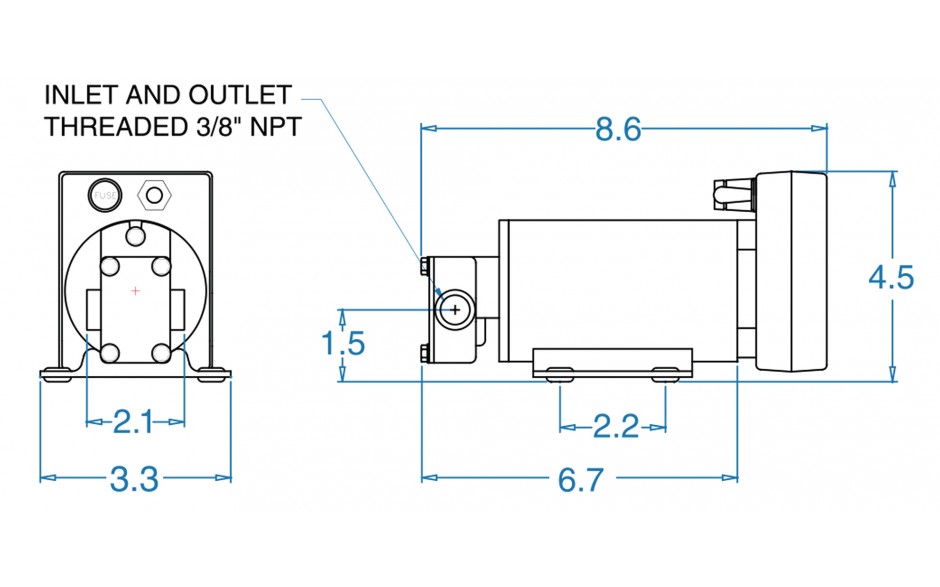

Dimensions
Self PrimingYes
Thread NPT3/8"
Control TypePump Mounted Reversing Switch
Max GPM3
Breaker DC25 amp

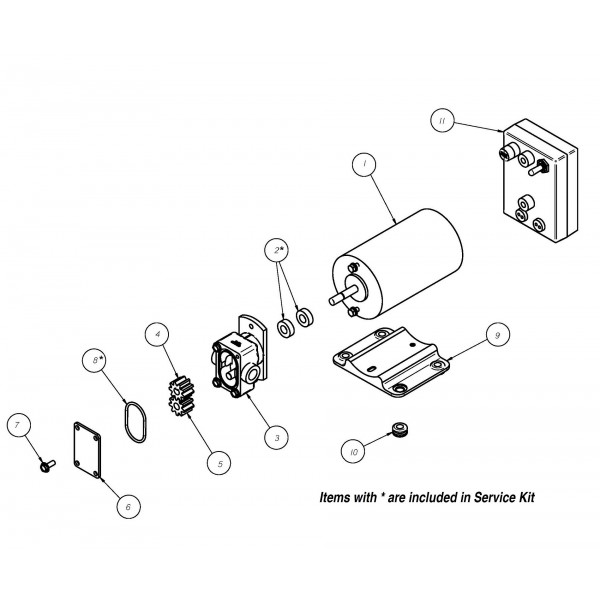

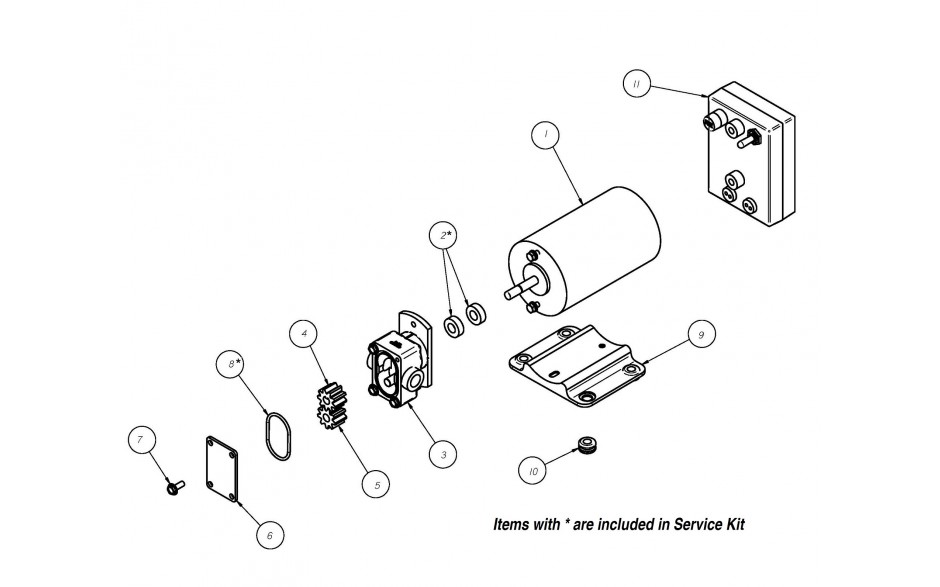

Individual Parts
  • 1
    12V-F
    $499.00
    Qty Per Unit: 1
  • 2
    031-075-8
    $3.00
    Qty Per Unit: 2
  • 3
    GP-1-375B
    $158.00
    Qty Per Unit: 1
  • 4
    GP-09-0938
    $18.00
    Qty Per Unit: 1
  • 5
    GPK-09-0938
    $18.00
    Qty Per Unit: 1
  • 6
    GP-1-C
    $14.00
    Qty Per Unit: 1
  • 7
    1032X38HSL
    $3.00
    Qty Per Unit: 4
  • 8
    2-029
    $1.00
    Qty Per Unit: 1
  • 9
    B-200-P
    $6.00
    Qty Per Unit: 1
  • 10
    06-0001-00
    $1.00
    Qty Per Unit: 1
  • 11
    REV-B ASSY 12V
    $368.00
    Qty Per Unit: 1
