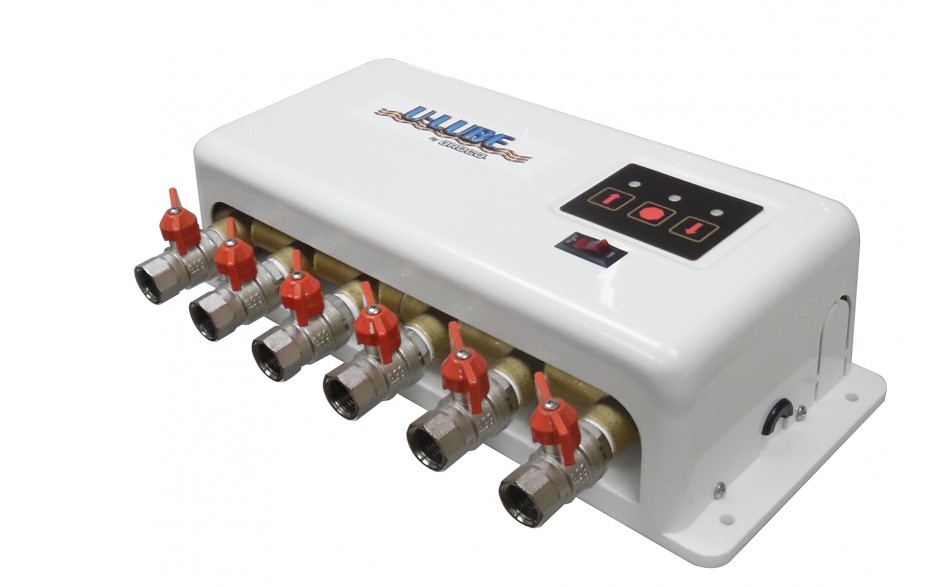

G-6 12V

6 Valve Oil Change Kit With Cover

Features:

  • Powerful Gear pump Delivers Nearly twice the Flow as Competitive Models.
  • Touch Pad Controlled
  • Bronze Manifold System
  • System Sizes from 3 Valves to 6 Valves .
  • Resettable Overcurrent and Dry Run Protection.
  • Cover Conceals Pump and Circuitry on G Series.

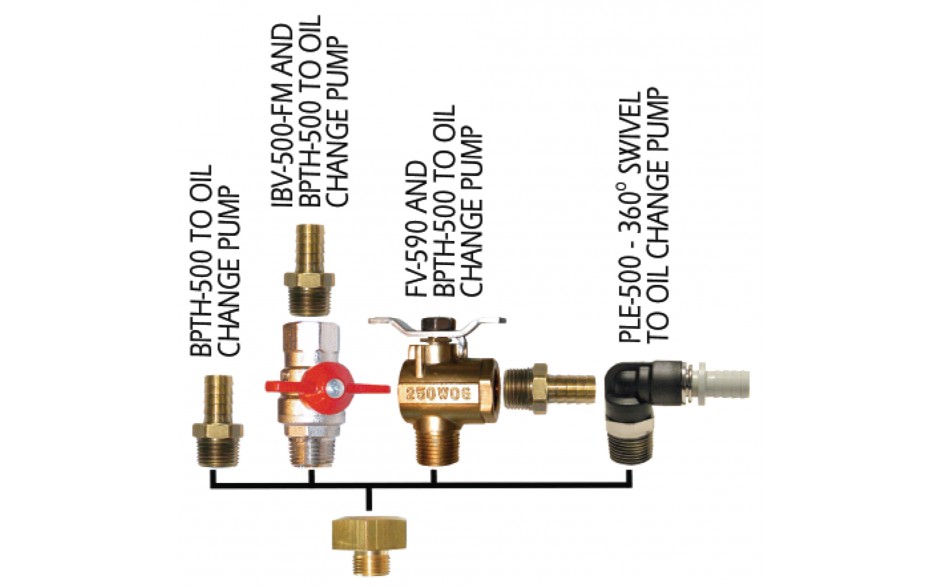

  • Oil Pan Adaptors Available for all Common Marine engines

Additional Information
# of Valves 6
Manifold Connection 1/2" NPT
Pump Connection 1/2" Hose Barb
Cover Included Yes
Self Priming Yes
Max GPM 3
Breaker DC 25 amp

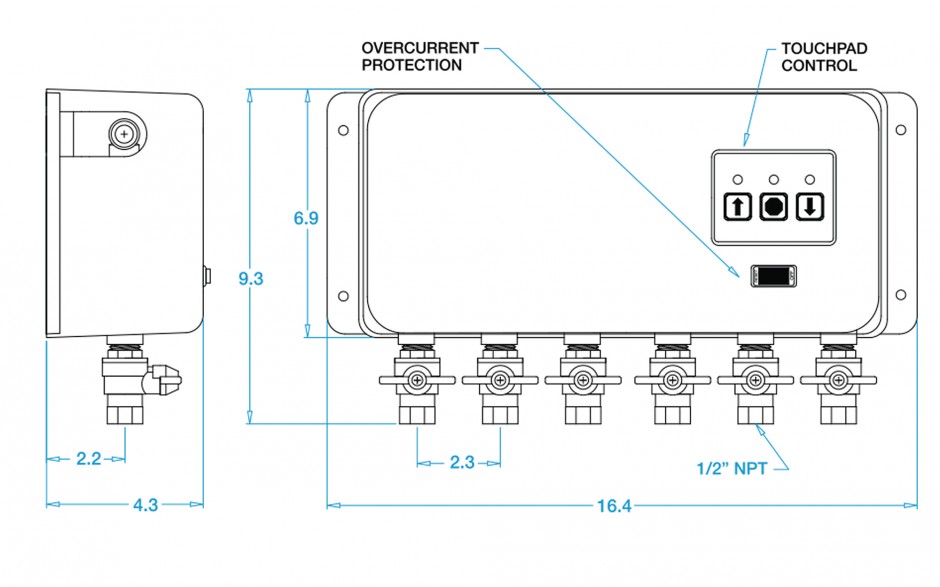

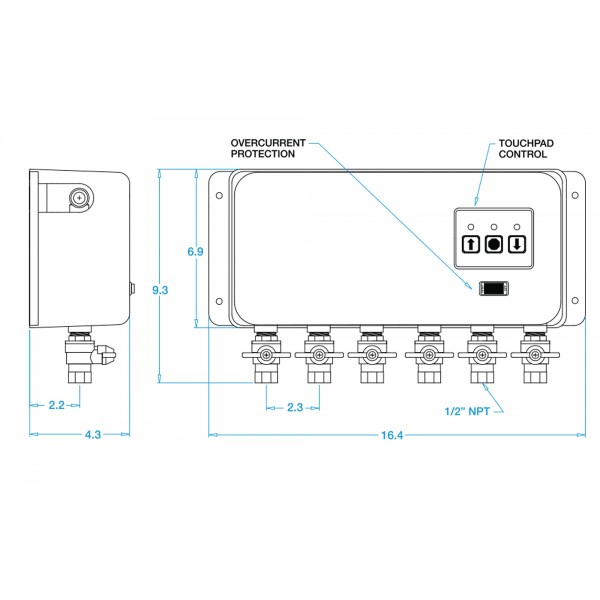

Dimensions
# of Valves6
Manifold Connection1/2" NPT
Pump Connection1/2" Hose Barb
Cover IncludedYes
Self PrimingYes
Max GPM3
Breaker DC25 amp

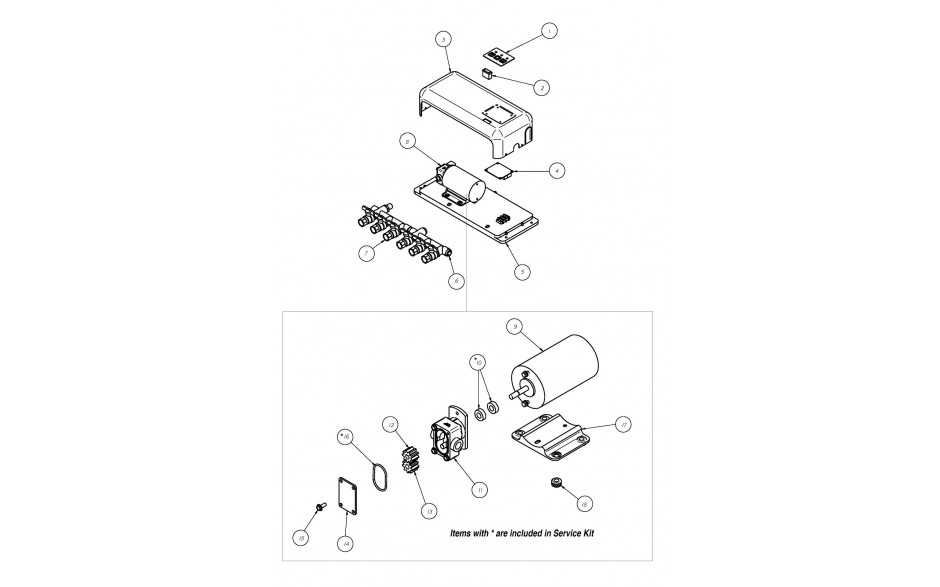

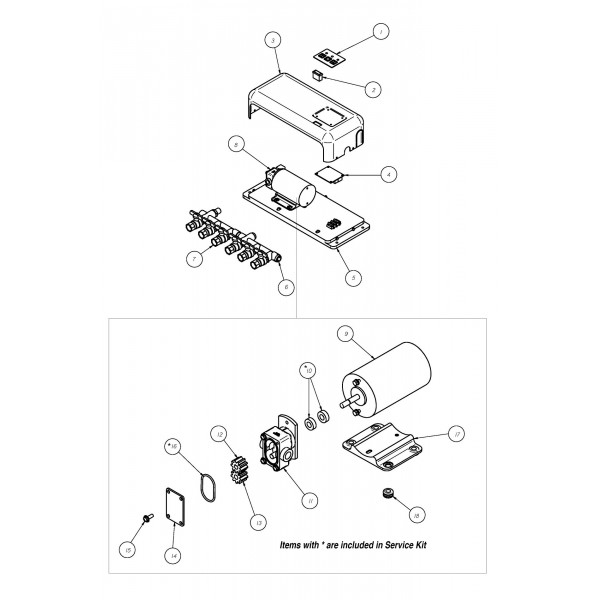

Individual Parts
  • 1
    G6 Control Assy
    $974.00
    Qty Per Unit: 1
  • 2
    SWITCH-7
    $17.00
    Qty Per Unit: 1
  • 3
    M350-6A
    $329.00
    Qty Per Unit: 1
  • 4
    IBV-500-FM
    $32.00
    Qty Per Unit: 6
  • 5
    GPB-1 12V
    $568.00
    Qty Per Unit: 1
  • 9
    12V-F
    $685.00
    Qty Per Unit: 1
  • 10
    031-075-8
    $4.00
    Qty Per Unit: 2
  • 11
    GP-1-375B
    $231.00
    Qty Per Unit: 1
  • 12
    GP-09-0938
    $18.00
    Qty Per Unit: 1
  • 13
    GPK-09-0938
    $18.00
    Qty Per Unit: 1
  • 14
    GP-1-C
    $29.00
    Qty Per Unit: 1
  • 15
    1032X38HSL
    $3.00
    Qty Per Unit: 4
  • 16
    2-029
    $1.00
    Qty Per Unit: 1
  • 17
    B-200-P
    $7.00
    Qty Per Unit: 1
  • 18
    06-0001-00
    $2.00
    Qty Per Unit: 1
