FV-65038-A

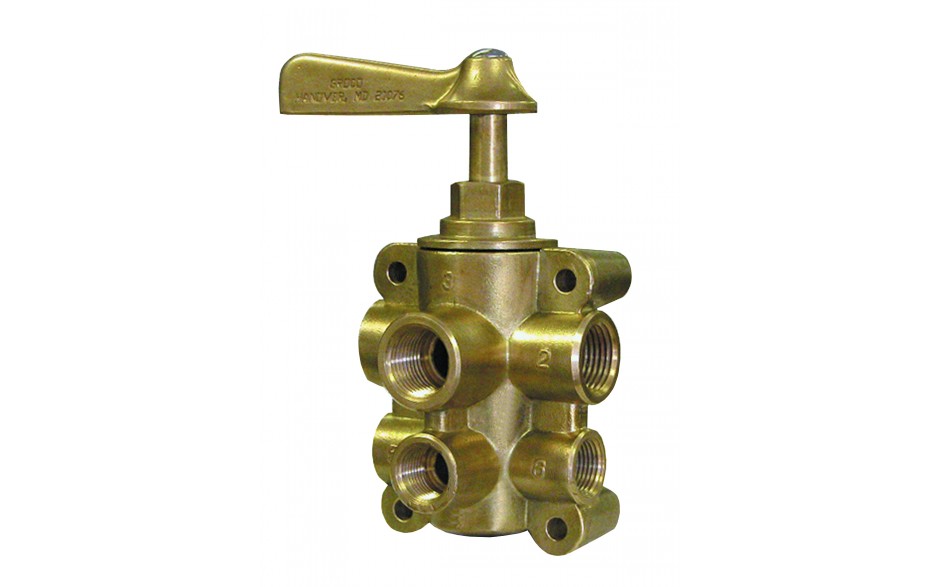

NPT Bronze 6 Port Fuel Valve

Features:

  • Mount feet included.
  • C84400 bronze construction.

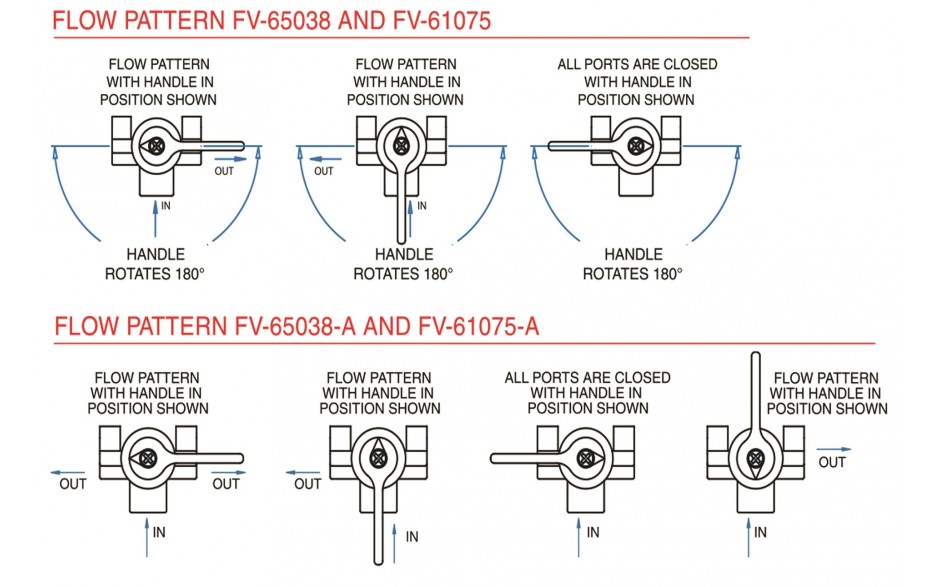

  • "T" flow pattern.
  • Both 1/2" main / 3/8" return and 1" main / 3/4" return options available.

Additional Information
Main NPT 1/2"
Return NPT 3/8"
F 1.25

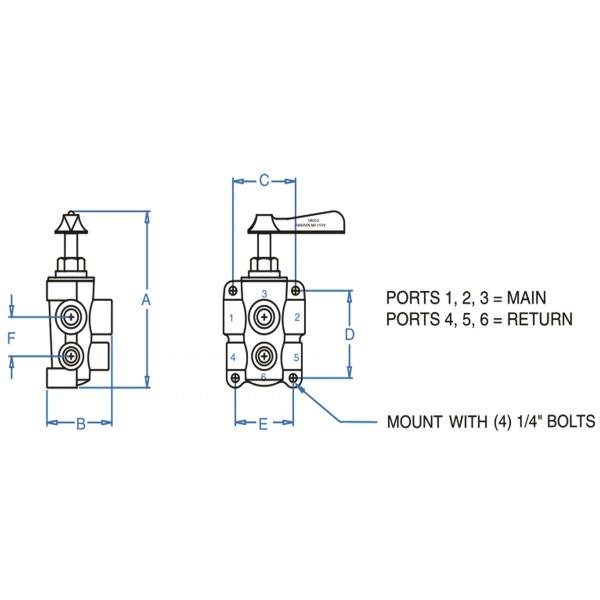

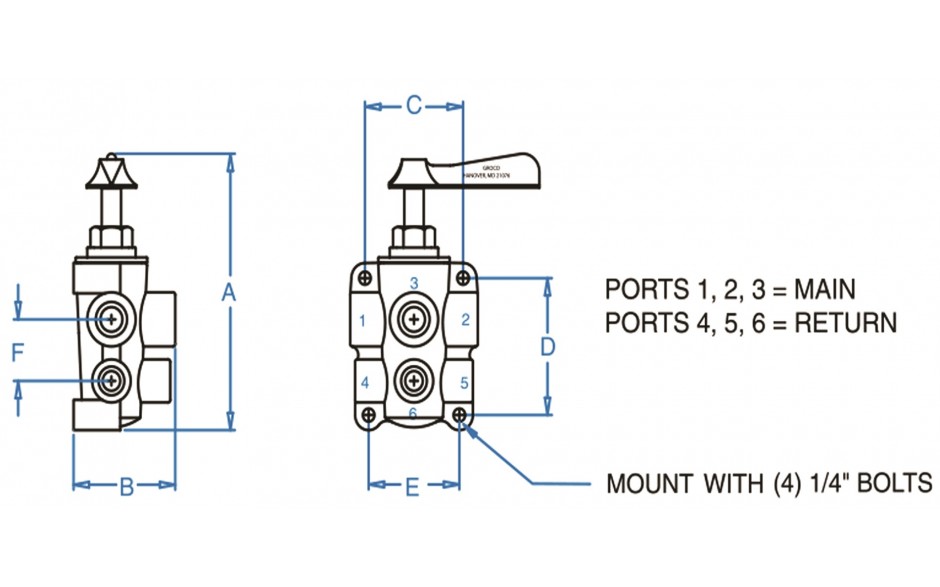

Dimensions
Main NPT1/2"
Return NPT3/8"
A5.62
B2.31
C2.23
D2.78
E2.06
F1.25
