FBVE-1250 24V

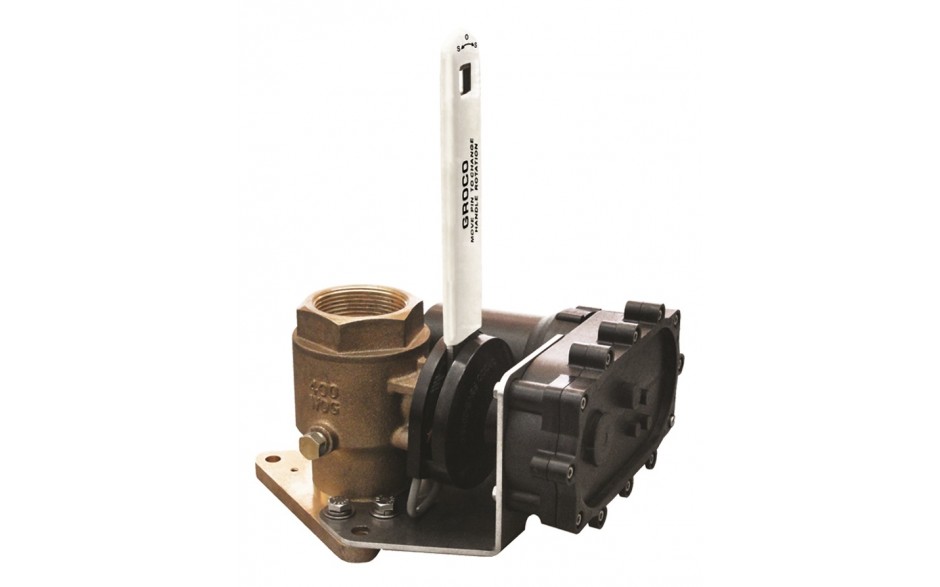

1-1/4"Bronze 24 Volt Electric Flanged Seacock
Features:
- Motorized (12V or 24V) valve operation for seacock sizes 3/4" to 3" (4" and 5" available soon).
- Manual valve operation if power is lost.
- Automatic operation feature prevents engine flooding.
- Requires less than 1 amp of power.
- Gearbox is IP-67 rated and CP-712 compliant.
- NMEA2000 ready.
- UL listed seacock includes grease zerk fitting for lubrication.

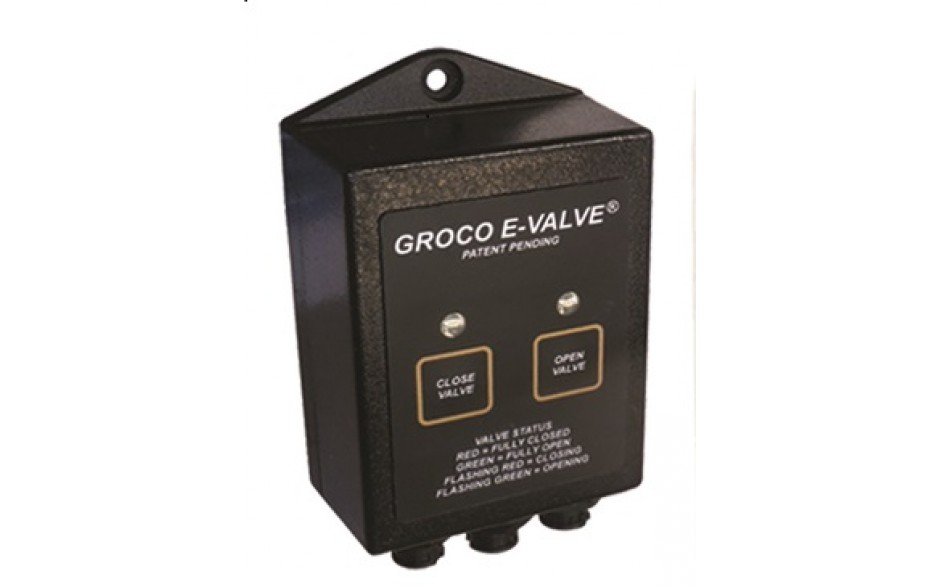

- Push button control from the engine room with basic E-valve; wireless control from the helm with optional LCD-5 touchscreen.

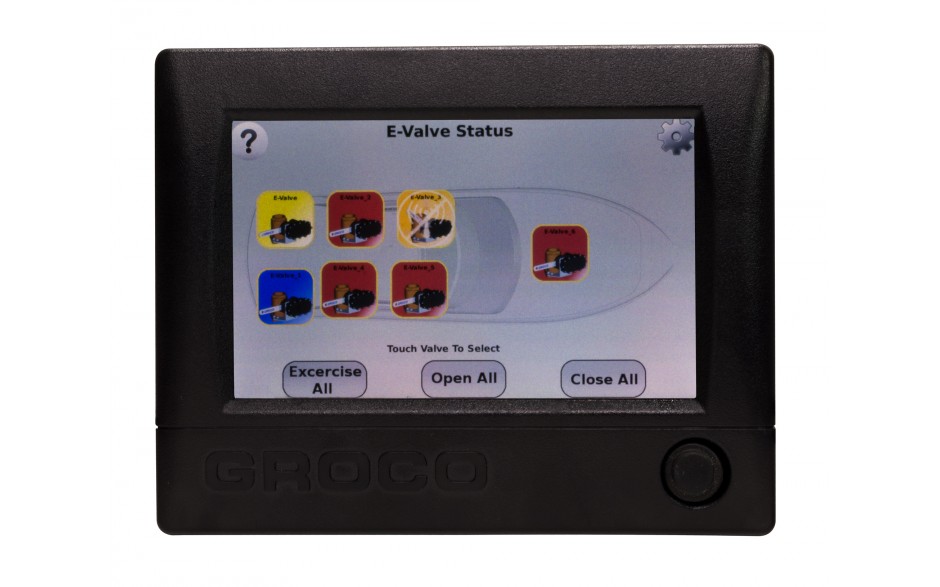

- Optional LCD-5 touchscreen displays and operates multiple E-valves and provides many safety and convenience functions.
Additional Information
| Thread Bottom NPS | 1-1/4" |
|---|---|
| Thread Top NPT | 1-1/4" |
| F | 3 x 5/16" |

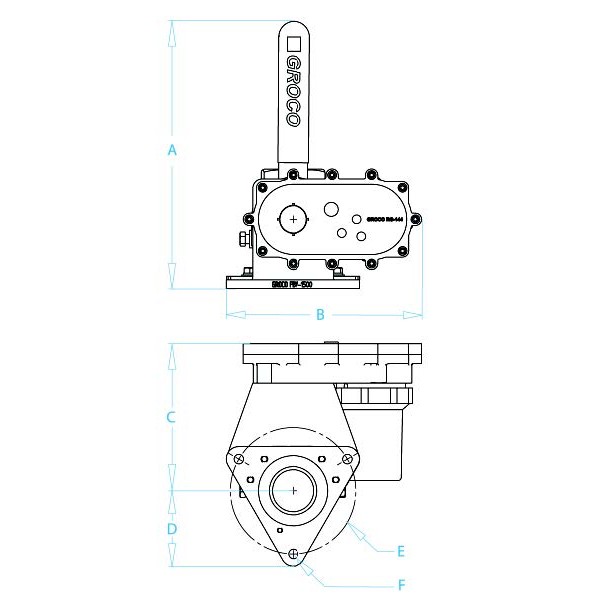

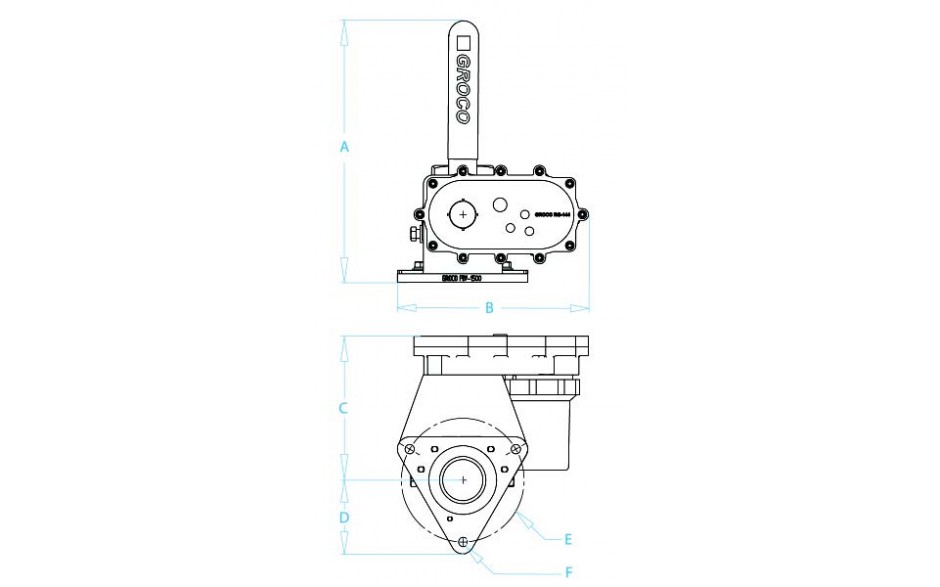

Dimensions
| Thread Bottom NPS | 1-1/4" |
| Thread Top NPT | 1-1/4" |
| A | 7.1 |
| B | 6.6 |
| C | 5 |
| D | 2.3 |
| E | 3.62 |
| F | 3 x 5/16" |
