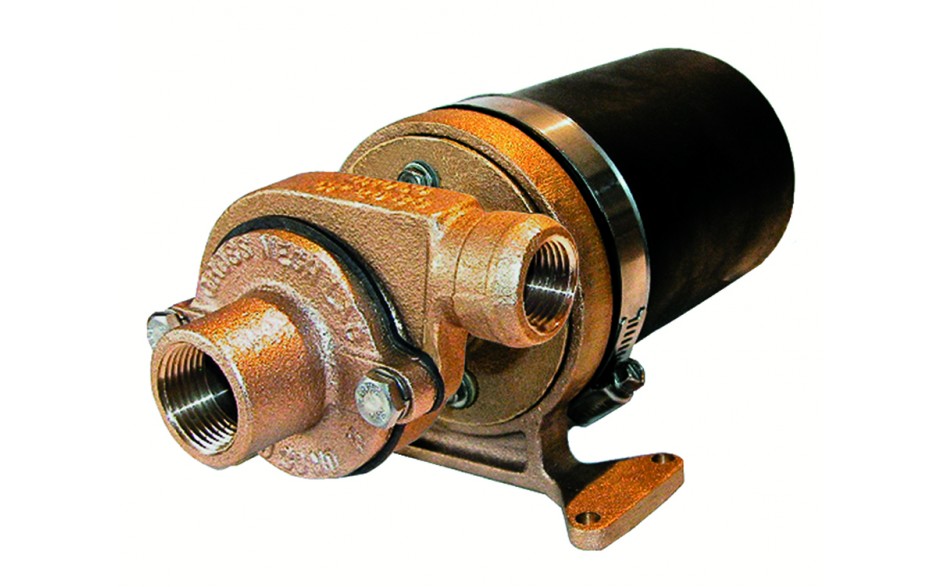

CP-20-S 24V

Bronze Submersible Baitwell Pump

Features:

  • Universal mount bracket allows 360o  pump rotation.
  • Combines CP-20 performance with full submergibility.
  • Inlet is threaded 3/4" NPT.
  • Discharge is threaded 1/2" NPT inside. Garden hose adaptor is included.
  • "Ignition Protected" ball bearing motor with 316SS Shaft.
  • Continuous duty mechanical shaft seal.

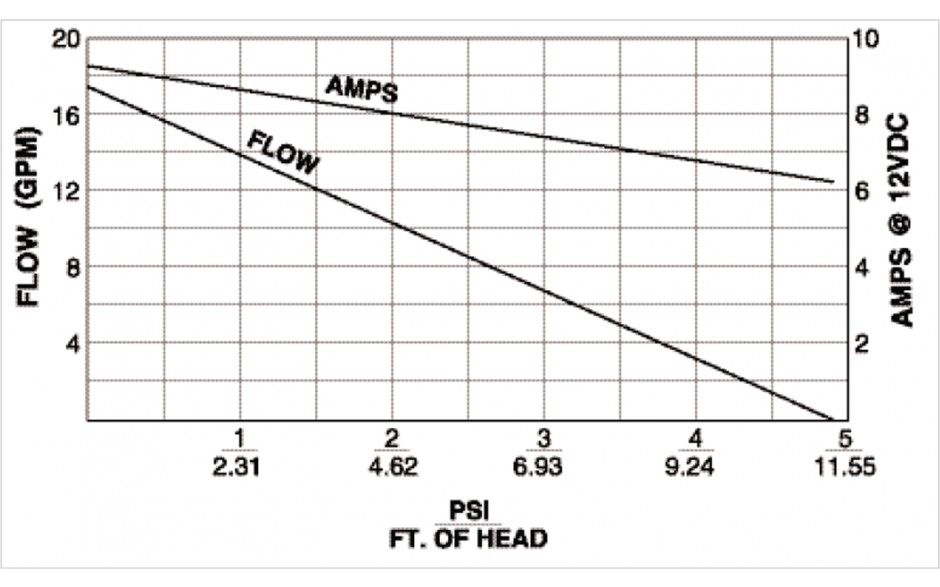

  • 17 GPM flow is ideal for baitwell circulation or any onboard pumping job that needs high GPM flow but relatively low pressure.

Additional Information
Inlet 3/4" NPT
Outlet 1" Hose and 1/2" FNPT w/ Garden Hose Adaptor
Self Priming No
Max GPM 17
Breaker DC 5 amp

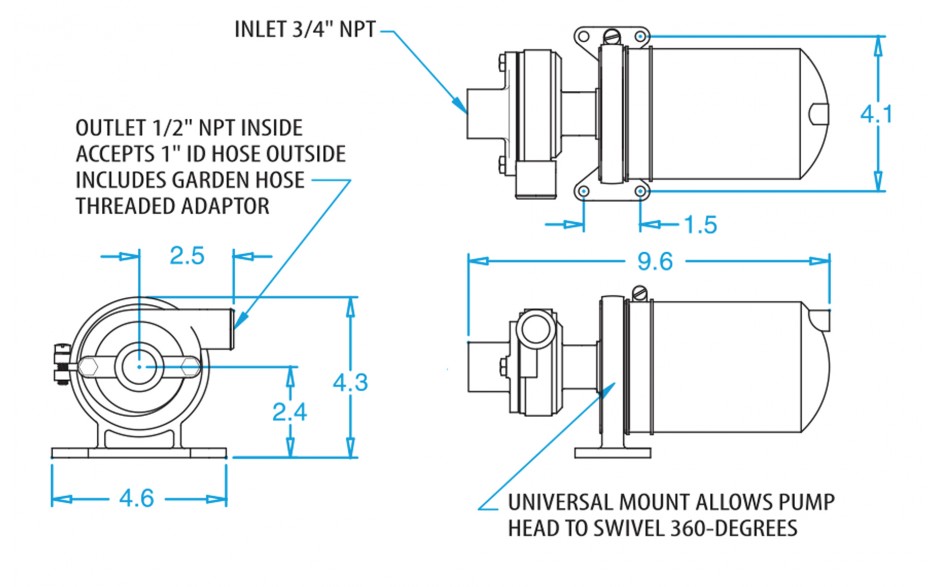

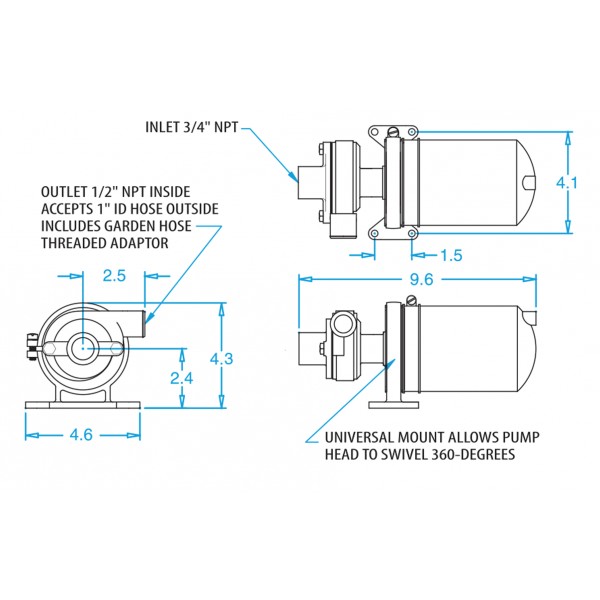

Dimensions
Inlet3/4" NPT
Outlet1" Hose and 1/2" FNPT w/ Garden Hose Adaptor
Self PrimingNo
Max GPM17
Breaker DC5 amp

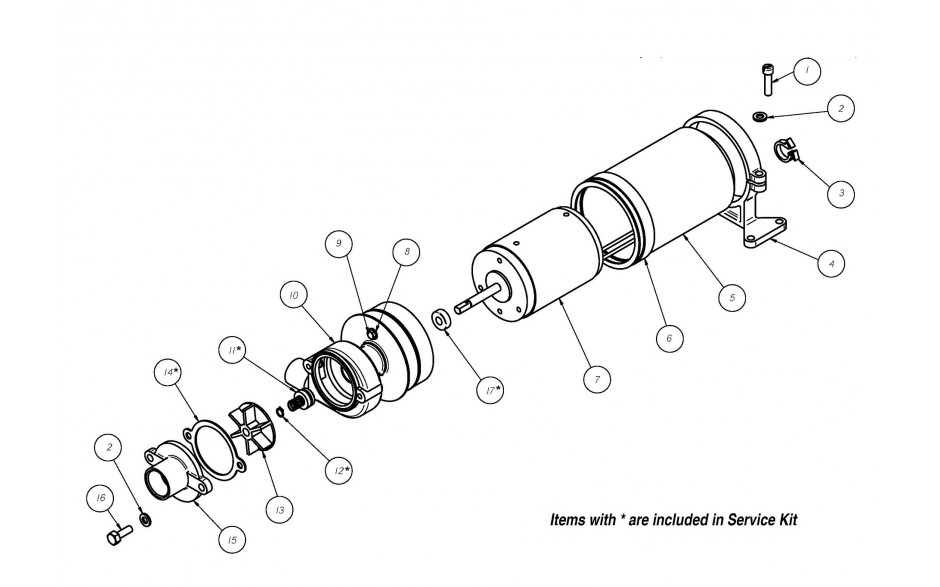

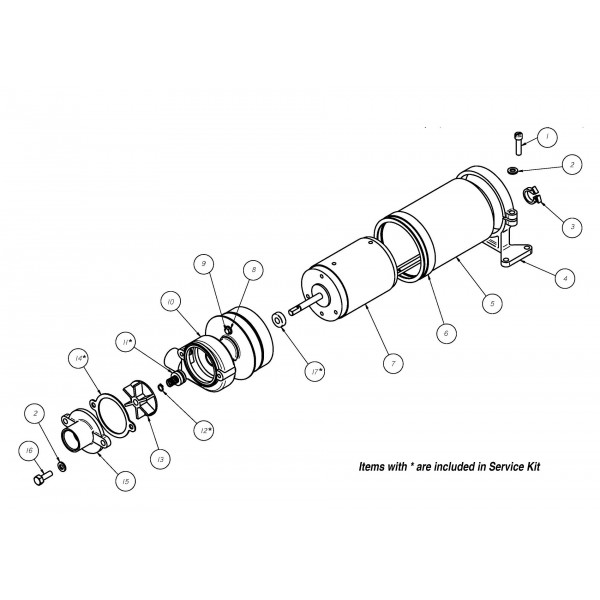

Individual Parts
  • 1
    1420X1FB
    $2.00
    Qty Per Unit: 1
  • 2
    14SB
    $1.00
    Qty Per Unit: 3
  • 3
    CLAMP-14
    $3.00
    Qty Per Unit: 1
  • 4
    CP-21-S
    $136.00
    Qty Per Unit: 1
  • 5
    SBP-204
    $168.00
    Qty Per Unit: 1
  • 6
    CLAMP-6
    $21.00
    Qty Per Unit: 1
  • 7
    24V-B
    $605.00
    Qty Per Unit: 1
  • 8
    PFW-K
    $1.00
    Qty Per Unit: 2
  • 9
    1032X12HST
    $2.00
    Qty Per Unit: 2
  • 10
    CP-20-S
    $282.00
    Qty Per Unit: 1
  • 11
    69026
    $999,999.00
    Qty Per Unit: 1
  • 12
    SNAP RING-1
    $3.00
    Qty Per Unit: 1
  • 13
    CP-55
    $15.00
    Qty Per Unit: 1
  • 14
    CP-56
    $4.00
    Qty Per Unit: 1
  • 15
    CP-58-H
    $68.00
    Qty Per Unit: 1
  • 16
    1420X34HS
    $1.00
    Qty Per Unit: 2
  • 17
    031-075-8
    $4.00
    Qty Per Unit: 1
  • 18
    P-2
    $93.00
    Qty Per Unit: 1
