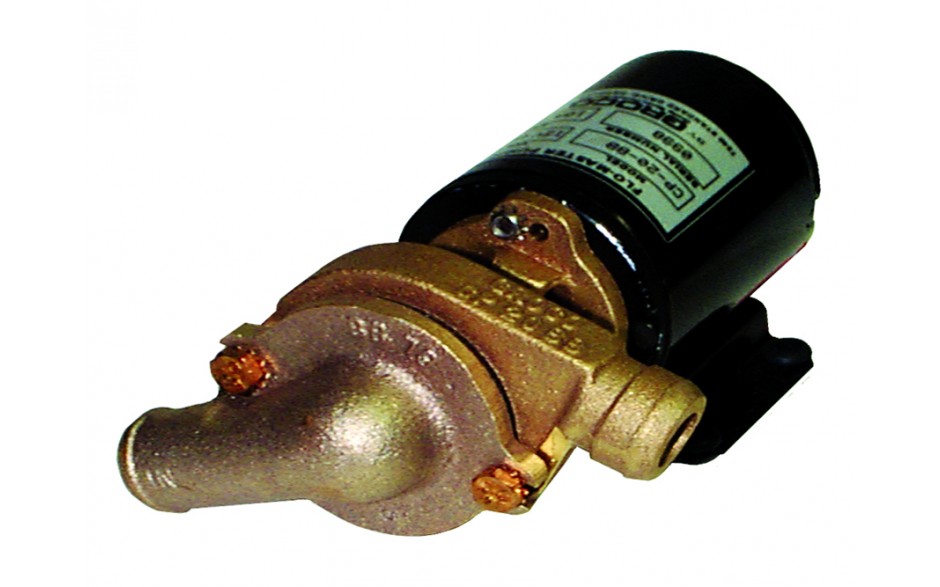

CP-20-BB 12V

Bronze Automotive Centrifugal Booster Pump

Features:

  • Inlet and outlet for 1" ID hose.
  • Bronze construction.
  • #400 SS motor shaft.
  • Continuous-duty face seal.
  • Angled inlet and outlet for 1" ID hose keep hoses low to the floor.
  • "Ignition Protected" ball bearing motor.
  • Metal Base.

Additional Information
Inlet 1" Hose
Outlet 1" Hose
Self Priming No

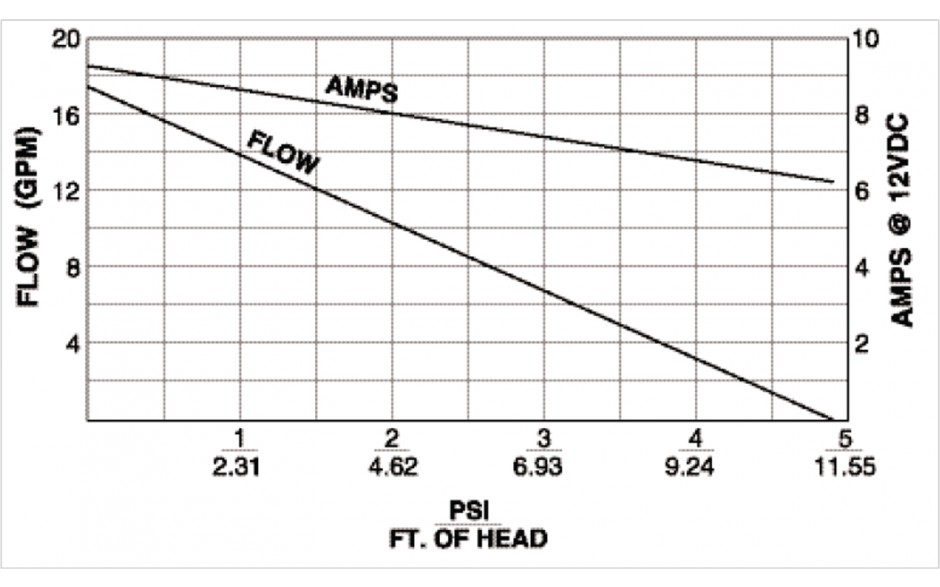

Max GPM 17
Breaker DC 10 amp

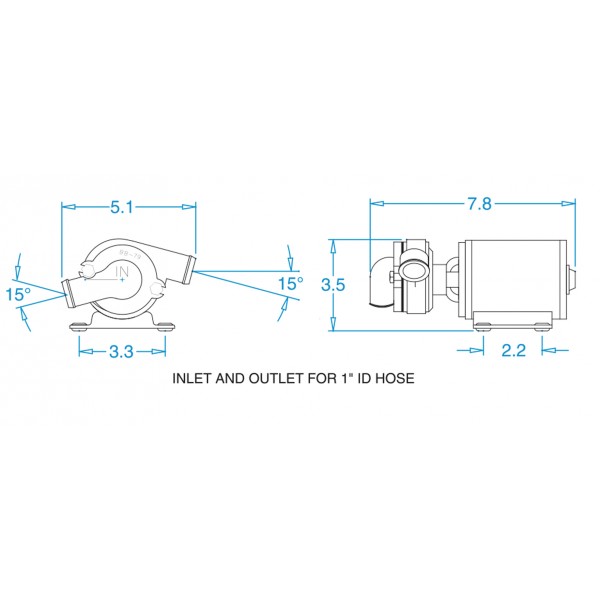

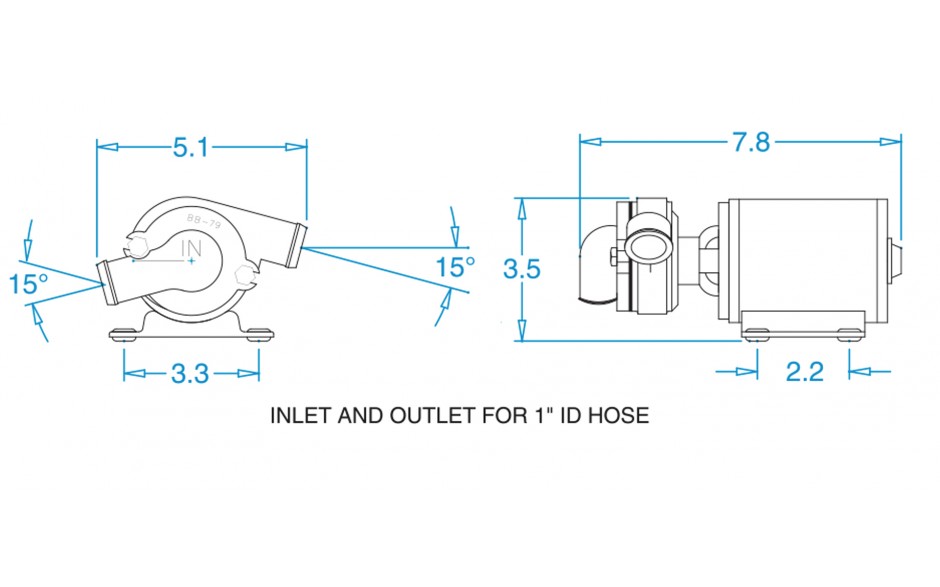

Dimensions
Inlet1" Hose
Outlet1" Hose
Self PrimingNo
Max GPM17
Breaker DC10 amp
dimensions image
 Download Image  Open in New Window

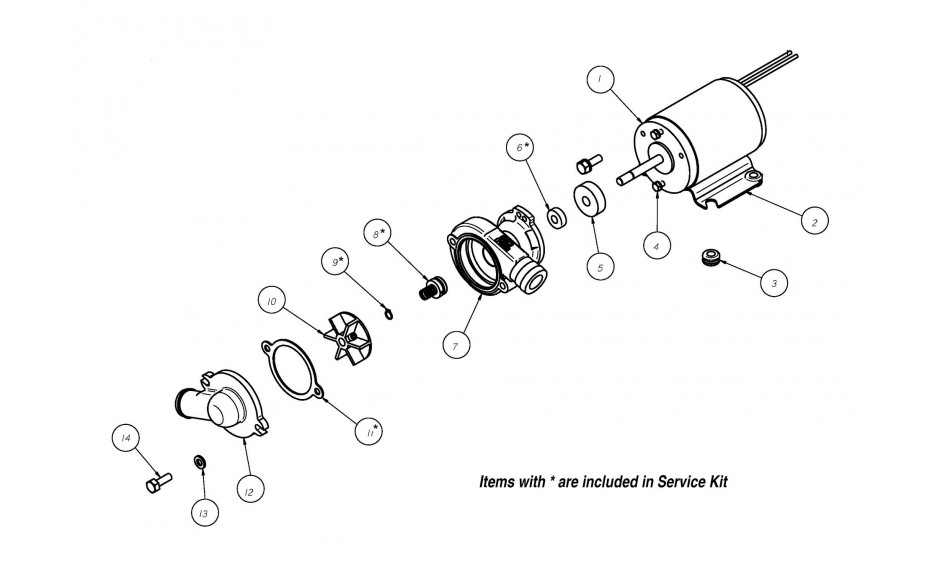

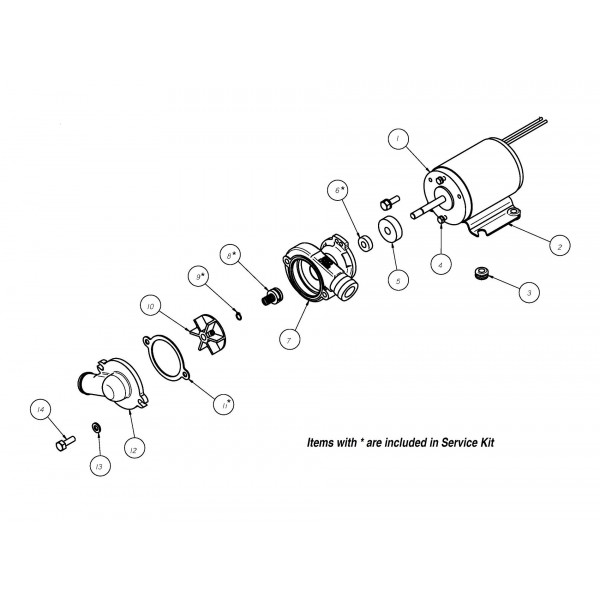

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    12V-K
    $358.00
    Qty Per Unit: 1
  • 2
    B-200
    $27.00
    Qty Per Unit: 1
  • 3
    06-0001-00
    $2.00
    Qty Per Unit: 1
  • 4
    1032X58HS
    $1.00
    Qty Per Unit: 2
  • 5
    PFW-27
    $4.00
    Qty Per Unit: 1
  • 6
    031-075-8
    $5.00
    Qty Per Unit: 1
  • 7
    CP-20-BB
    $221.00
    Qty Per Unit: 1
  • 8
    69026
    $999,999.00
    Qty Per Unit: 1
  • 9
    SNAP RING-1
    $3.00
    Qty Per Unit: 1
  • 10
    CP-55
    $15.00
    Qty Per Unit: 1
  • 11
    CP-56
    $4.00
    Qty Per Unit: 1
  • 12
    BB-79
    $65.00
    Qty Per Unit: 1
  • 13
    14SS
    $1.00
    Qty Per Unit: 2
  • 14
    1420X34HS
    $1.00
    Qty Per Unit: 2
  • 15
    P-2
    $117.00
    Qty Per Unit: 1
