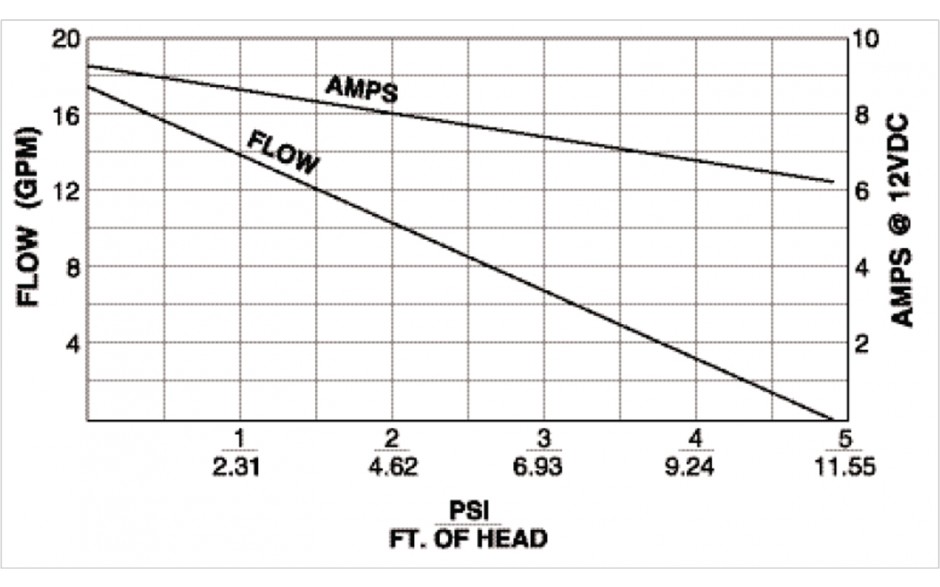

  • flow-chart

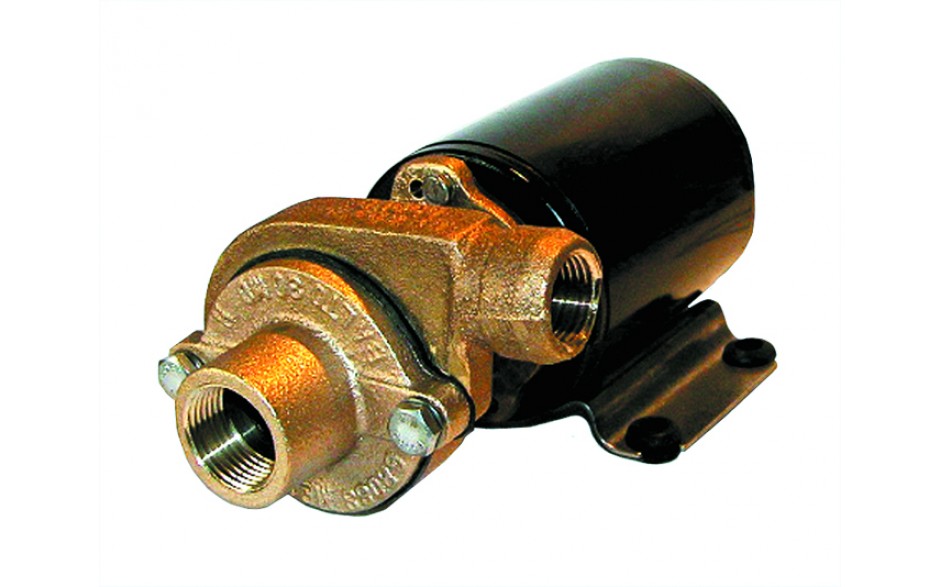

CP-20 24V

Bronze Baitwell Pump

Features:

  • 17 GPM flow is ideal for baitwell circulation or any onboard pumping job that needs high GPM flow but relatively low pressure.
  • Inlet is threaded 3/4" NPT.
  • Discharge is threaded 1/2” NPT inside. Garden hose adaptor is included.
  • Motor is "Ignition Protected" and has a #316SS shaft.
  • Continuous duty mechanical shaft seal.
  • CP-30 is identical to CP-20 except that it offers externally replaceable motor brushes.

Additional Information
Inlet 3/4" NPT
Outlet 1" Hose and 1/2" FNPT w/ Garden Hose Adaptor
Self Priming No
Max GPM 17
Breaker DC 5 amp

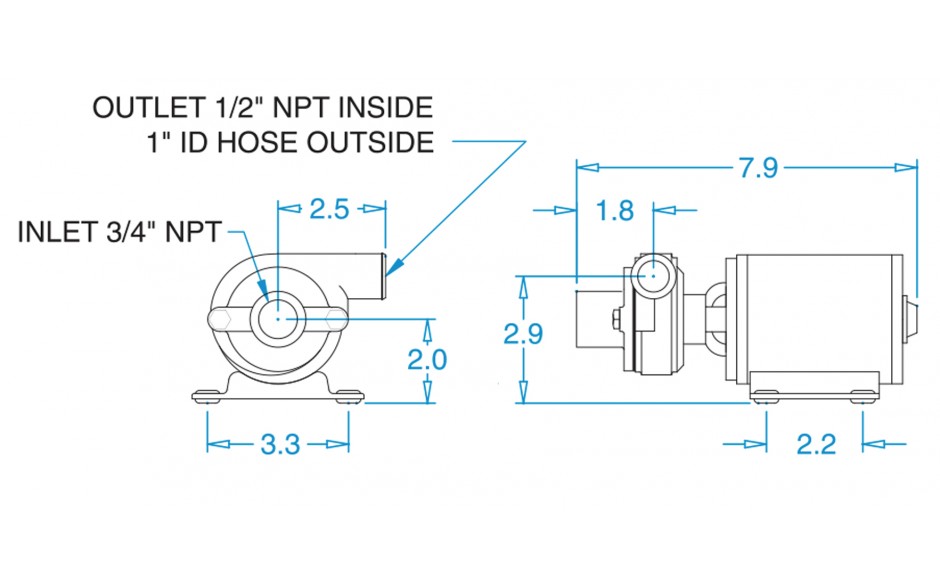

Dimensions
Inlet3/4" NPT
Outlet1" Hose and 1/2" FNPT w/ Garden Hose Adaptor
Self PrimingNo
Max GPM17
Breaker DC5 amp

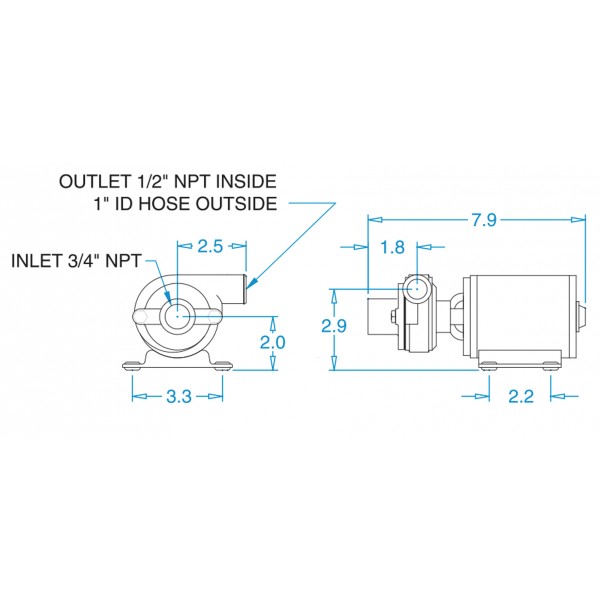

dimensions image
 Download Image  Open in New Window

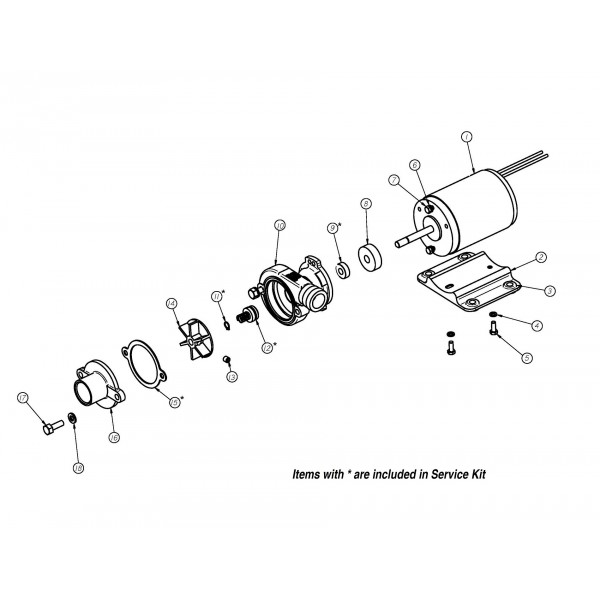

Individual Parts

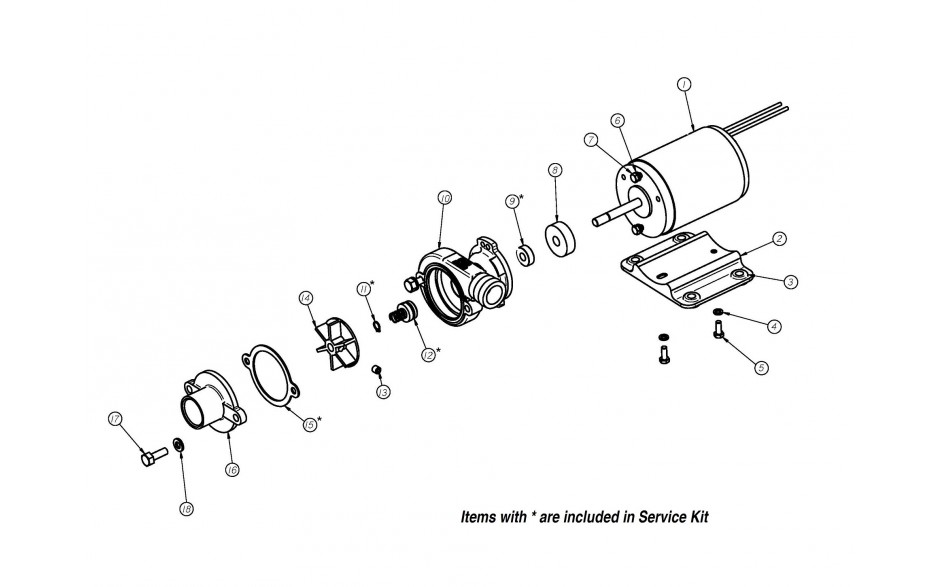

exploded image
 Download Image  Open in New Window
  • 1
    24V-B
    $605.00
    Qty Per Unit: 1
  • 2
    B-200-P
    $7.00
    Qty Per Unit: 1
  • 3
    06-0001-00
    $2.00
    Qty Per Unit: 1
  • 4
    10SS
    $1.00
    Qty Per Unit: 4
  • 5
    1032X12HST
    $2.00
    Qty Per Unit: 2
  • 7
    1032X58HS
    $1.00
    Qty Per Unit: 2
  • 8
    PFW-27
    $5.00
    Qty Per Unit: 1
  • 9
    031-075-8
    $4.00
    Qty Per Unit: 1
  • 10
    CP-20-W
    $204.00
    Qty Per Unit: 1
  • 11
    SNAP RING-1
    $3.00
    Qty Per Unit: 1
  • 12
    69026
    $999,999.00
    Qty Per Unit: 1
  • 13
    14X14SET
    $2.00
    Qty Per Unit: 1
  • 14
    CP-55
    $15.00
    Qty Per Unit: 1
  • 15
    CP-56
    $4.00
    Qty Per Unit: 1
  • 16
    CP-58-H
    $68.00
    Qty Per Unit: 1
  • 17
    1420X34HS
    $1.00
    Qty Per Unit: 2
  • 18
    14SS
    $1.00
    Qty Per Unit: 2
  • 19
    P-2
    $93.00
    Qty Per Unit: 1
