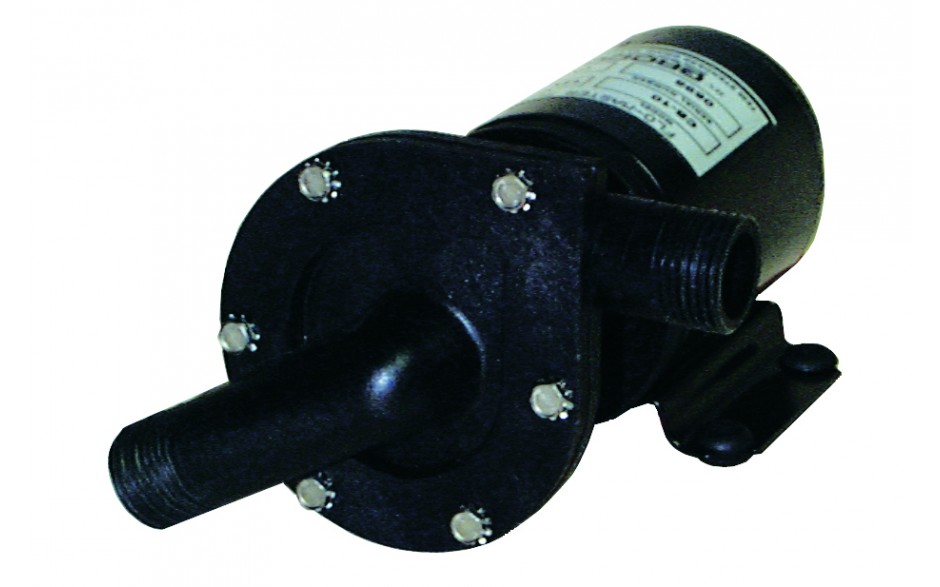

CB-10 12V

Marine Centrifugal Booster Pump

Features:

  • Combines CP-20 performance with a light weight non-metallic pump.
  • No-rust plastic base.
  • Inlet and outlet are threaded for garden hose or for 1" ID hose.
  • Continuous-duty "Ignition Protection" motor with #316 SS shaft.
  • Continuous-duty shaft seal.

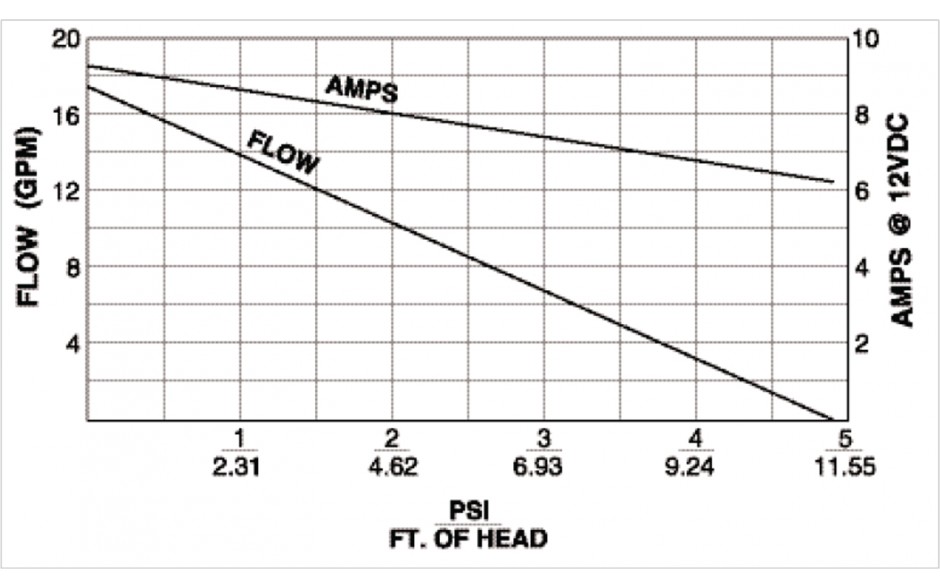

  • 17 GPM flow is ideal for baitwell circulation or any onboard pumping job that needs high GPM flow but relatively low pressure.

Additional Information
Inlet 1" Hose and 1/2" FNPT w/ Garden Hose Adaptor
Outlet 1" Hose and 1/2" FNPT w/ Garden Hose Adaptor
Self Priming No
Max GPM 17
Breaker DC 10 amp

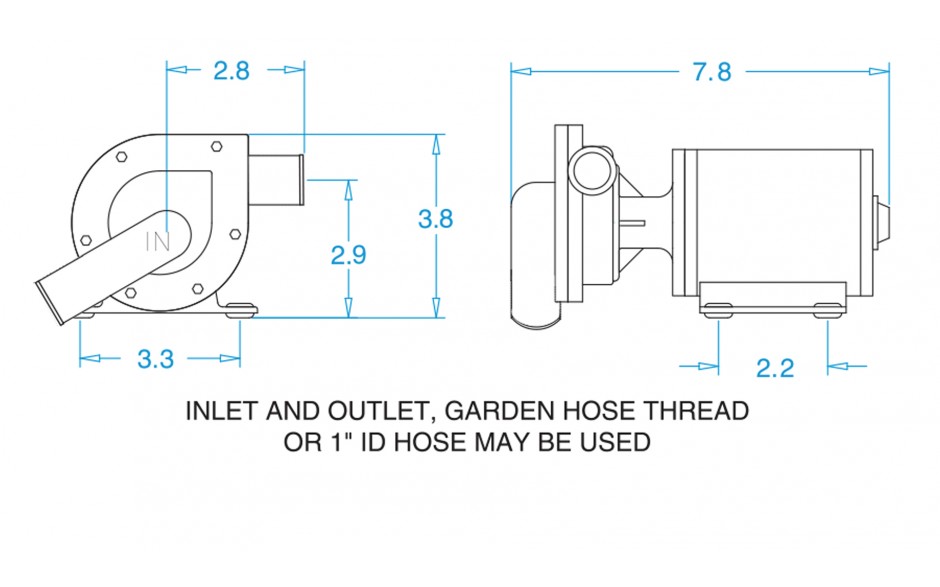

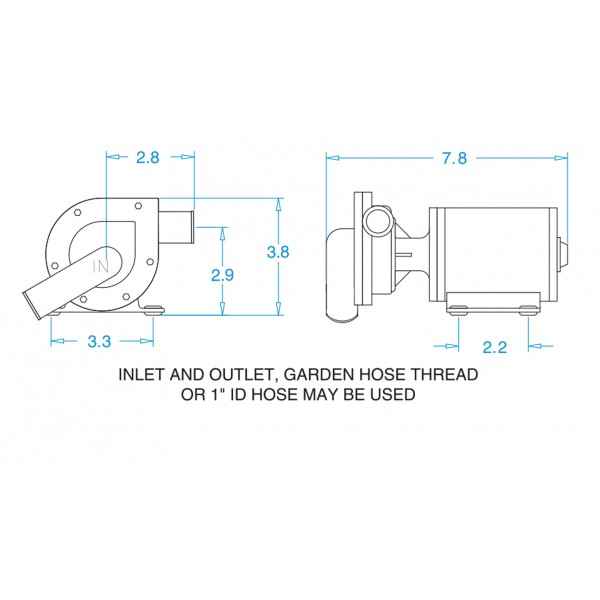

Dimensions
Inlet1" Hose and 1/2" FNPT w/ Garden Hose Adaptor
Outlet1" Hose and 1/2" FNPT w/ Garden Hose Adaptor
Self PrimingNo
Max GPM17
Breaker DC10 amp

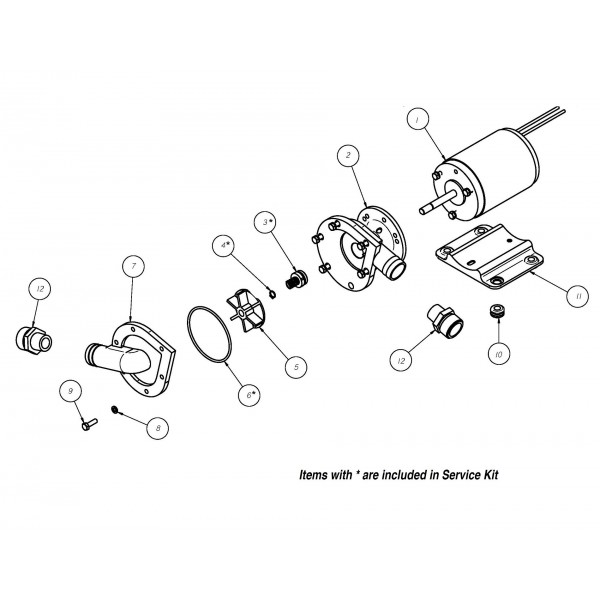

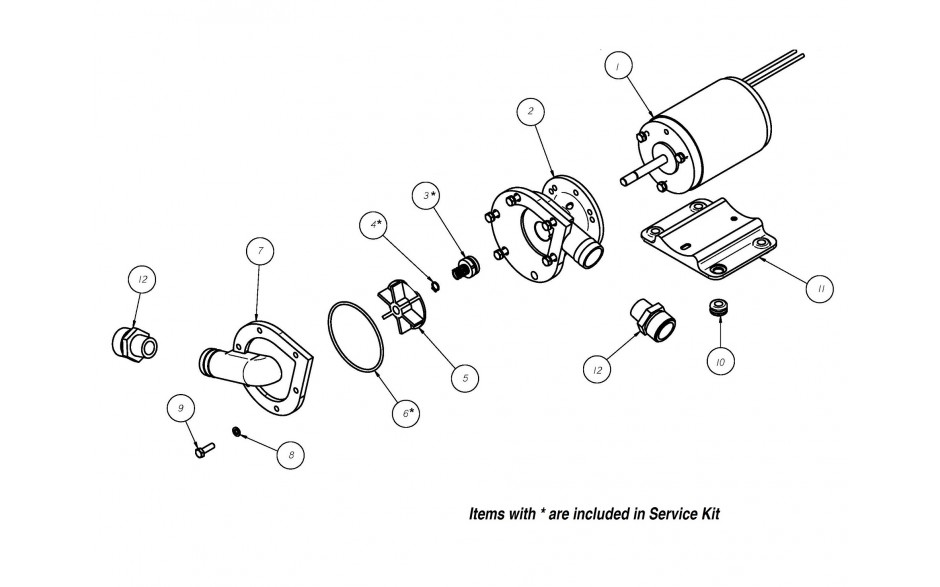

Individual Parts
  • 1
    12V-B
    $237.00
    Qty Per Unit: 1
  • 2
    05-0004-02
    $24.00
    Qty Per Unit: 1
  • 3
    69026
    $35.00
    Qty Per Unit: 1
  • 4
    SNAP RING-1
    $2.00
    Qty Per Unit: 1
  • 5
    14X14SET
    $2.00
    Qty Per Unit: 1
  • 5
    CP-55
    $11.00
    Qty Per Unit: 1
  • 6
    2-146
    $2.00
    Qty Per Unit: 1
  • 7
    05-0005-02
    $13.00
    Qty Per Unit: 1
  • 8
    10SS
    $1.00
    Qty Per Unit: 6
  • 9
    1032X58HS
    $1.00
    Qty Per Unit: 6
  • 10
    06-0001-00
    $1.00
    Qty Per Unit: 1
  • 11
    B-200
    $12.00
    Qty Per Unit: 1
  • 12
    GHMX500M
    $7.00
    Qty Per Unit: 2
  • 13
    P-2
    $67.00
    Qty Per Unit: 1
