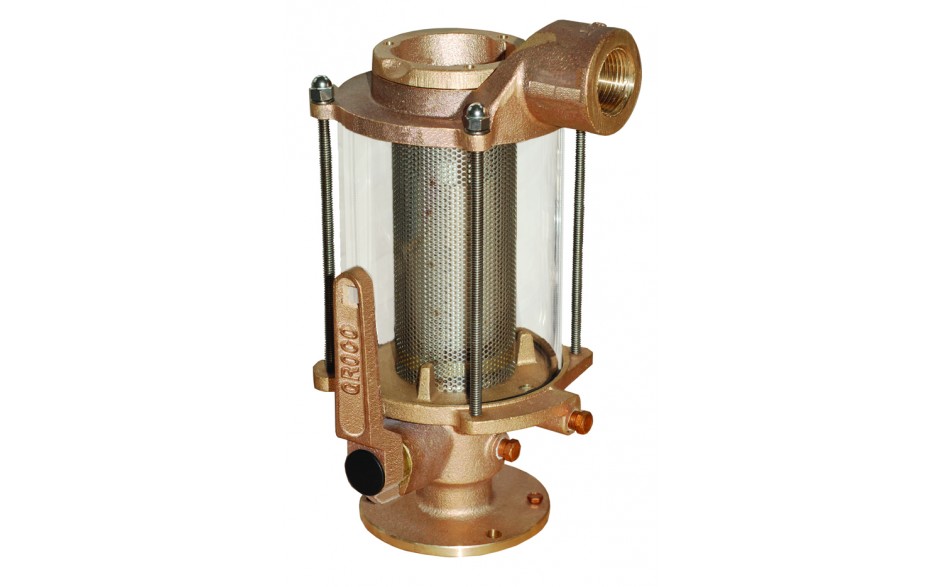

• main
  • dimensions
  • exploded

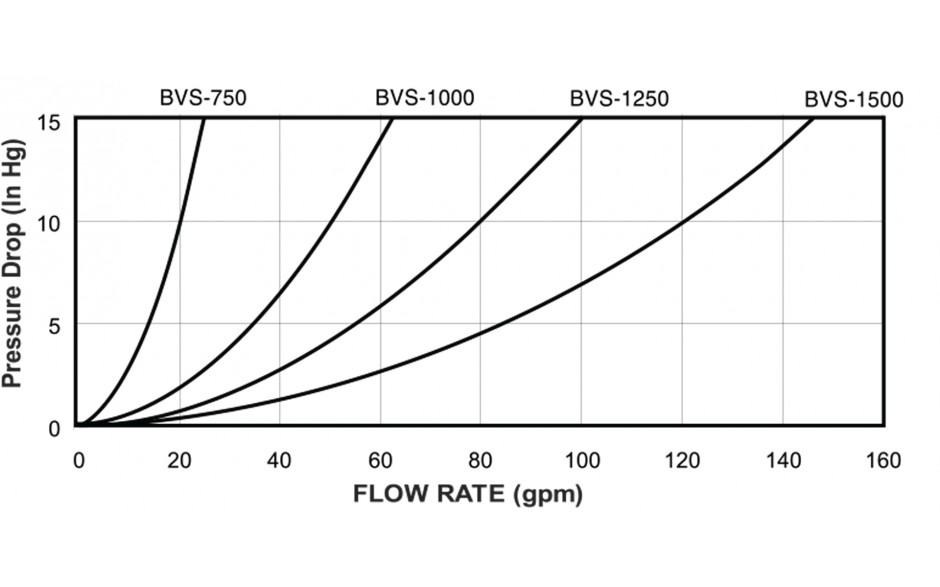

  • flow-chart

BVS-750

Seacock / Raw Water Strainer Combination

Features:

  • Square hole in handle accepts standard ratchet.
  • 1-1/4" sizes and larger include one grease zerk fitting for lubrication (use only with the valve in the open position), and one drain plug. The zerk can also be used for draining.
  • Space saving design with strainer and integral seacock.
  • Just one component to install and just one bilge location to access for winterization and maintenance.
  • No inside tie rods.
  • C84400 bronze construction.
  • Full flow ball valve with stainless steel ball and stem.
  • Strainer has screw on/off cap.
  • #304 stainless steel filter basket.

Additional Information
Thread Bottom NPS 3/4"
Thread Top NPT 3/4"
F 3.83
G 2.5
Open Area Ratio 33:01:00

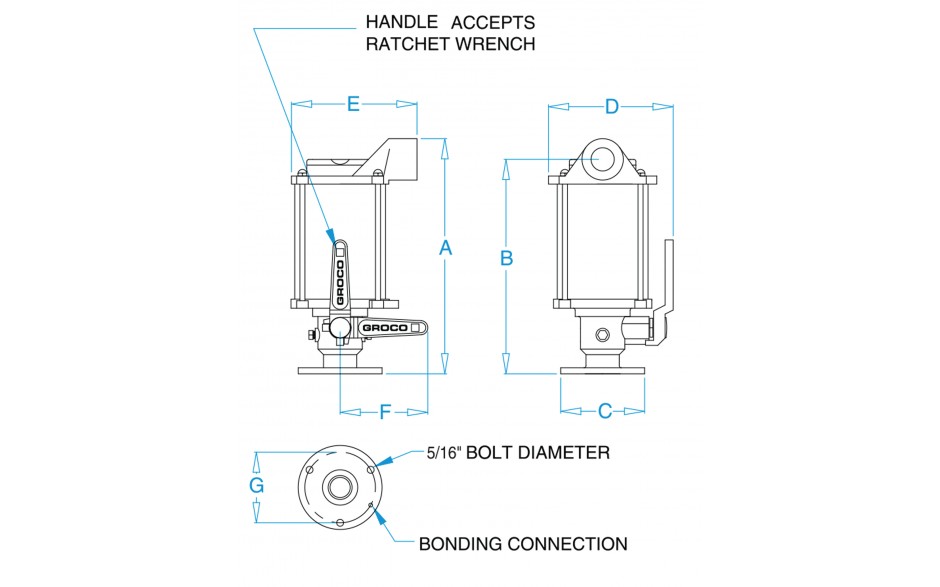

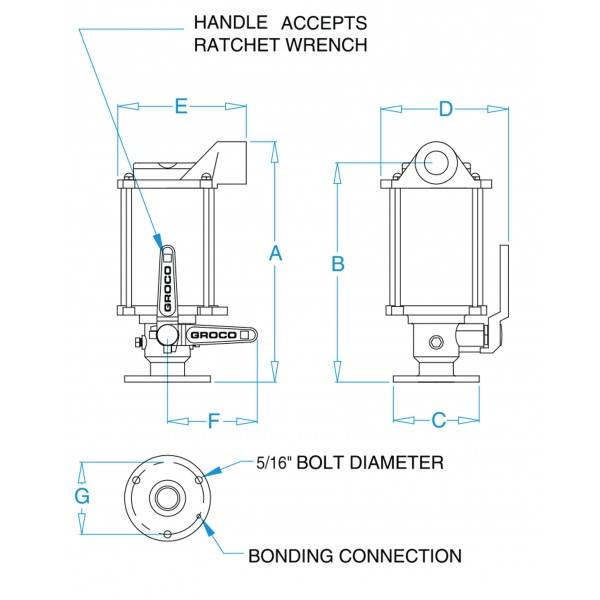

Dimensions
Thread Bottom NPS3/4"
Thread Top NPT3/4"
A10.75
B10.13
C3.05
D5.38
E4.75
F3.83
G2.5
Open Area Ratio33:01:00

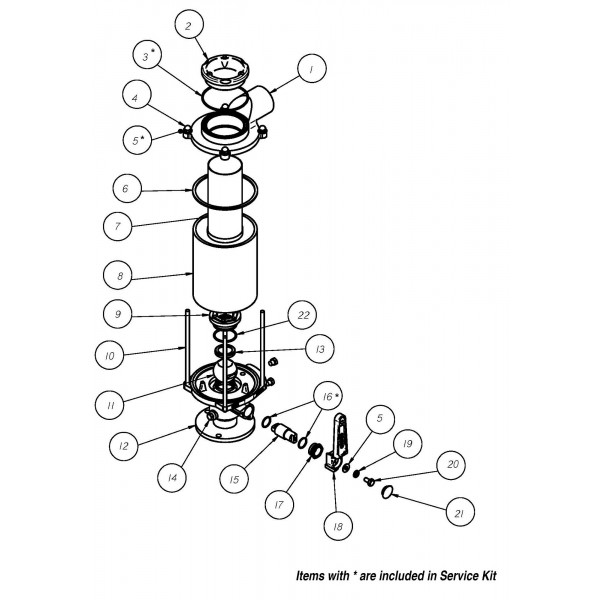

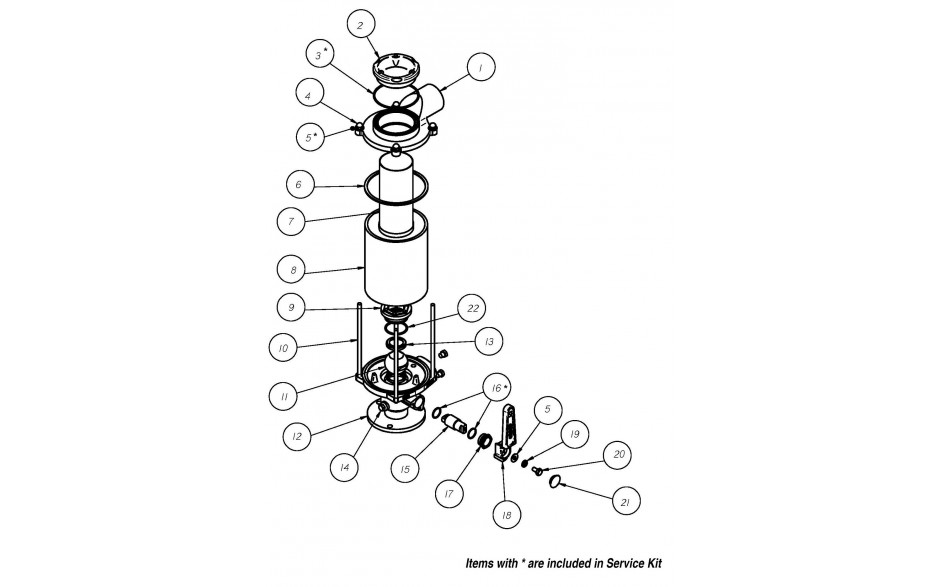

Individual Parts
  • 1
    SS-751
    $146.00
    Qty Per Unit: 1
  • 2
    SS-502-B
    $57.00
    Qty Per Unit: 1
  • 3
    2-144
    $1.00
    Qty Per Unit: 1
  • 4
    1420CS
    $2.00
    Qty Per Unit: 4
  • 5
    14SS
    $1.00
    Qty Per Unit: 4
  • 6
    #9R SET
    $13.00
    Qty Per Unit: 1
  • 7
    SSS-754
    $50.00
    Qty Per Unit: 1
  • 7
    SS-754
    $81.00
    Qty Per Unit: 1
  • 8
    S-70-A
    $99.00
    Qty Per Unit: 1
  • 9
    BVS-752
    $48.00
    Qty Per Unit: 1
  • 10
    S-73-C
    $7.00
    Qty Per Unit: 4
  • 11
    BV-754
    $22.00
    Qty Per Unit: 1
  • 12
    BVS-750-B
    $327.00
    Qty Per Unit: 1
  • 13
    BV-756
    $9.00
    Qty Per Unit: 2
  • 14
    1827HB
    $4.00
    Qty Per Unit: 3
  • 15
    BVS-751-A
    $51.00
    Qty Per Unit: 1
  • 16
    1-015
    $6.00
    Qty Per Unit: 2
  • 17
    BV-503-A
    $42.00
    Qty Per Unit: 1
  • 18
    BV-508
    $31.00
    Qty Per Unit: 1
  • 19
    14FS
    $1.00
    Qty Per Unit: 1
  • 20
    1228X38HS
    $3.00
    Qty Per Unit: 1
  • 21
    PFW-10
    $1.00
    Qty Per Unit: 1
  • 22
    2-122
    $1.00
    Qty Per Unit: 1
  • 23
    BVS-1
    $34.00
    Qty Per Unit: 1
