BVS-1500

Seacock / Raw Water Strainer Combination

Features:

  • Square hole in handle accepts standard ratchet.
  • 1-1/4" sizes and larger include one grease zerk fitting for lubrication (use only with the valve in the open position), and one drain plug. The zerk can also be used for draining.
  • Space saving design with strainer and integral seacock.
  • Just one component to install and just one bilge location to access for winterization and maintenance.
  • No inside tie rods.
  • C84400 bronze construction.
  • Full flow ball valve with stainless steel ball and stem.
  • Strainer has screw on/off cap.
  • #304 stainless steel filter basket.

Additional Information
Thread Bottom NPS 1-1/2"
Thread Top NPT 1-1/2"
F 5.5
G 4.5

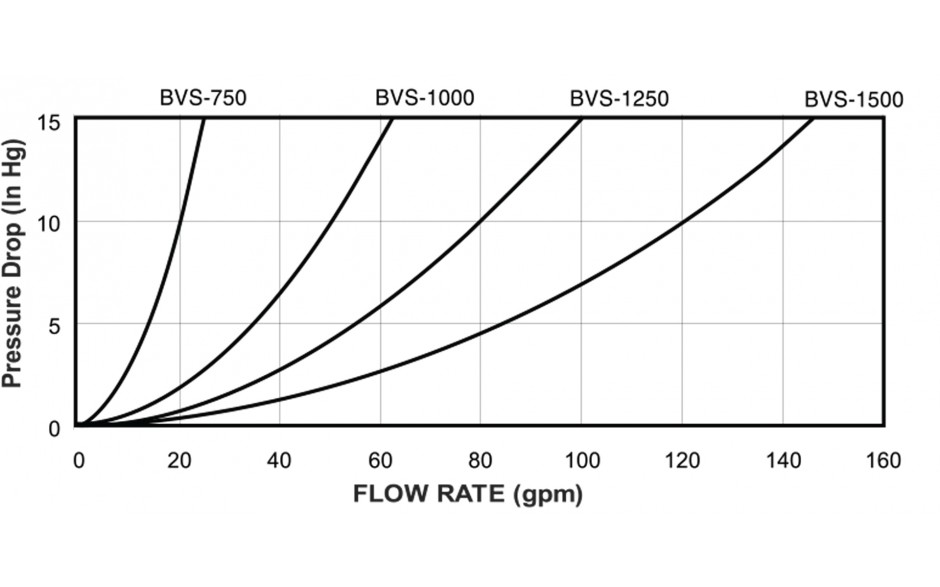

Open Area Ratio 19:01

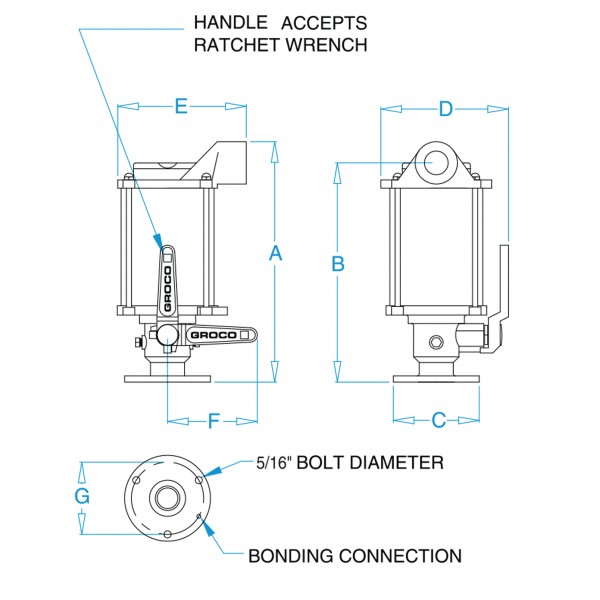

Dimensions
Thread Bottom NPS1-1/2"
Thread Top NPT1-1/2"
A15
B13.75
C5.25
D8
E8
F5.5
G4.5
Open Area Ratio19:01

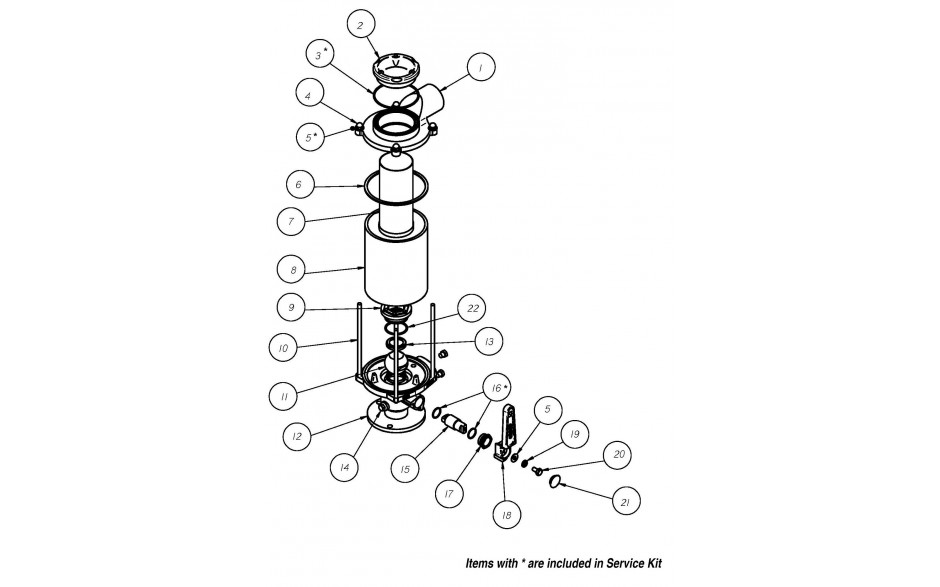

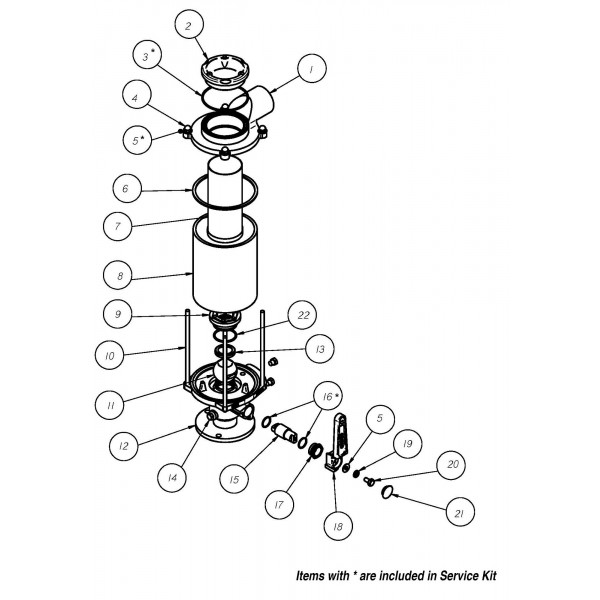

Individual Parts
  • 1
    SS-1501
    $610.00
    Qty Per Unit: 1
  • 2
    ARG-1501-B
    $235.00
    Qty Per Unit: 1
  • 3
    2-238
    $3.00
    Qty Per Unit: 1
  • 4
    1420CS
    $2.00
    Qty Per Unit: 4
  • 5
    14SS
    $1.00
    Qty Per Unit: 4
  • 6
    #10R SET
    $19.00
    Qty Per Unit: 1
  • 7
    SSS-1504
    $145.00
    Qty Per Unit: 1
  • 7
    SS-1504
    $366.00
    Qty Per Unit: 1
  • 8
    S-88
    $259.00
    Qty Per Unit: 1
  • 9
    BVS-1502
    $163.00
    Qty Per Unit: 1
  • 10
    S-73-B
    $14.00
    Qty Per Unit: 4
  • 11
    BV-1504
    $168.00
    Qty Per Unit: 1
  • 12
    BVS-1500-B
    $898.00
    Qty Per Unit: 1
  • 13
    BV-1506
    $16.00
    Qty Per Unit: 2
  • 14
    1827HB
    $3.00
    Qty Per Unit: 3
  • 16
    1-116
    $4.00
    Qty Per Unit: 2
  • 17
    BV-2003-A
    $52.00
    Qty Per Unit: 1
  • 18
    BV-1508
    $68.00
    Qty Per Unit: 1
  • 19
    38FS
    $2.00
    Qty Per Unit: 1
  • 21
    PFW-12
    $2.00
    Qty Per Unit: 1
  • 22
    2-140
    $2.00
    Qty Per Unit: 1
  • 23
    BVS-3
    $37.00
    Qty Per Unit: 1
