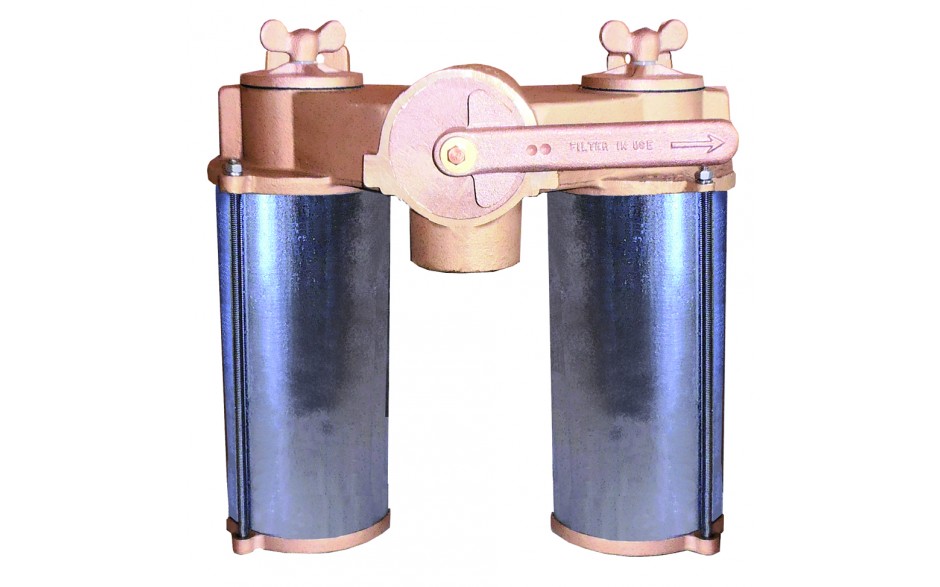

AVD-1500 Series

1-1/2" Duplex Strainer

 FEATURES

  • ABS Compliant.
  • C84400 bronze construction.
  • Standard with #304 stainless steel filter basket. (Monel is optional)
  • Monel inside tie rod.
  • Easy service with spin-off-wingnut.
  • Fine mesh filter basket is also available.

Additional Information
Spec Sheet No
Thread NPT 1-1/2"
Open Area Ratio 19
Dimensions
Thread NPT1-1/2"
A14.5
B16
C8
D6.5
E6.5
Open Area Ratio19
dimensions image
 Download Image  Open in New Window
Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    S-75
    $40.00
    Qty Per Unit: 2
  • 2
    504-F
    $1.00
    Qty Per Unit: 2
  • 3
    S-86
    $117.00
    Qty Per Unit: 2
  • 4
    S-86-A
    $4.00
    Qty Per Unit: 2
  • 5
    BP-6
    $79.00
    Qty Per Unit: 1
  • 5
    BS-6
    $90.00
    Qty Per Unit: 1
  • 5
    BM-6
    $285.00
    Qty Per Unit: 1
  • 6
    51618HS
    $1.00
    Qty Per Unit: 4
  • 7
    AS-88
    $1,171.00
    Qty Per Unit: 1
  • 8
    S-82-B
    $14.00
    Qty Per Unit: 4
  • 9
    S-82-E
    $316.00
    Qty Per Unit: 2
  • 10
    #10R SET
    $19.00
    Qty Per Unit: 2
  • 11
    S-82-AB
    $339.00
    Qty Per Unit: 2
  • 12
    1827HB
    $3.00
    Qty Per Unit: 2
  • 13
    516SS
    $1.00
    Qty Per Unit: 4
  • 15
    5818HB
    $8.00
    Qty Per Unit: 1
  • 16
    VD-B
    $11.00
    Qty Per Unit: 1
  • 17
    2-229
    $2.00
    Qty Per Unit: 1
  • 18
    2-231
    $2.00
    Qty Per Unit: 1
  • 19
    2-234
    $3.00
    Qty Per Unit: 1
  • 21
    VD-2502
    $188.00
    Qty Per Unit: 1
  • 22
    51618X34HB
    $4.00
    Qty Per Unit: 1
  • 23
    24L
    $3.00
    Qty Per Unit: 1
  • 23
    VD-1500 BPA
    $3,374.00
    Qty Per Unit: 1
  • 24
    VD-2
    $69.00
    Qty Per Unit: 1
