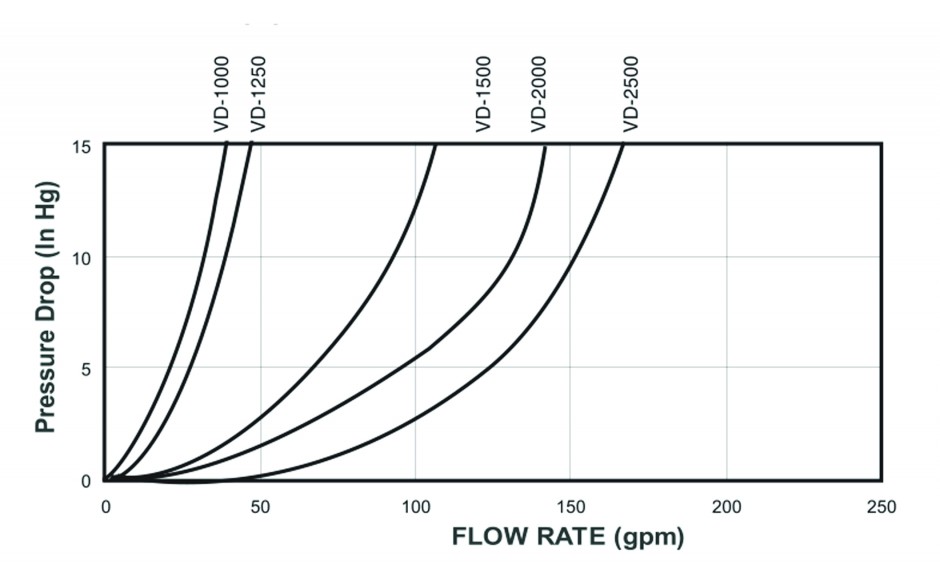

  • flow-chart

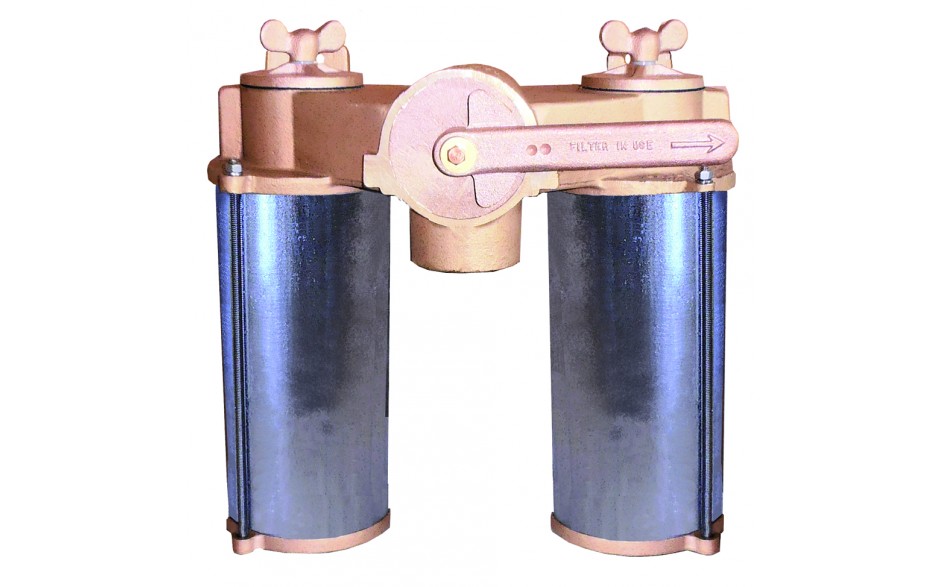

AVD-1250 Series

1-1/4" Duplex Strainer

 FEATURES

  • ABS Compliant.
  • C84400 bronze construction.
  • Standard with #304 stainless steel filter basket. (Monel is optional)
  • Monel inside tie rod.
  • Easy service with spin-off-wingnut.
  • Fine mesh filter basket is also available.

Additional Information
Spec Sheet No
Thread NPT 1-1/4"
Open Area Ratio 25

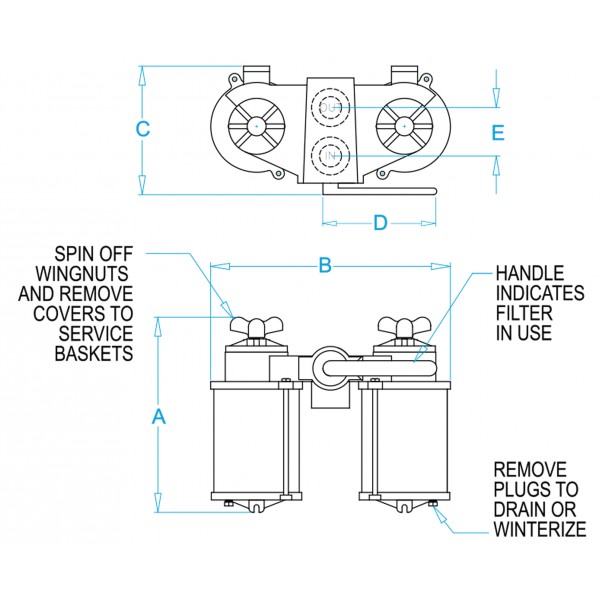

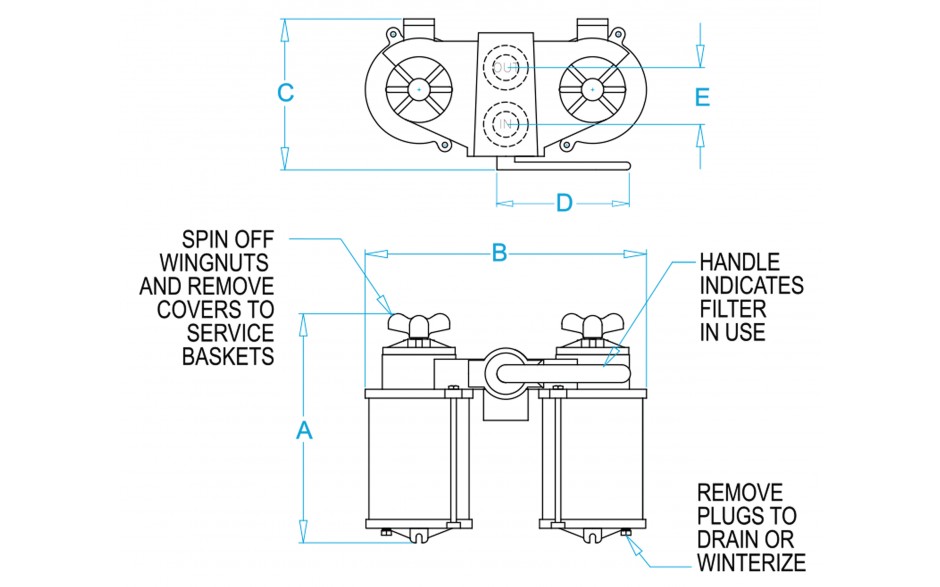

Dimensions
Thread NPT1-1/4"
A12
B13
C6.8
D3.5
E3.3
Open Area Ratio25

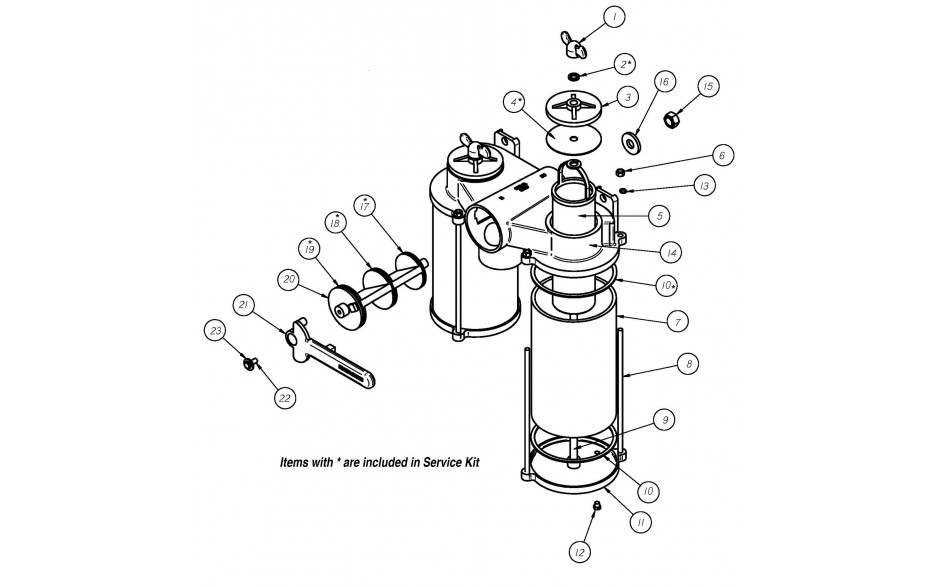

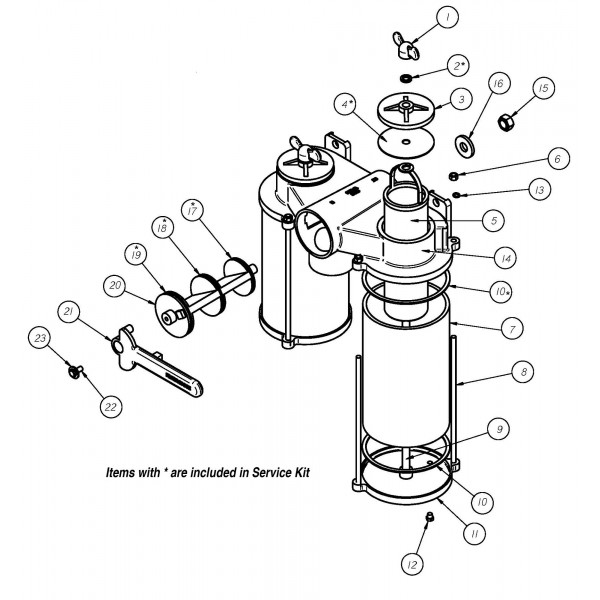

Individual Parts
  • 1
    SVS-5
    $18.00
    Qty Per Unit: 2
  • 2
    500-K
    $1.00
    Qty Per Unit: 2
  • 3
    S-751
    $61.00
    Qty Per Unit: 2
  • 4
    S-751-A
    $3.00
    Qty Per Unit: 2
  • 5
    BP-5
    $55.00
    Qty Per Unit: 1
  • 5
    BS-5
    $46.00
    Qty Per Unit: 1
  • 5
    BM-5
    $115.00
    Qty Per Unit: 1
  • 6
    1420HS
    $1.00
    Qty Per Unit: 4
  • 7
    AS-77-A
    $169.00
    Qty Per Unit: 1
  • 8
    S-73-B
    $8.00
    Qty Per Unit: 4
  • 9
    S-73-E
    $94.00
    Qty Per Unit: 2
  • 10
    #8R SET
    $14.00
    Qty Per Unit: 2
  • 11
    S-73-A
    $107.00
    Qty Per Unit: 2
  • 12
    1827HB
    $4.00
    Qty Per Unit: 2
  • 13
    14SS
    $1.00
    Qty Per Unit: 4
  • 15
    1220HB
    $4.00
    Qty Per Unit: 1
  • 16
    VD-A
    $6.00
    Qty Per Unit: 1
  • 17
    2-218
    $1.00
    Qty Per Unit: 1
  • 19
    2-222
    $2.00
    Qty Per Unit: 1
  • 23
    VD-1250 BPA
    $979.00
    Qty Per Unit: 1
  • 24
    VD-1
    $40.00
    Qty Per Unit: 1
