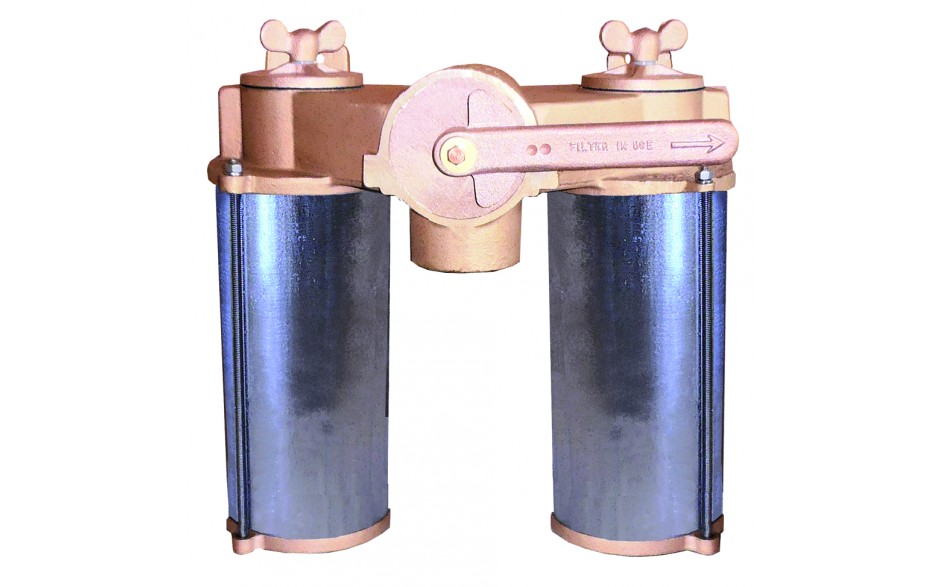

AVD-1000 Series

1" Duplex Strainer

 FEATURES

  • ABS Compliant.
  • C84400 bronze construction.
  • Standard with #304 stainless steel filter basket. (Monel is optional)
  • Monel inside tie rod.
  • Easy service with spin-off-wingnut.
  • Fine mesh filter basket is also available.

Additional Information
Spec Sheet No
Thread NPT 1"
Open Area Ratio 30
Dimensions
Thread NPT1"
A10
B13
C6.8
D3.5
E3.3
Open Area Ratio30
Individual Parts
  • 1
    SVS-5
    $26.00
    Qty Per Unit: 2
  • 2
    500-K
    $1.00
    Qty Per Unit: 2
  • 3
    S-751
    $90.00
    Qty Per Unit: 2
  • 4
    S-751-A
    $4.00
    Qty Per Unit: 2
  • 5
    BS-3
    $73.00
    Qty Per Unit: 1
  • 5
    BM-3
    $204.00
    Qty Per Unit: 1
  • 5
    BP-3
    $69.00
    Qty Per Unit: 1
  • 6
    1420HS
    $1.00
    Qty Per Unit: 4
  • 7
    AS-77
    $254.00
    Qty Per Unit: 1
  • 8
    S-73-X
    $12.00
    Qty Per Unit: 4
  • 9
    S-73-D
    $152.00
    Qty Per Unit: 2
  • 10
    #8R SET
    $19.00
    Qty Per Unit: 2
  • 11
    S-73-A
    $160.00
    Qty Per Unit: 2
  • 12
    1827HB
    $3.00
    Qty Per Unit: 2
  • 13
    14SS
    $1.00
    Qty Per Unit: 4
  • 15
    1220HB
    $5.00
    Qty Per Unit: 1
  • 16
    VD-A
    $9.00
    Qty Per Unit: 1
  • 17
    2-218
    $1.00
    Qty Per Unit: 1
  • 19
    2-222
    $1.00
    Qty Per Unit: 1
  • 23
    VD-1000 BPA
    $1,447.00
    Qty Per Unit: 1
  • 24
    VD-1
    $50.00
    Qty Per Unit: 1
