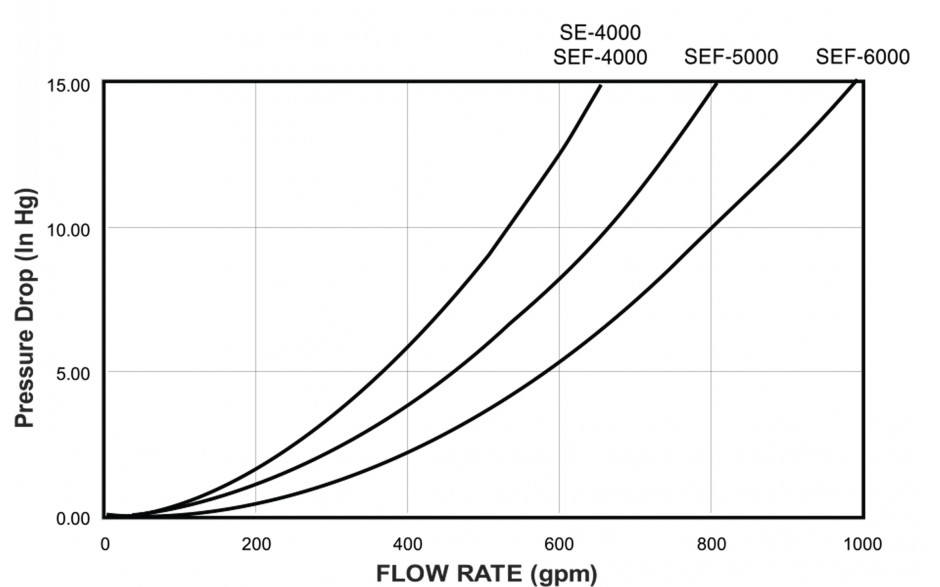

  • flow-chart

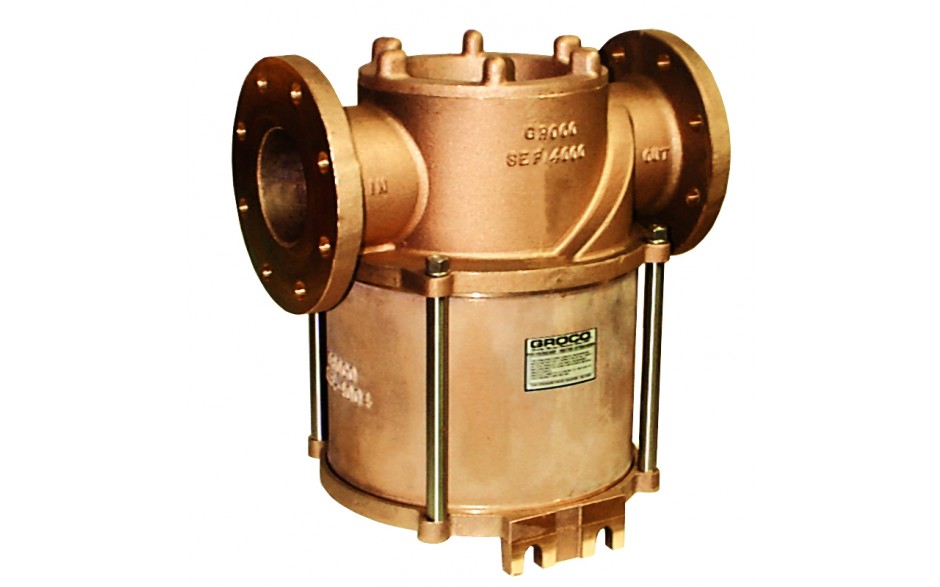

ASEF-4000 Series

4" FLANGE Large Engine Strainer

FEATURES

  • For high-powered engines with  4"", 5"" or 6"" intake.
  • C84400 bronze construction.
  • ABS compliant with cast bronze enclosure.
  • Cap and basket have replaceable zinc anode protection.
  • Low restriction for maximum cooling water flow.
  • No inside tie rods.  Cover unscrews for easy filter basket cleaning.
  • O-rings seal all mating surfaces.
  • All models can be converted to HYDROMATIC (self-cleaning) operation.
  • Improved cylindrical filter basket.
  • #304-SS basket is standard with .077” holes  (.125” and .188” hole sizes are optional).
  • Monel basket is optional.
  • Bronze flange adaptors are available for connecting pipe or hose to flanged strainers.

Additional Information
Spec Sheet No
Thread NPT 4" FLANGE
Open Area Ratio 10

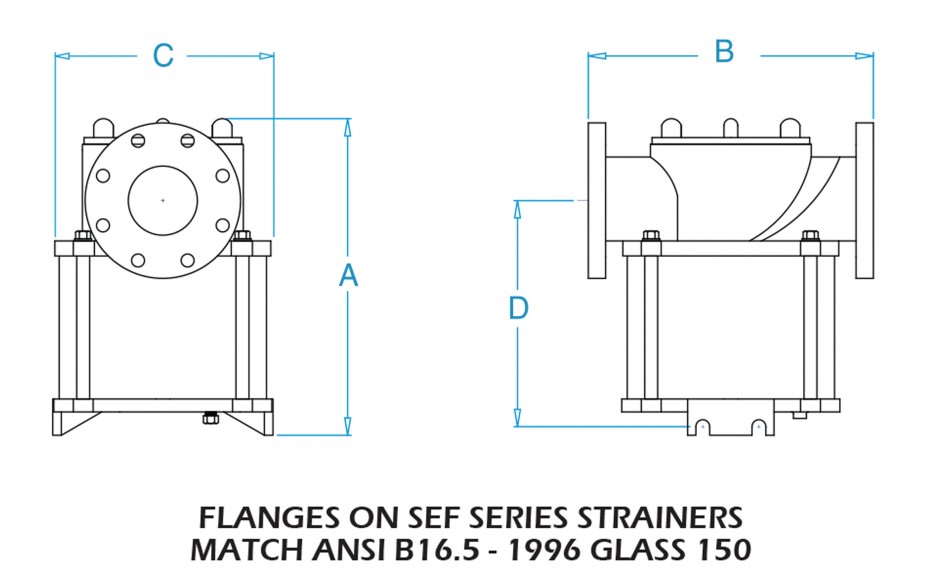

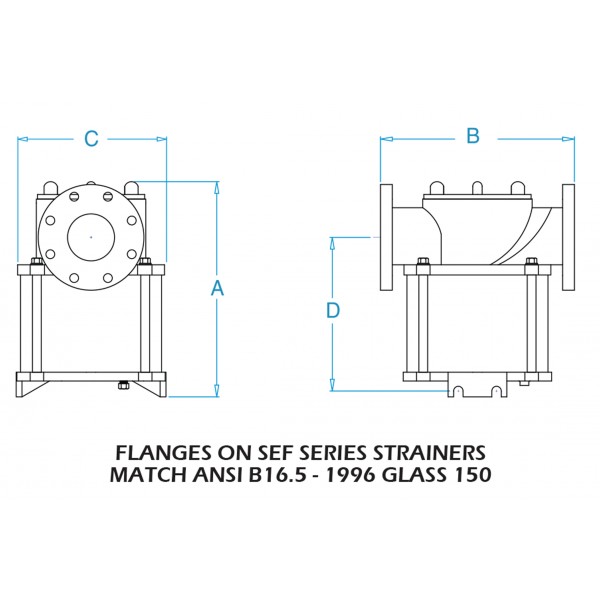

Dimensions
Thread NPT4" FLANGE
A18.4
B16.5
C12.5
D13.1
E -
Open Area Ratio10

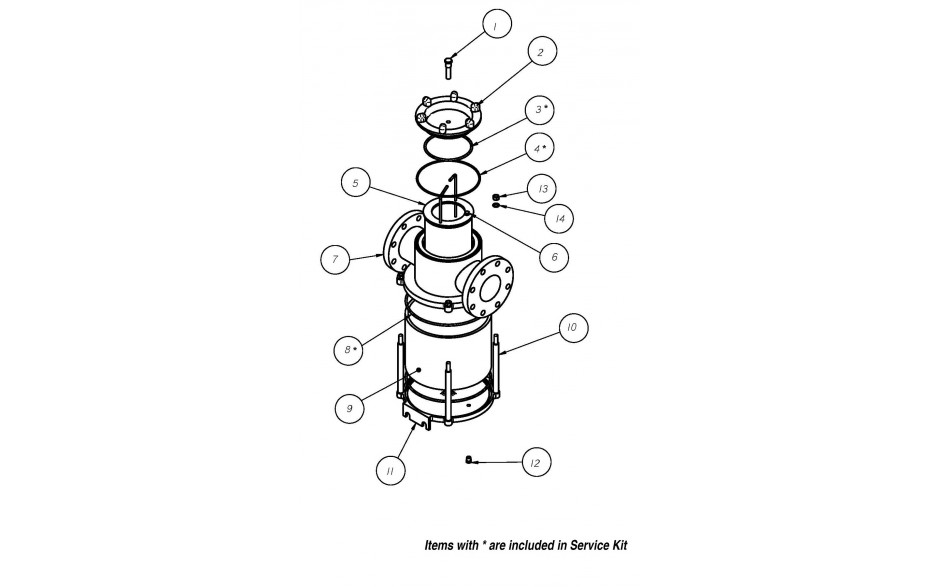

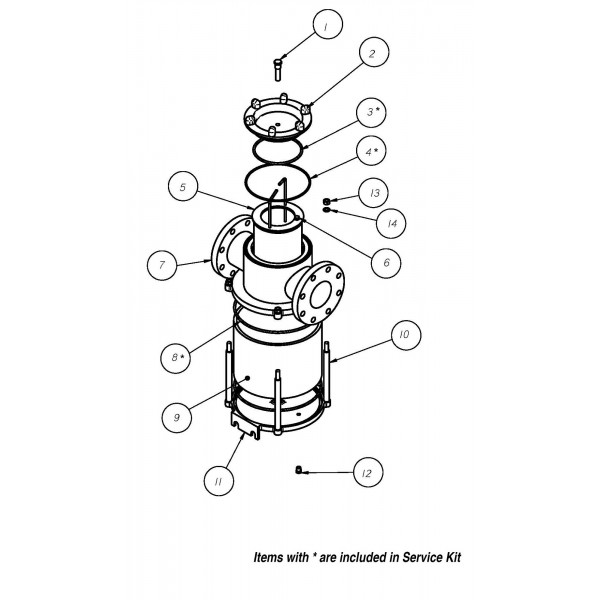

Individual Parts
  • 1
    ZA-2
    $55.00
    Qty Per Unit: 1
  • 2
    SE-4001-A
    $1,316.00
    Qty Per Unit: 1
  • 3
    2-438
    $9.00
    Qty Per Unit: 1
  • 4
    2-371
    $9.00
    Qty Per Unit: 1
  • 5
    SSE-4003-1
    $798.00
    Qty Per Unit: 1
  • 5
    SE-4003-2
    $677.00
    Qty Per Unit: 1
  • 5
    SE-4003-1
    $1,572.00
    Qty Per Unit: 1
  • 5
    SSE-4003-2
    $913.00
    Qty Per Unit: 1
  • 5
    SE-4003-3
    $747.00
    Qty Per Unit: 1
  • 5
    SSE-4003-3
    $845.00
    Qty Per Unit: 1
  • 6
    ZA-1
    $34.00
    Qty Per Unit: 1
  • 7
    SEF-4010-H
    $9,856.00
    Qty Per Unit: 1
  • 8
    2-452
    $16.00
    Qty Per Unit: 2
  • 9
    ASE-4004
    $3,430.00
    Qty Per Unit: 1
  • 10
    SE-4005-1
    $179.00
    Qty Per Unit: 4
  • 11
    SE-4002
    $1,842.00
    Qty Per Unit: 1
  • 12
    1418HB
    $7.00
    Qty Per Unit: 1
  • 13
    1213HS
    $2.00
    Qty Per Unit: 2
  • 14
    12SS
    $2.00
    Qty Per Unit: 2
  • 15
    SE
    $66.00
    Qty Per Unit: 1
