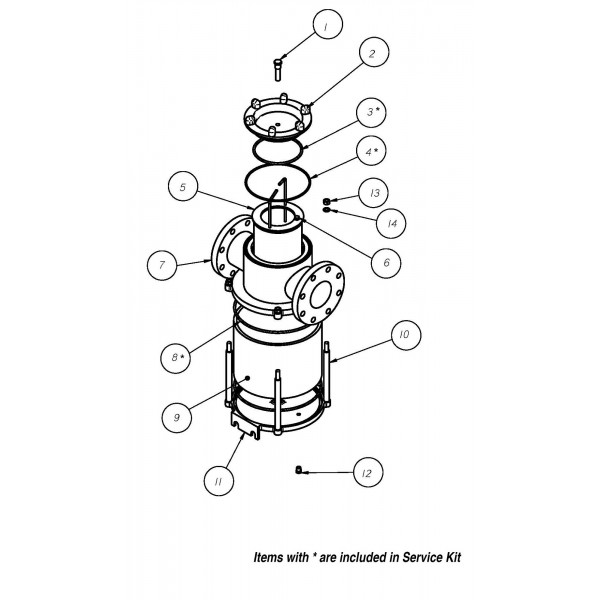

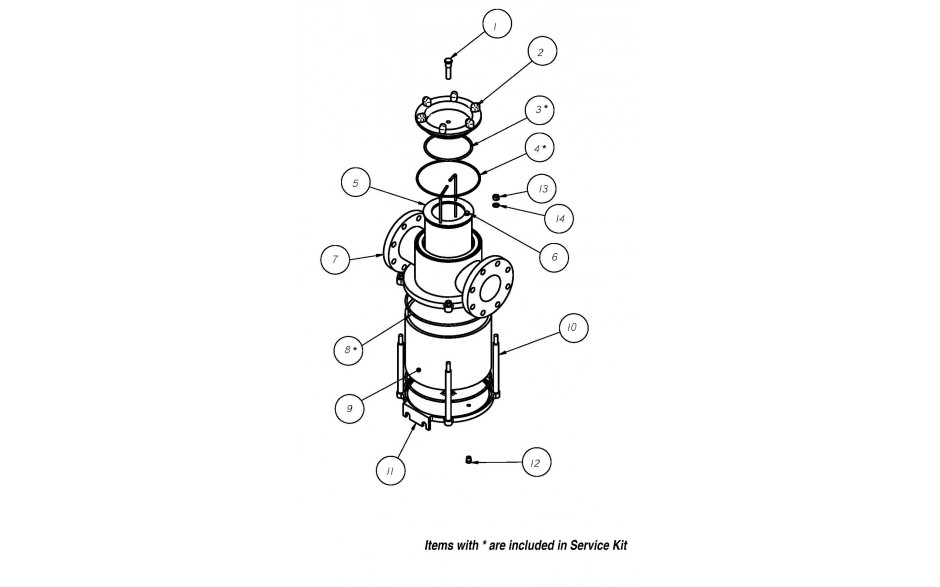

  • exploded

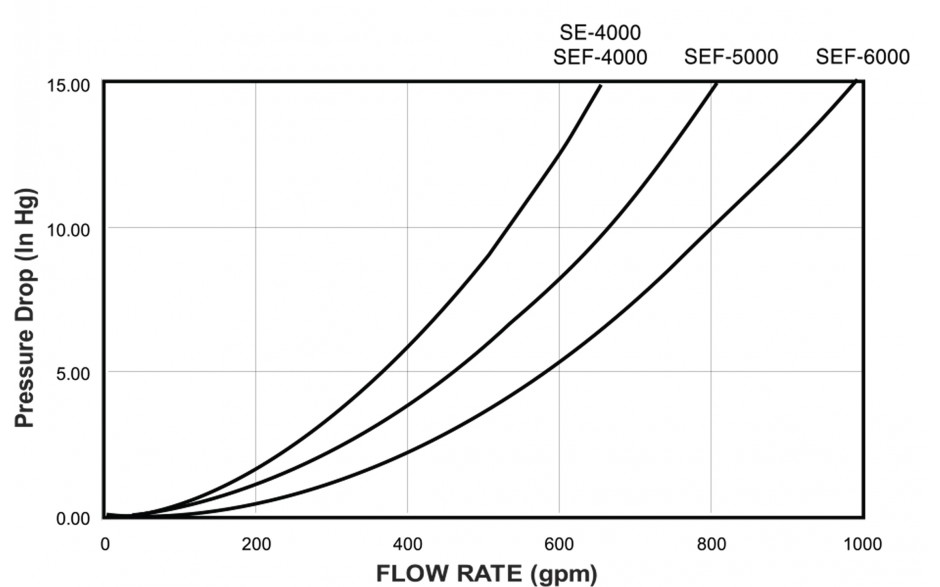

  • flow-chart

ASE-4000-M

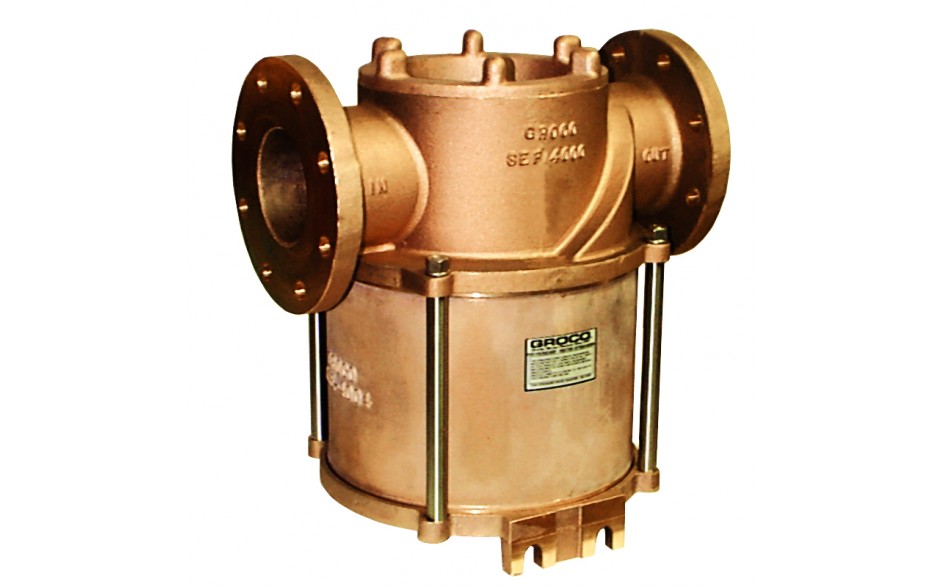

4" Large Engine Strainer with Monel Basket

FEATURES

  • For high-powered engines with  4"", 5"" or 6"" intake.
  • C84400 bronze construction.
  • ABS compliant with cast bronze enclosure.
  • Cap and basket have replaceable zinc anode protection.
  • Low restriction for maximum cooling water flow.
  • No inside tie rods.  Cover unscrews for easy filter basket cleaning.
  • O-rings seal all mating surfaces.
  • All models can be converted to HYDROMATIC (self-cleaning) operation.
  • Improved cylindrical filter basket.
  • #304-SS basket is standard with .077” holes  (.125” and .188” hole sizes are optional).
  • Monel basket is optional.
  • Bronze flange adaptors are available for connecting pipe or hose to flanged strainers.

Additional Information
Spec Sheet No
Basket Type Monel
Thread NPT 4"
Open Area Ratio 10

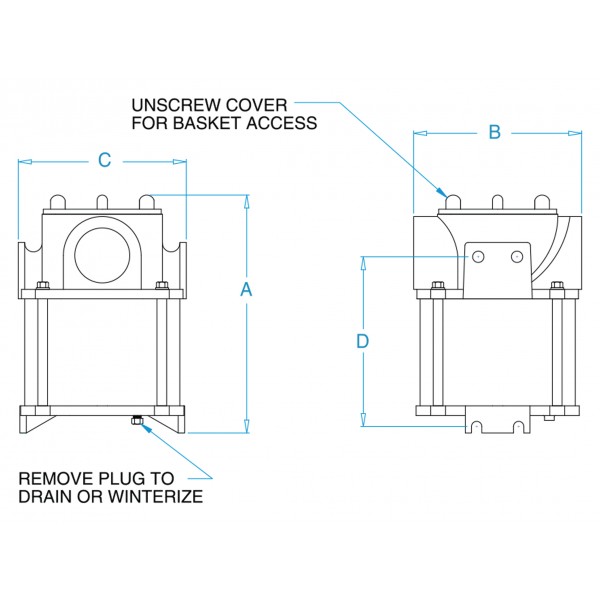

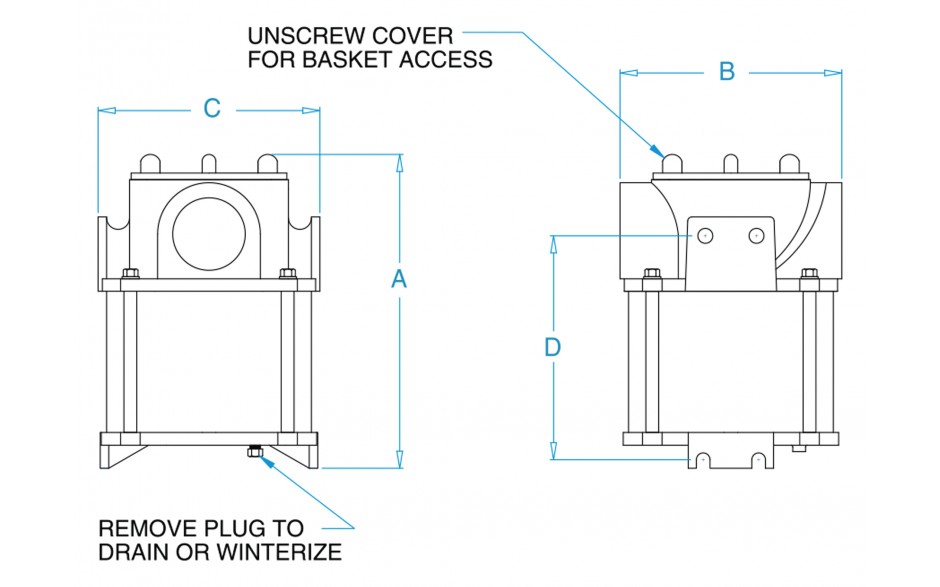

Dimensions
Thread NPT4"
A18.4
B13
C13
D13.1
E -
Open Area Ratio10
