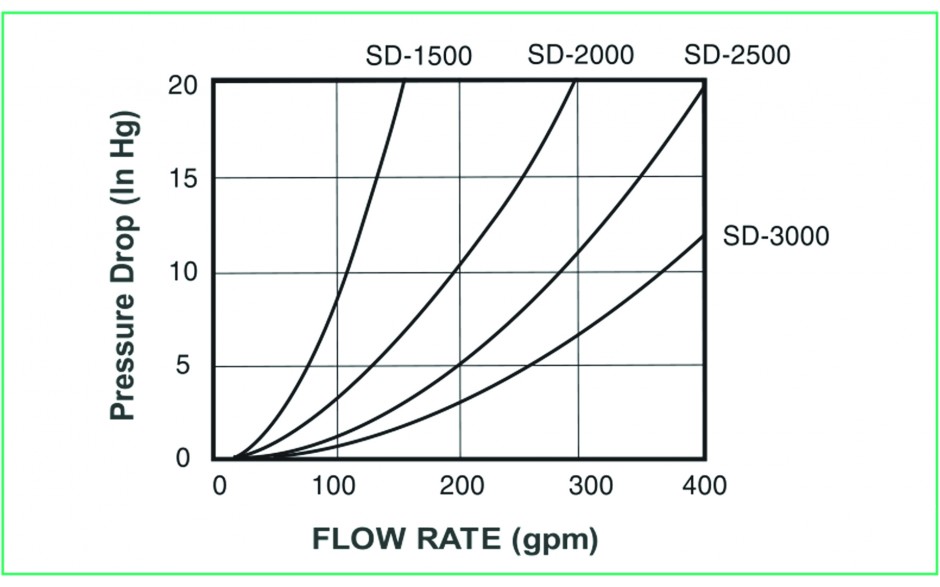

  • flow-chart

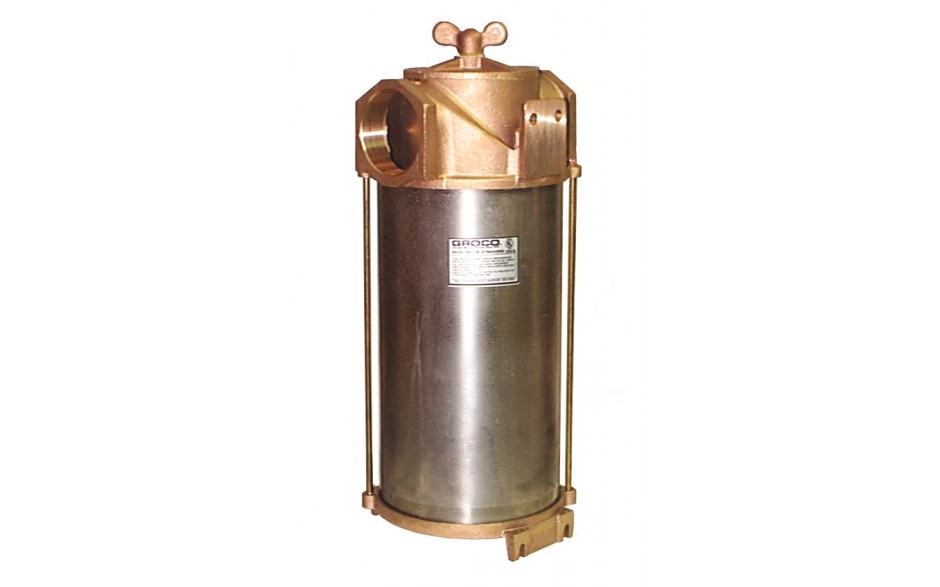

ASD-2500 Series

2-1/2" High Capacity Raw Water Strainer

FEATURES

  • Greater filtering capacity than GROCO ARG or SA model strainers.
  • Improved cylindrical filter basket.
  • Improved design secures filter basket under all flow conditions.
  • O-rings seal all mating surfaces.
  • Monel inside tie rod.
  • C84400 bronze construction.
  • #316 SS Enclosure for ABS compliance
  • Easy service is provided by the spin-off wingnut.
  • UL Listed 255D

Additional Information
Spec Sheet No
Thread NPT 2-1/2"
Open Area Ratio 16

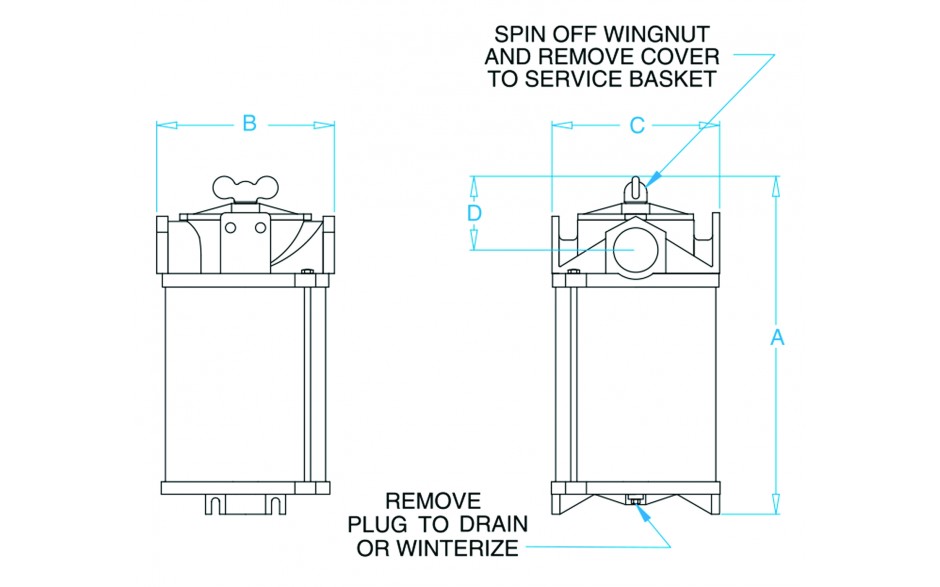

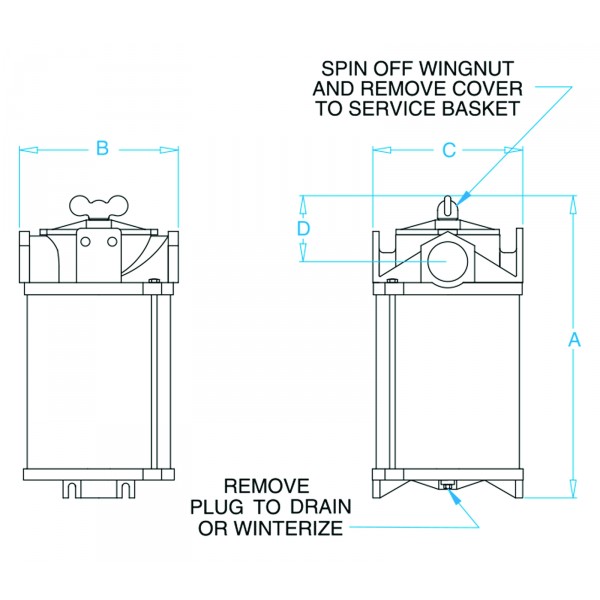

Dimensions
Thread NPT2-1/2"
A20.4
B8.9
C8.4
D4.4
E -
Open Area Ratio16
dimensions image
 Download Image  Open in New Window

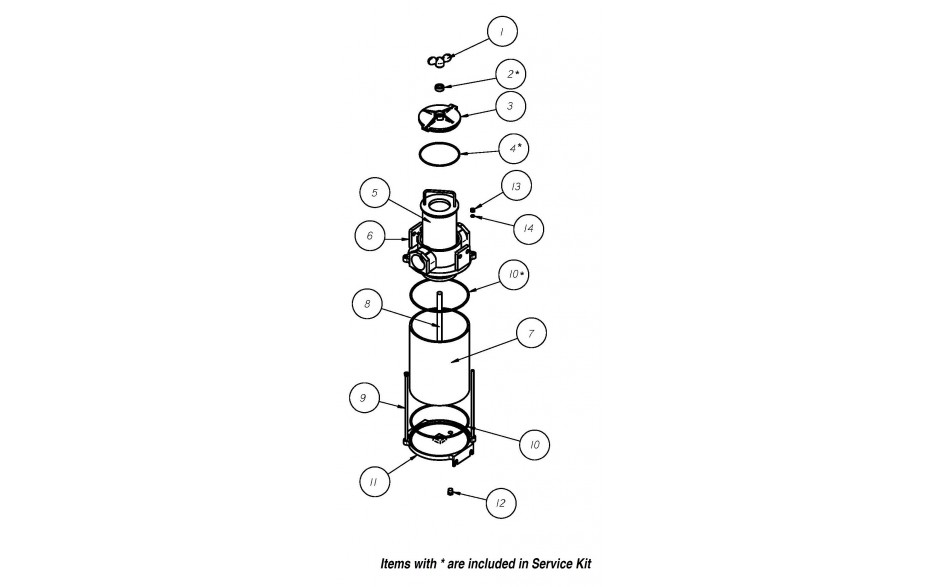

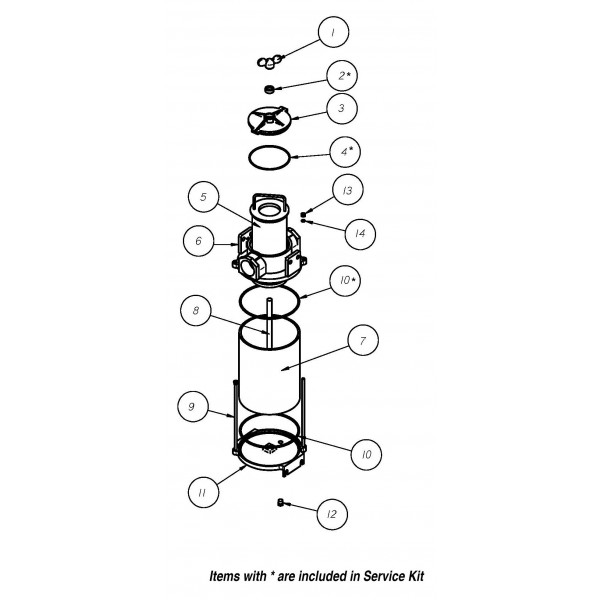

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    S-85
    $69.00
    Qty Per Unit: 1
  • 2
    SD-11
    $7.00
    Qty Per Unit: 1
  • 3
    SD-14
    $351.00
    Qty Per Unit: 1
  • 4
    2-251
    $4.00
    Qty Per Unit: 1
  • 5
    SD-17-A
    $944.00
    Qty Per Unit: 1
  • 5
    SSD-17-A
    $429.00
    Qty Per Unit: 1
  • 6
    SD-2500-H
    $1,649.00
    Qty Per Unit: 1
  • 7
    ASD-21-A
    $2,965.00
    Qty Per Unit: 1
  • 8
    SD-15-A
    $349.00
    Qty Per Unit: 1
  • 9
    SD-20-A
    $18.00
    Qty Per Unit: 2
  • 10
    2-367
    $8.00
    Qty Per Unit: 2
  • 11
    SD-16
    $550.00
    Qty Per Unit: 1
  • 12
    1418HB
    $7.00
    Qty Per Unit: 1
  • 13
    51618HS
    $1.00
    Qty Per Unit: 2
  • 14
    516SS
    $1.00
    Qty Per Unit: 2
  • 15
    SD
    $45.00
    Qty Per Unit: 1
