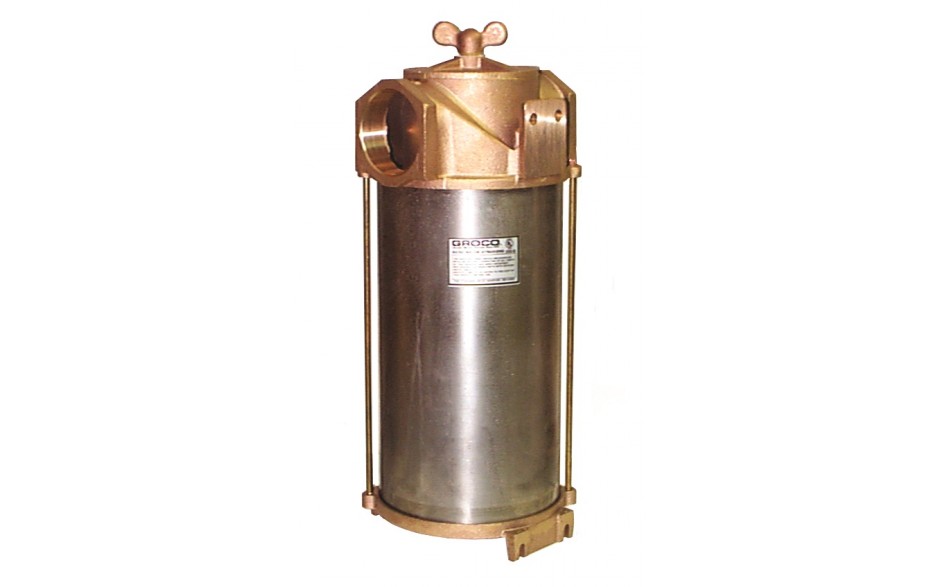

ASD-2000

2" High Capacity Raw Water Strainer with Monel Basket

FEATURES

  • Greater filtering capacity than GROCO ARG or SA model strainers.
  • Improved cylindrical filter basket.
  • Improved design secures filter basket under all flow conditions.
  • O-rings seal all mating surfaces.
  • Monel inside tie rod.
  • C84400 bronze construction.
  • #316 SS Enclosure for ABS compliance
  • Easy service is provided by the spin-off wingnut.
  • UL Listed 255D

Additional Information
Spec Sheet No
Basket Type Monel
Thread NPT 2"
Open Area Ratio 22

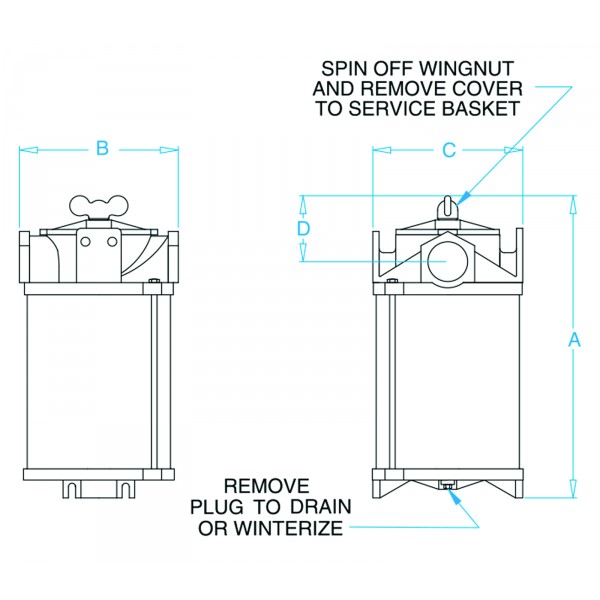

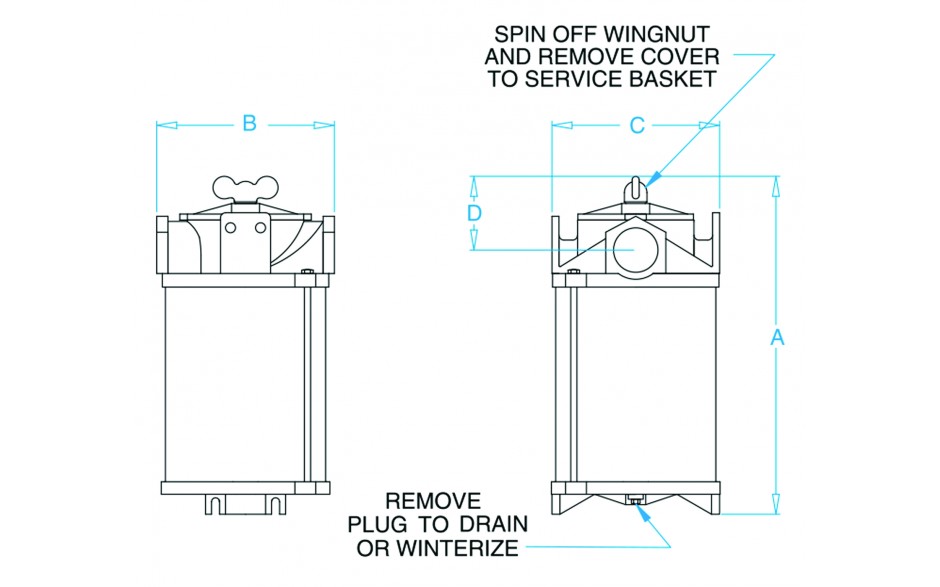

Dimensions
Thread NPT2"
A17
B8.9
C8.4
D3.6
E -
Open Area Ratio22
dimensions image
 Download Image  Open in New Window
Individual Parts

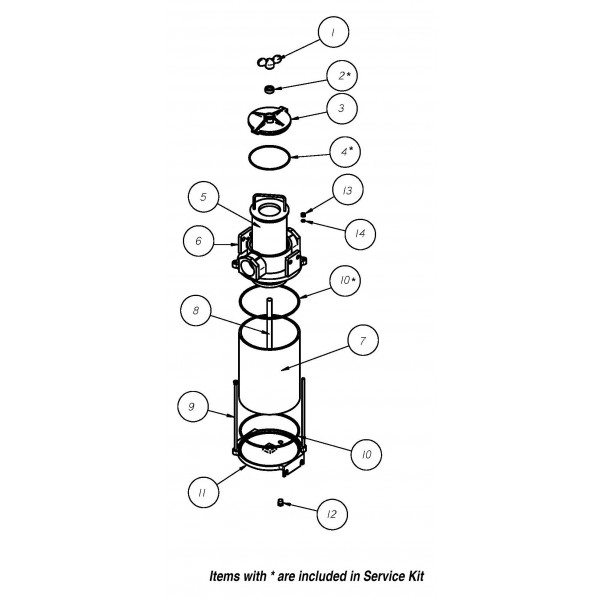

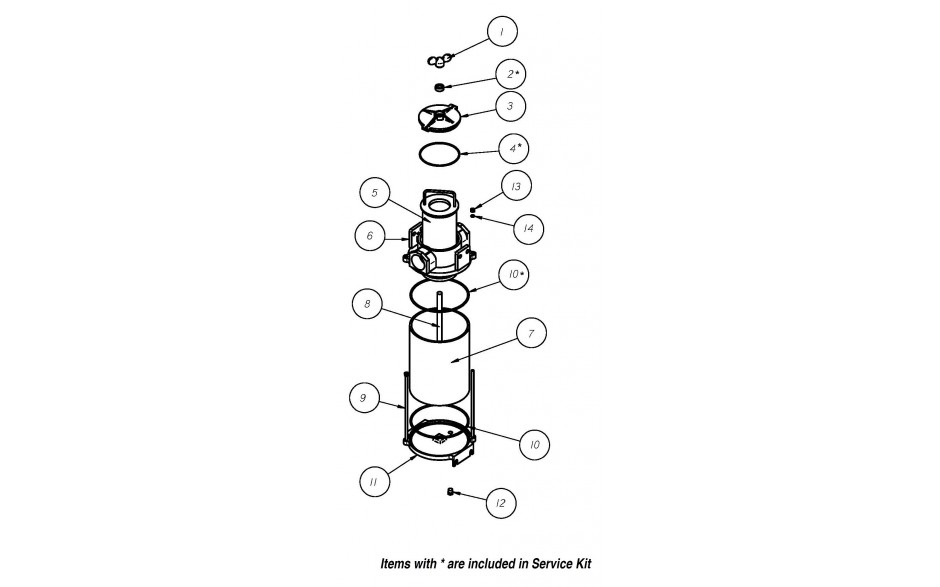

exploded image
 Download Image  Open in New Window
  • 1
    S-85
    $77.00
    Qty Per Unit: 1
  • 2
    SD-11
    $11.00
    Qty Per Unit: 1
  • 3
    SD-14
    $403.00
    Qty Per Unit: 1
  • 4
    2-251
    $4.00
    Qty Per Unit: 1
  • 5
    SD-17
    $875.00
    Qty Per Unit: 1
  • 6
    SD-2000-H
    $1,515.00
    Qty Per Unit: 1
  • 7
    ASD-21
    $1,898.00
    Qty Per Unit: 1
  • 8
    SD-15
    $458.00
    Qty Per Unit: 1
  • 9
    SD-20
    $19.00
    Qty Per Unit: 2
  • 10
    2-367
    $8.00
    Qty Per Unit: 2
  • 11
    SD-16
    $631.00
    Qty Per Unit: 1
  • 12
    1418HB
    $12.00
    Qty Per Unit: 1
  • 13
    51618HS
    $1.00
    Qty Per Unit: 2
  • 14
    516SS
    $1.00
    Qty Per Unit: 2
  • 15
    SD
    $51.00
    Qty Per Unit: 1
