ASA-500

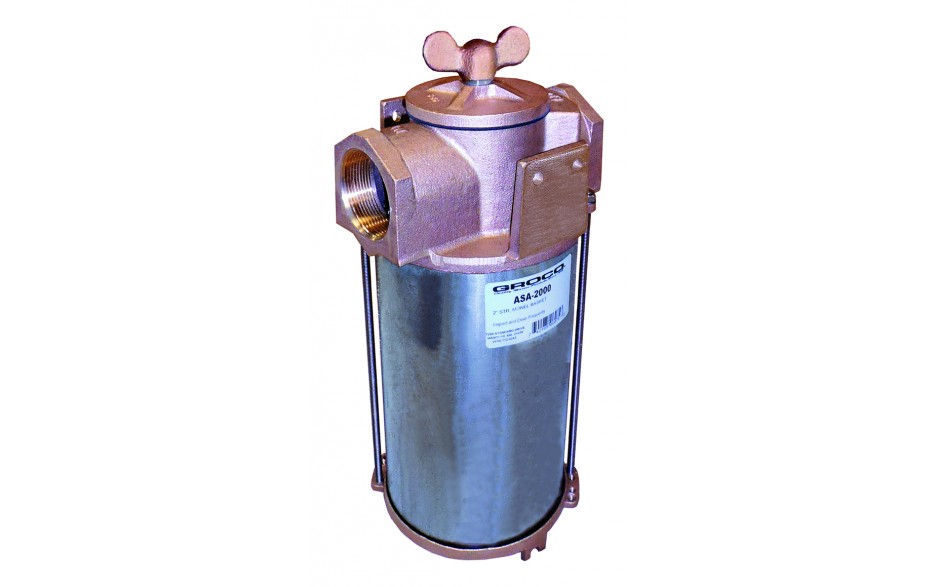

 1/2" Raw Water Strainer with Monel Basket

 FEATURES

  • Standard with #304 stainless steel filter basket. (Monel is optional)
  • Monel inside tie rod and #316 Stainless Steel outer tie rods.
  • Easy service with spin-off-wingnut.
  • C84400 bronze construction.
  • #316 SS Enclosure for ABS compliance
  • Fine mesh filter baskets are also available.

Additional Information
Spec Sheet No
Basket Type Monel
Thread NPT 1/2"
Open Area Ratio 54
Dimensions
Thread NPT1/2"
A7.8
B4.5
C4
D2.3
E -
Open Area Ratio54
Individual Parts
  • 1
    SVS-5
    $26.00
    Qty Per Unit: 1
  • 2
    500-K
    $1.00
    Qty Per Unit: 1
  • 3
    S-64
    $45.00
    Qty Per Unit: 1
  • 4
    S-64-A
    $3.00
    Qty Per Unit: 1
  • 5
    BM-1
    $126.00
    Qty Per Unit: 1
  • 6
    S-500-A
    $261.00
    Qty Per Unit: 1
  • 7
    AS-70
    $107.00
    Qty Per Unit: 1
  • 8
    S-65
    $112.00
    Qty Per Unit: 1
  • 9
    S-66
    $10.00
    Qty Per Unit: 2
  • 10
    #9R SET
    $18.00
    Qty Per Unit: 2
  • 11
    S-63-A
    $99.00
    Qty Per Unit: 1
  • 12
    1827HB
    $3.00
    Qty Per Unit: 1
  • 13
    1420HS
    $1.00
    Qty Per Unit: 2
  • 14
    14SS
    $1.00
    Qty Per Unit: 2
  • 15
    SA-1
    $34.00
    Qty Per Unit: 1
